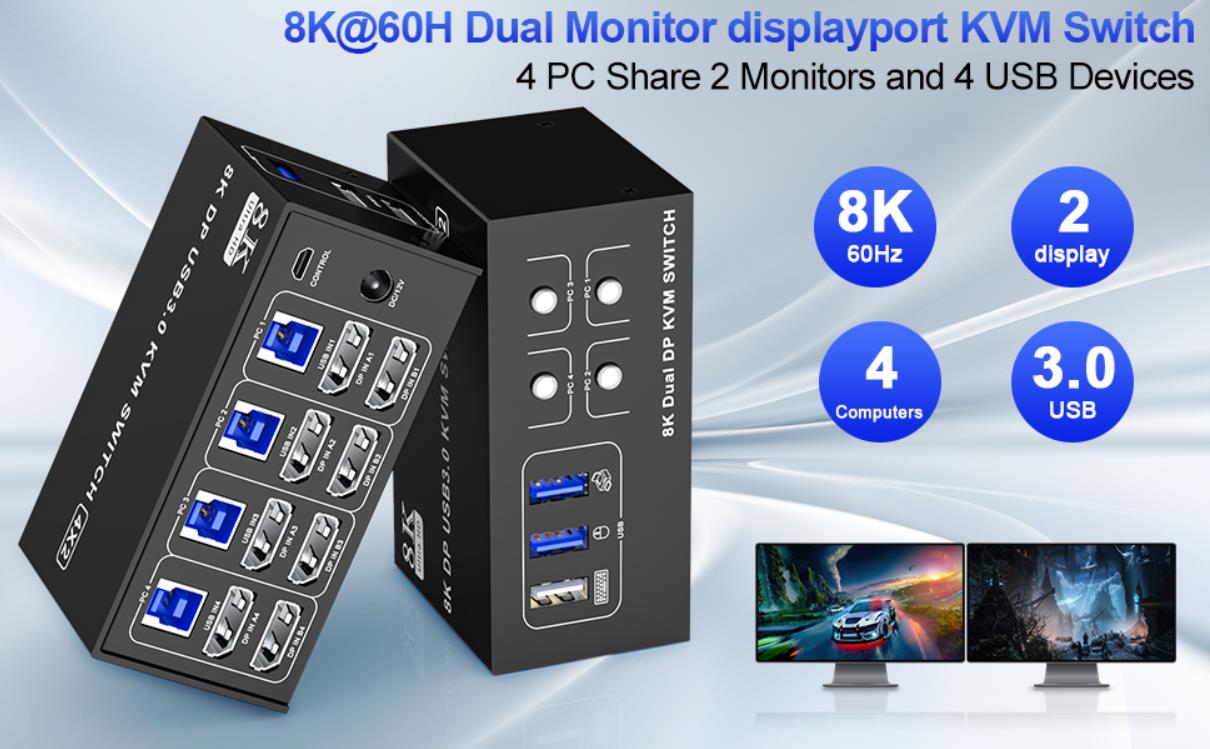

Features:

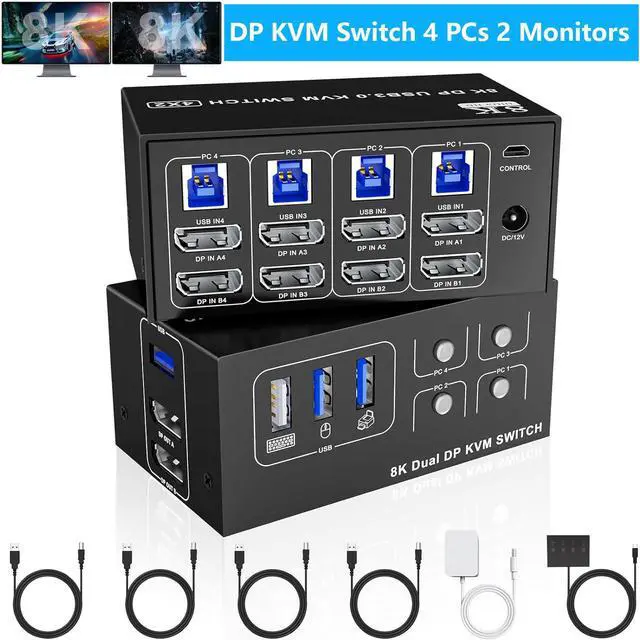

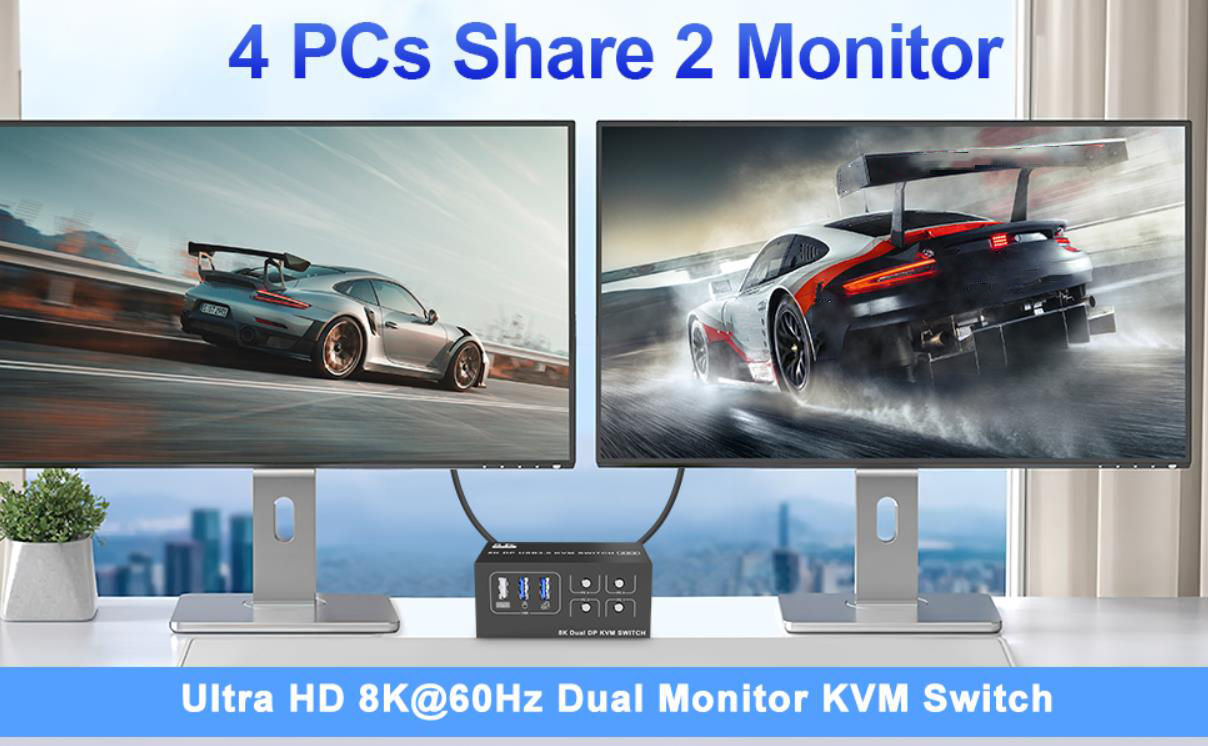

1. 8K DisplayPort KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 2 (DisplayPort+ DisplayPort) monitors

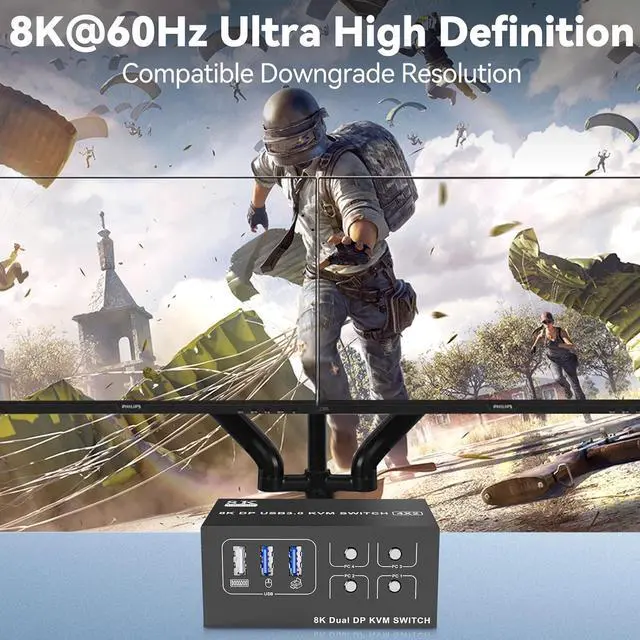

2. Dual monitors output support up to 8K@60Hz/4K@144Hz, Ultra HD, HDR 10, Dolby vision, 3D effect.
3. Support DP 1.4 , transfer rates up to 32.4Gbps, backwards compatible with DP 1.2
4. Dual monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card.);

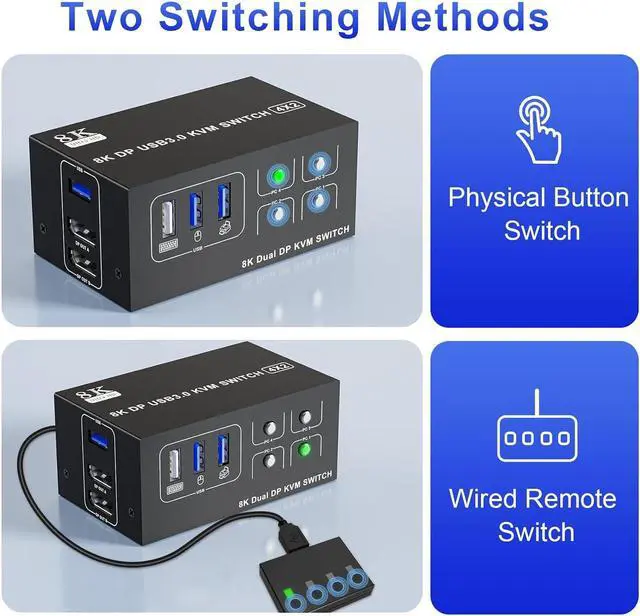

5. Two Switching modes: Button switch and wired remote.
6. With extra 4 USB ports.
7. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS
8. The ports that need to plug in DisplayPort/USB cables are all hidden behind the dual monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.

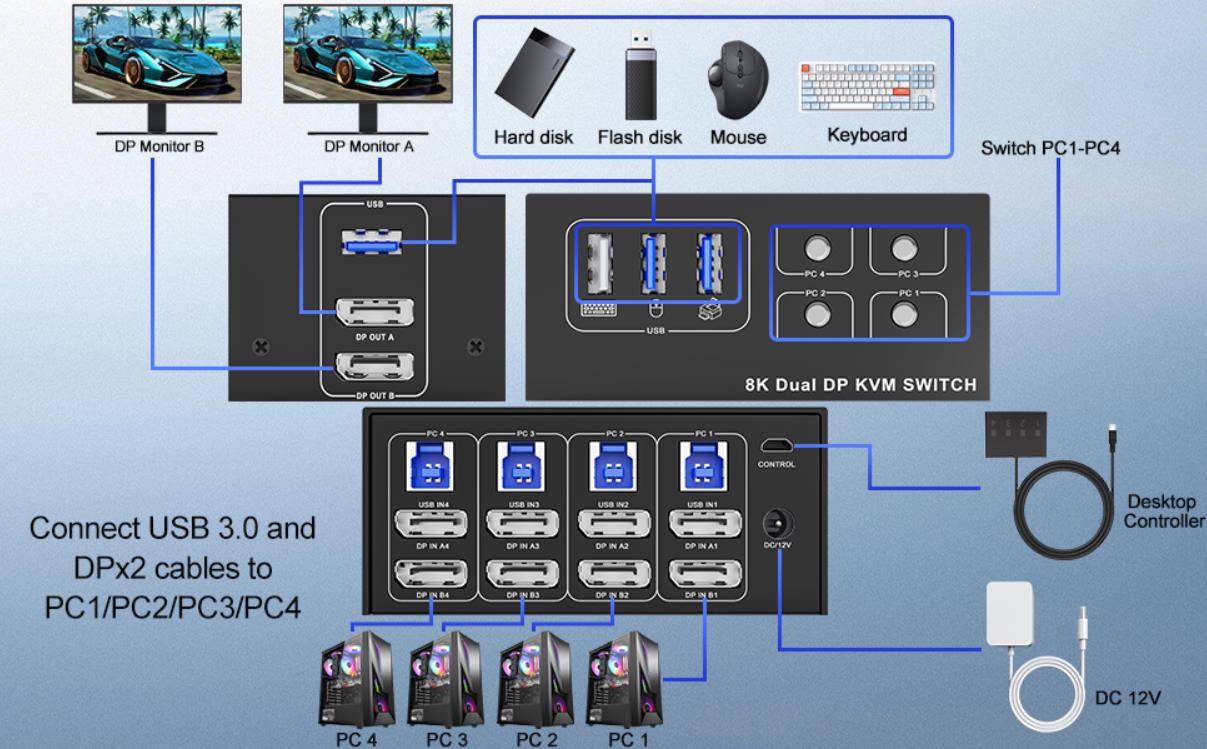

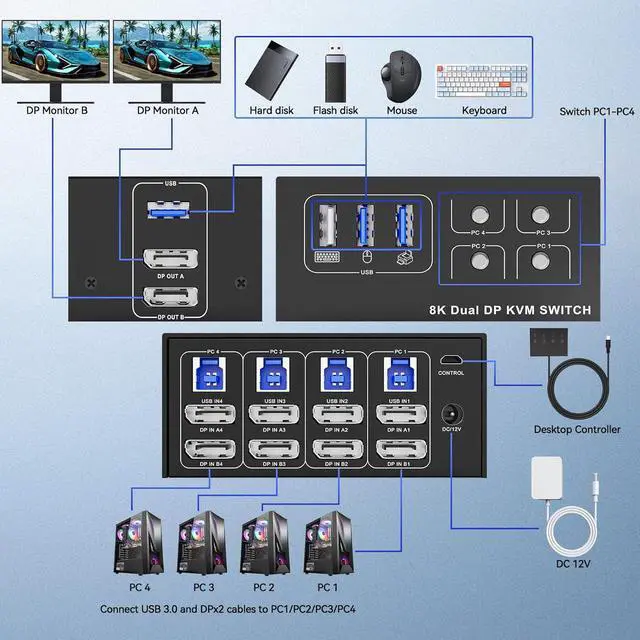

1. Insert the adapter into the KVM ;
2. Plug the 2*Displayport cable into the KVM switch and monitor;(Output)
3. Plug the Displayport cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)
- DP IN1 A + DP IN1 B + USB IN1=PC1
- DP IN2 A + DPIN2 B + USB IN2=PC2
- DP IN3 A + DPIN3 B + USB IN3=PC3
- DP IN4 A + DPIN4 B + USB IN4=PC4
- Please check whether DP IN 1A, DP IN 1B and USB IN 1 are corresponding, and whether DP IN 2A, DP IN 2B and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.
4. Insert the mouse and keyboard into the KVM switch
Note:
- 1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 2 DP cables+1 USB cable connected to the KVM.
- 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.

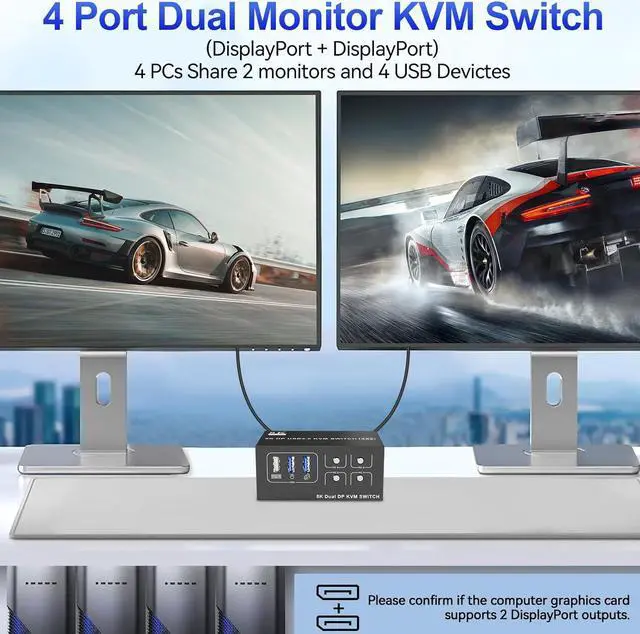

- 3. Before purchasing this DP Dual Monitor KVM Switch, please make sure that your computer supports direct connection of two DP monitors to work properly, otherwise the KVM will not work.
- 4. Note: DP cables are not included
- Supports up to 8K@60Hz/4K@144Hz, Ultra HD, HDR 10, Do-lb-y vision, 3D effect.
- Support DP 1.4 , transfer rates up to 32.4Gbps, backwards compatible with DP 1.2
- Note: Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz you can get the 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

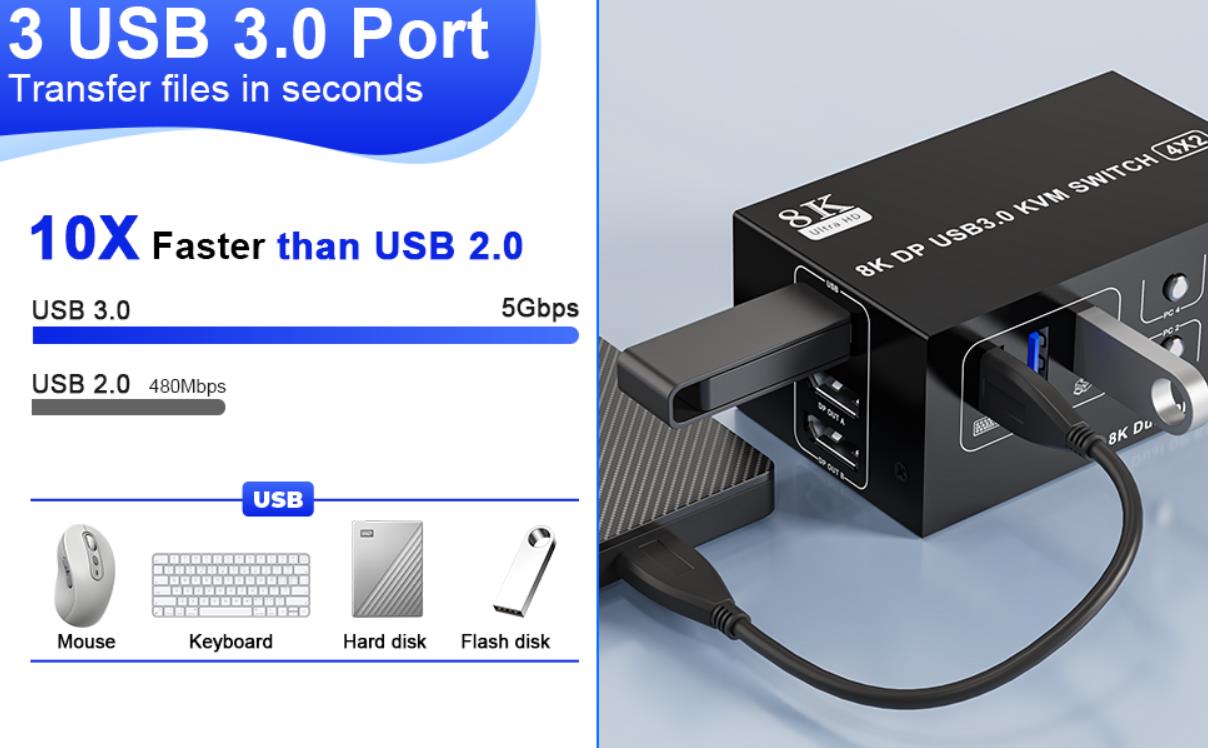

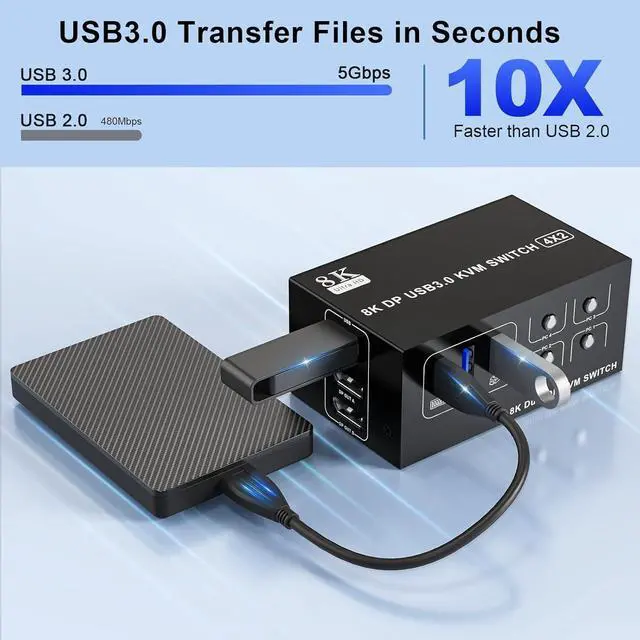

Dual monitor Displayport KVM switch with 4 USB ports which can recognize keyboard,mouse,printer and other USB devices. Plug and play without any software needed. The transmission speed of USB3.0 is as high as 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps

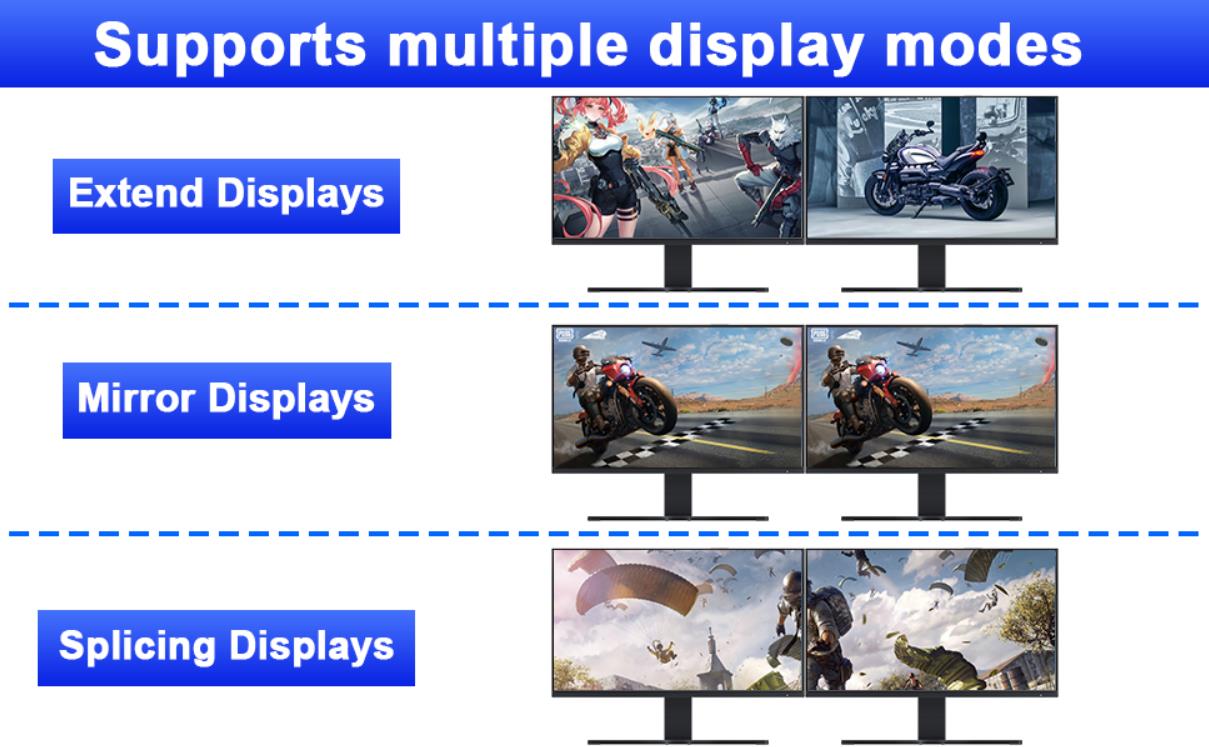

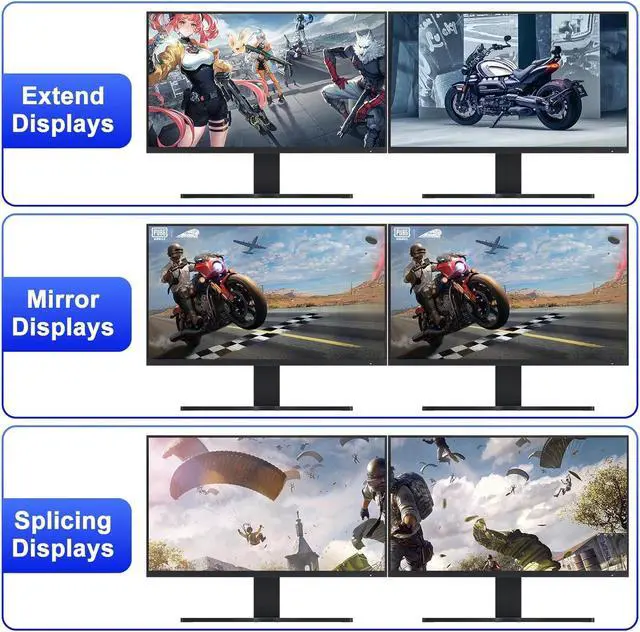

- Extended Display
- Mirrored Display
- Spliced Display
- 1)Extended mode can output two different screens and mirror mode can output two identical screens. Note:If your graphics card has a splicing screen function, you can use the splicing screen mode.
- 2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.

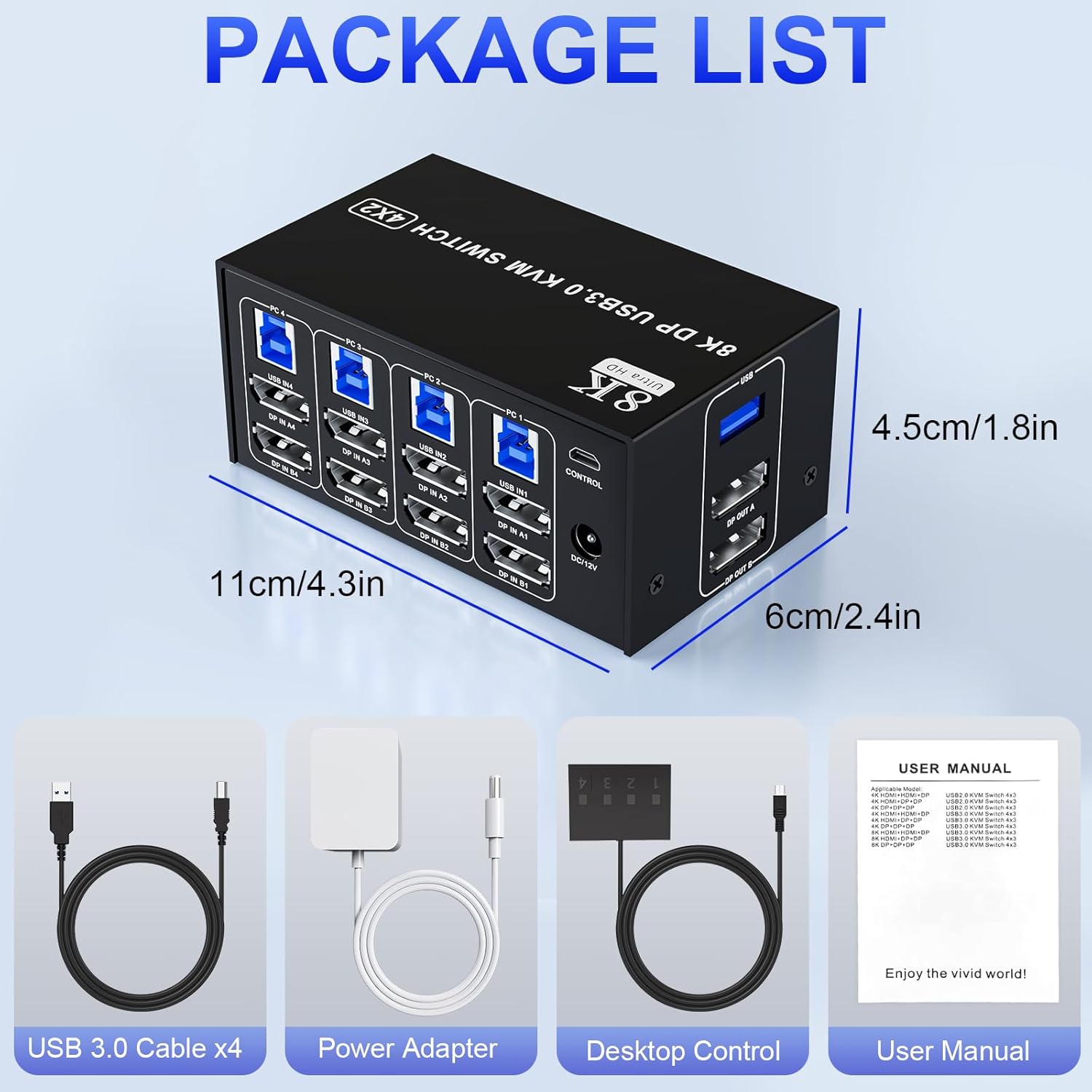

- 1x 4 Port 8K USB 3.0 DisplayPort KVM Switch,
- 4 x USB 3.0 Cables,
- 1x Power Adapter,
- 1x Wired Button Contorller,
- 1x User's manual
- Important: After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. hotkey switching is not supported
