Advantages:
- Two computers share a set of wired/wireless keyboard, mouse and two monitors.
- Dual monitor output supports extended and mirrored display.

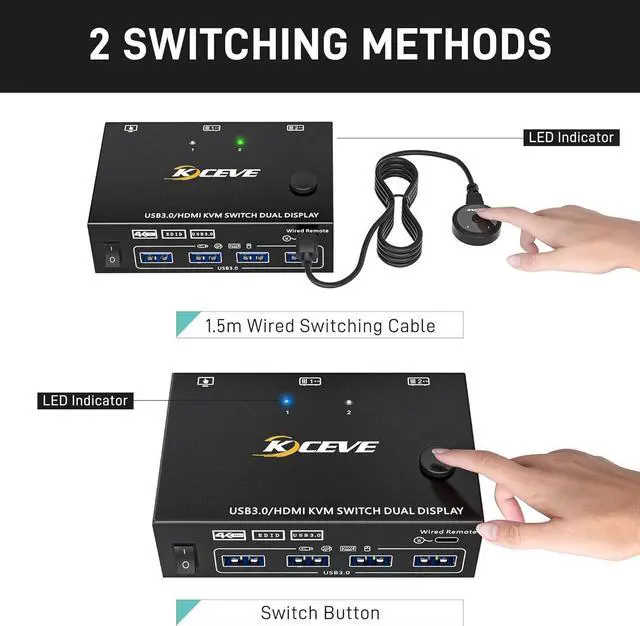

- Switching modes: Button switch and cable remote control.
- Supports wired or wireless keyboard and mouse.
- Cross supports most popular operating systems, including Windows, Linux and Mac.
- With 4 USB 3.0 ports for USB devices.
- Supports maximum resolution 4K@60Hz, 2560×1440@120Hz, @144Hz, 1920x1080P@120Hz, @144Hz, compatibel.
- Support EDID emulation, USB 3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between two computers, the original window order will not be changed.
Support extended and mirror display, whether in office work, gaming or learning, this dual monitor KVM switch allows you to view extra screen.

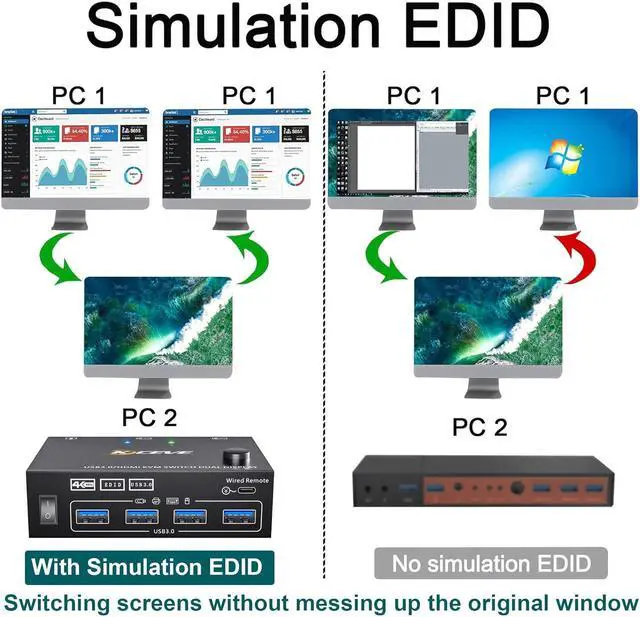

Support EDID emulation
The 2 monitors KVM switch can automatically simulate the EDID and HDCP information of two connected monitors,the computer will read the EDID stored in the DDC memory of the monitor through the DDC channel, when the monitor is switched between two computers, the original window order will not be changed and maximize your productivity.

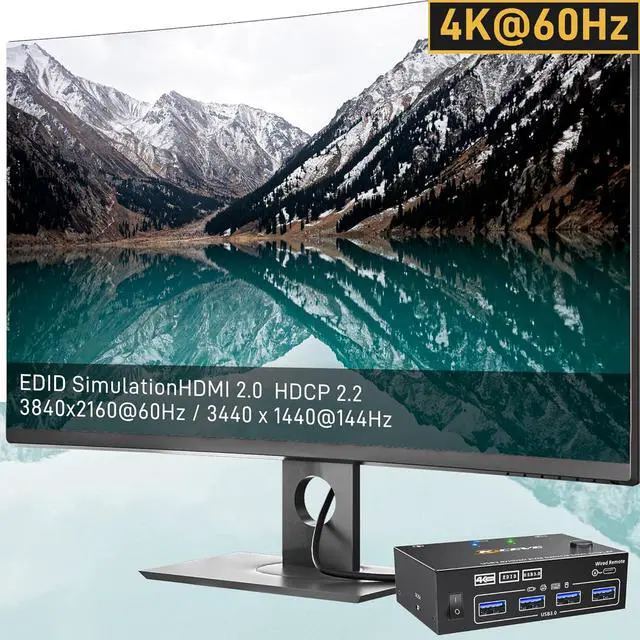

4K HD Resolution
Support 4K@60Hz, 1920x1080P@60Hz @120Hz,@144Hz and backward compatible with lower resolutions.

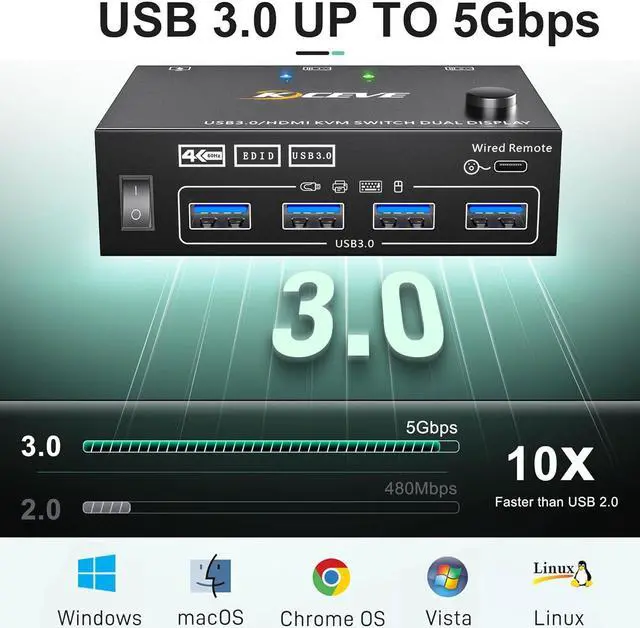

4-Port USB 3.0 with 5Gbps
Supports 5Gbps data transfer speed , can transfer files in Seconds,Much faster than USB 2.0.
Simulated EDID
USB3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between two computers, the original window order will not change.

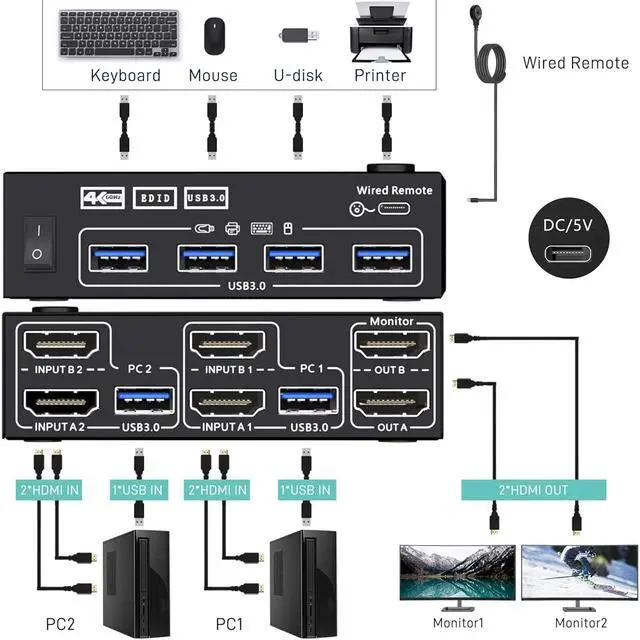

Each PC needs 2 HDMI cables + 1 USB 3.0 cable to connect with the KVM to ensure the keyboard, mouse and 2 monitors work properly.
Connection steps:
Step 1. Connect 2*HDMI cables+1*USB cable between PC 1 and KVM (USB 3.0, INPUT A1, INPUT B1).
Step 2. Connect 2*HDMI cables+1*USB cable between PC 2 and KVM (USB 3.0, INPUT A2, INPUT B2).
Step 3. Connect 2*HDMI cables between the KVM (OUT A, OUT B) and the monitors.
Step 4. Connect the keyboard,mouse and other USB devices to the USB3.0 ports on the KVM.
Step 5. Insert the wired remote to remotely switch between PC1 and PC2.
***Notice***
1.After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. Otherwise, only one of the two connected monitors has an image.
2.Most of the reasons why only one video output works is because of incorrect connection. Please make sure each computer have(2 HDMI cables+1 USB cable) connect to the KVM.
DC5V power port (optional)
When using a high-power USB device, please plug it in to provide sufficient power.(Power adapter not included)
Wired remote(1.5m)
Wired remote that supports remote switching for easy management of desktop cables.
One-click to turn on/off
Simply use the on/off button on the KVM when not in use, no need to unplug the cables.
The windows OS can expand 2 different screens, while the Mac OS can only expand 2 identical screens.
***Notice***
- This Dual Monitor KVM Switch requires 2* HDMI+1*USB input for each PC and 2* HDMI output for monitors. for PCs which do not have 2 HDMI output, it support USB-C/DP to HDMI converter and USB-C docking station
- The two monitors can only output the video source from one PC (mirror mode or expansion mode), and cannot output the signal source of PC1 and PC2 at the same time.
- Most of the reasons why only one video output works is because of incorrect connection. Please make sure each computer have(2 HDMI cables+1 USB cable) connect to the KVM.
Different from other brands of KVM, this KVM supports EDID emulation. After switching, the windows will remain in their original arrangement and will not go over to the primary monitor and minimized. You can switch quickly and maintain efficient in workflow without having to rearrange windows.
| Video Signal | HDMI: HDMI with 4K@60Hz 4:4:4, HDCP 2.2 |
|---|---|
| USB Data | USB 3.0, up to 5Gbps data transfer rate. |
| Max Data Rate | 18 Gbps |
| Input/Output Resolution | Test results from Our laboratory with (graphics card: RTX 3080, monitor: 3440x1440) |
| @60Hz | 720×480, 720×576, 1176×664, 1280x720P, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1366×768, 1440×900, 1600×900, 1600×1024, 1600×1200, 1680×1050, 1920×1200, 1920×1440, 2048×1536, 2560×1600, 3440×1440, 3840×2160, 4096×2160 |
| @75Hz | 800×600, 1024×768, 1152×864 |
| @60Hz, @120Hz, @144Hz | 1920x1080P, 2560x1080P, 2560×1440, 3840×1080 |
| Device Dimensions (W x H x D) | 100mm x 30mm x65mm/ 3.94" x 1.18" x 2.56" |
| Product Weight | 0.63kg/1.39lbs |
