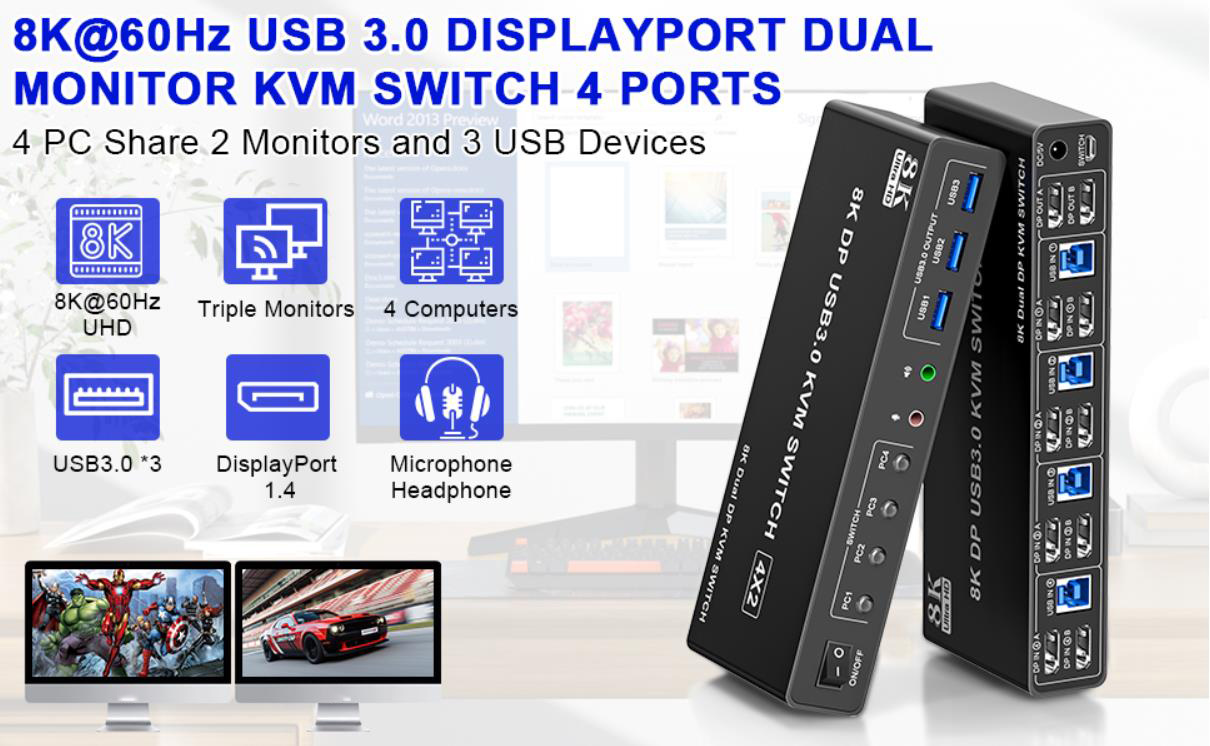

8K@60Hz 4 Port Dual Monitor Displayport USB 3.0 KVM Switch 4 computers share 2 monitors and 3 USB3.0 devices
Features:

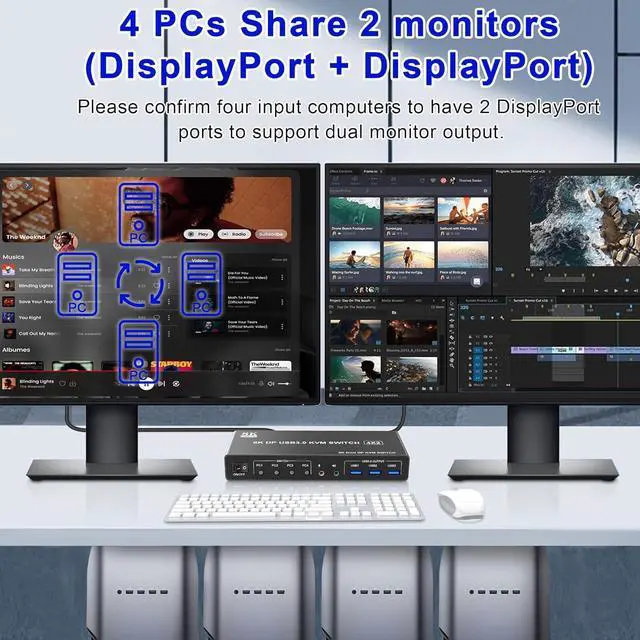

- 8K DisplayPort KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 2 monitors (DisplayPort+ DisplayPort)
- Dual monitors output support up to 8K@60Hz/4K@144Hz, Ultra HD, HDR 10, Dolby vision, 3D effect.
- Support DP 1.4 , transfer rates up to 32.4Gbps, backwards compatible with DP 1.2
- Dual monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card.);

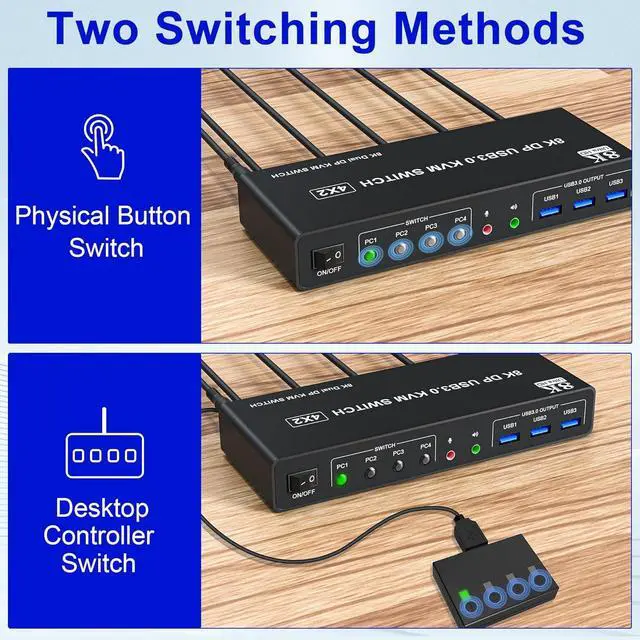

- 2 Switching modes: Button switch and wired remote.
- With extra 3 USB 3.0 ports and independent audio microphone output.
- The ports that need to plug in DisplayPort/USB cables are all hidden behind the dual monitor kvm switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.
- Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS

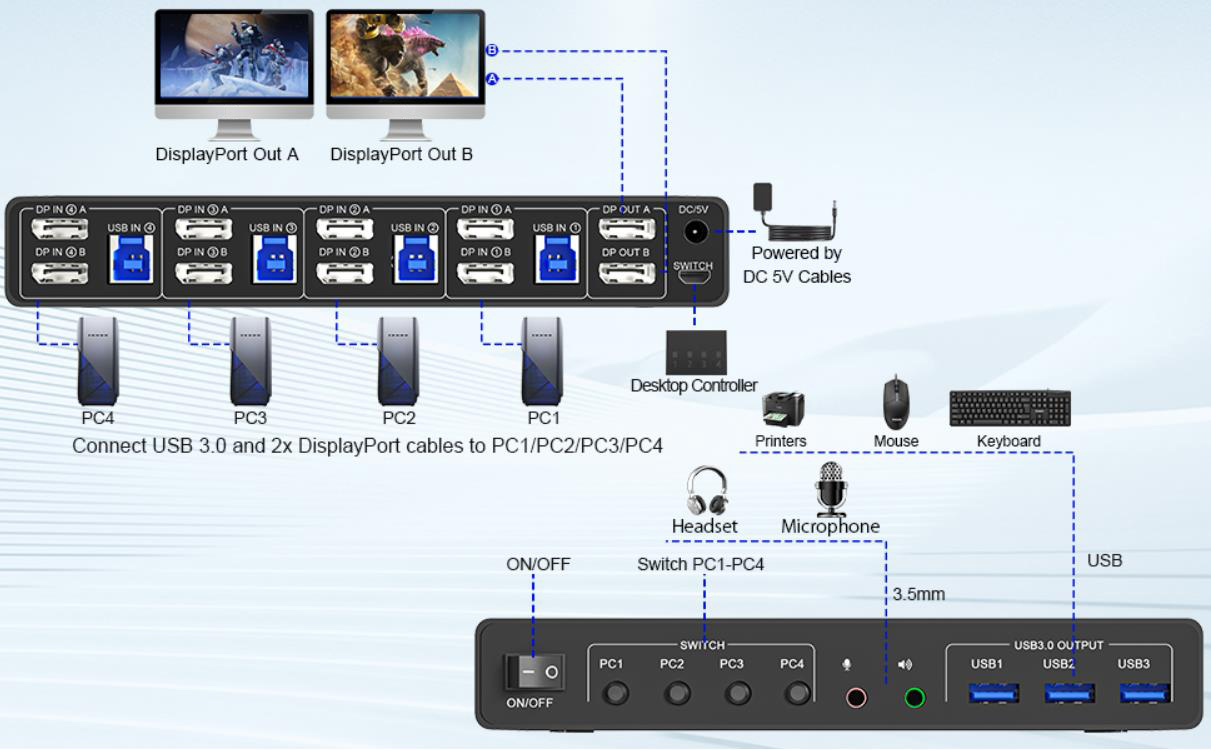

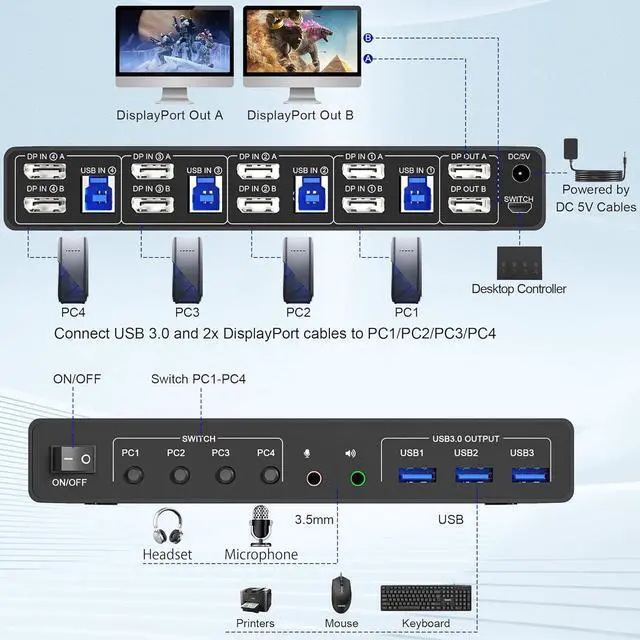

Installation steps:
- 1. Insert the adapter into the KVM ;
- 2. Plug the 2*Displayport cable into the KVM switch and monitor;(Output)
- 3. Plug the Displayport cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)
- DP IN1 A + DP IN1 B + USB IN1=PC1
- DP IN2 A + DPIN2 B + USB IN2=PC2
- DP IN3 A + DPIN3 B + USB IN3=PC3
- DP IN4 A + DPIN4 B + USB IN4=PC4
- 4. Insert the mouse and keyboard into the KVM switch
- 5. If needed, you can connect a microphone and audio port
Note:
- 1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 2 DP cables+1 USB cable connected to the KVM.
- 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
- 3. Before purchasing this DP Dual Monitor KVM Switch, please make sure that your computer supports direct connection of two DP monitors to work properly, otherwise the KVM will not work.
- 4. Note: DP cables are not included

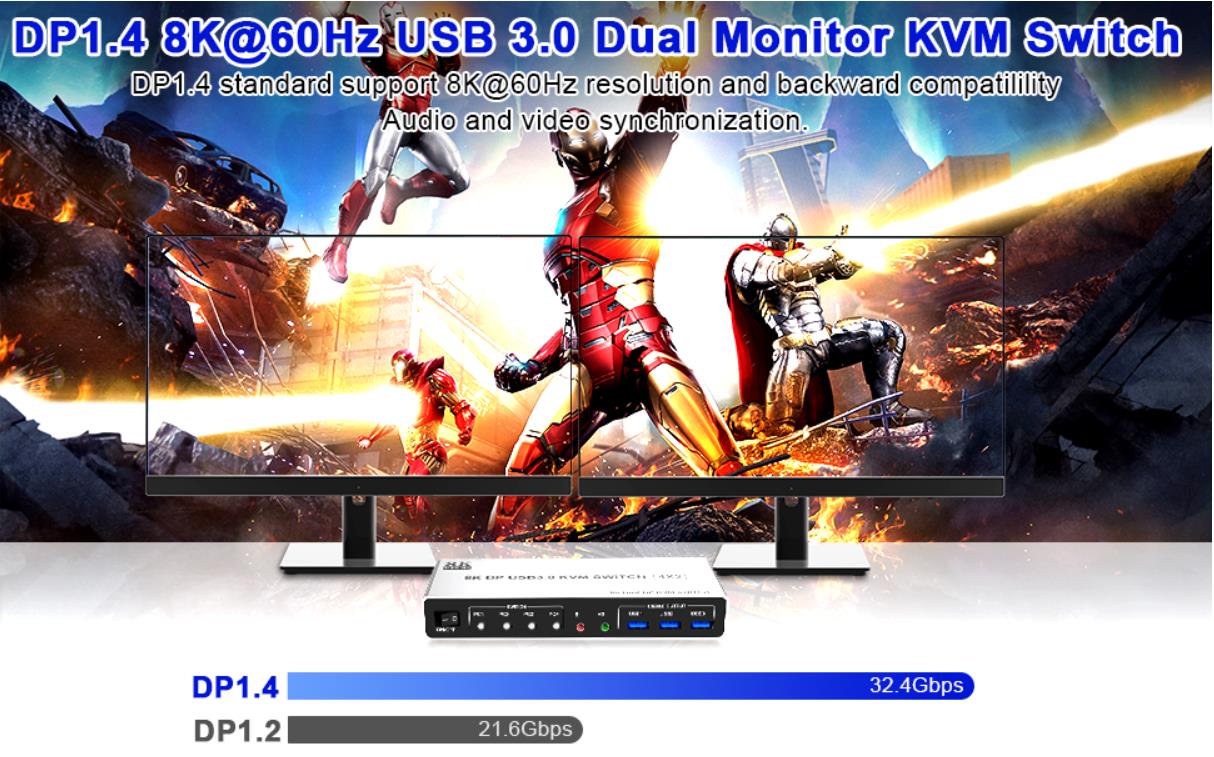

Ultra HD 8K@60Hz Dual Monitor KVM Switch
- Supports up to 8K@60Hz/4K@144Hz, Ultra HD, HDR 10, Dolby vision, 3D effect.
- Support DP 1.4 , transfer rates up to 32.4Gbps, backwards compatible with DP 1.2
- Note: Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz you can get the 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

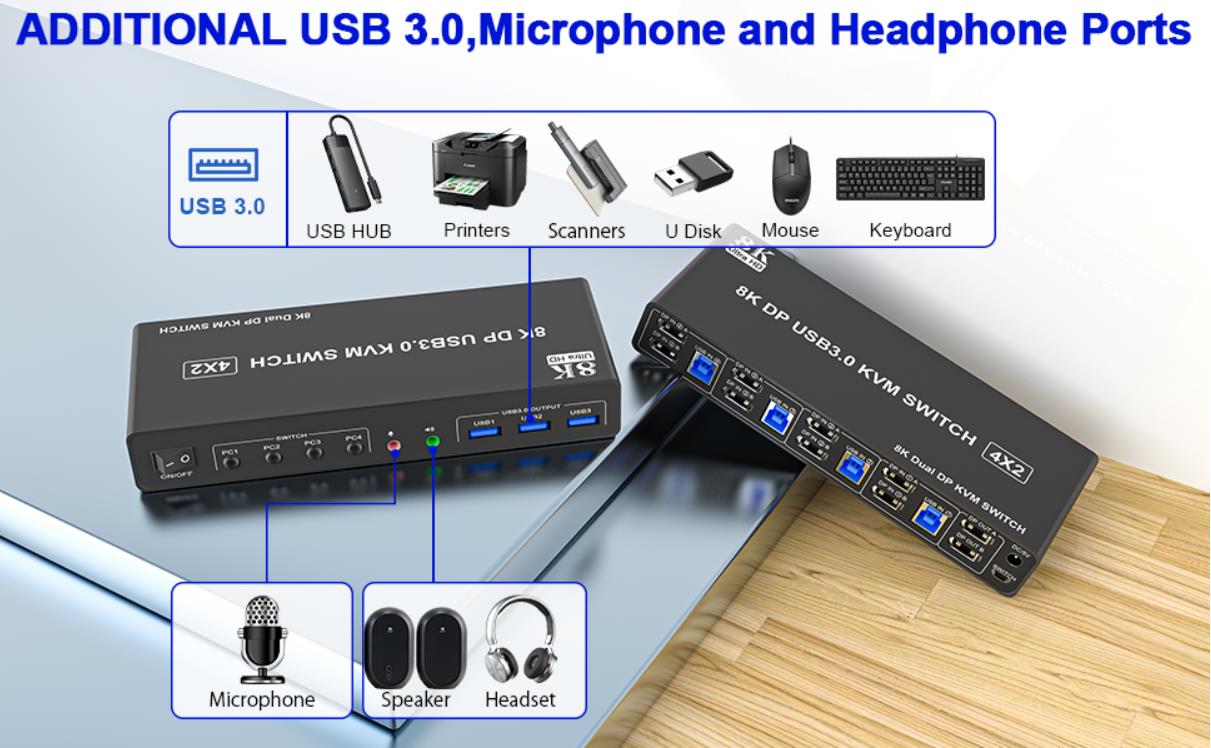

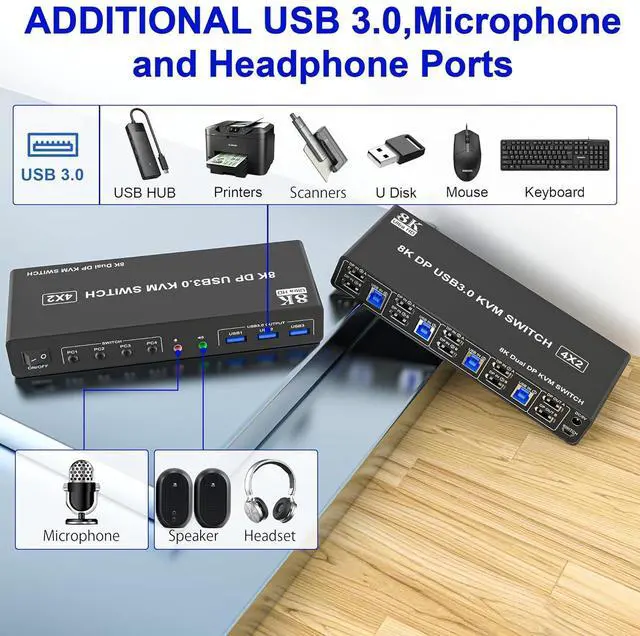

with USB 3.0 Ports
- Dual monitor Displayport KVM switch with 3 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices.
- Plug and play without any software needed.

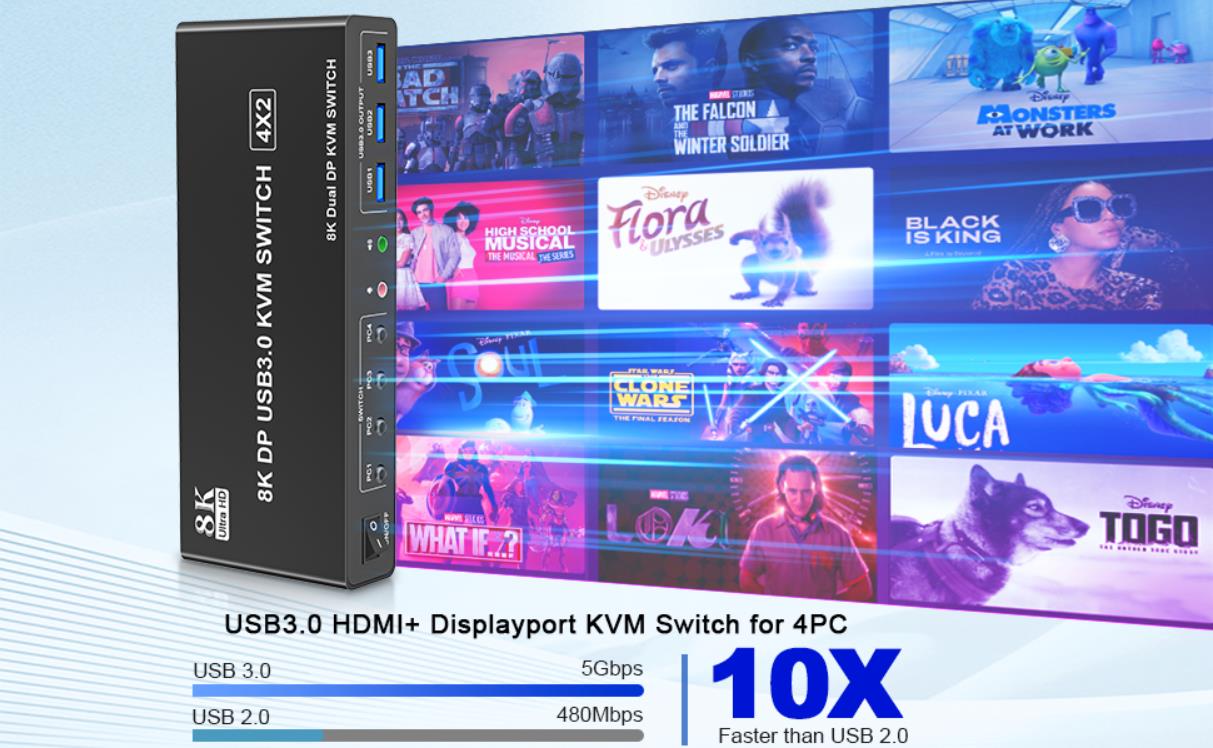

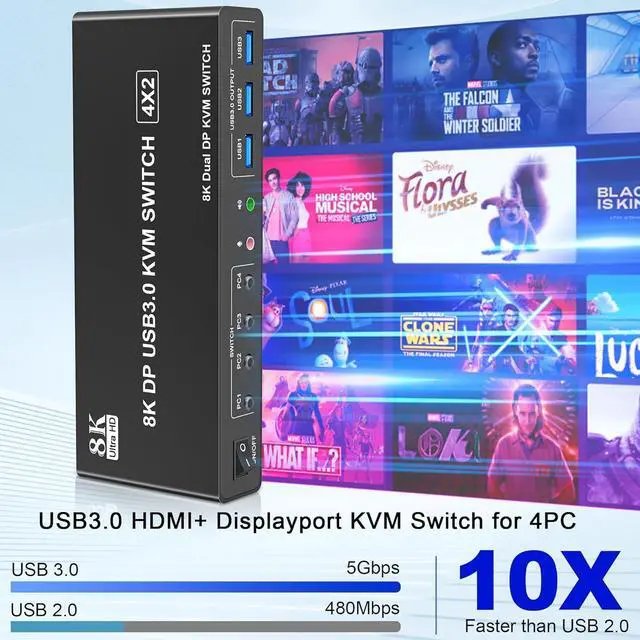

- The transmission speed of USB3.0 is as high as 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.
Audio and microphone output
- KVM switch 4 computers displayport comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone

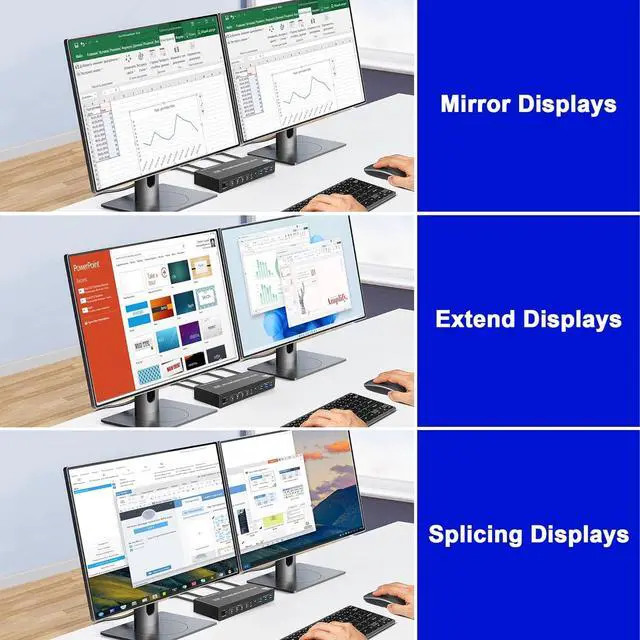

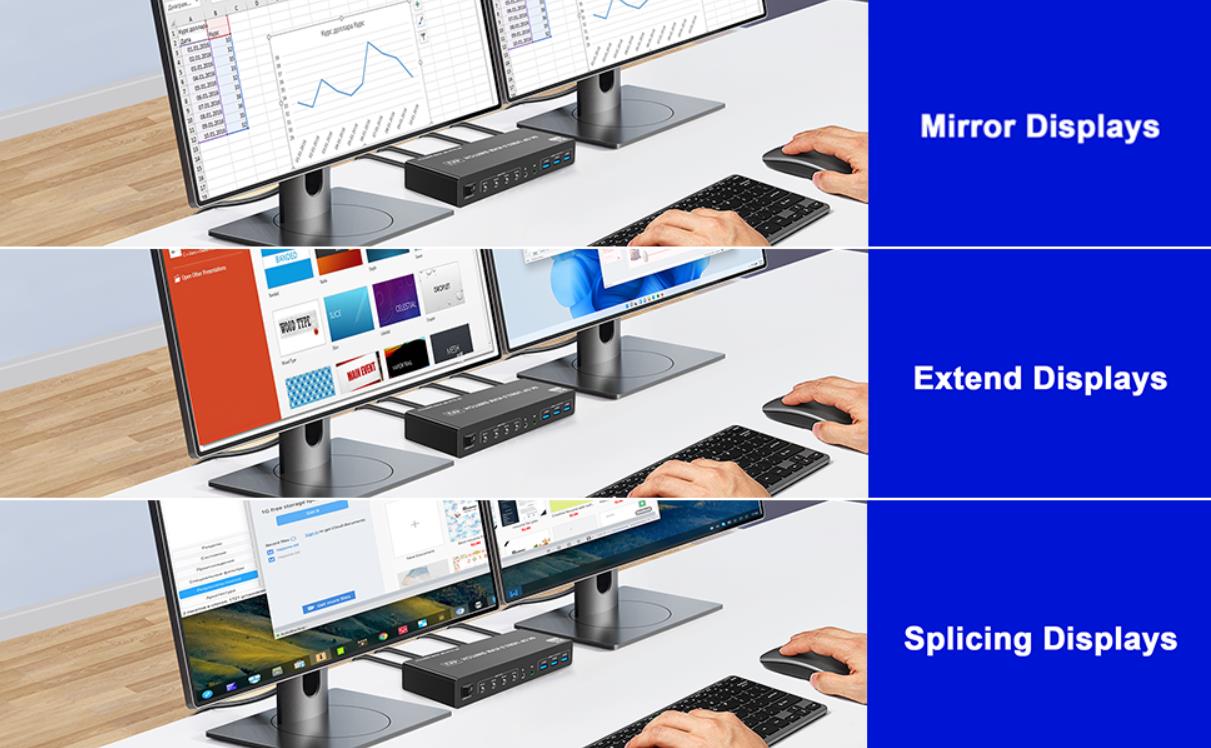

3 Display Modes
- Extended Display
- Mirrored Display
- Spliced Display
1)Extended mode can output two different screens and mirror mode can output two identical screens.Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.

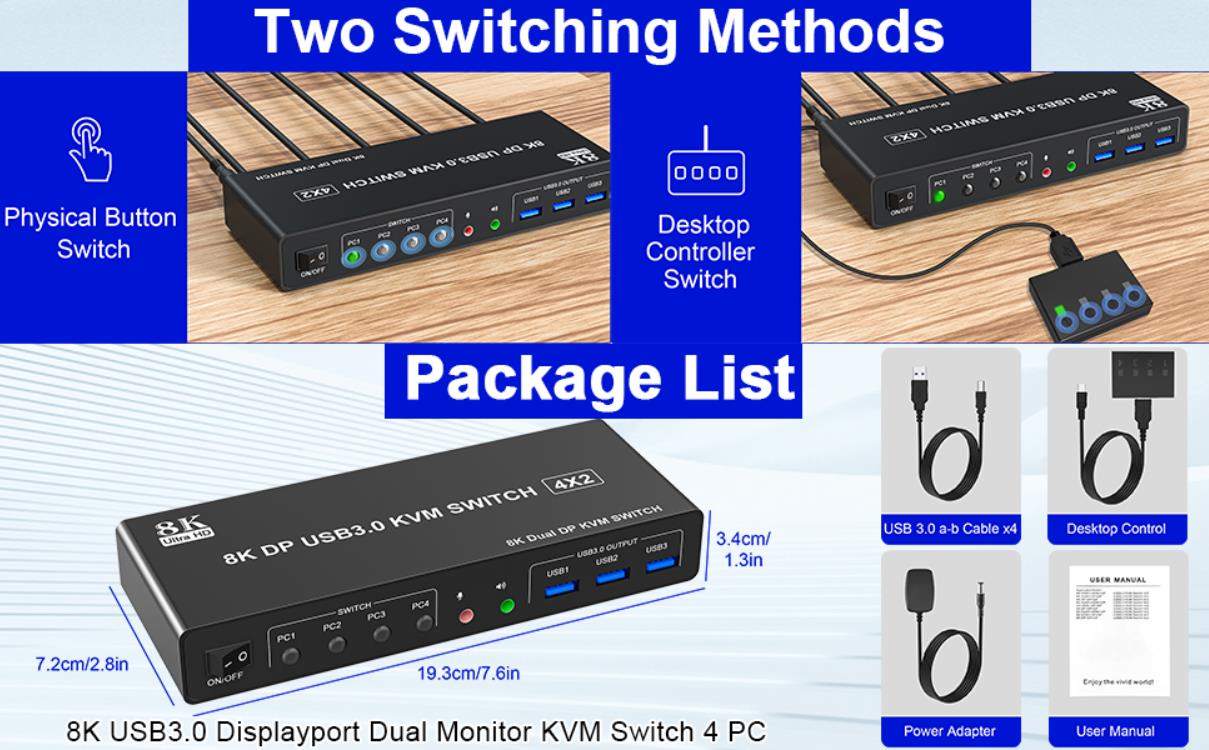

Switch by Panel button
- Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.
Wired Remote Control
- Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work

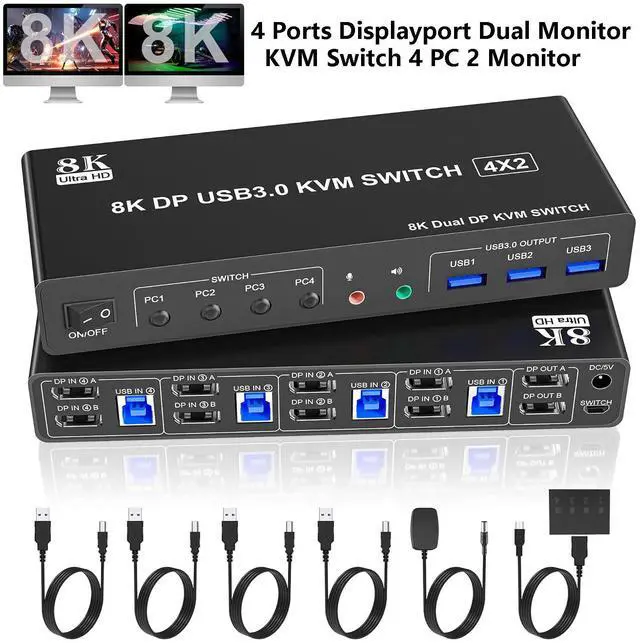

What You Get:
1x 4 Port 8K USB 3.0 DisplayPort KVM Switch,
4 x USB 3.0 Cables,
1x Power Adapter,
1x Wired Button Controller,
1x User's manual
