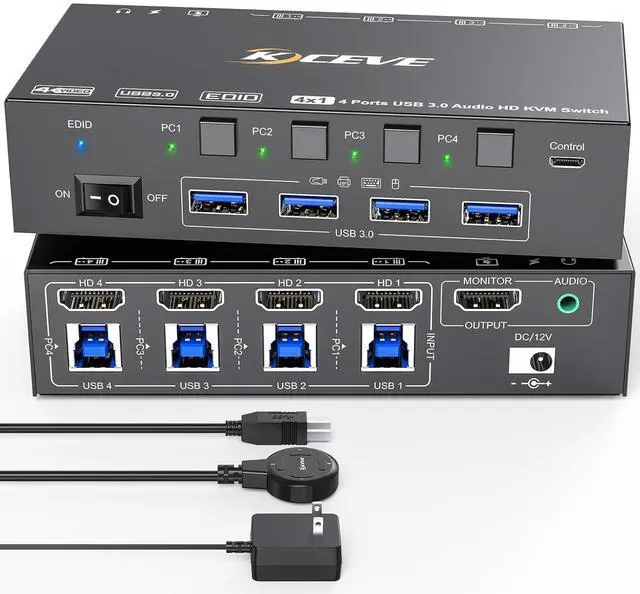

KVM Switch for 4 Computers 1 Monitor With Audio Function

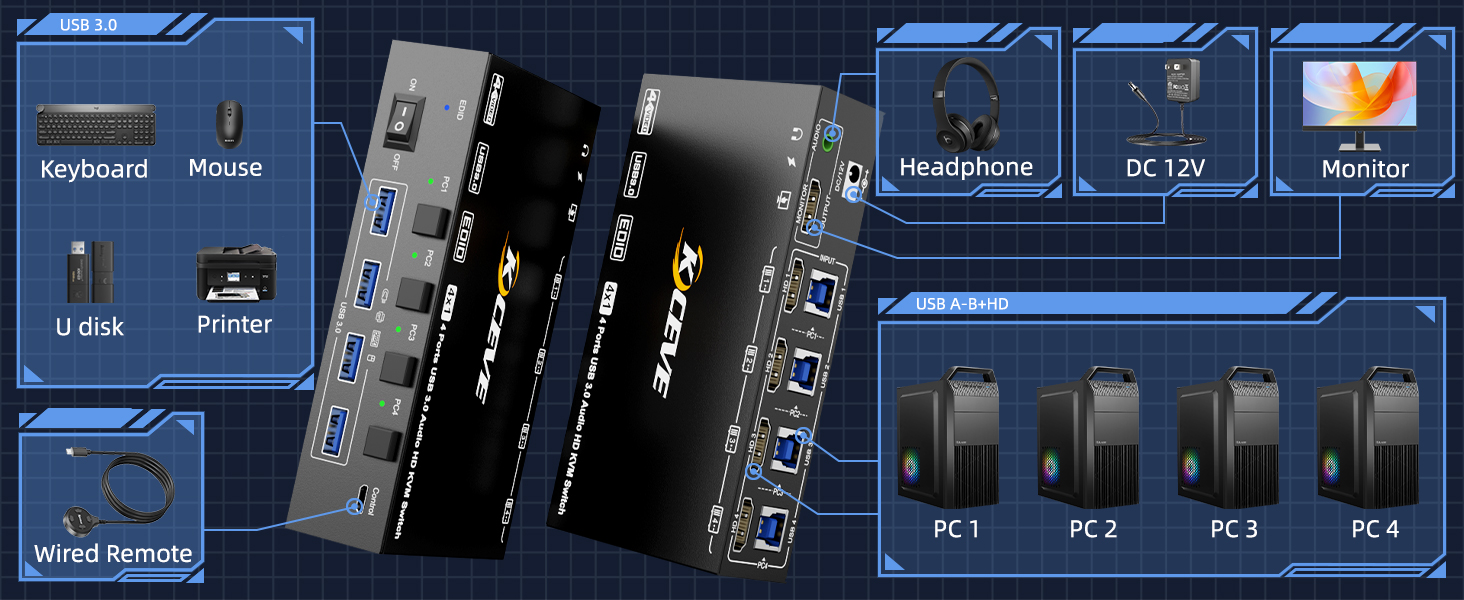

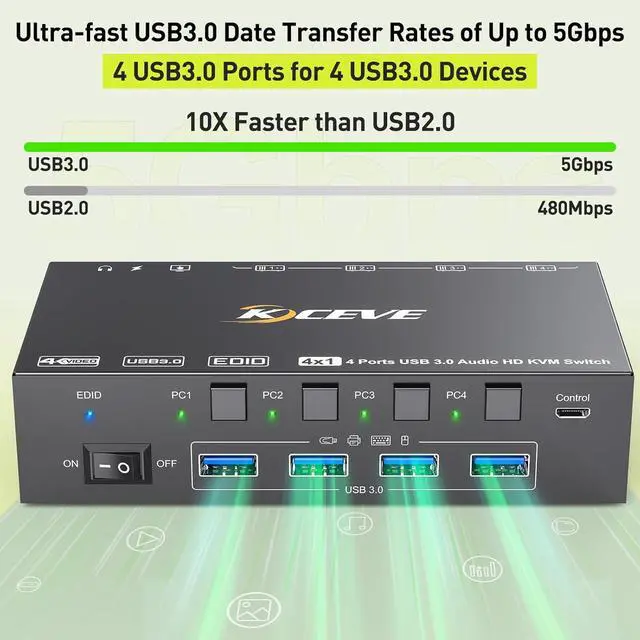

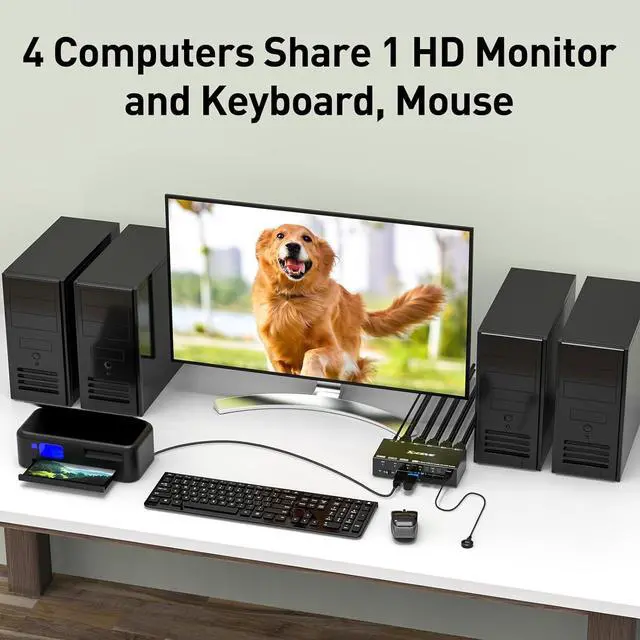

4 Computers Share 1 Monitor and 4 USB 3.0 Devices
This 4 ports kvm switch is used for 4 HDMI port computers or laptops to share 1 monitor and 4 USB 3.0 devices (keyboard, mouse, printer, scanner and other USB devices.
For input, each computer needs 1 HDMI + 1 USB 3.0 connection, for output needs 1 HDMI connection

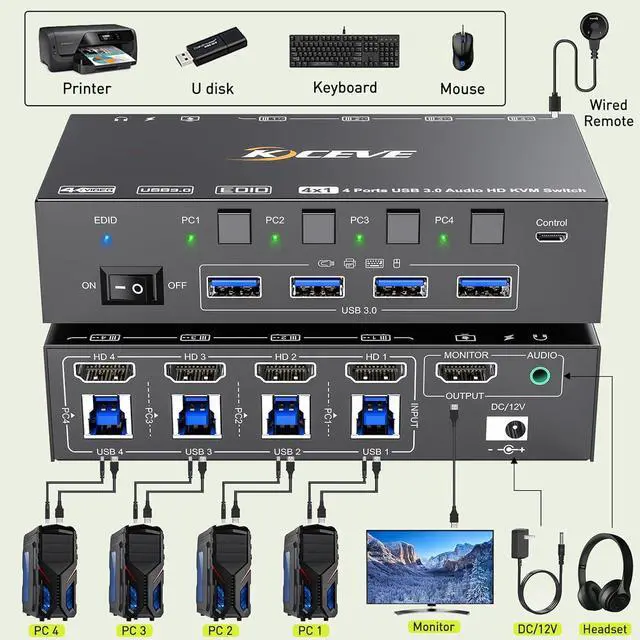

How to Connect:
- Step 1: Connect 1 HDMI cable + 1 USB cable to PC 1 and KVM switch (HD 1, USB 1).
- Step 2. Connect 1 HDMI cable + 1 USB cable to PC 2 and KVM switch (HD 2, USB 2).
- Step 3. Connect 1 HDMI cable + 1 USB cable to PC 3 and KVM switch (HD 3, USB 3).
- Step 4. Connect 1 HDMI cable + 1 USB cable to PC 4 and KVM switch (HD 4, USB 1).
- Step 5. Connect 1 HDMI cable to monitor ( output)
- Step 6: Connect your USB device (keyboard and mouse) to the USB 3.0 port on the KVM switch. You can connect up to 4 USB 3.0 devices at the same time.
- Step 7. Connect the wired remote control
Note: Please connect the 12V DC power adapter to provide sufficient power. Using a shorter 8K HDMI can make the KVM switch more stable.

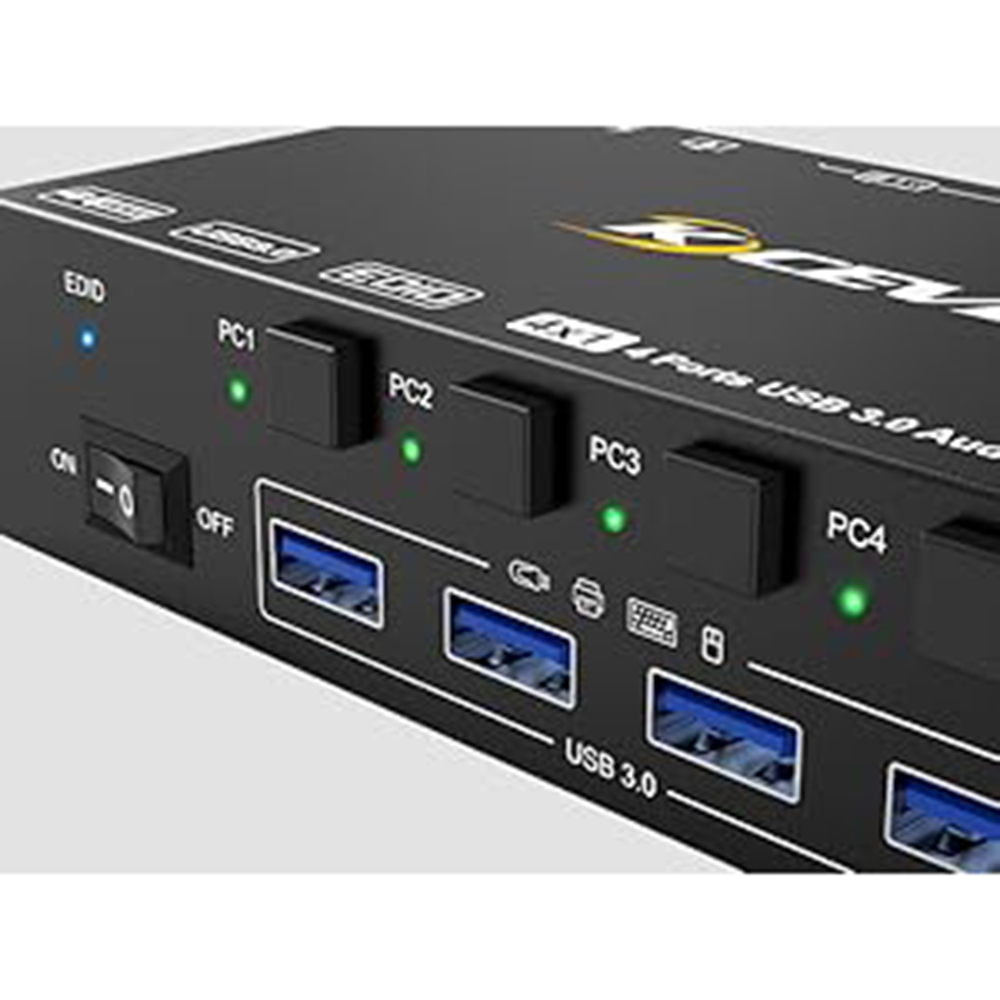

Corresponding indicator light

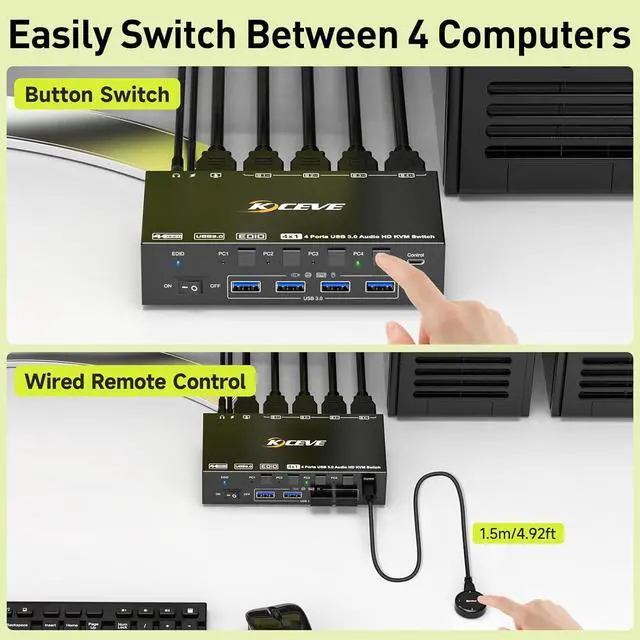

No need to cycle switching, 4 buttons indicate 4 computers

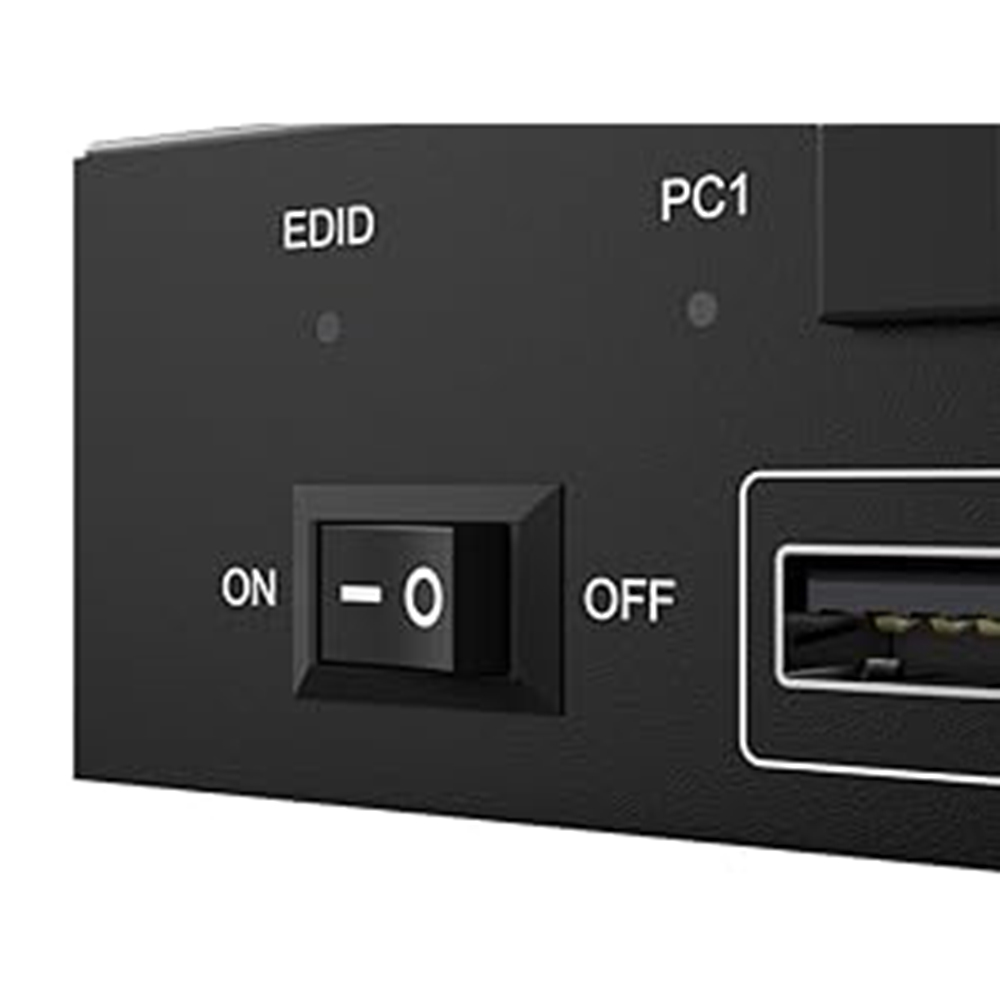

ON/OFF switch
Restart KVM with one click, no need to unplug and plug cables back and forth

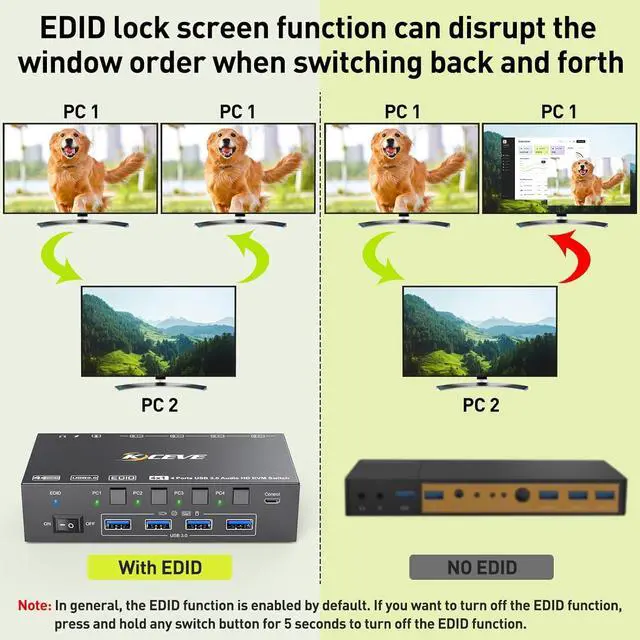

EDID simulation
Our KVM switch can simulate the EDID of the display, When switching between four computers, the original window order will not change.

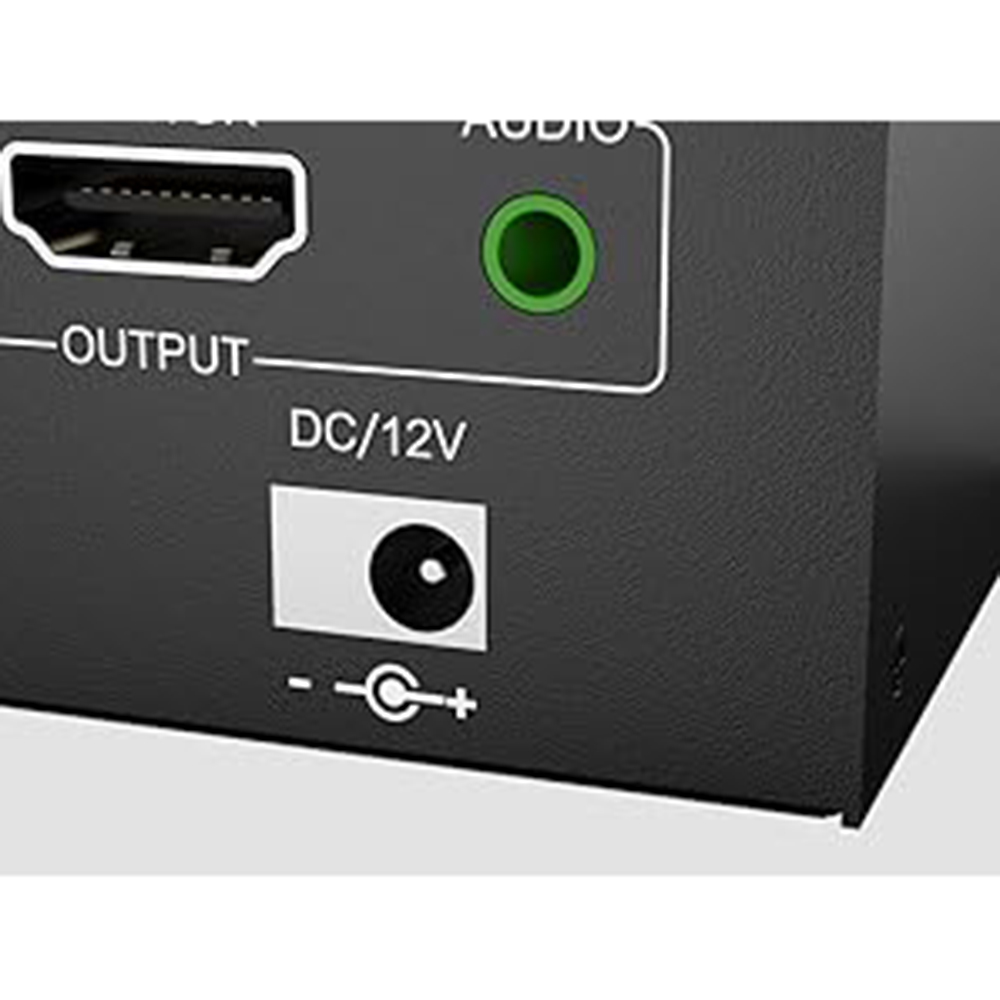

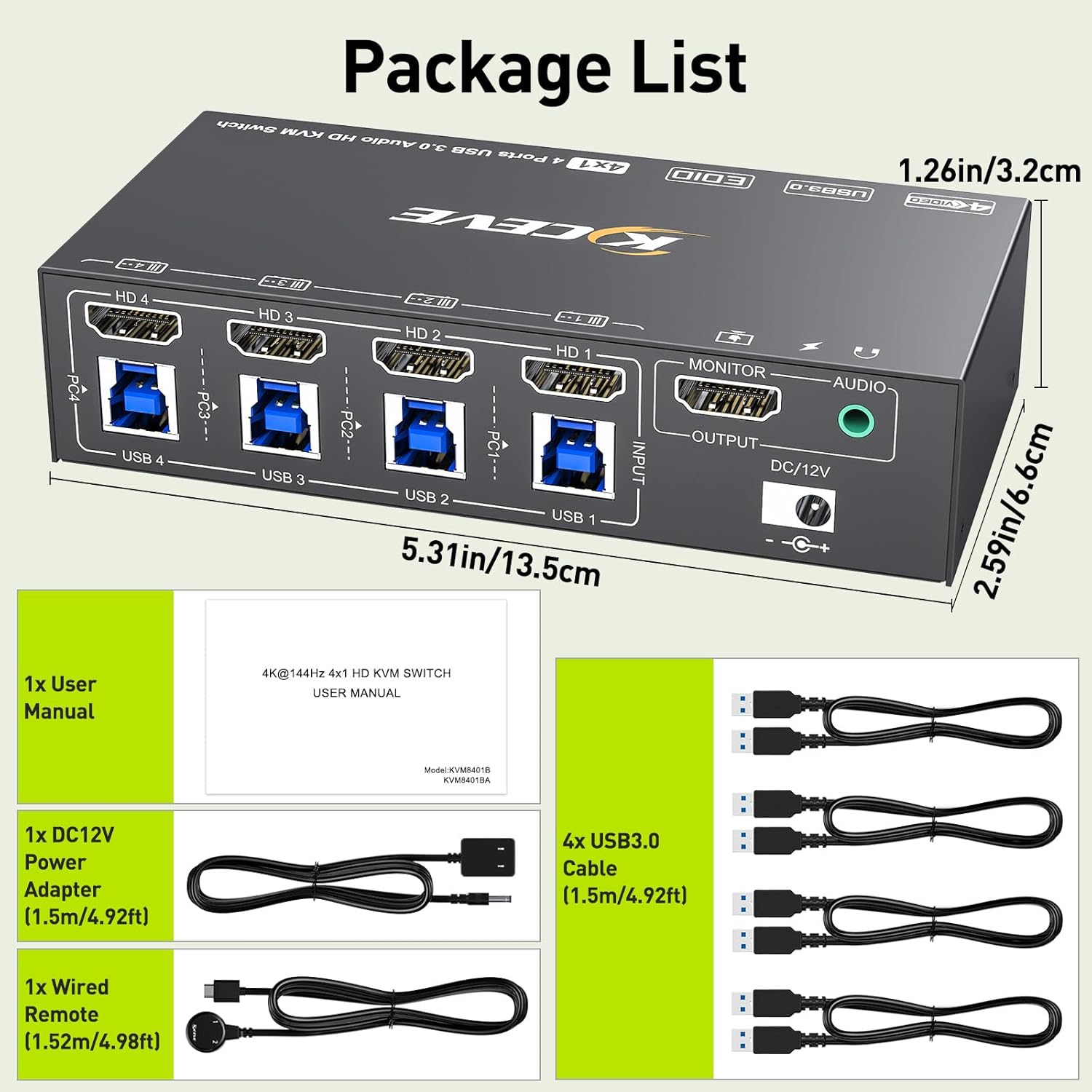

12V power adapter (included)
Make KVM work smoother and more stable when using high-power USB devices.(Suitable for DC 5-12V)
How to use this KVM with computers/monitor without HDMI port
| Laptop/Desktop (HDMI Port) | Just use 1*HDMI +1*USB cable to connect the PC and KVM. |
|---|---|
| Desktop (only DP Port) | Requires 1*USB cable+1*DP to HDMI cable or (DP to HDMI converter + HDMI cable) |
| Laptop(only USB-C Port) | Requires 1*USB cable+1*USB-C to HDMI cable or (USB-C to HDMI converter + HDMI cable) |
| PC with VGA or DVI Port | Supports VGA or DVI to HDMI cable, but the resolution is up to 1080P, which is not recommended. |
| Monitor(HDMI Port) | Just use 1*HDMI to connect the KVM and Monitor. |
| Monitor(DP Port) | Requires 1*HDMI to DP cable with USB powerd or (HDMI to DP converter with USB powerd+ DP cable),Not recommended |
|---|---|
| Monitor(only DVI Port) | 1*HDMI to DVI cable or (HDMI to DVI converter + DVI cable) |
| Monitor(only VGA Port) | 1*HDMI to VGA cable or (HDMI to VGA converter + VGA cable) |
| About resolution | Using conversion cables or converters may cause resolution to drop, flicker or the monitor to not work (depending on their quality and compatibility) It is recommended to use HDMI2.0/2.1 cable, and the length of a single cable should be controlled within 1.5 meters. |
