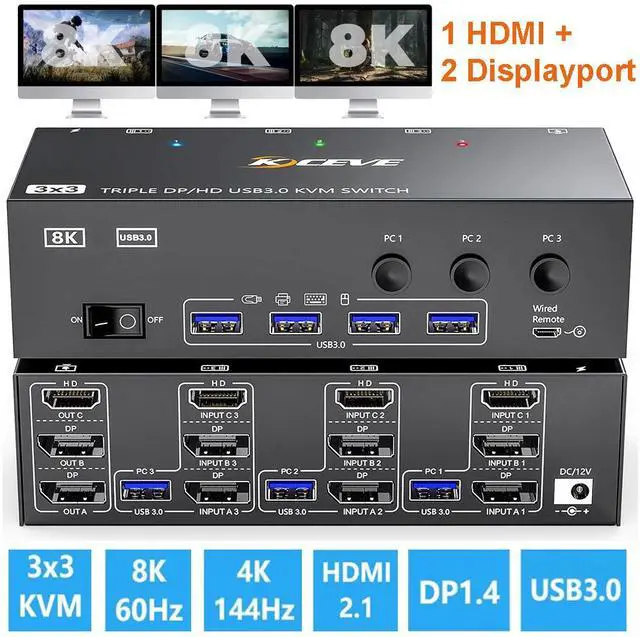

3 Monitor USB 3.0 HDMI+2 Displayport KVM Switch
- 3 computers share 3 monitors and 4 USB device.
- Supports wired or wireless keyboard and mouse.
- USB 3.0 with ultra-fast data transfer up to 5Gb/s.
- Support resolutions up to 8K@60Hz, 4K@144Hz.

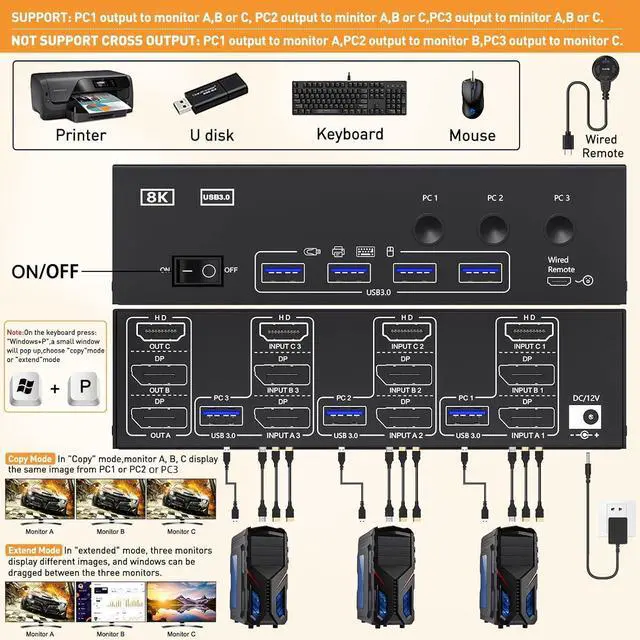

Connection diagram of 3 monitors KVM switch
Each PC requires 1*HDMI+2*DP+1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.Support DP to HDMI, USB-C to HDMI, USB-C to DP converter and USB-C docking station.
Please confirm whether your computers support 1*HDMI+2*Displayport before placing an order.
- Switching mode: button switch and wired remote.
- Two output modes: Mirror and Extended mode.
- 12V power adapter, the recognition is more stable.
To make 3 monitors working, each computer will need 1 HDMI cable + 2 DP cables + 1 USB cable connect the KVM switch. Please buy good HDMI and DP cable yourself, if HDMI cable and DP cable is not good enough, the screen will flicker or unstable.
- Step 1: Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 1 and KVM switch (INPUT A1, INPUT B1, INPUT C1, USB 3.0).
- Step 2. Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 2 and KVM switch (INPUT A2, INPUT B2, INPUT C2, USB 3.0).
- Step 3. Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 3 and KVM switch (INPUT A2, INPUT B2, INPUT C2, USB 3.0).
- Step 4. Connect 1 HDMI cable and 2 DP cables to the KVM switch (OUT A, OUT B, OUT C) and three monitors.
- Step 5: Connect your USB device (keyboard and mouse) to the USB 3.0 port on the KVM switch. You can connect up to 4 USB 3.0 devices at the same time. Compatible with USB 2.0/1.1 devices.
- Step 6. Connect the wired remote control
Support 2 display modes
- In "COPY" mode, 2 output monitors will output same image from PC1 or PC2.
- In "EXTEND" mode, the working window from main screen can be dragged to seond output monitor. You can have the mouse across between 2 monitors.

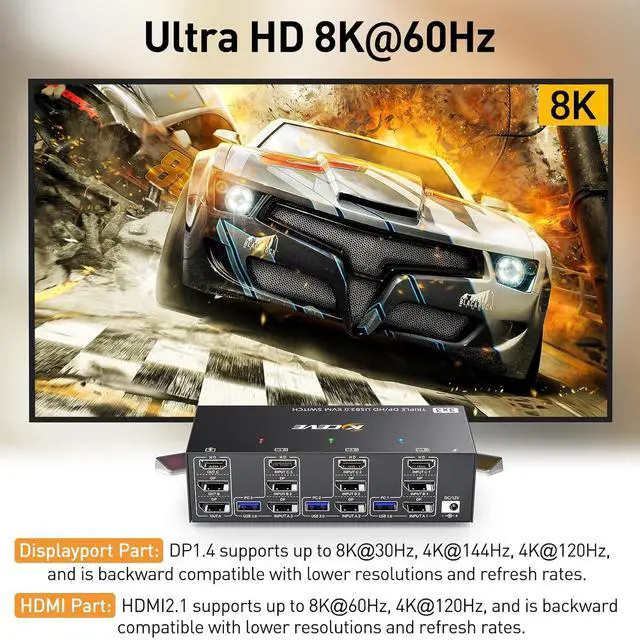

Support 8K HD resolution
- 7680x4320@60hz, 4K x 2K (3840x 2160@ 60Hz); 4K x 2K (2560× 1600@ 60Hz); 1920×1440 @ 144hz / 120hz / 60hz; 1920×1200 @ 144hz / 120hz / 60hz
To achieve 8K high resolution, please make sure that HDMI cables, computers, and monitors you are using are all support 8K resolution

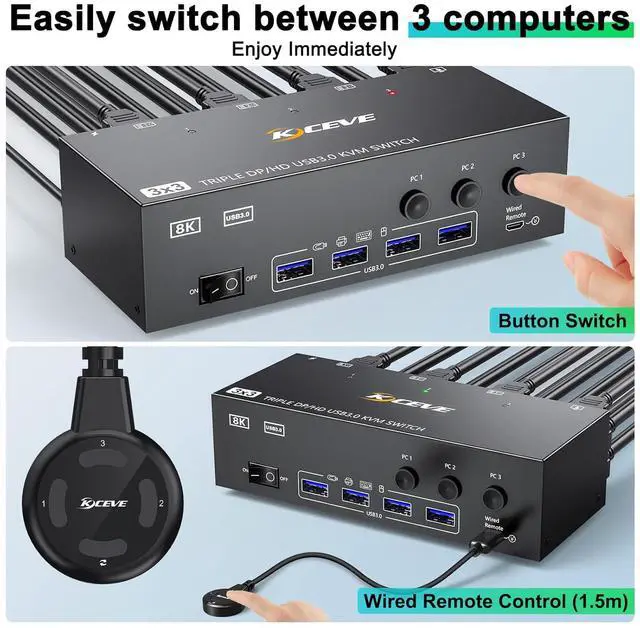

Support 2 switching ways
- Physical button control.
- Wired control, we upgraded the wired control, it's size is more bigger and touch feel more comfortable, this switching way is fast respond and flexible, you can hide the KVM switch under the table and keep desk tidy when using this wired control.
3 LED light indicator
- Blue light shows PC1 working
- Green light shows PC2 working
- Red light shows PC3 working
DC12V port for power supply
- External power supply is not required for normal USB device.
- DC12 power adapter is included. When connected high power consumption USB device, you will need to connect power adapter to ensure it's connection stable.

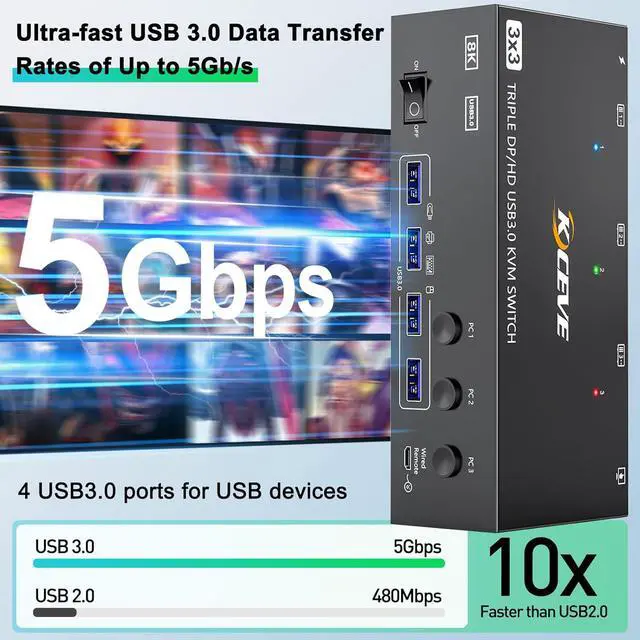

Four USB 3.0 ports
- Upgraded USB 3.0 version ensure data transfer more faster and stable, it's a great solution to solve many USB device disconnected issue during use.
