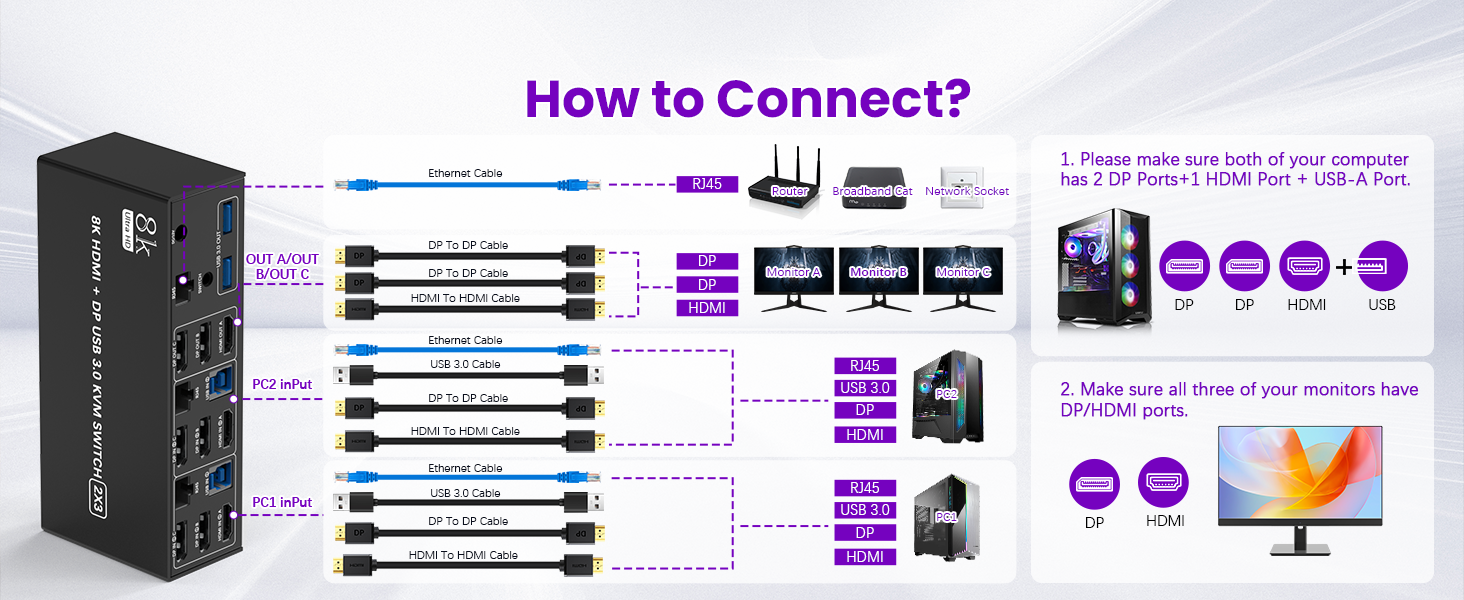

- 1. Insert the power adapter into the KVM ;

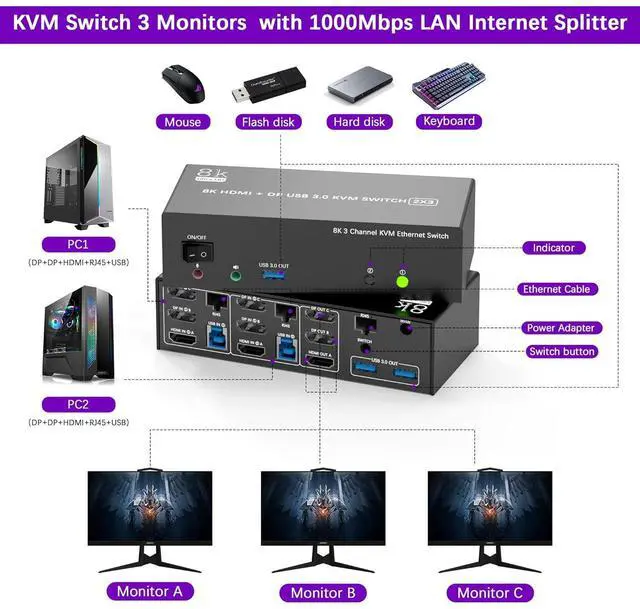

- 2. Plug the Ethernet RJ45 cable into the KVM switch and Network Socket; Plug the 2*Displayport cable and HDMI cable into the KVM switch and monitor;
- 3. 1). Connect PC1 Firstly
- Use 1 HDMI cable to connect the "HDMI IN 1 A" input interface and PC1 HDMI A output interface,
- Use 1 DP cable to connect the "DP IN1 B" input interface and PC1 DP B output interface.
- Use 1 DP cable to connect the "DP IN1 C" input interface and PC1 DP C output interface.
- Use 1 "USB-a to USB-b" USB3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface.
- Use 1 Ethernet cable to connect the "RJ45" interface and PC1 RJ45 interface.
- 2)Then, Connect PC2 according to the connection steps of PC1.
- 4. Insert the mouse and keyboard into the KVM switch; If needed, you can connect a microphone and audio port
Does Everything You Need!
This kvm switch triple monitor 2 port help you control 2 PCs share 3 monitors by only one set of USB keyboard & mouse and share 1000Mbps gigabit ethernet between 2 computers.
Advantages:

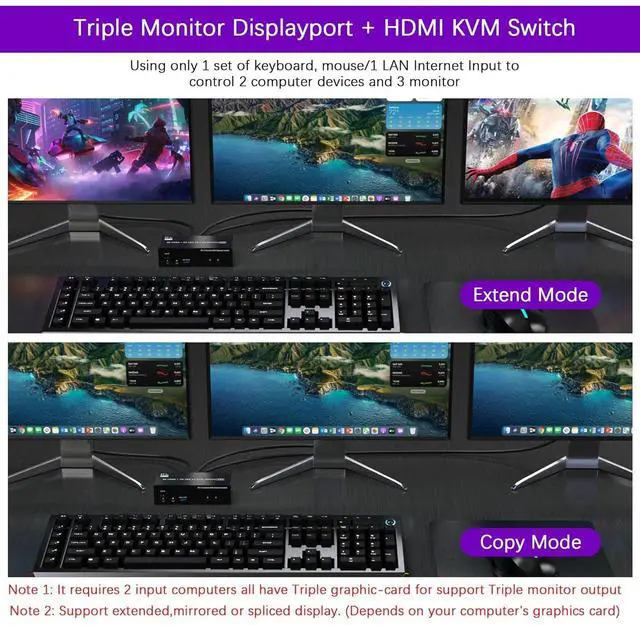

1, Share one set of keyboard, mouse and 3 monitors (DP+ DP+HDMI) between 2 computers or laptops;

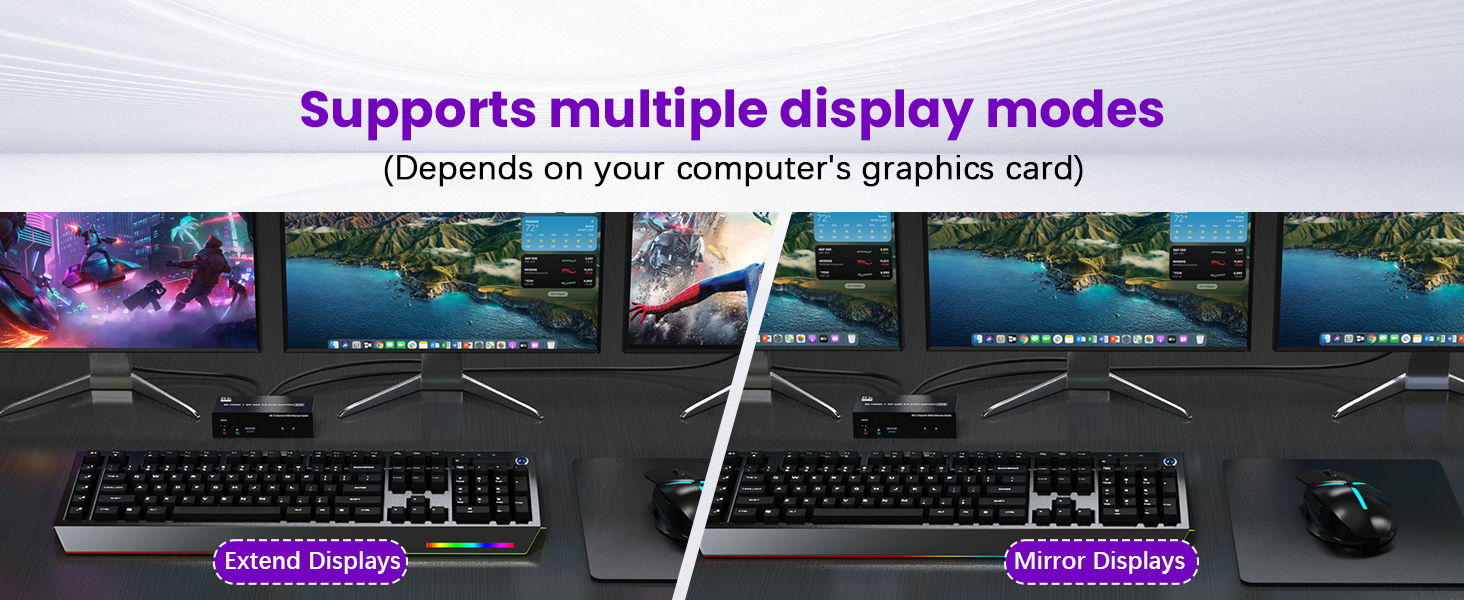

2, Supoort DP 1.4, HDMI 2.1 and downward compatible. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. );

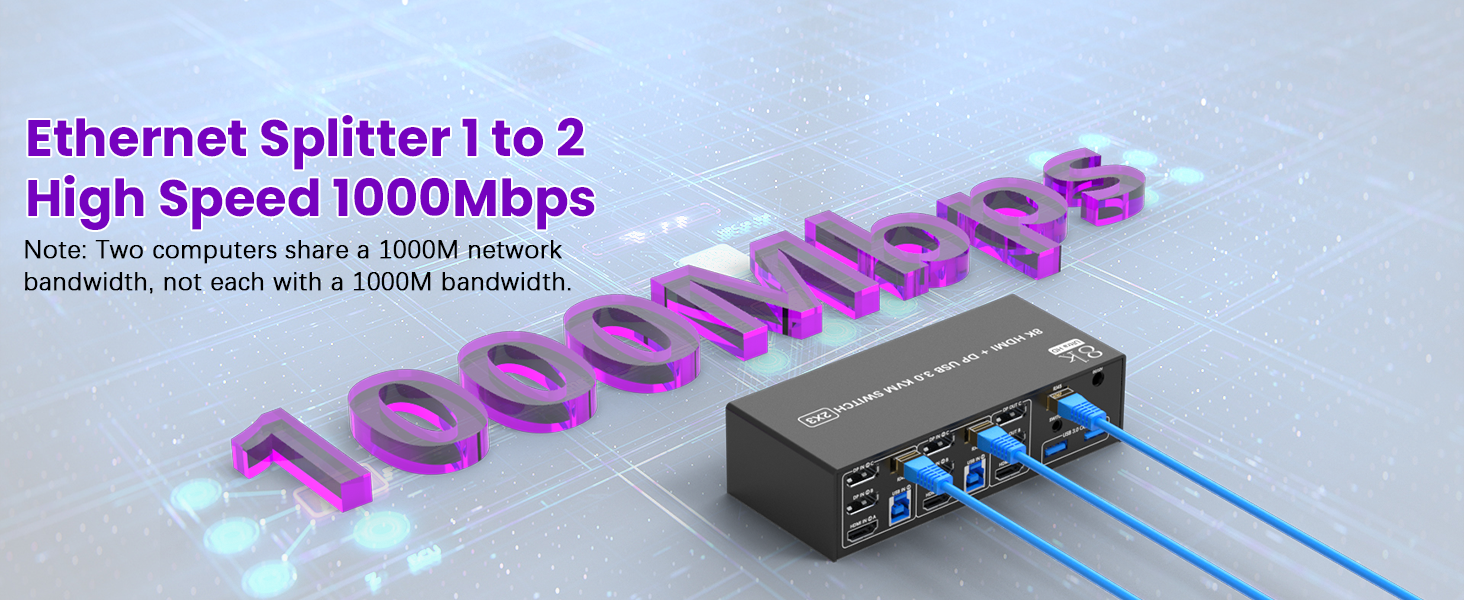

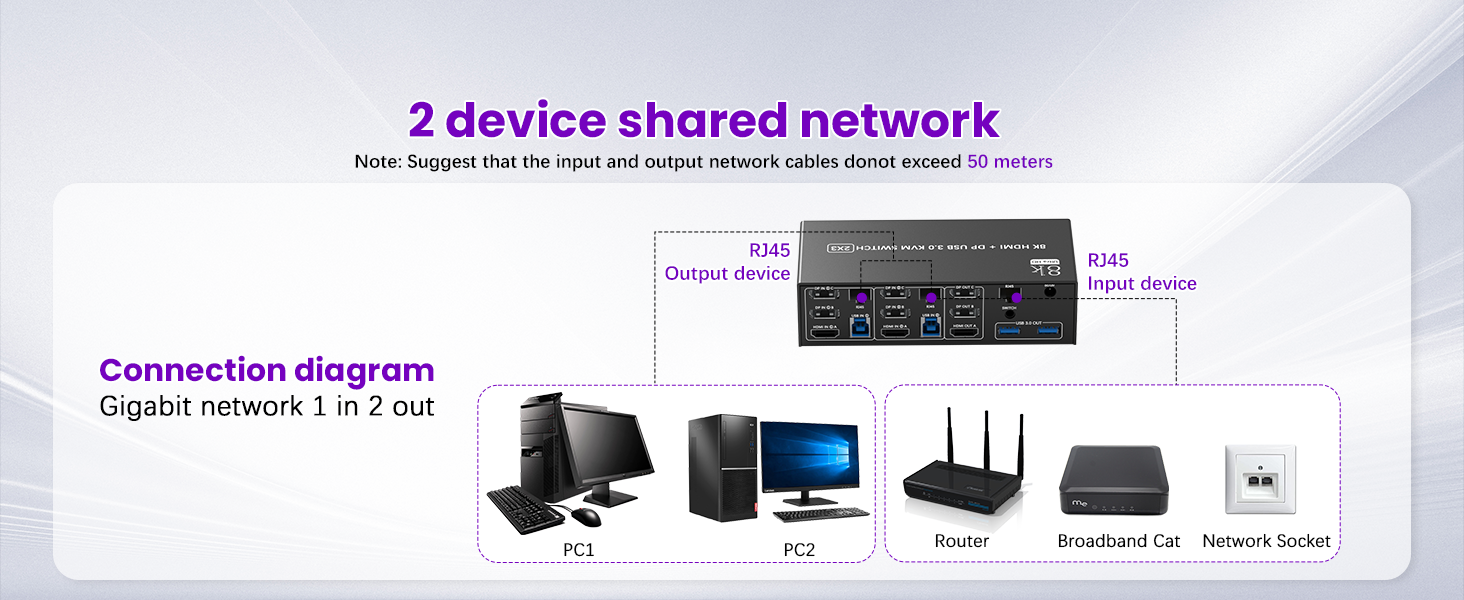

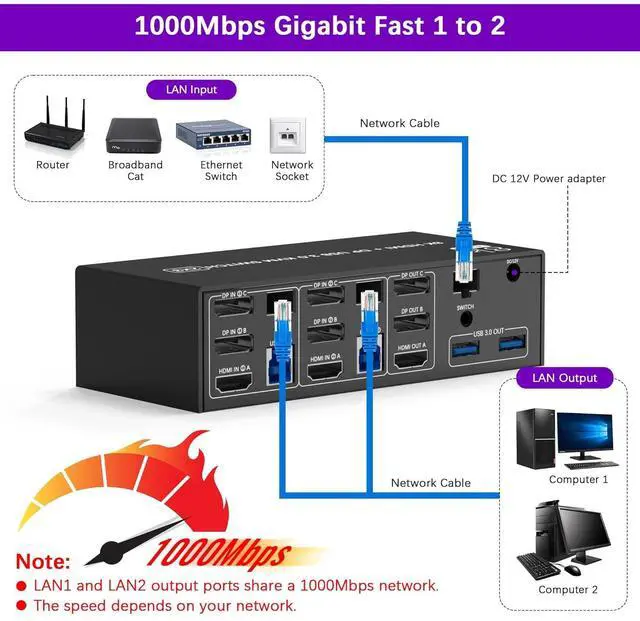

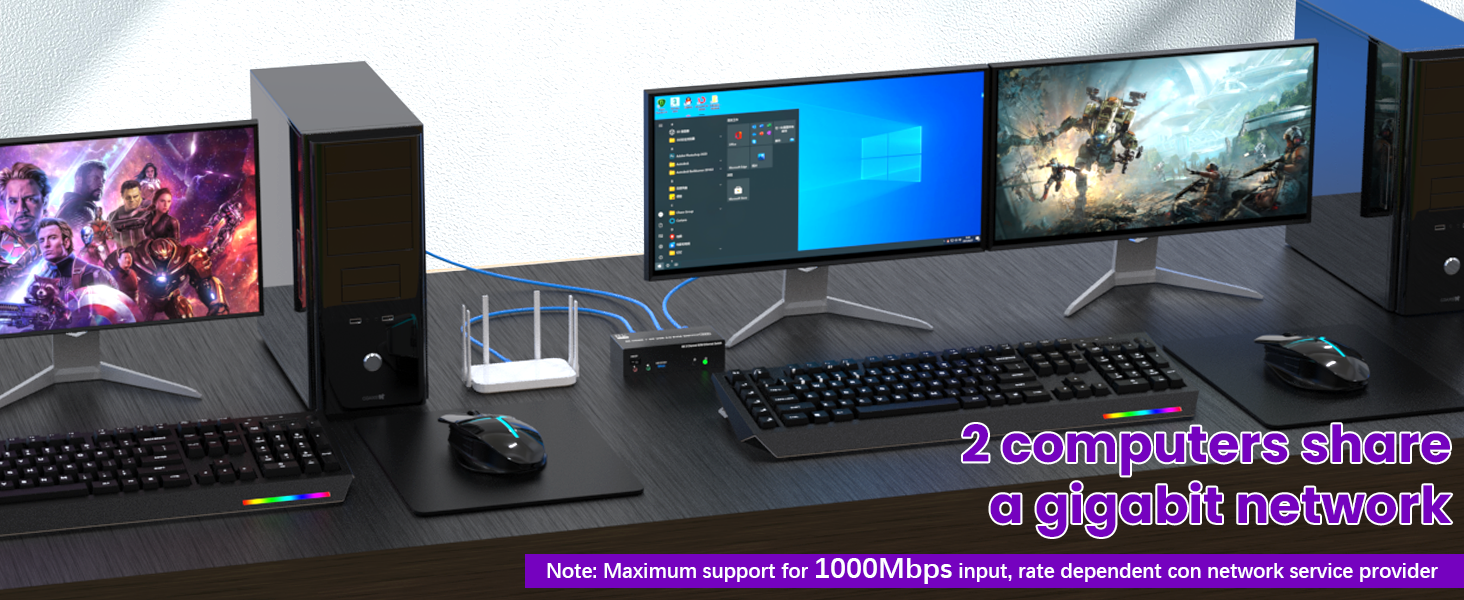

3, This KVM Switch share 1000Mbps gigabit ethernet between 2 computers, providing Internet access for your pc.
4, Cross support major operation systems including Windows, Linux, Mac and more;
5,

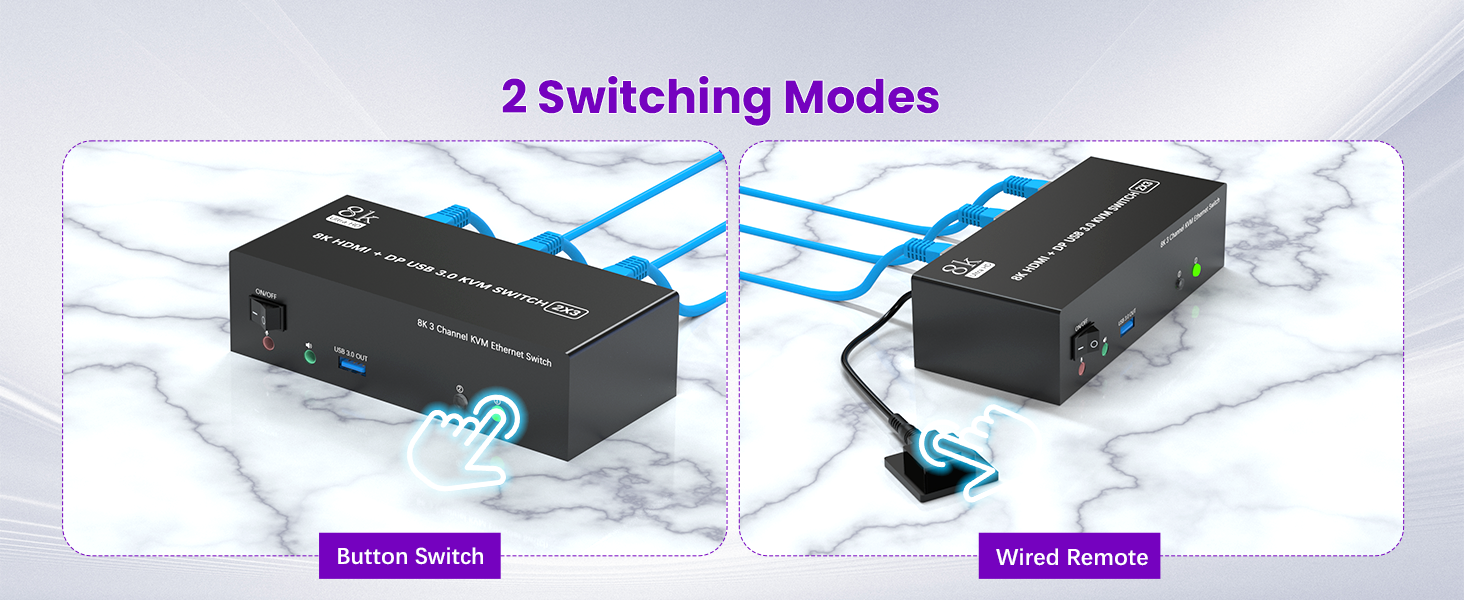

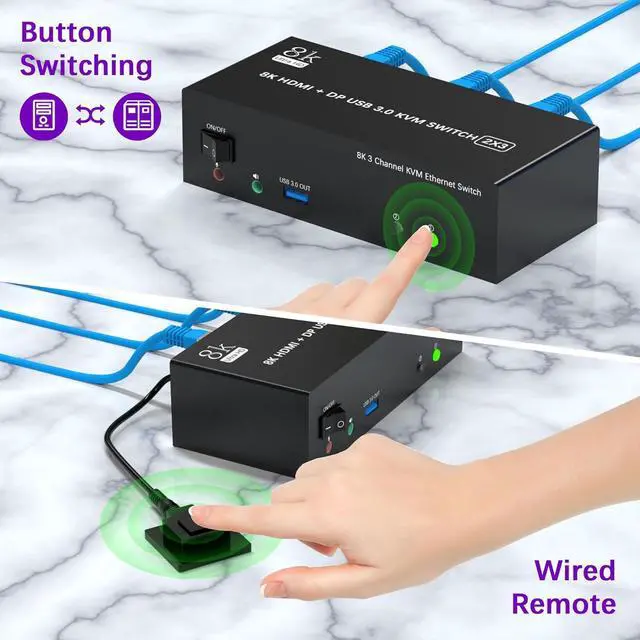

Switching modes: Buttons on the front panel and wired remote;
6 The ports that need to plug in DP/HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

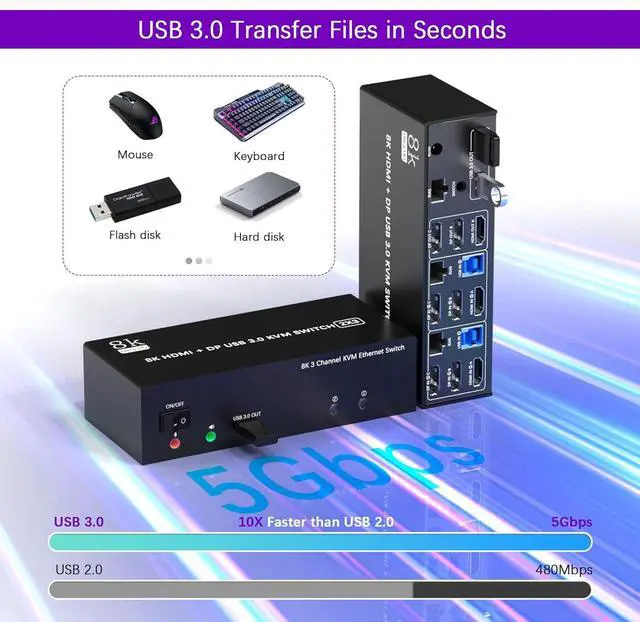

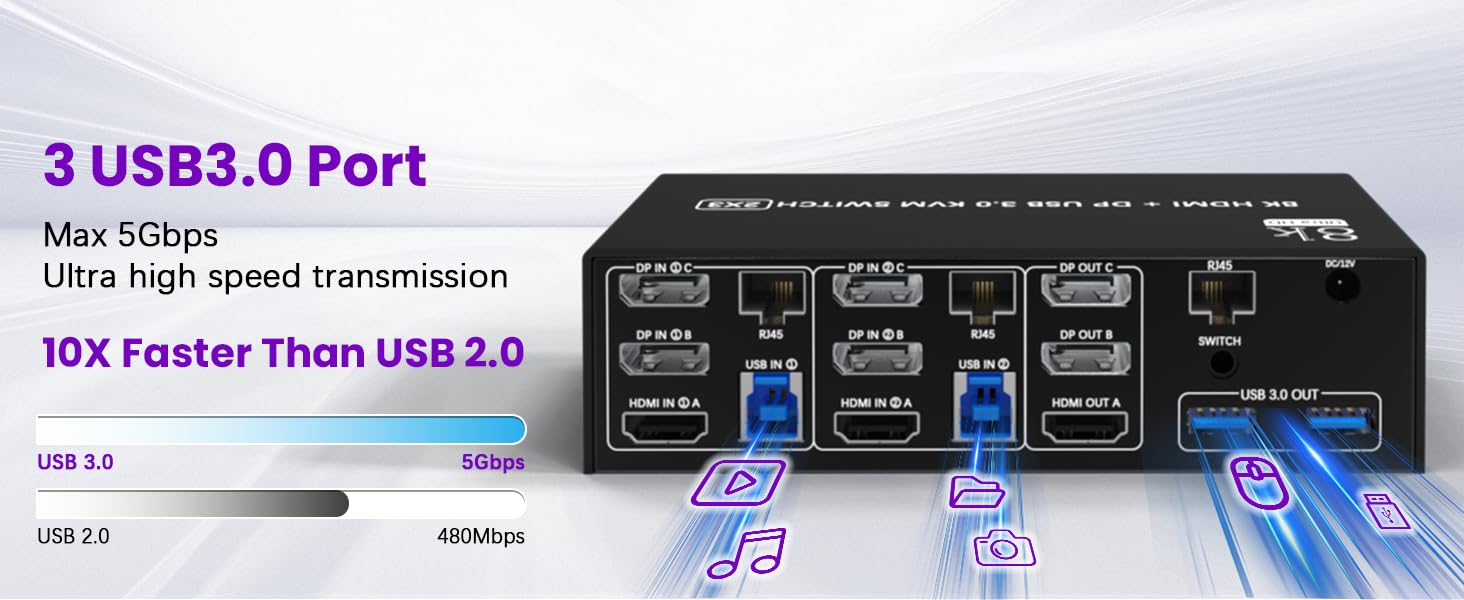

7, A USB hub can expand the USB 3.0 ports if multiple connections are required, Please use a hub that can provide power. Also an audio microphone output;
8, The upgraded 12V power adapter makes the KVM switch work smoother and provides more stable recognition when connecting high-power USB devices.

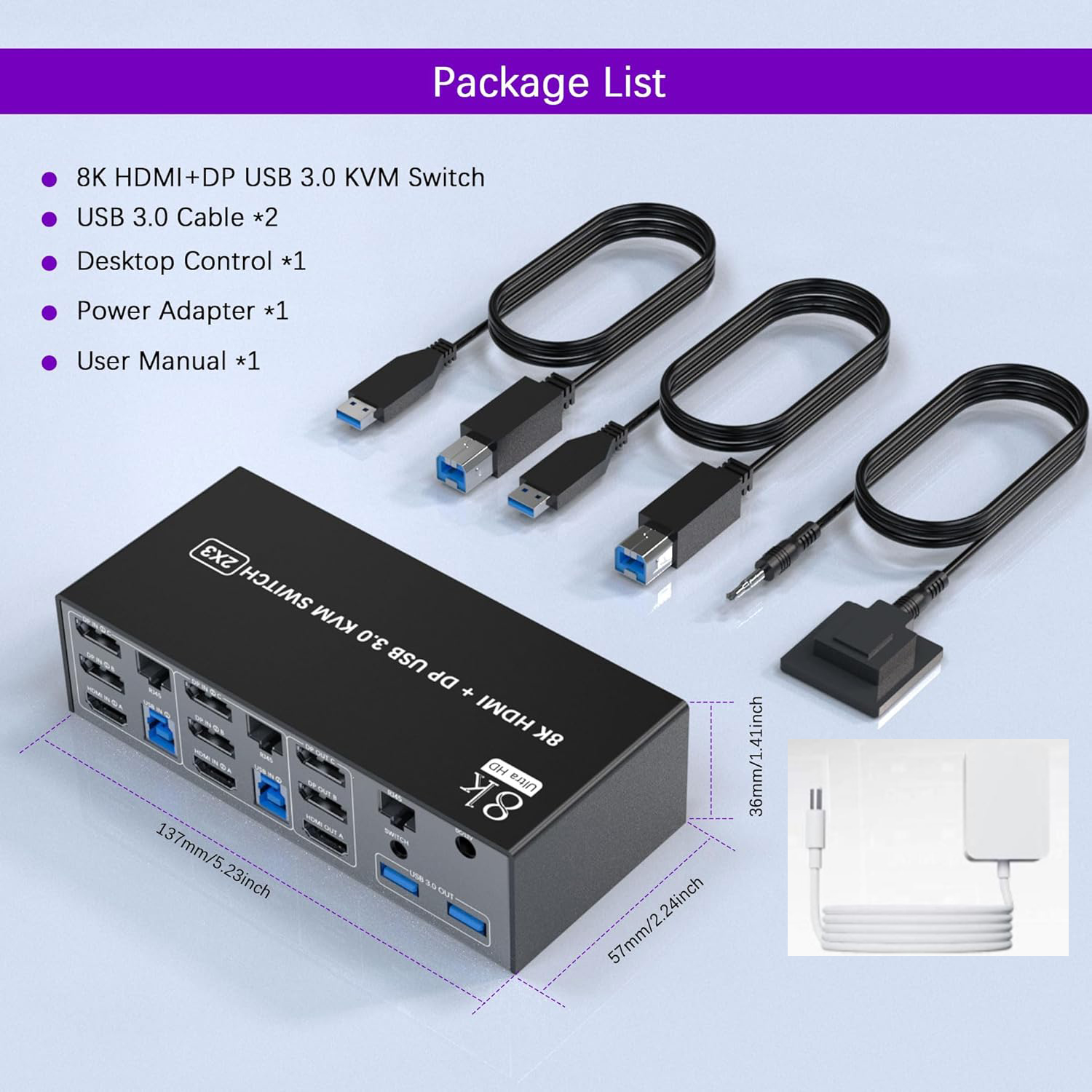

Package included:
1x 2Ports 8K@60Hz USB 3.0 HDMI + 2 DisplayPort Triple Monitor KVM Switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual.
