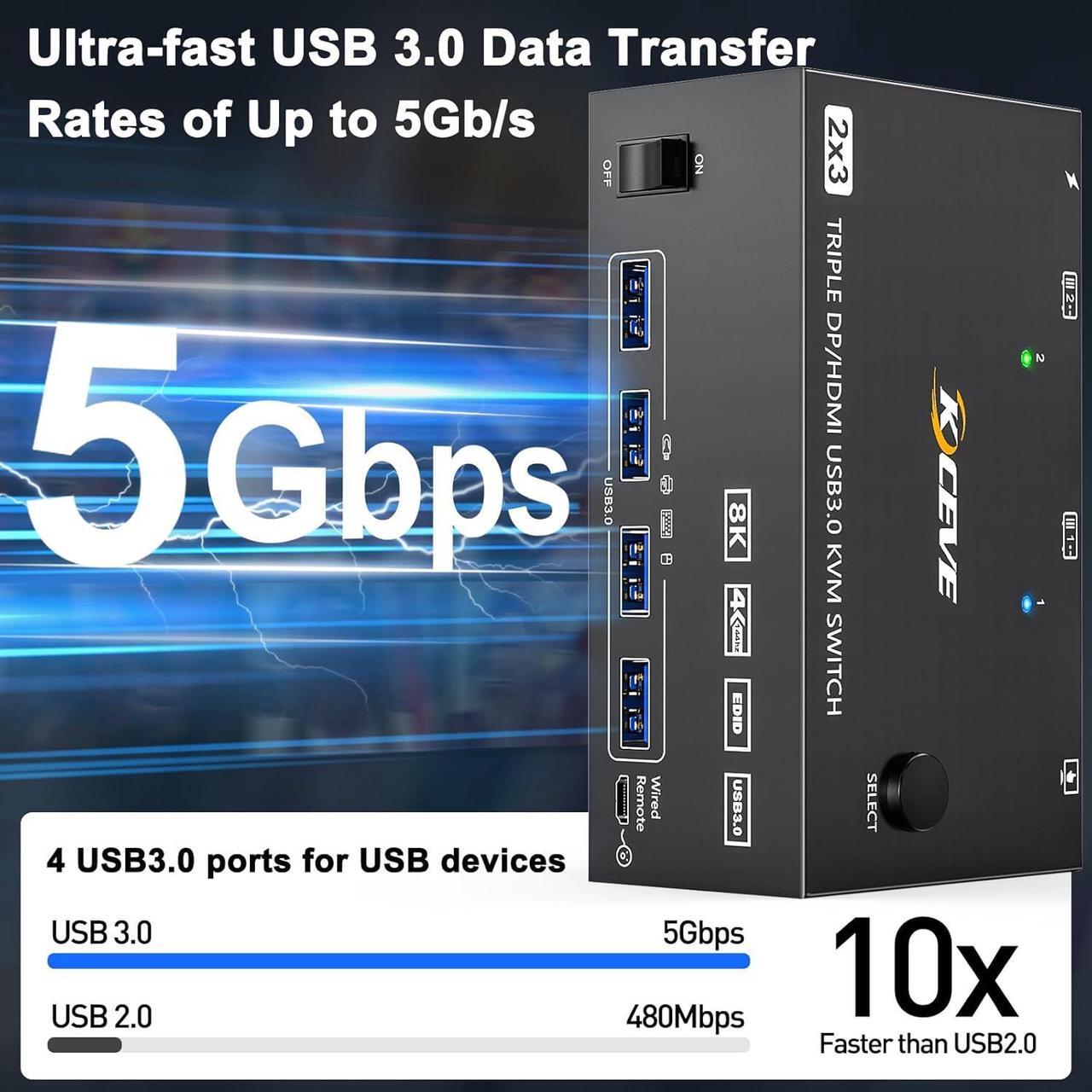

This 3 monitors KVM switch allows 2 computers to share 3 monitors and 4 USB 3.0 ports (for wired/wireless keyboard,mouse,webcam,Hard disk, etc.).
Support mirror and extended display modes.
Mirror mode: 3 monitors output the same screen
How to set the mirror mode
Windows OS: Press the shortcut key "WIN+P" and then select "mirror" below;
Mac OS: Select [A-p-p-l-e Icon] [System Preferences], click [Display] [Arrange], and then check [Mirror Display];
Extended mode: 3 monitors output different screens
How to set the extended mode
Windows OS: Press the shortcut key "WIN+P" and then select "Extension" below;
Mac OS: When [Mirror Display] is unchecked, "Extended Mode" can be achieved.

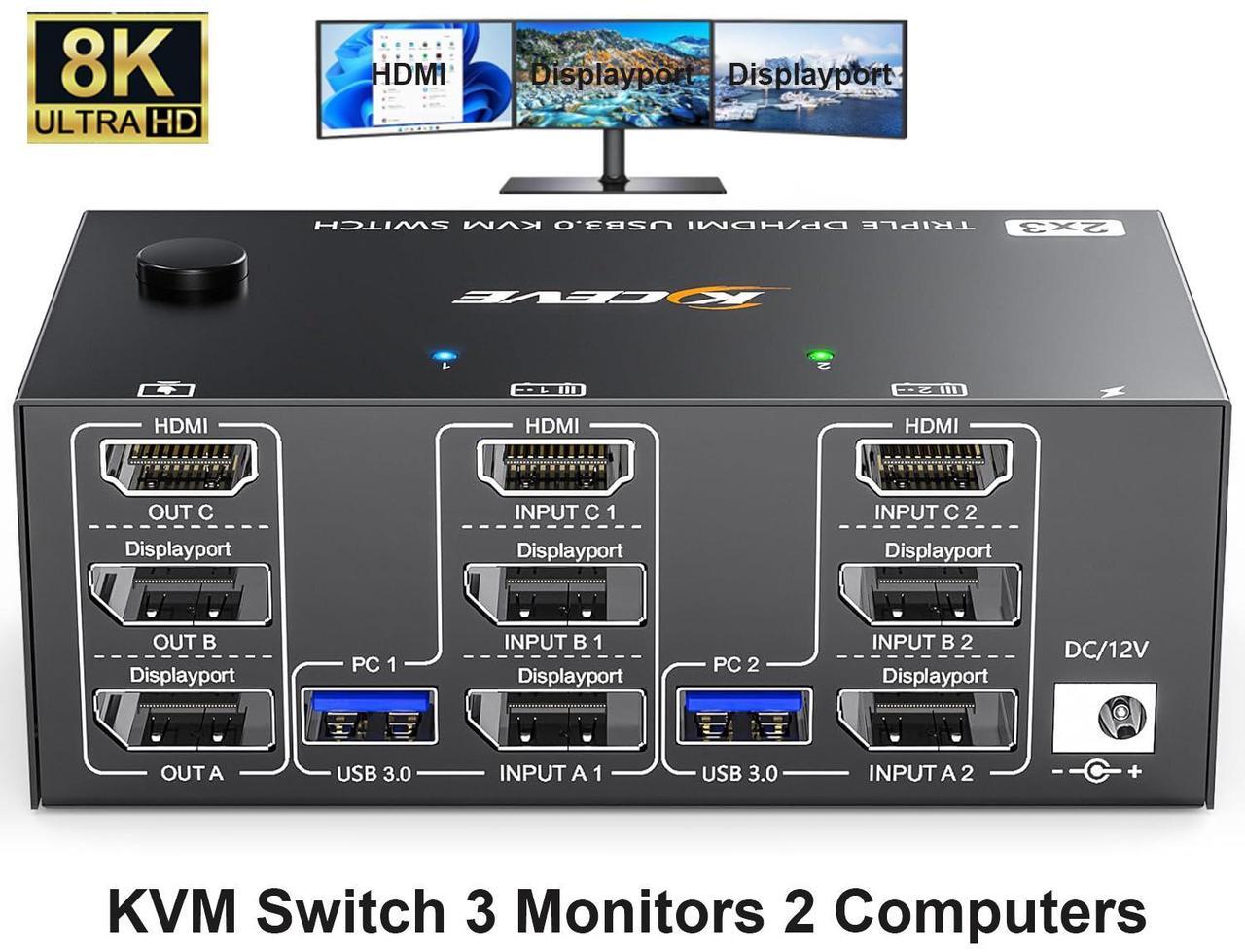

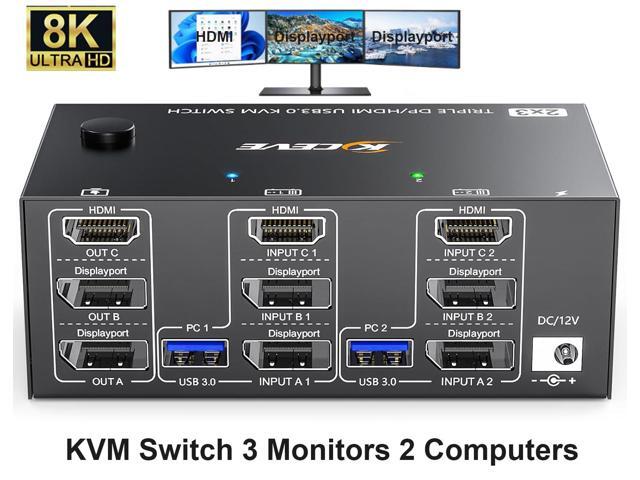

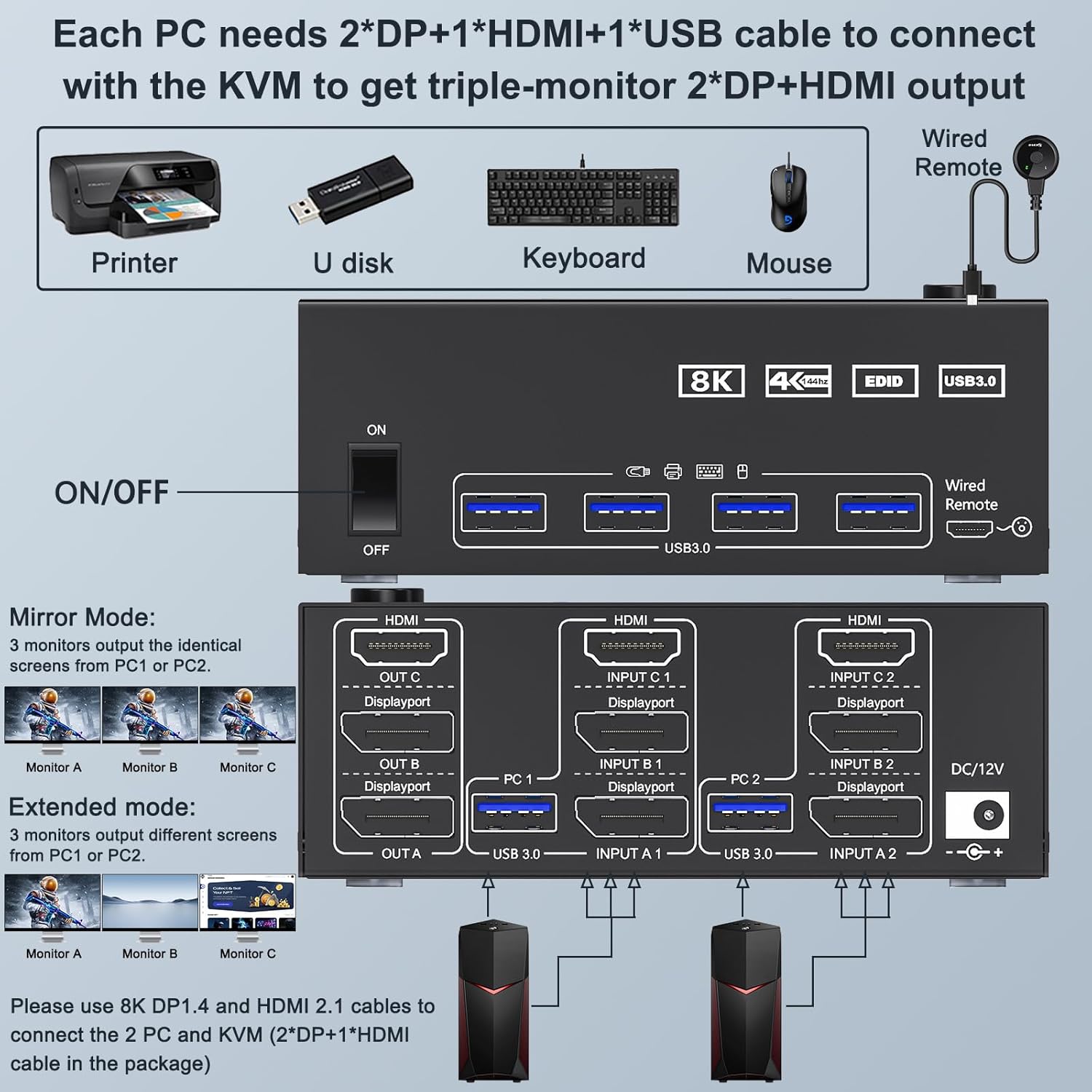

Step 1. Connect 2*DP cables+1*HDMI+1*USB-A cable between PC 1 and KVM (INPUT A1, INPUT B1, INPUT C1, USB 3.0).
Step 2. Connect 2*DP cables+1*HDMI+1*USB-A cable between PC 2 and KVM (INPUT A2, INPUT B2, INPUT C2, USB 3.0).
Step 3. Connect 2*DP+1*HDMI cables between the KVM (OUT A, OUT B, OUT C) and your 3 monitors.
Step 4. Connect the DC12V power adapter.
Step 5. Insert your USB devices(keyboard mouse and U disk) into the USB port on the KVM.
Advantages:
- 2 computers share 4 peripheral USB devices (keyboard mouse,printer, USB drive, etc) and 3 monitors.
- KVM triple monitors support extended and mirror display.
- Support wired or wireless keyboard and mouse.
- Cross support most major OS including Windows, Linux, Mac OS.

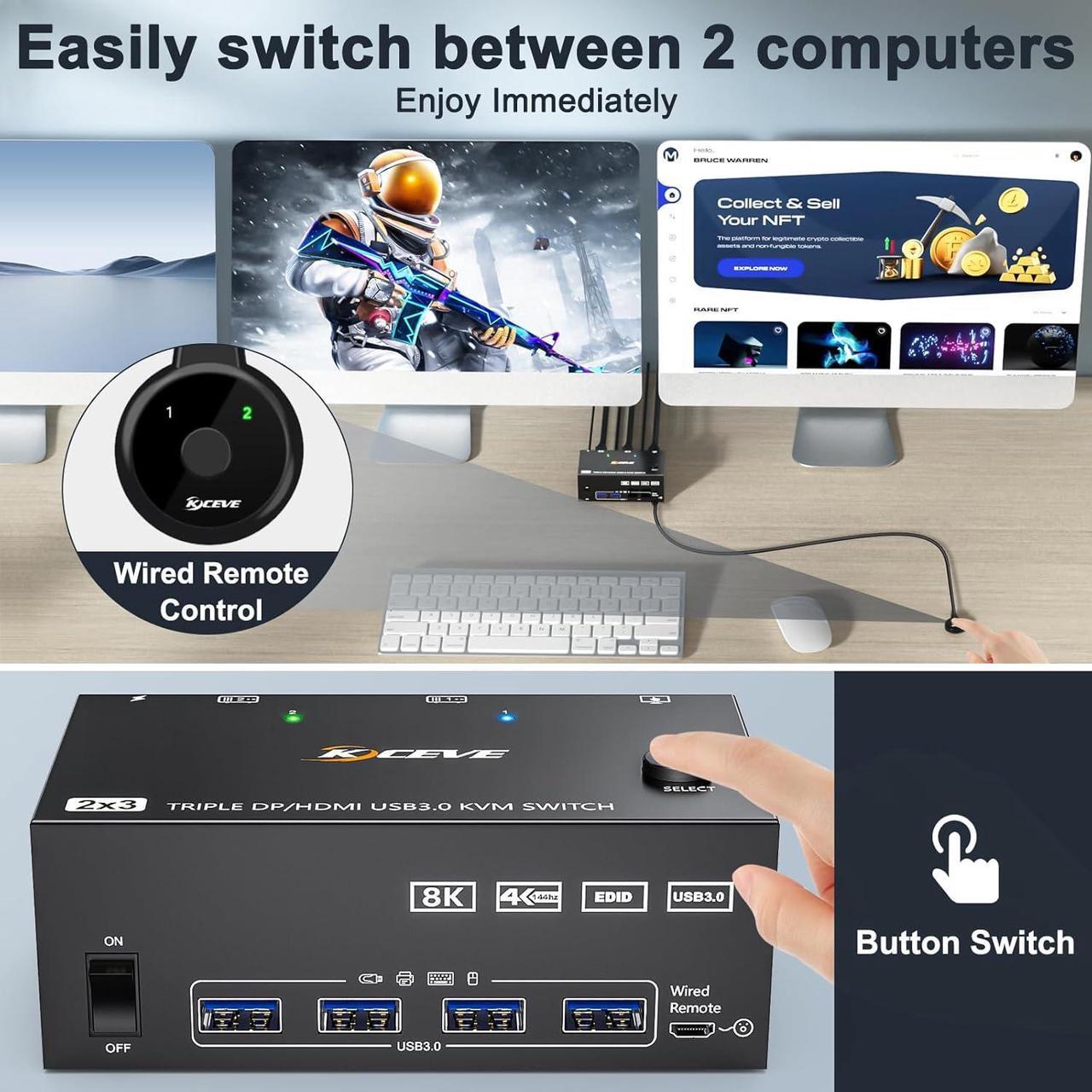

- Switching modes: Button switch and wired remote (1.5m),switch between 2 computers just need 2-4 seconds, fast and convenient.
- 1*HDMI+2* Displayport KVM Switch : HDMI support resolution up to 8K@60Hz/4K@60Hz; Display Port support resolution up to 8K@30Hz/4K@144Hz.
NOTE:
- Mac-book Air and Mac-book pro13 with M1 and M2 chips do not support expanded 3-screen output.
- Before purchasing this 3 monitor KVM switch, please make sure that connecting your computer directly to 3 monitors can work normally,Otherwise, the KVM will not be available.
- Not supporting EDID emulation.
| Input Tip: | 2*DP+1*HDMI+1*USB (for PC 1,PC 2). Desktop: The graphics card is required to have at least 2*DP+1*HDMI ports;Laptop: It is required to be able to expand at least 2*DP+1*HDMI ports (for use with a USB C docking station) |
|---|---|
| Output Tip: | 2*DP+1*HDMI+4*USB 3.0 (for 3 monitor and peripheral USB devices).It is recommended to use 2*DP monitor + 1 HDMI monitor, supporting DP to HDMI cable or converter. |
| Resolution | HDMI: up to 8K@60Hz; Displayport: up to 8K@30Hz,The final resolution also depends on your computer, monitor and the version and length of DP and HD-MI cables |
| About Power Supply: | KVM switch can be powered by USB cables connected to the 2 computers. Using the equipped DC12V power adapter can effectively solve the problem of insufficient power supply caused by connecting high-power USB devices. |
| Important Note | The use of 3 monitors KVM switch will be affected by cables. If the cable version is lower or the cable is too long, the monitor will not work. It is recommended to use HDMI2.0 and DP1.4 version cables to connect the KVM, and the length of a single cable should not exceed 1.5m. |
