Triple Monitor KVM Switch--For users sharing 3 Monitors between 3 Computers

- 3 computers share 3 monitors and 4 USB device.
- Supports wired or wireless keyboard and mouse.

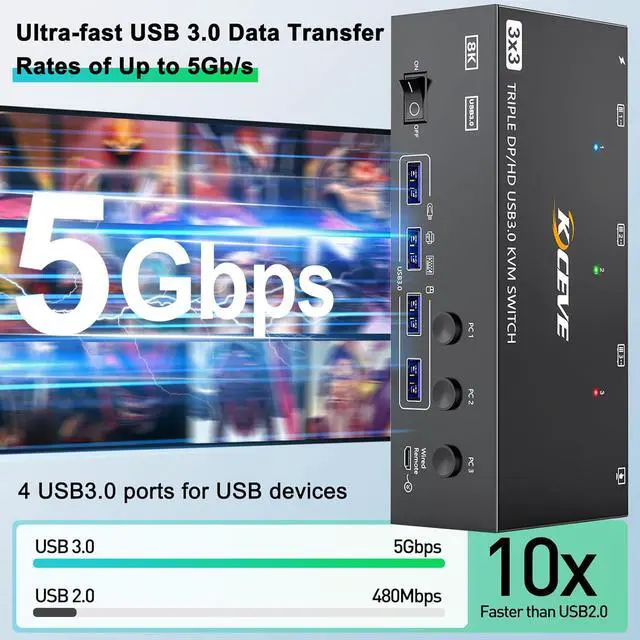

- USB 3.0 with ultra-fast data transfer up to 5Gb/s.
- Support resolutions up to 8K@60Hz, 4K@144Hz.

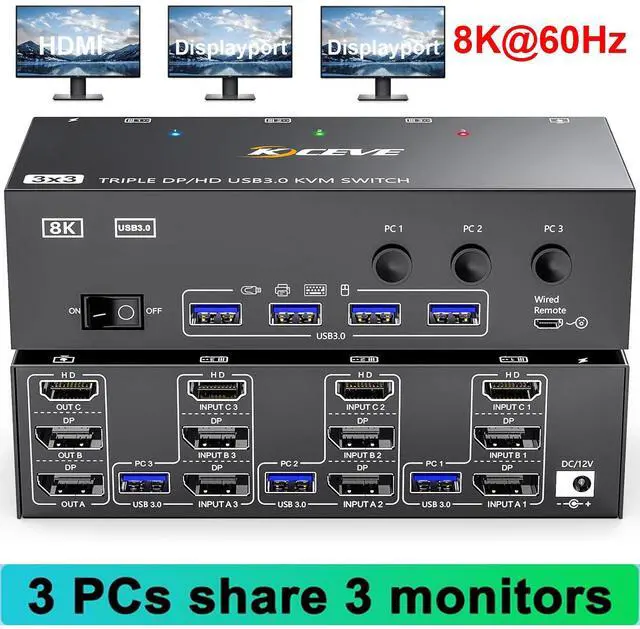

Connection diagram of 3 monitors KVM switch
Each PC requires 1*HDMI+2*DP+1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.Support DP to HDMI, USB-C to HDMI, USB-C to DP converter and USB-C docking station.
Please confirm whether your computers support 1*HDMI+2*Displayport before placing an order.

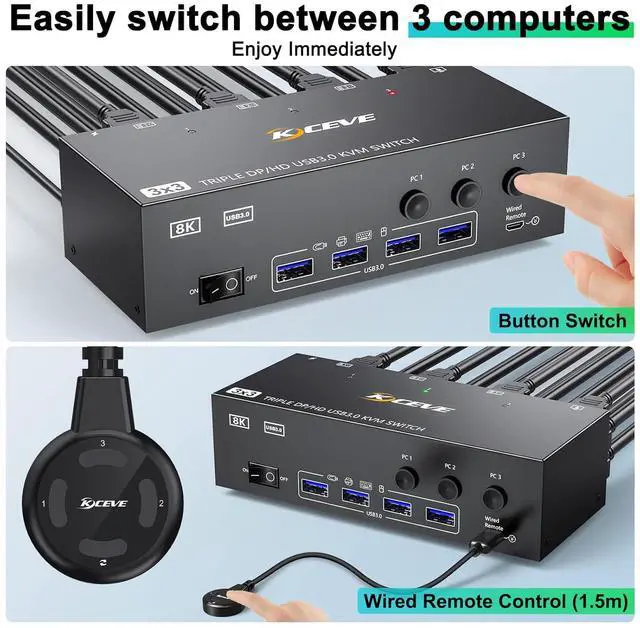

- Switching mode: button switch and wired remote.

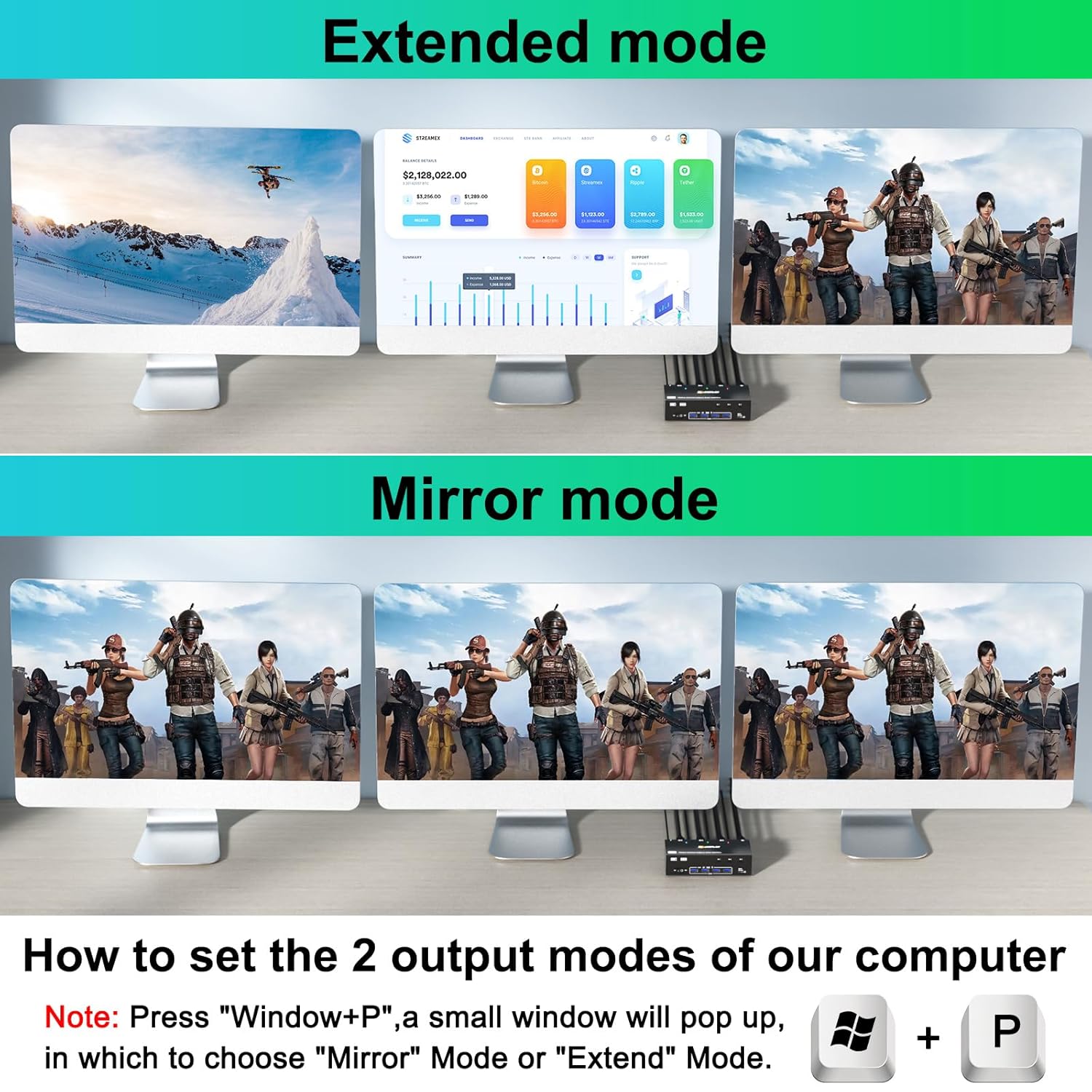

- Two output modes: Mirror and Extended mode.
- 12V power adapter, the recognition is more stable.






How to set the output mode
Windows OS: Press the shortcut key "WIN+P" and then select "Extension" or "mirror"
Mac OS: Set [Mirror Mode]: Select [A-p-pl-e Icon] [System Preferences], click [Display] [Arrange], and then check [Mirror Display];
Set [Extended Mode]: When [Mirror Display] is unchecked, "Extended Mode" can be achieved.
Q & A:
Q: Is the triple monitor KVM Switch compatible with computers or laptops only with USB-C ports?
A: Yes, but you need purchase an additional USB-C to DP/HDMI adapter or USB-C docking station to connect the KVM to your USB-C computer/laptop.
Q: Why do some monitors work fine and others not when the cables are connected the same way?
A: This depends on factors such as the version of cable used, the length of the individual cables, and whether adapters are used.
It is recommended to use HDMI2.1, DP1.4 cable, and the length of a single cable should not exceed 1.5m.
Q: Can the KVM switch's USB port be used for high-power USB devices such as hard drives?
A: Yes, but please plug in the 12V power adapter (included in the package) for stable performance.
Q: Does the DisplayPort 1.4 KVM switch support Hotkey switching?
A: No, it DOES NOT support Hotkey switching,but supports button switch and wired remote
Q: Does this KVM switch support EDID emulation?
A: NO, It does not support EDID emulation.
