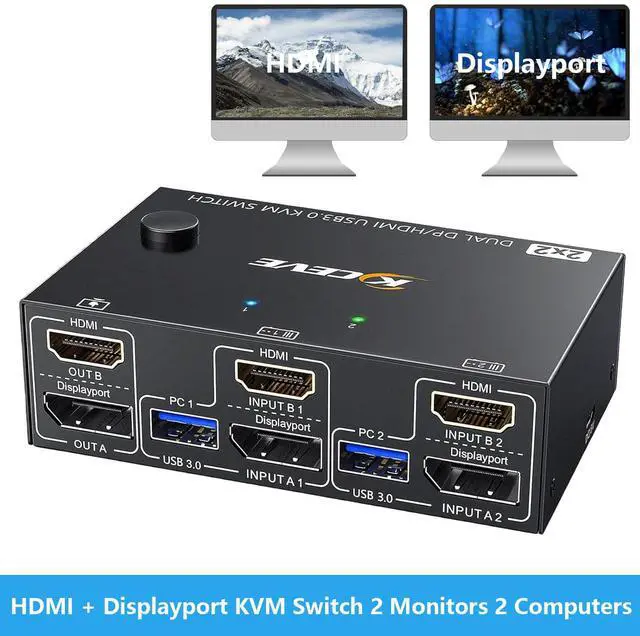

This HDMI DP KVM Switch 2 monitors 2 computers allows you to switch effortlessly between two computers with one click, share 2 monitors and 4 USB 3.0 ports (keyboard, mouse, printer, webcam) without swapping cables, Space-saving KVM for home offices, content creators, and IT professionals. Just plug and play, KVM switches support extended & mirrored mode

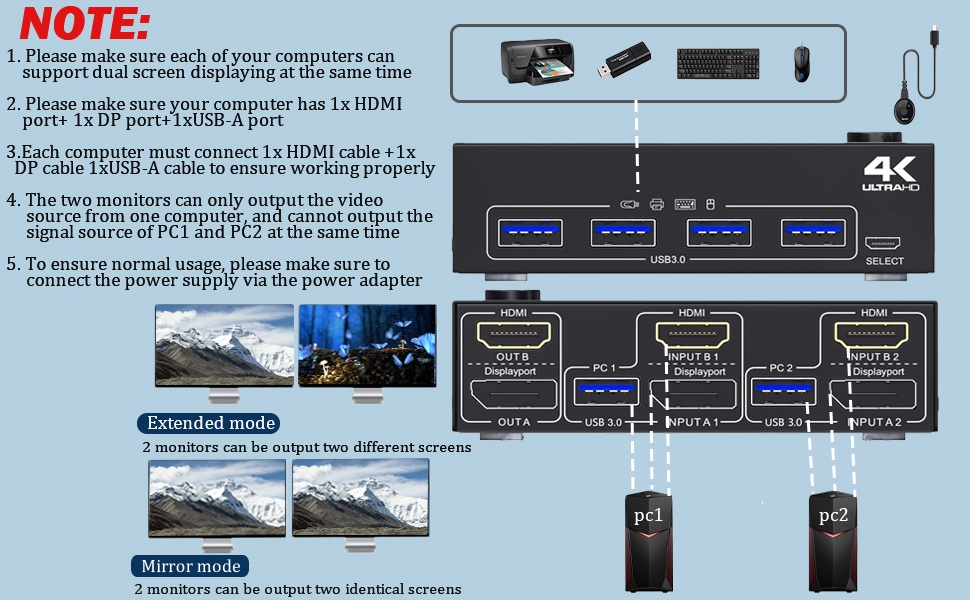

Please Note!
1, Please make sure your computer has DP ports + HDMI port +1 USB A port
2. Please do not cross the video cables. INPUT A1 / INPUT A2, Output OUT A, INPUT B1 / INPUT B2, Output OUT B
3, Please ensure your computer supports multi-screen output

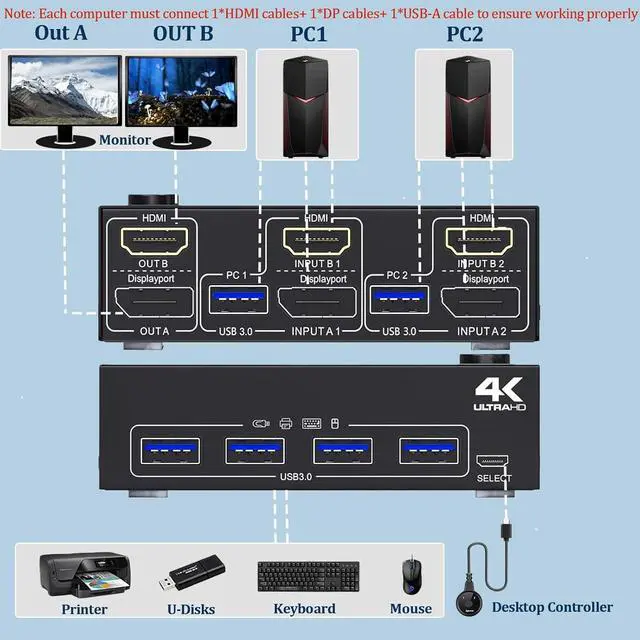

Input: Each computer requires 1 HDMI cable,1 Displayport cable and 1 USB cable to be connected to the KVM switch
Output: two monitors connected to the KVM via HDMI Displayport ports
USB Peripherals: mouse,keyboard,Printer and U-Disk linked via USB Port

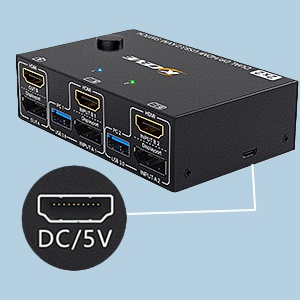

Power: Connect the DC 5V power cable to the KVM
When connecting high-power USB devices,please connect a DC 5V power supply

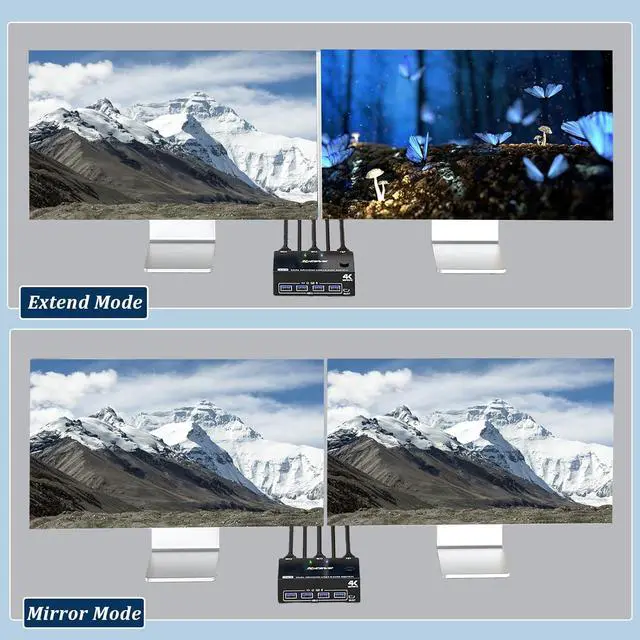

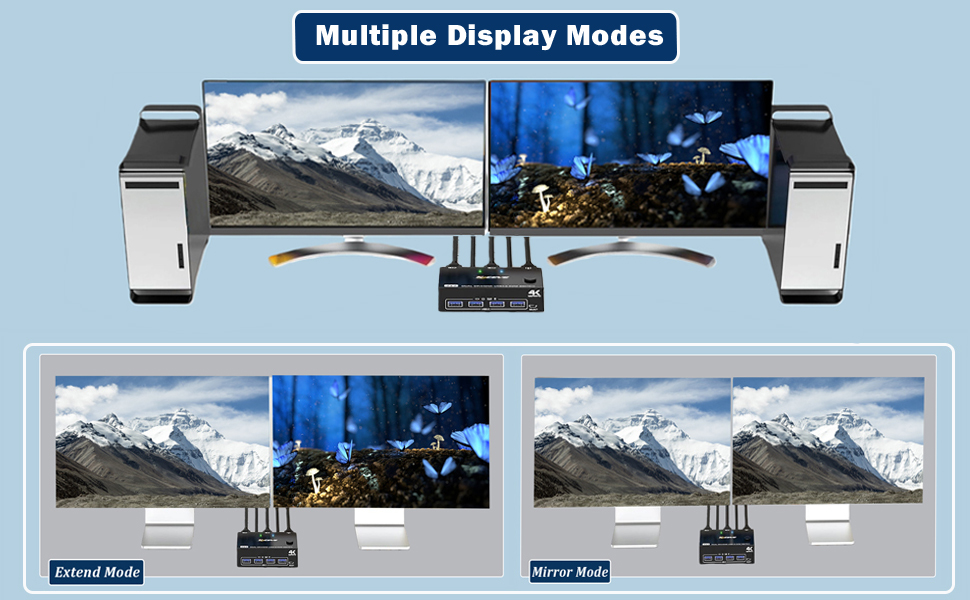

Mirror mode: 2 monitors output the same images, Mirrored display mode will copy the image from the main screen to the secondary screen
Extend mode: 2 monitors output different images, allowing you to move application windows to another screen for efficient multitasking

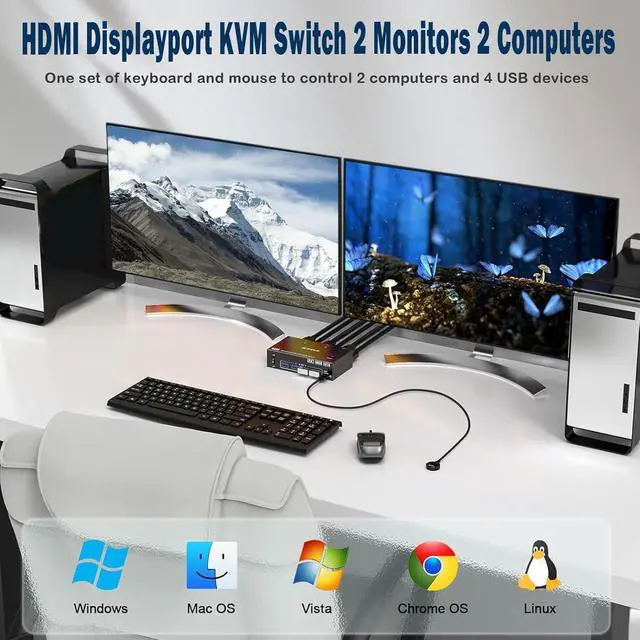

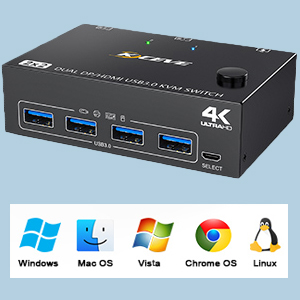

This two monitor KVM switch for Windows,Mac OS, Linux and Chrome OS. No need for drivers or software installation, plug and play
USB KVM switch support up to 8K@60Hz resolution, and backward compatible with 8K@30Hz, 4K@240Hz/144Hz/120Hz/60Hz/30Hz
NOTE: Final resolution is subject to graphic cards,monitors,cables and adapters. To achieve 8k resolution please use 8K HDMI cable and 8K DP cable

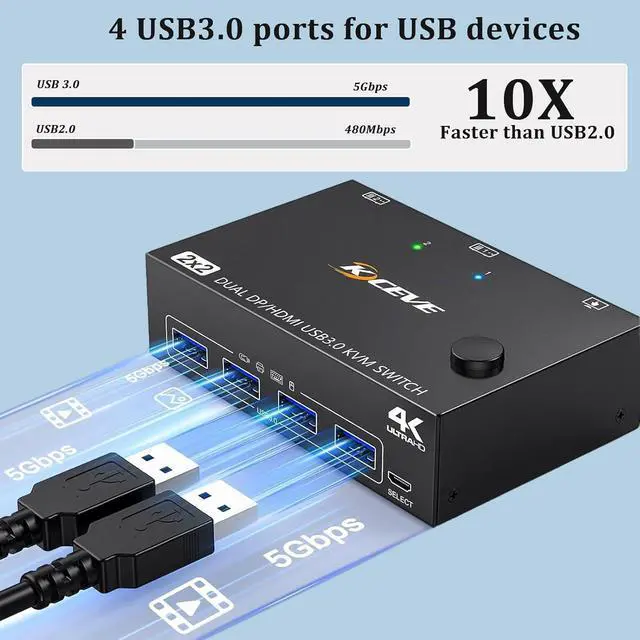

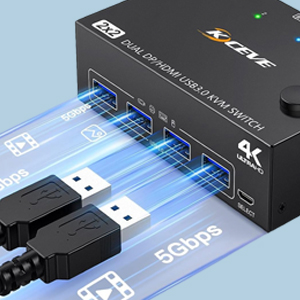

KVM Switches with 4 USB 3.0 (USB-A) ports for sharing mouse, keyboard, USB flash drives, printer, hard drives, and other USB devices; Supports ultra-fast USB 3.0 data transfer, Data transfer speeds up to 5Gbps (10x faster than USB 2.0)

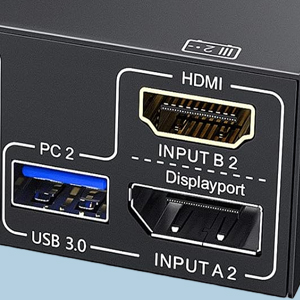

INPUT Port: DisplayPort 1.4 ports + HDMI 2.1 port+USB3.0 Port
OUT Port: HDMI Port+DP port

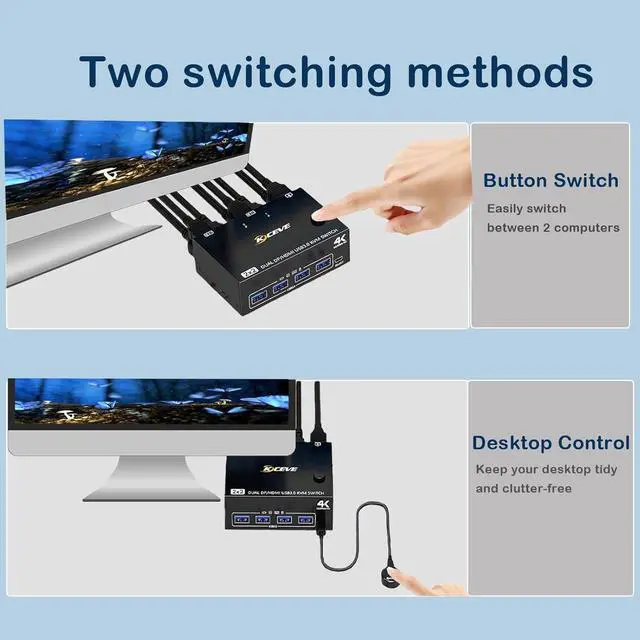

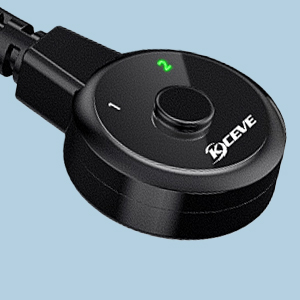

Supports button switching and Wired Remote switching, freely switch between 2 computers. With the Wired Remote , you can place this monitor switch for 2 computers outside your work area, making your desktop cleaner and tidier
To ensure normal usage, please connect a DC 5V power supply. Especially when using high-power USB devices
