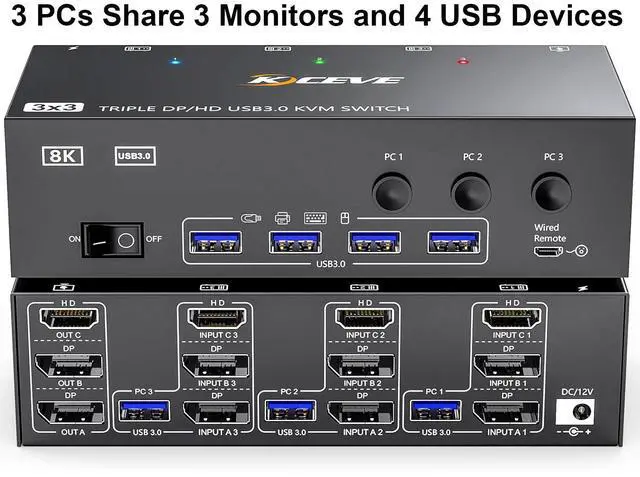

Triple Monitor KVM Switch--For users sharing 3 Monitors between 3 Computers
3 computers share 3 monitors and 4 USB device.
Supports wired or wireless keyboard and mouse.

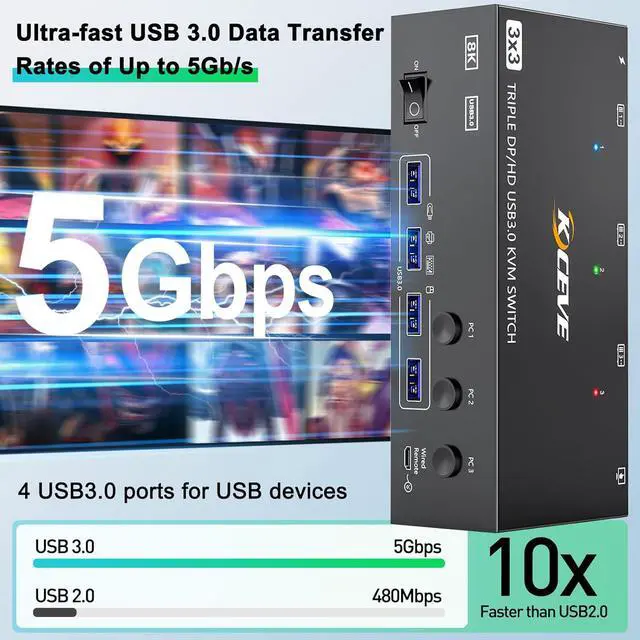

USB 3.0 with ultra-fast data transfer up to 5Gb/s.
Support resolutions up to 8K@60Hz, 4K@144Hz.

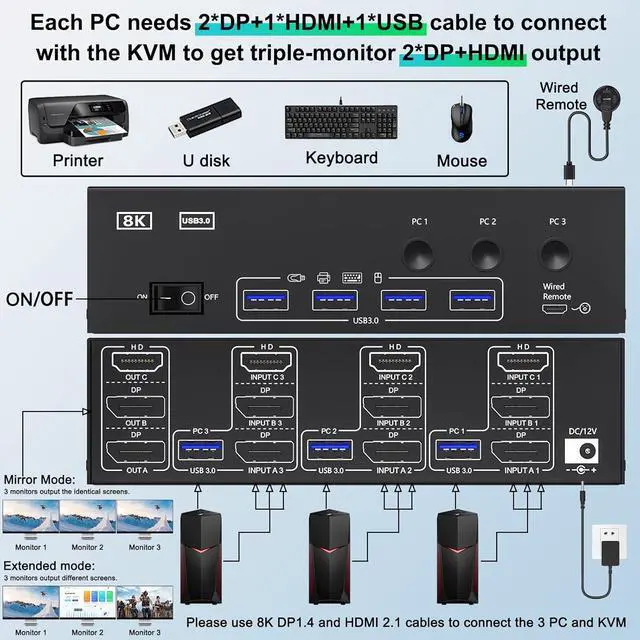

Each PC requires 1*HDMI+2*DP+1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.Support DP to HDMI, USB-C to HDMI, USB-C to DP converter and USB-C docking station.
Please confirm whether your computers support 1*HDMI+2*Displayport before placing an order.

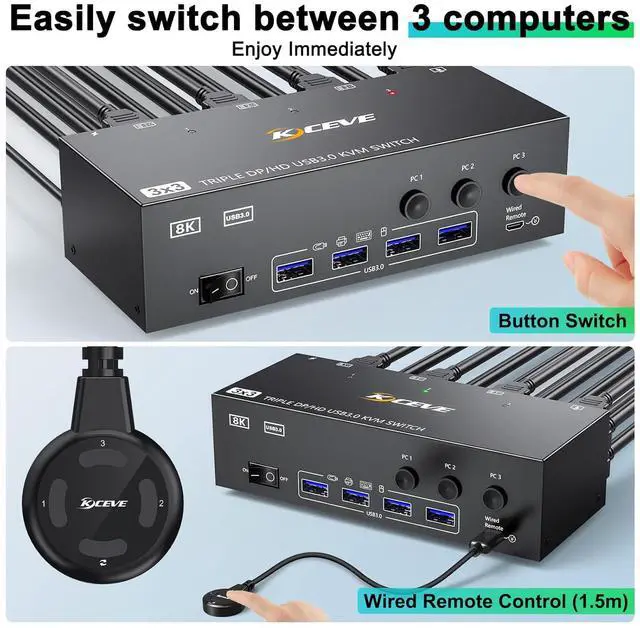

- Switching mode: button switch and wired remote.

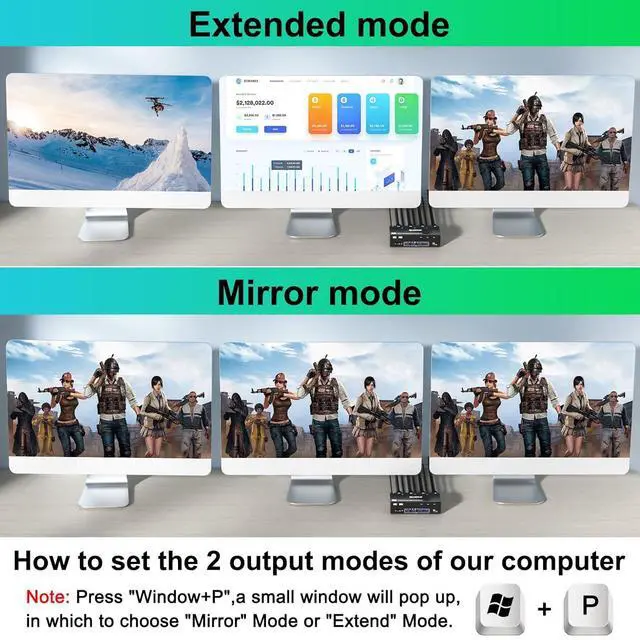

- Two output modes: Mirror and Extended mode.
- 12V power adapter, the recognition is more stable.

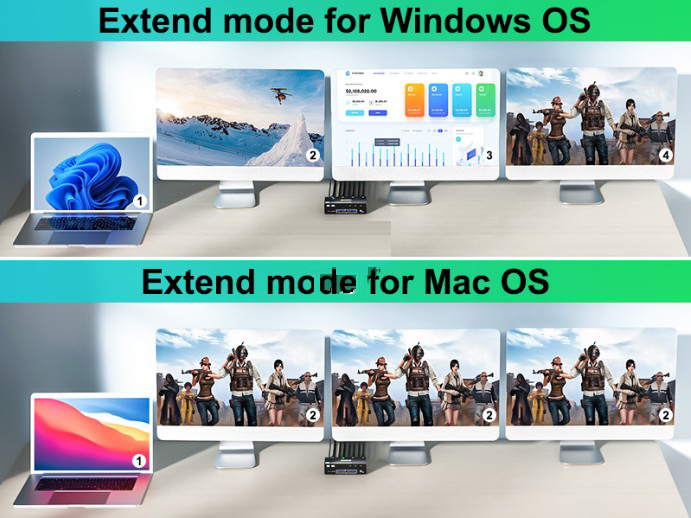

How to set the output mode
Windows OS: Press the shortcut key "WIN+P" and then select "Extension" or "mirror"
Mac OS: Set [Mirror Mode]: Select [Apple Icon] [System Preferences], click [Display] [Arrange], and then check [Mirror Display];
Set [Extended Mode]: When [Mirror Display] is unchecked, "Extended Mode" can be achieved.
Q & A:
Q: Is the KVM Switch compatible with computers or laptops only with USB-C ports?
A: Yes, but you need purchase an additional USB-C to DP/HDMI adapter or USB-C docking station to connect the KVM to your USB-C computer/laptop.
Q: Why do some monitors work fine and others not when the cables are connected the same way?
A: This depends on factors such as the version of cable used, the length of the individual cables, and whether adapters are used.
- It is recommended to use HDMI2.1, DP1.4 cable, and the length should not exceed 1.5m.
Q: Can the USB port be used for high-power USB devices such as hard drives?
A: Yes, but please plug in the 12V power adapter (included) for stable performance.
Q: Does the DisplayPort 1.4 KVM switch support Hotkey switching?
A: No, it DOES NOT support Hotkey switching, but supports button switch and wired remote
Q: Does this KVM switch support EDID emulation?
A: NO, It does not support EDID emulation, the window arrangement will be slightly shifted after switching.
