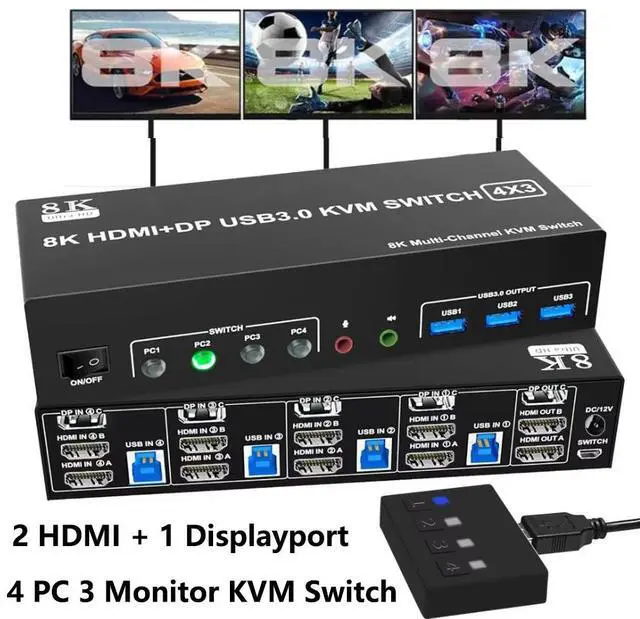

    Hitoor KVM Switch 3 Monitors 4 Computers 8K@60Hz 4K@144Hz, 2 HDMI + 1 Displayport Triple Monitor KVM Switch for 4 Pcs Share 3 Monitors and 3 USB 3.0 Port Keyboard Mouse, with Audio & Microphone output

    Limited time offer, ends 11/22 By Smart Life Marketplace

    Be the first to review this product...
    • 3 Monitor KVM Switch 4 PC: This KVM switch allows 4 computers to share 3 monitors and 3 USB 3.0 ports, for keyboard, mouse, printer etc. Supports expansion/copy mode. Note: Please make sure your computer has 1 DP + 2 HDMI ports and supports multiple monitors
    • Ultra HD 8K@60Hz 3 Monitor KVM: The HDMI 2.1, DP 1.4 triple monitors ( DisplayPort +HDMI+HDMI) 4 Ports kvm switch supports resolution up to 8K@60Hz and downwards. Note: Final resolution is also subject to graphic cards, monitors, cables and adapters.
    • with 3 USB 3.0 Ports & Microphone Output: KVM switch with 3 USB 3.0 ports which can recognize keyboard,mouse,printer and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps. KVM Switch also supports separate audio and microphone output.
    • 2 Switching Mode & LED Indicator: 1. Toggle selection on front panel; 2. Wired remote switch. Compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS; LED indicate the active computer
    • Giving You More Choices: 4 ports does not mean that it can only be connected to 4 computers. You may only have 2 computers now, but you may need to use 3 or 4 computers in the future, then you can choose this. And KVM Switch has 3 independent circuit boards, A, B and C, suitable for 4 computers to share 3 monitors, 2 monitors or 1 monitor, giving you more choices. As long as your computer confirms that it supports triple-screen display, you can use 3 screens.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    2 HDMI + 1 Displayport KVM Switch 8K 60Hz Triple Monitor Display 4X3 4 port USB DP KVM Switch 2K 165Hz 3 Monitors 4 PC Computers Keyboard Mouse Share

    HDMI Displayport KVM Switch 8K 60Hz Triple Monitor Display 4X3 4 port USB DP KVM Switch 2K 165Hz 3 M



    USB 3.0 HDMI Displayport KVM Switch (DP + HDMI + HDMI) 4 ports Triple Monitor



    Product Features:

    • 4 computers/laptops share one set of keyboard, mouse and dual or triple monitors, and more USB 3.0 peripherals;
    • Support maximum resolution up to 4K 144Hz Triple monitors output
    • support up to 8K@60Hz/4K@120/144Hz,2K@165Hz/1080P@240Hz for extended and mirrored display;
    • Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
    • Advanced switching modes: push button and wired remote;No complicated installation is required, and non-professionals can easily operate it;
    • The ports that need to plug in HDMI/DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;Audio Microphone output.
    USB3.0 HDMI Displayport KVM Switch (DP + HDMI + HDMI) 4 ports Triple Monitor Product Features: 4 co

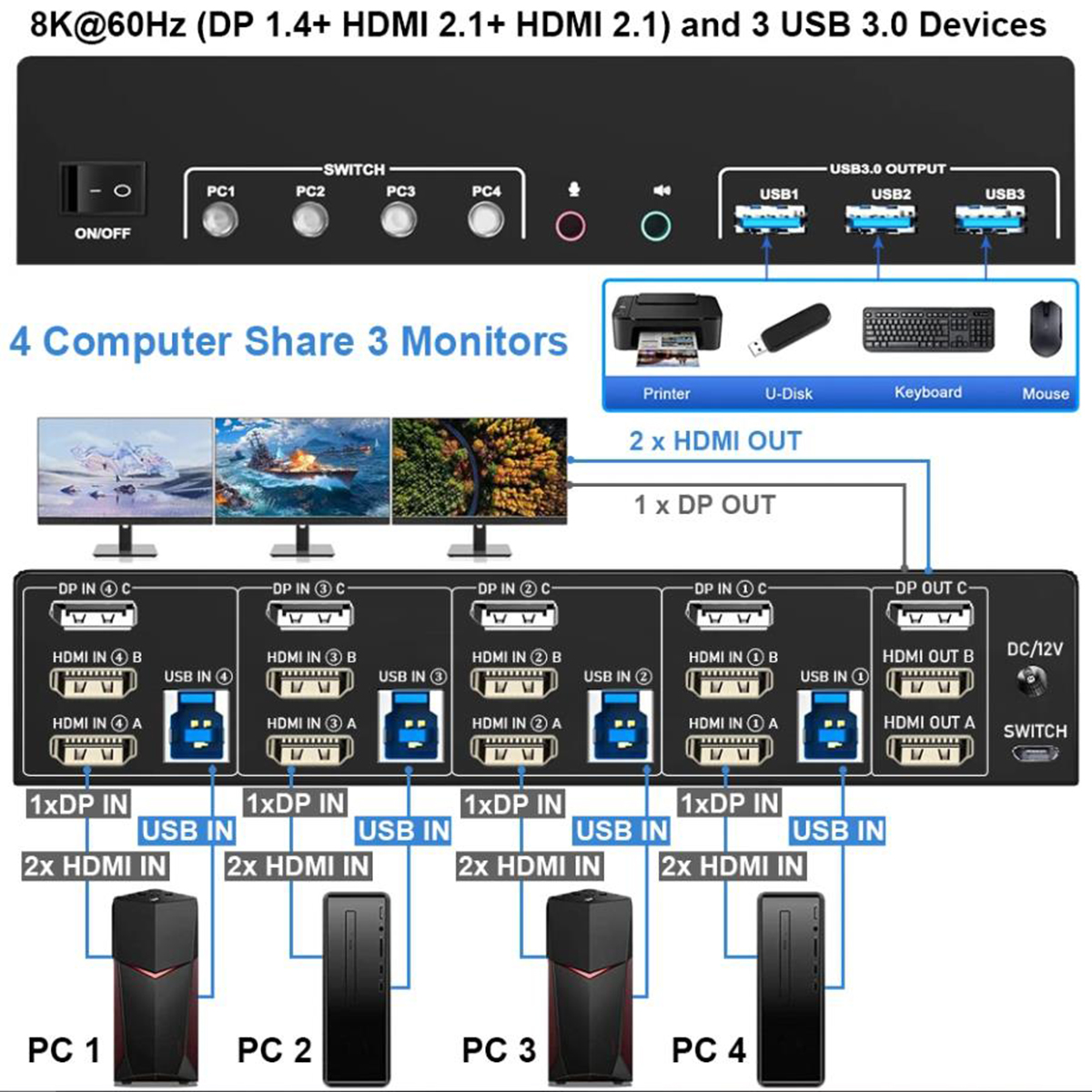

    Connection steps:



    1. Insert the DC/12V adapter into the KVM ;

    2. Plug the HDMI / DPcable into the KVM and monitor;(Output)

    3. Plug the HDMI / DP cable and USB cable into the KVM and your computer/laptop (HDMI and DP cables are not included)(Input)

    HDMI IN1 A + HDMI IN1 B+DP IN1 C + USB IN1=PC1

    HDMI IN2 A + HDMI IN2 B+DP IN2 C + USB IN2=PC2

    HDMI IN3 A + HDMI IN3 B+DP IN3 C + USB IN2=PC3

    HDMI IN4 A + HDMI IN4 B+DP IN4 C  + USB IN2=PC4

    4. Insert the mouse and keyboard into the KVM switch

    5. If needed, you can connect a microphone and audio port

    Note:

    1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI cables+ 1 DP cable+1 USB cable) connect to the KVM.

    2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.

    3. Before purchasing this HDMI + DP triple monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.

    4. Note: HDMI and DP cables are not included

    Note 1. Most of the reasons why only one video output works is because of incorrect connection. Plea

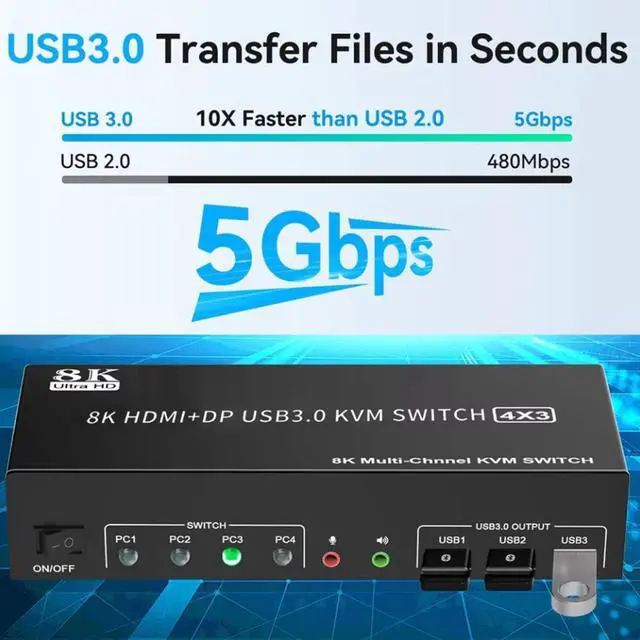

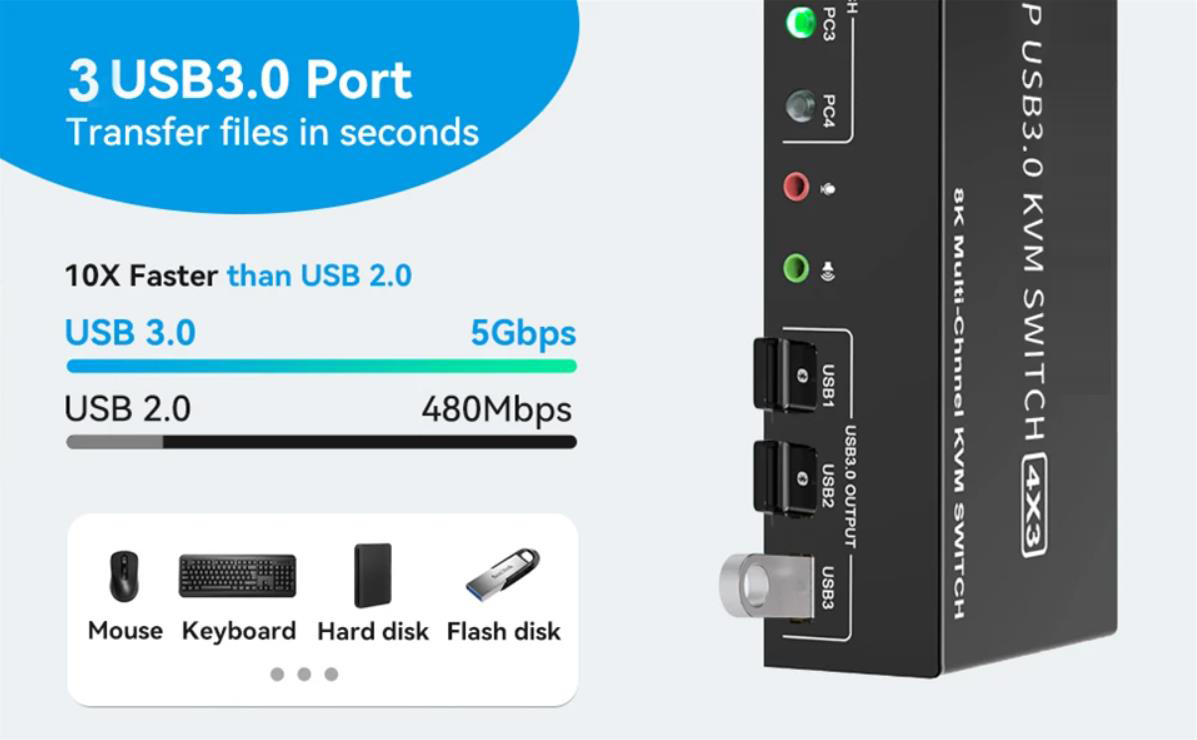

    USB 3.0 interface 4 PCs 3 Monitors with 5Gbps



    Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.



    3 x USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

    USB 3.0 interface 4 PCs 3 Monitors with 5Gbps Supports 5Gbps data transfer speed , can transfer fil

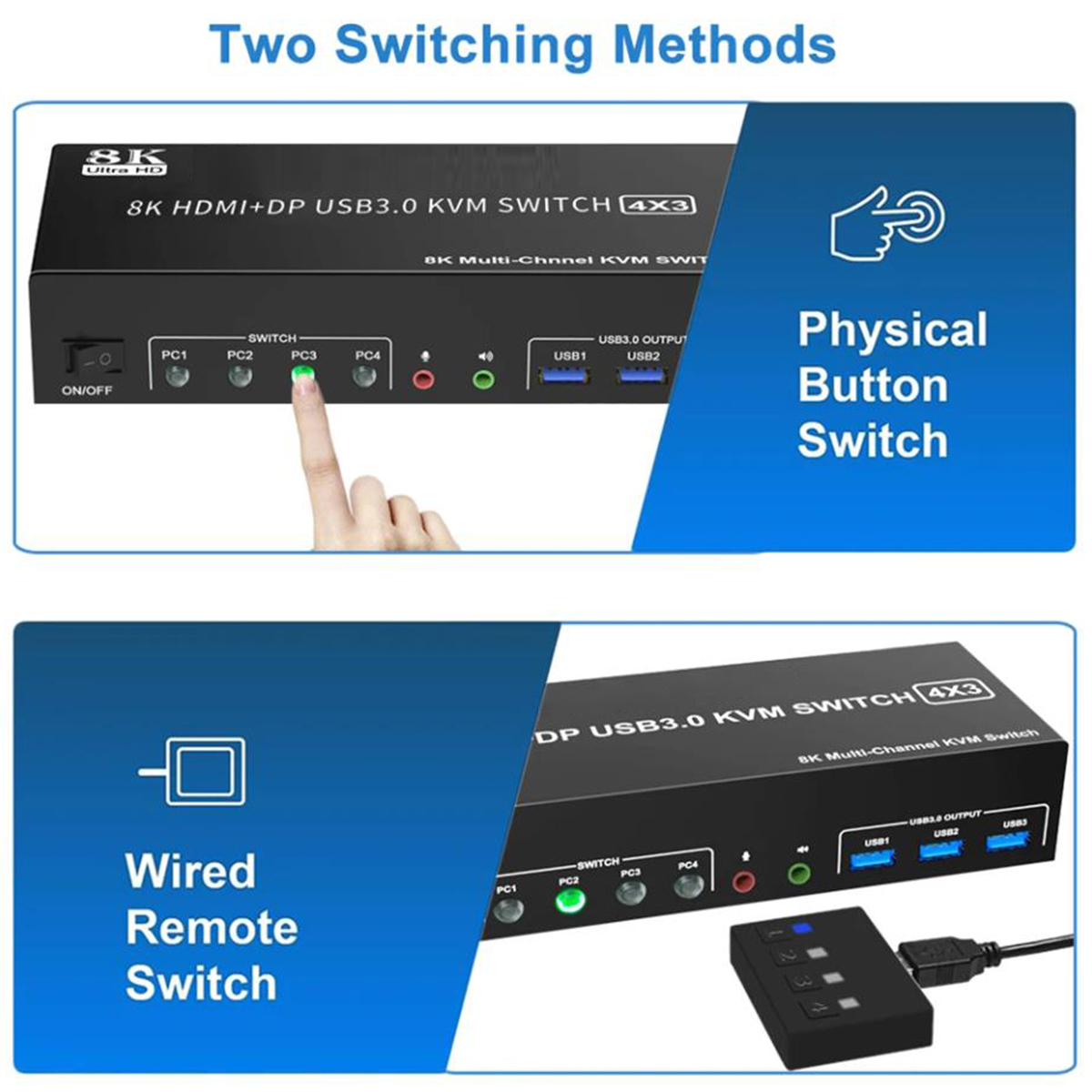

    Support 2 Switching Modes



    Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).

    Please note: This KVM does not support hotkey switching.

    Support 2 Switching Modes
    Support 2 Switching Modes

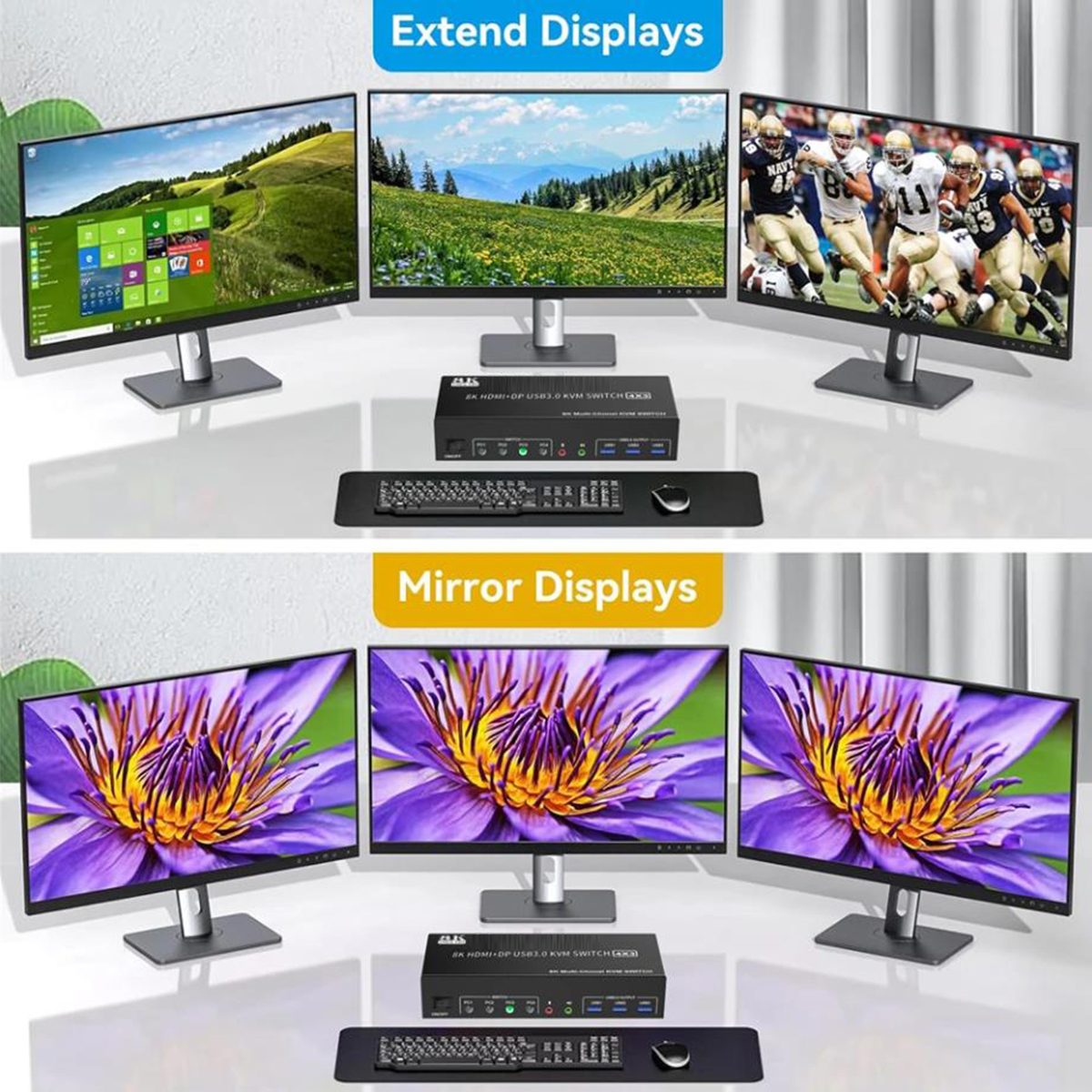

    2 Display Modes

    • Extended Display
    • Mirrored Display



    If you are a designer or illustrator, you can use this mode to see the effect while working.

    • 1) Extended mode can output three different screens and mirror mode can output three identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
    • 2) The requirement for this KVM to achieve a Triple-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.
    2 Display Modes Extended Display Mirrored Display If you are a designer or illustrator, you can
    2 Display Modes Extended Display Mirrored Display If you are a designer or illustrator, you can
    2 Display Modes Extended Display Mirrored Display If you are a designer or illustrator, you can
    HDMI Displayport KVM Switch 8K 60Hz Triple Monitor Display 4X3 4 port USB DP KVM Switch 2K 165Hz 3 Monitors 4 PC Computers Keyboard Mouse Share



    Description:

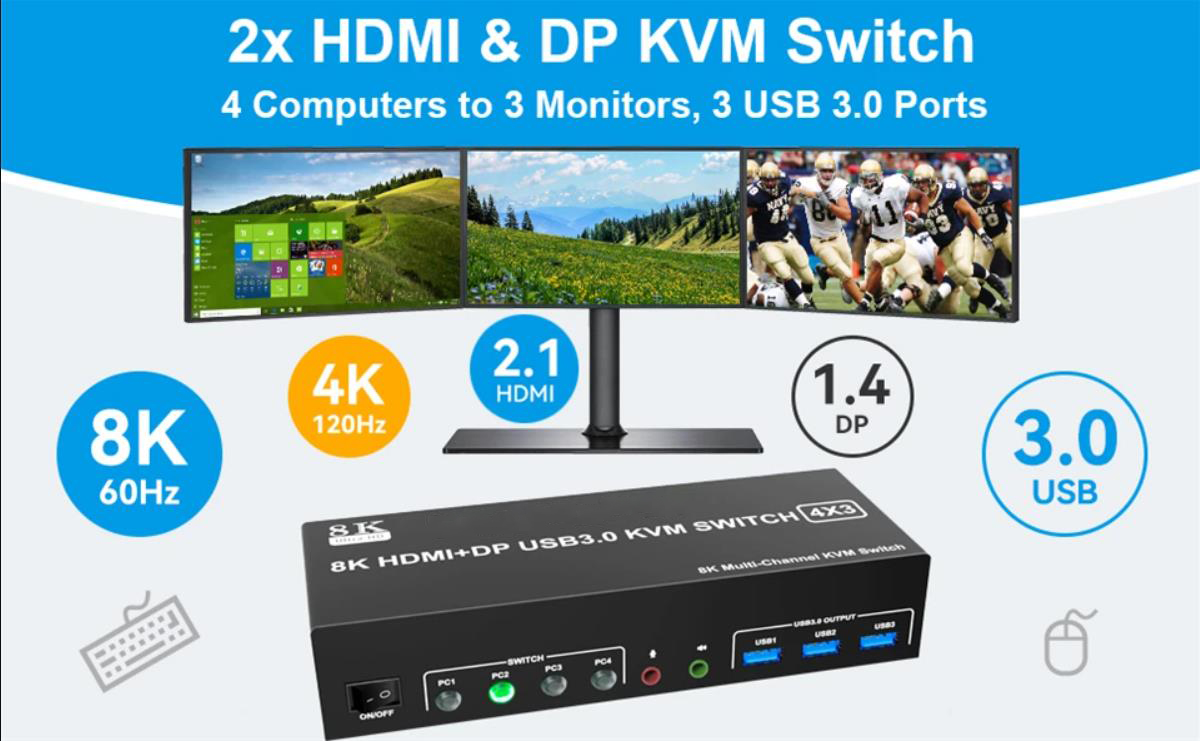

    8K 60Hz 4x3 2 Channel HDMI + 1 Channel Displayport USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and two HDMI monitor & one DP monitor to control 4 computers, laptops, game consoles.

    It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 4 computers using a manual switch located on the top of the KVM unit.




    Features:

    1080P@240Hz HDMI DP KVM Switch 4 Port Triple Monitor Extended Display, UHD 8K@60Hz RGB 4:4:4, Audio, Button Switching, PC Monitor Keyboard Mouse Switcher for 4 Computers 3 Monitors


    1. USB 3.0 KVM Switch Triple Monitor 2 CH HDMI + 1 CH DisplayPort 4 Port This Triple monitor 4 IN 3 OUT DP KVM Switch is for you to control them using one set of keyboard, mouse and single or dual or triple monitors to make your work space tidy and efficient, also a premium choice for working from home. Only when your computer supports dual display or multi display, you can use this KVM to achieve 4 PC to share 3 monitors. (Extended or mirrored modes depend on your computer's graphics card).
    2. 2 Channel HDMI + 1 Channel DP KVM Switches with 3 USB 3.0 PortsTriple monitor 8K Displayport KVM switch with 3 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.
    3. HDMI Displayport KVM Switch up to 8K@60HZ This HDMI DP kvm Triple monitor 4 port supporting high resolution max up to 8K@60Hz,4K@144Hz, and also supports 3D and 1080P@60/120/240Hz or other lower resolution (Downward Compatible). Complies with the DP 1.4 standard and HDMI 2.1 & HDCP 2.3. Note: Only when both your computer Graphics card , monitor and DP/HDMI cable support 4K@120Hz then you can get 4K@120Hz effect, so if you want the max resolution you have to check your devices first.
    4. 2 Switching Mode & LED Indicator1. Toggle selection on front panel; 2. Wired remote switch. Compatible with a variety of computer systems,such as Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS; also supports DP/HDMI devices without USB signal input like DVR, NVR etc. LED indicate the active computer.
    5. ImportantAfter connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. hotkey switching is not supported.




    Connection steps:


    1. Insert the DC/12V adapter into the KVM ;

    2. Plug the HDMI / DPcable into the KVM and monitor;(Output)

    3. Plug the HDMI / DP cable and USB cable into the KVM and your computer/laptop (HDMI and DP cables are not included)(Input)

    HDMI IN1 A + HDMI IN1 B+DP IN1 C + USB IN1=PC1

    HDMI IN2 A + HDMI IN2 B+DP IN2 C + USB IN2=PC2

    HDMI IN3 A + HDMI IN3 B+DP IN3 C + USB IN2=PC3

    HDMI IN4 A + HDMI IN4 B+DP IN4 C + USB IN2=PC4

    4. Insert the mouse and keyboard into the KVM switch

    5. If needed, you can connect a microphone and audio port

    Note:1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI cables+ 1 DP cable+1 USB cable) connect to the KVM.2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.3.Before purchasing this HDMI + DP triple monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.4. Note: HDMI and DP cables are not included
