BZBGEAR 4x1 4K UHD KVM Switcher with USB 2.0 Ports for Peripherals and Audio Support - BG-UHD-KVM41A

The BG-UHD-KVM41A is a 4K HDMI USB 2.0 KVM switch. With support for resolutions up to 4K@30Hz, this device allows users to control four computers and share USB peripherals from a single workstation. Perfect for offices, software programmers, and support desks, users can easily switch between multiple operating systems without leaving their seat.
Connectivity and Features

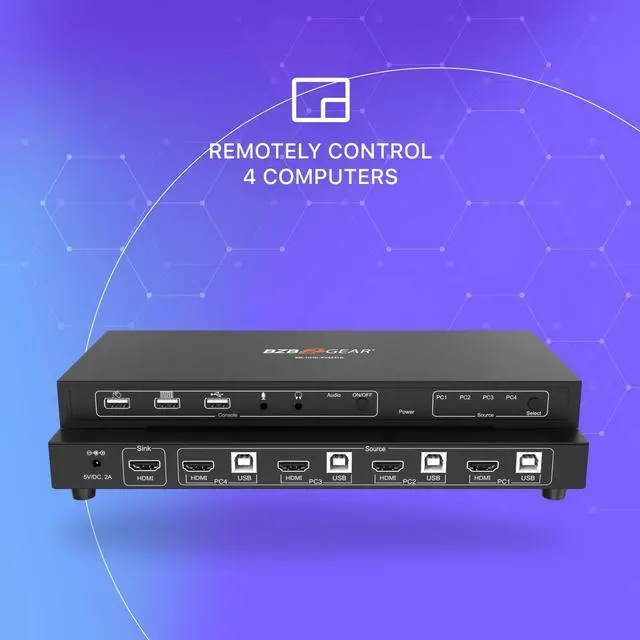

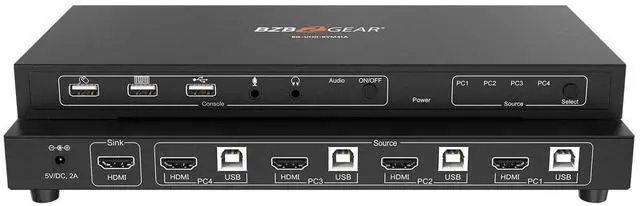

The rear panel of the BG-UHD-KVM41A is equipped with four PC connections, each including one USB 2.0 type-B host port and one HDMI 1.4 input. There is also one HDMI 1.4 output for connection to a monitor. On the front panel, there are three USB 2.0 ports for a keyboard, mouse, and a spare port for additional devices. The BG-UHD-KVM41A also provides 3.5mm audio connections for a microphone and headphones/speakers.
Control
The BG-UHD-KVM41A is simple to operate using the front panel buttons. The source select button toggles between the four connected computers, switching the HDMI and peripheral connections. It can also be operated using hotkeys. There is also an audio toggle which enables/disables the audio in/out connections.
Share an HDTV or display, USB keyboard & mouse, headphones, and microphone between 4 USB/HDMI computersProvides an additional USB 2.0 sharing port with over-current detection and protectionSwitch between devices via the front push buttons or hotkey commandsSupports all digital audio modesVideo bandwidth: up to 18Gb/sMetal housing for better RF shielding
Supports resolutionsup to 4K@60HzInput Ports4 HDMI, 4 USB 2.0 Host, 3 USB 2.0 Peripheral, 1 analog audioOutput Ports1 HDMI, 1 Analog AudioControlPanel ButtonsPower SupplyAC 100 - 240V 50/60HzWeight1lbs 12oz [793g]Dimensions10.7"(W) x 4.5"(D) x 1.25"(H) [272mm (W) x 114mm (D) x 32mm (H)]HousingMetal Enclosure 1. USB Mouse Port: Connect to a USB mouse.
2. USB Keyboard Port: Connect to a USB keyboard.
3. USB Port: Connect to other USB devices.
4. MIC: Connect to a microphone.
5. Audio out: Connect to earphones.
6. Audio LED: Audio ON/OFF Indication.
7. Audio Switch: Switch to enable/disable the MIC/Audio out function.
8. Port LED: Indicate which HDMI source is selected.
9. Port Select: Switch between the HDMI sources.
10. Power Jack: Connect to the included power adapter.
11. HDMI Sink: Connect to local HDMI Display.
12. PC1-4 HDMI Inputs: Connect to the source/remote device's HDMI output.
13. PC1-4 USB Type-B Port: Connect to the source/remote PC's USB port for USB control.
