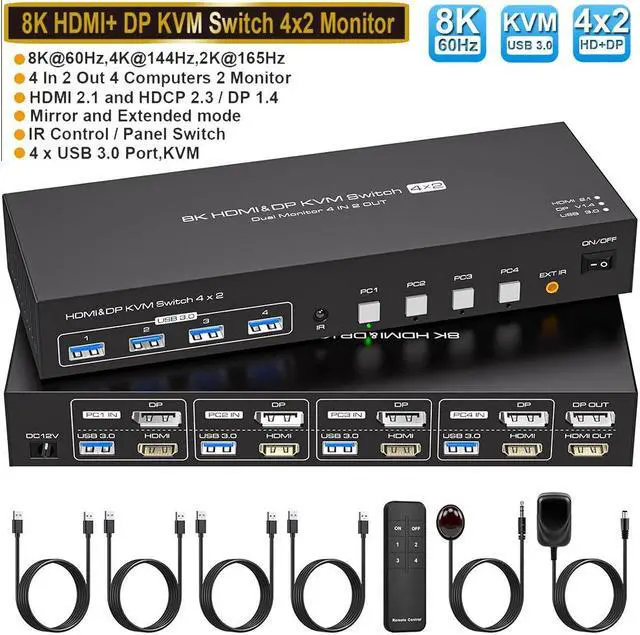

Product Features:

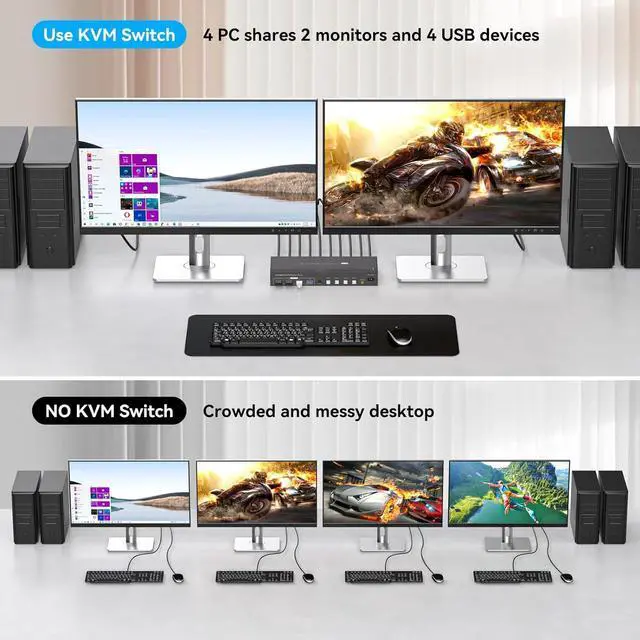

- 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals;
- Support maximum resolution up to 4K 144Hz Dual monitors output
- support up to 8K@60Hz/4K@144Hz,2K@165Hz/1080P@240Hz for extended and mirrored display;
- Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
- Advanced switching modes: push button and IR remote control;No complicated installation is required, and non-professionals can easily operate it;
- The ports that need to plug in HDMI/DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

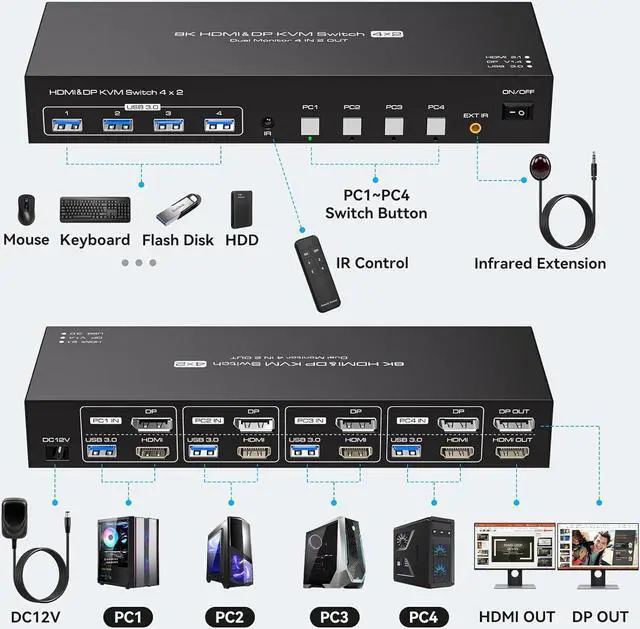

1. Insert the DC/12V adapter into the KVM ;
2. Plug the HDMI and DP cable into the KVM and monitor;(Output)
3. Plug the HDMI cable,DP cable and USB cable into the KVM and your computer/laptop (HDMI/DP cables are not included)(Input)
DP IN1 A + HDMI IN1 B + USB IN1=PC1
DP IN2 A + HDMI IN2 B + USB IN2=PC2
DP IN3 A + HDMI IN3 B + USB IN2=PC3
DP IN4 A + HDMI IN4 B + USB IN2=PC4
4. Insert the mouse and keyboard into the KVM switch
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 HDMI cable+ 1 DP cable+1 USB cable) connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3.Before purchasing this HDMI DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.
4. Note: HDMI cables and DP cables are not included
Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.
3 x USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.
Support 2 Switching Modes

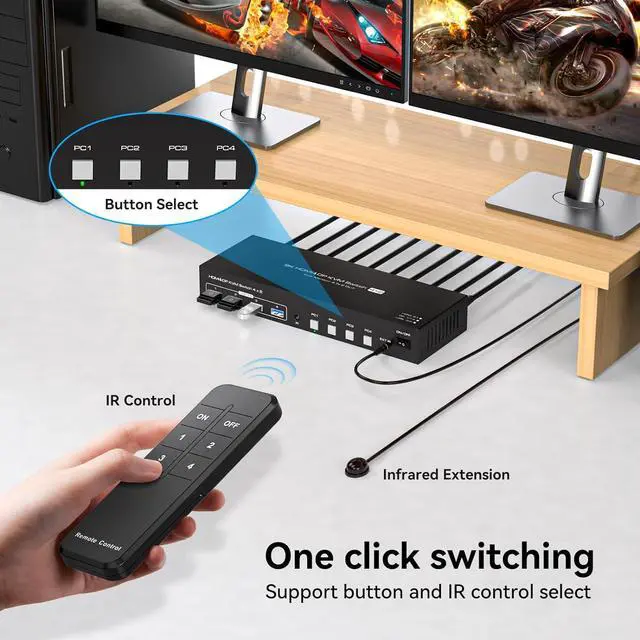

Quickly switch between the 4 computers with just one click of the switch button on the panel or use the IR remote controller (included in the package).
Please note: This KVM does not support hotkey switching.
2 Display Modes
Extended Display
Mirrored Display
If you are a designer or illustrator, you can use this mode to see the effect while working.
1)Extended mode can output two different screens and mirror mode can output two identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.
