Dual Monitor HDMI+DP KVM Switch 4K@60Hz, USB 3.0 HDMI + Displayport KVM Switch for 2 Computer Share 2 Monitor and 4 USB 3.0 Devices Keyboard Mouse, Wired Remote and 4 Cables Included

• Freely switch between two computers with one button, share one set of keyboard, mouse and 2 monitors.

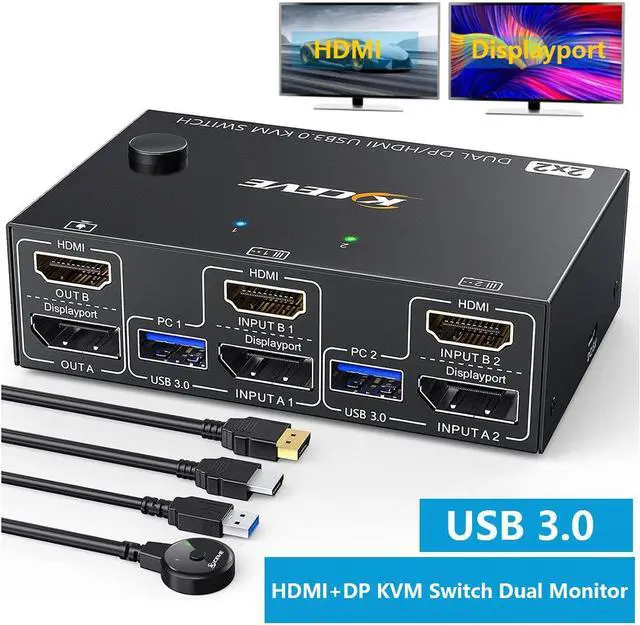

• HDMI+DP dual display output, three display modes are optional (extended mode, mirror mode or splicing mode).

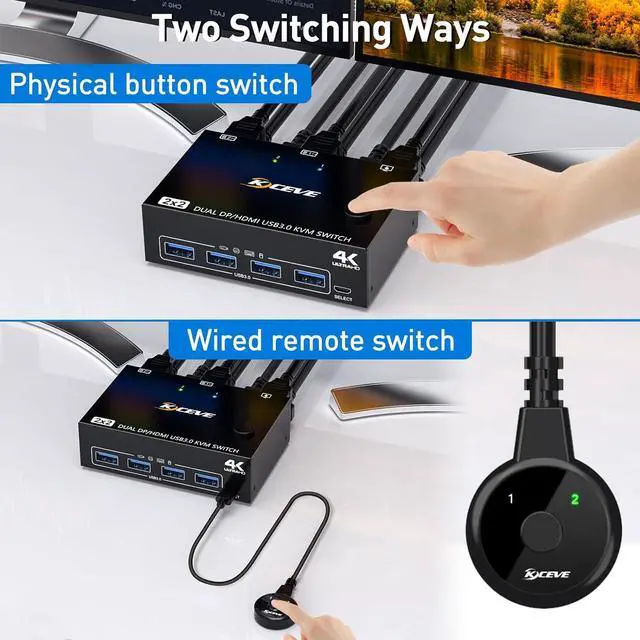

• Switching modes: Button switch and wired remote.
• Support wired or wireless keyboard and mouse.

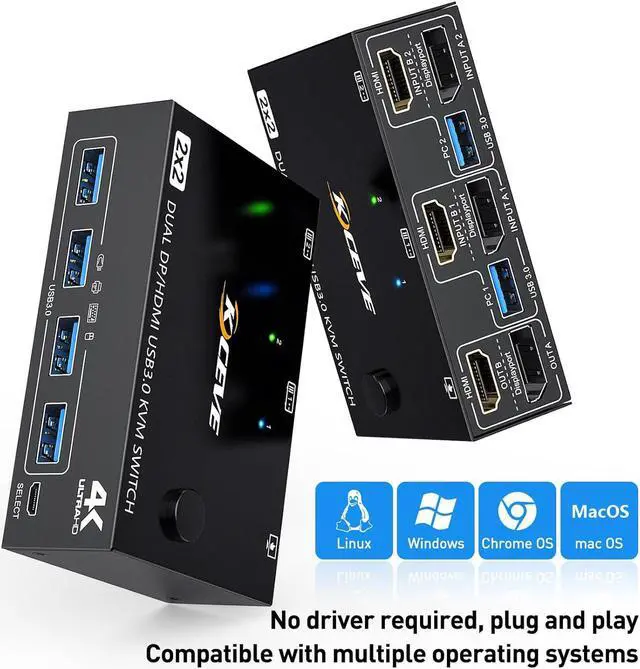

• Cross support most major OS including Windows, Linux, Mac
• With 4 USB 3.0 ports for USB devices,the DC 5V power supply port, it is convenient for you to use high-power USB devices (such as HDD, SSD, etc.).Usually this Dual monitor KVM switch powered by USB cables, no need to connect to DC 5V power supply.

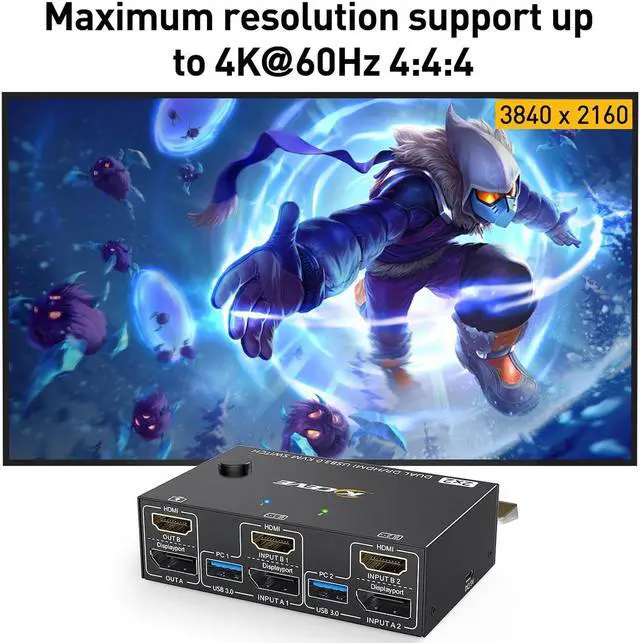

• HDMI supports maximum resolution 4K@60Hz, 2K@120Hz, DP supports maximum resolution 4K@60Hz, 2K@144Hz, backward compatible.
• Support DP1.2 HDMI 2.0 standard, compatible with HDMI 1.4 standard.
• Suitable for docking station, freely switch back and forth between desktop and laptop + docking station,support USB-C/DP to HDMI converter.

• This displayport HDMI KVM need each PC support dual or multi-screen display. Detection method: You can connect the computer to 2 monitors directly (not via KVM). If both monitors work perfectly, the computer supports multi-monitor display.
• The two monitors can only output the video source from one computer (mirror mode or expansion mode), and cannot output the signal source of PC1 and PC2 at the same time.
• For laptops, this KVM switch HDMI displayport supports USB C docking stations, but the resolution refresh rate may be limited by the docking station, and you may need to connect DC 5V to power the KVM (depending on your docking station).
• The cables (1*HDMI cable+1*DP cable+1*USB cable) connecting PC 1 and PC 2 to the KVM cannot be cross-connected,because the USB cables not only supply power to the KVM, but also transmits data between the computer and the USB devices.

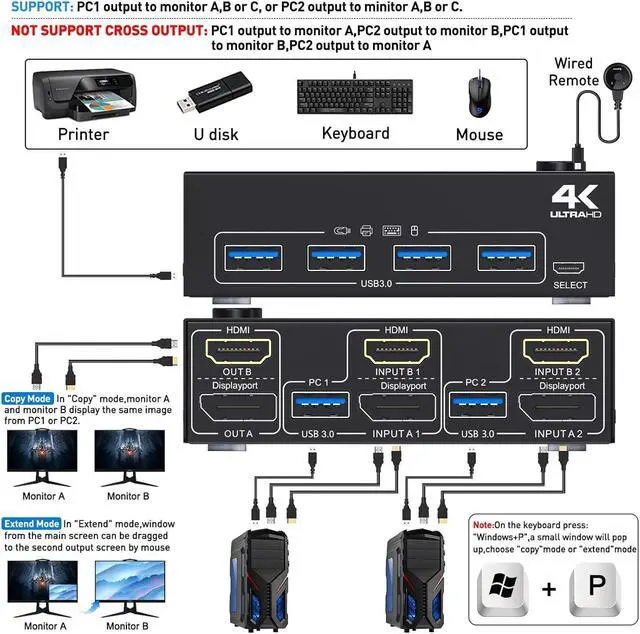

Connection steps:

Step 1. Connect 1*HDMI+1*DP cables+1*USB cable between PC 1 and KVM (USB 3.0, INPUT A1,INPUT B1).

Step 2. Connect 1*HDMI+1*DP cables+1*USB cable between PC 2 and KVM (USB 3.0, INPUT A2,INPUT B2).

Step 3. Connect HDMI and DP cables between KVM and monitors. (Mark "OUT A,OUT B")

Step 4. Plug your USB device (keyboard, mouse, printer, USB stick, etc.) into the USB-A port on the KVM.

Step 5. Insert the wired remote into the "SELECT" port to remotely switch between PC1 and PC2.

Important:

After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. Otherwise, only one of the two connected monitors has an image.

HDMI port support:

3840*2160@60Hz; 3440*1440@100Hz/60Hz; 2560*1600@60Hz, 2560*1440, 2560*1080, 1920*1440, 1920*1200, 1600*1200, 1680*1050@100Hz/60Hz; 1600*900, 1440*900@120Hz/100Hz/60Hz; 1920*1080, 1280*800@144Hz/120Hz/100Hz/60Hz (Not a full list)

Note: These data are obtained according to the monitor and computer test in laboratory. The results may be inconsistent due to the differences of computer, monitor and cables.
