8K@60Hz/4K@144Hz Triple Monitor KVM Displayport1.4 + 2 HDMI 2.1
This KVM Switch allows 2 computers to share 3 monitors and 4 USB3.0 ports(keyboard,mouse and other USB devices).It can make your work space tidy and efficient, also a premium choice for working from home.

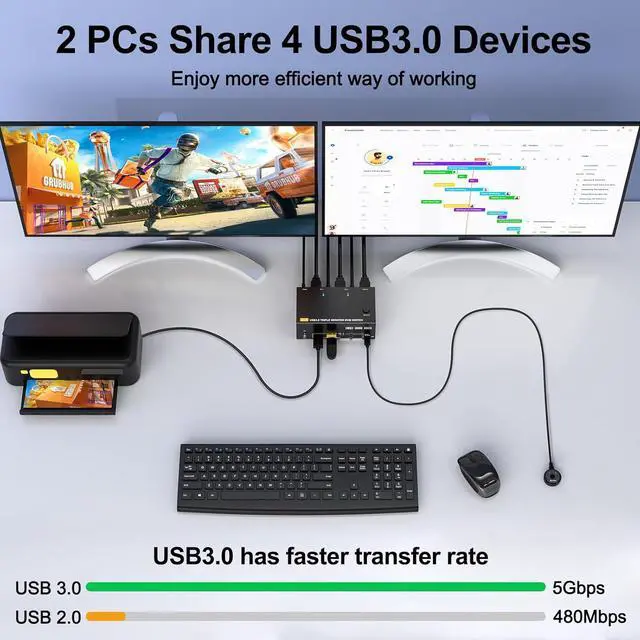

2 PC share 3 Monitor and 4 USB 3.0 Devices

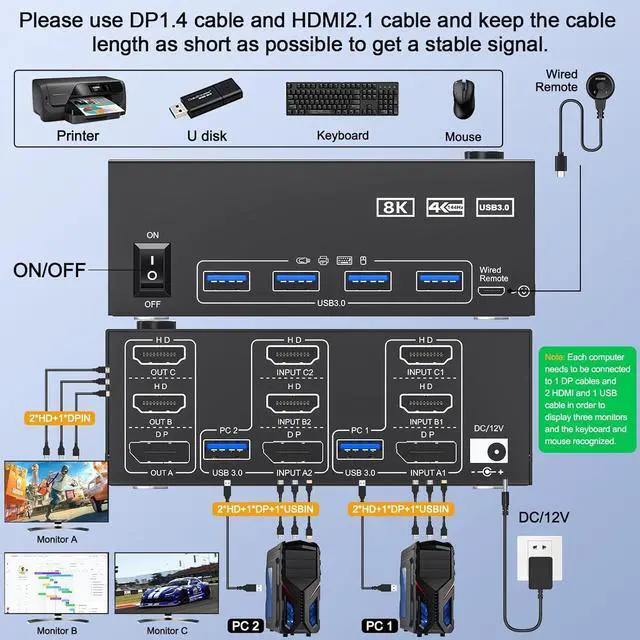

Connection diagram of 3 monitors KVM switch
The input and output of this machine are one-to-one. Input A is connected to the KVM, so output A can receive the signal. And you need to connect the USB port of the input end to the KVM and the computer so that the keyboard and mouse can be recognized.
If you need all three monitors to work, you need to use one DP cables and Two HD-MI cable to connect the computer and KVM.
2 Mode for Triple KVM Switch (DP 1.4+2 HDMI 2.1)

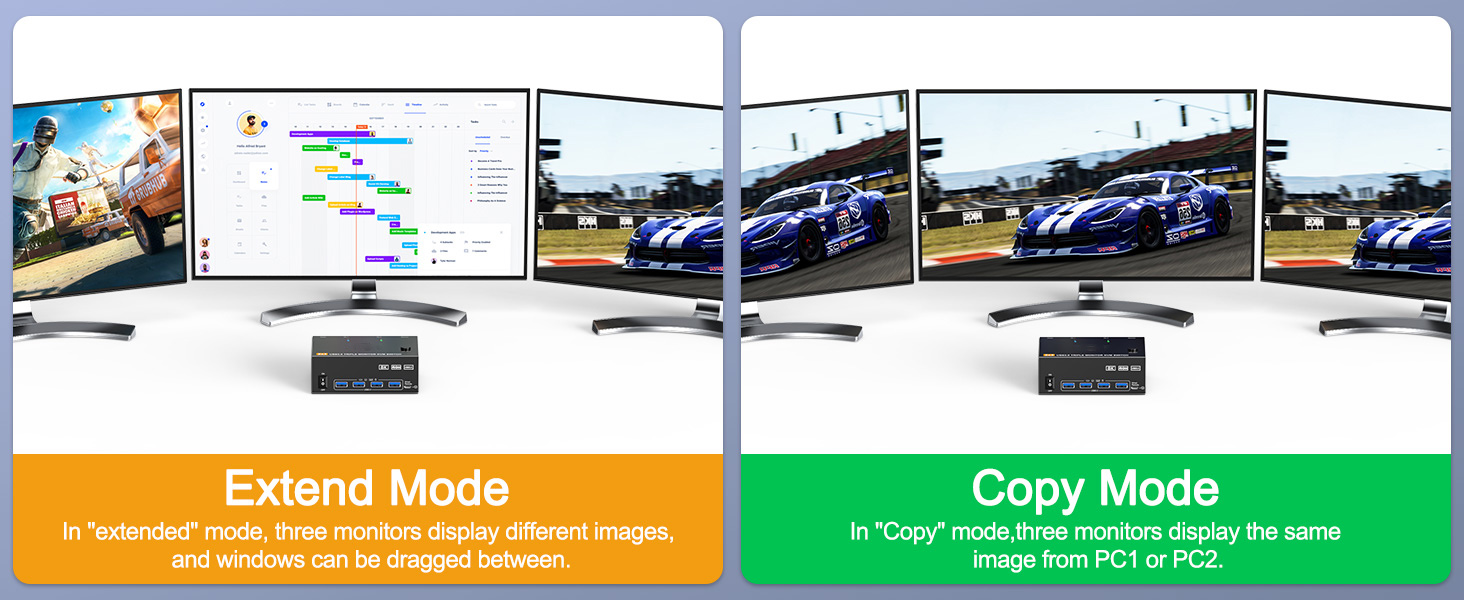

The switch supports extended mode (the three screens display different contents) and duplicate mode (the three screens display the same contents)
UHD8K@60Hz/4K@144Hz
The resolution and fresh rate of triple monitor KVM switch supports up to 8K@60Hz/4K@144Hz.
BUT PLEASE NOTE THAT :HDMI part supports 8K@60Hz, 4K@120Hz,and backward compatible.Displayport part support 8K@30Hz ,4K@144Hz and backward compatible.
Warming: Please use HDMI2.1 and DP1.4 cables, if the set distance allows,the length of cabels more short more better.

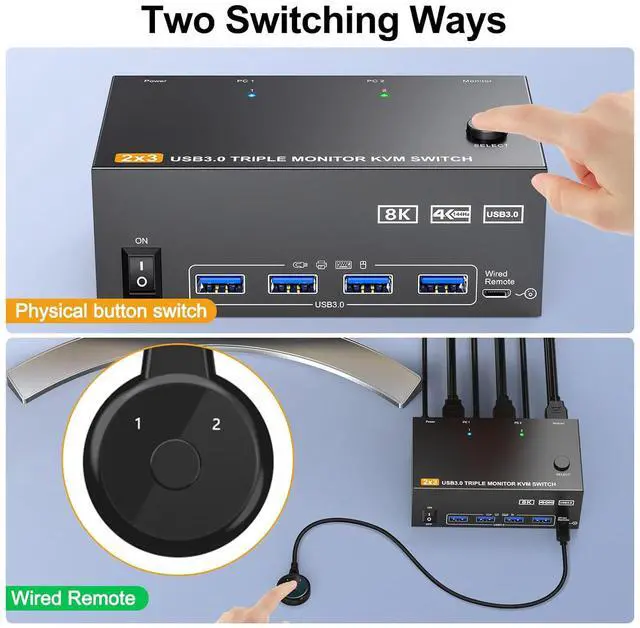

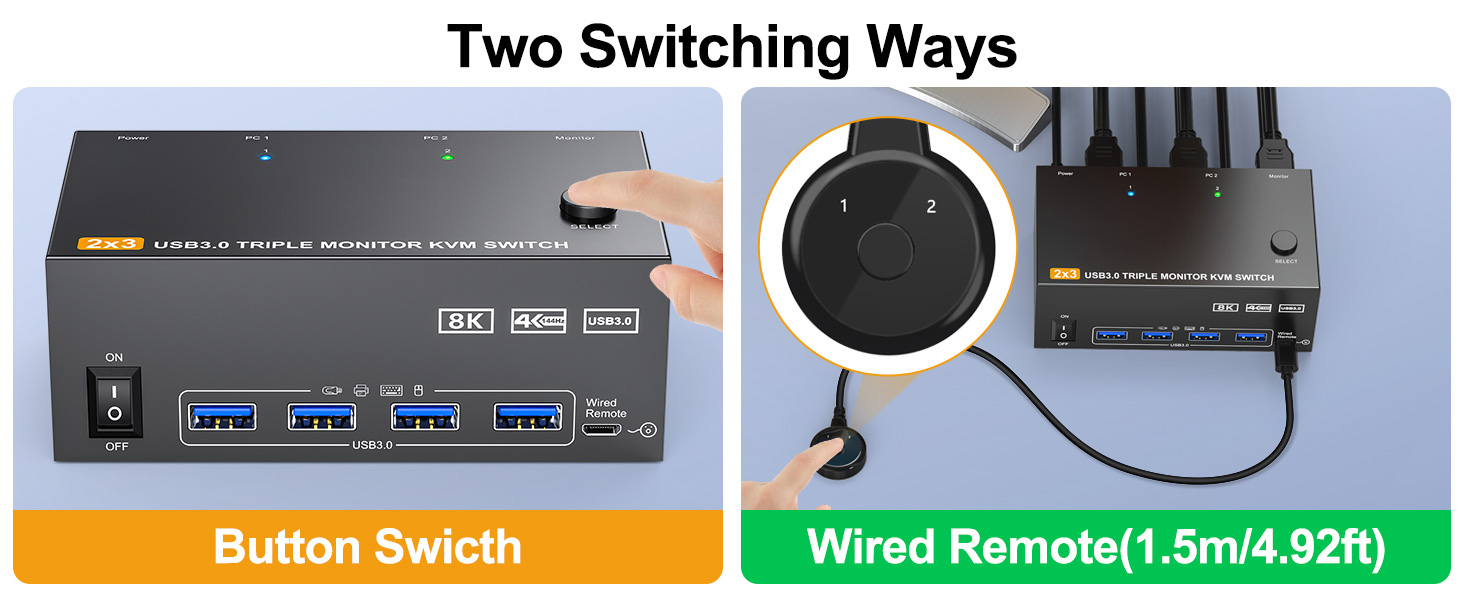

Two switch methods
Wired switching (1.5m/4.92ft) is very convenient

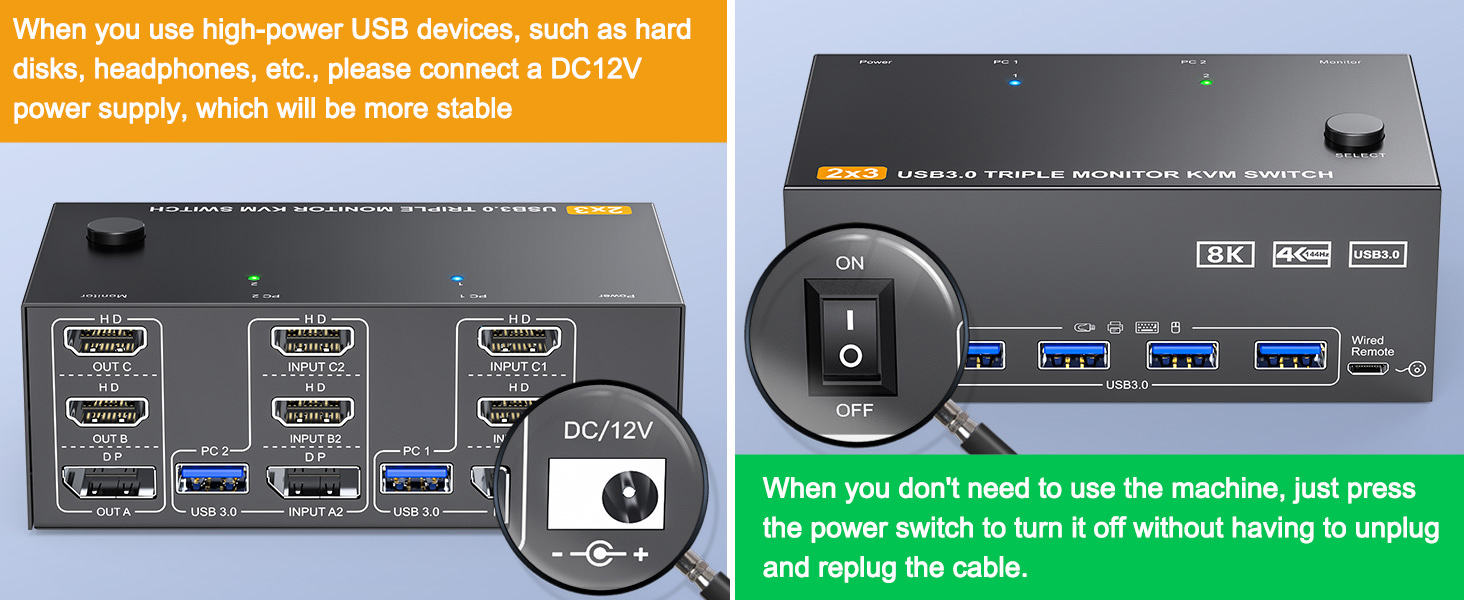

DC12V Power
Provide DC12V power adapter to power the KVM
KVM Switch 2 PC 3 Monitors
This USB 3.0 2 HDMI+DisplayPort KVM switch can control 2 computers or laptops with 1 set of keyboard and mouse share 3 monitors and 4 USB 3.0 hub. It is the best KVM switch to improve your productivity and make your workspace tidier, also a premium choice for work and home.

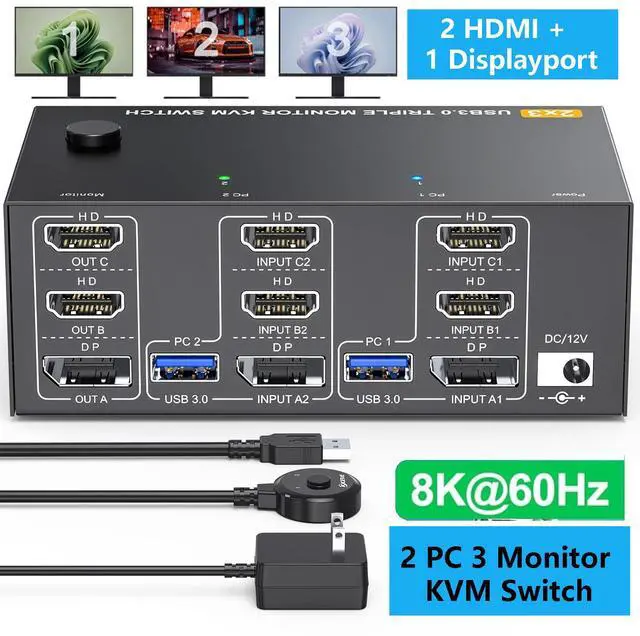

Triple monitor KVM switch has 2 x HDMI 2.1 + 1 x DP 1.4 ports supports 8K Ultra HD resolution. KVM switch
DisplayPort: supports resolutions up to 8K@30Hz/4K@144Hz; KVM switch
HDMI: supports resolutions up to 8K@60Hz/4K@120Hz and is with low higher resolutions. Please use DP 1.4 and HDMI 2.1 cables to connect the KVM switch with three monitors. Otherwise, you will not enjoy the best resolution or there is no display at all.

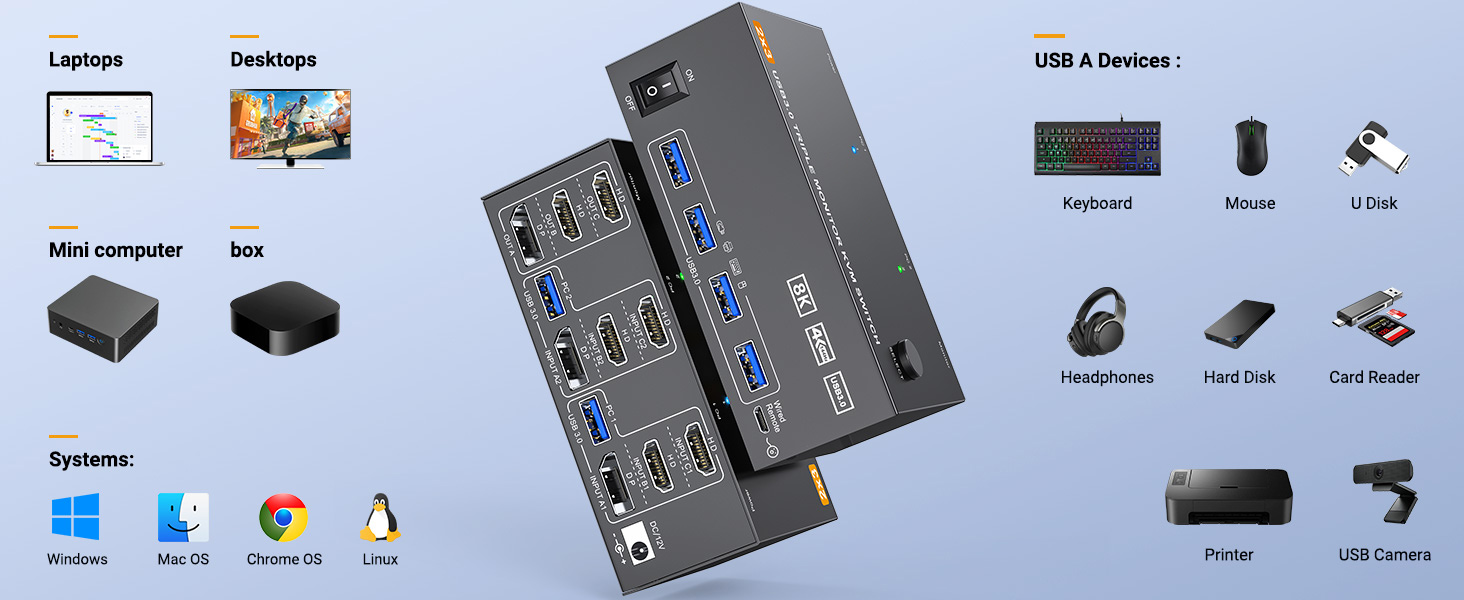

Triple Monitor KVM Switch with 4 USB 3.0 ports, supports ultra-fast 5Gbps data transfer, 10 times faster than USB 2.0, for connecting RGB keyboard, mouse, printers, hard drives, webcams etc. backwards compatible with USB 2.0 / 1.1 devices.
Important note: Please check if you are using a USB cable to connect the KVM switch to the USB port of the computer, otherwise the USB may not be recognized.

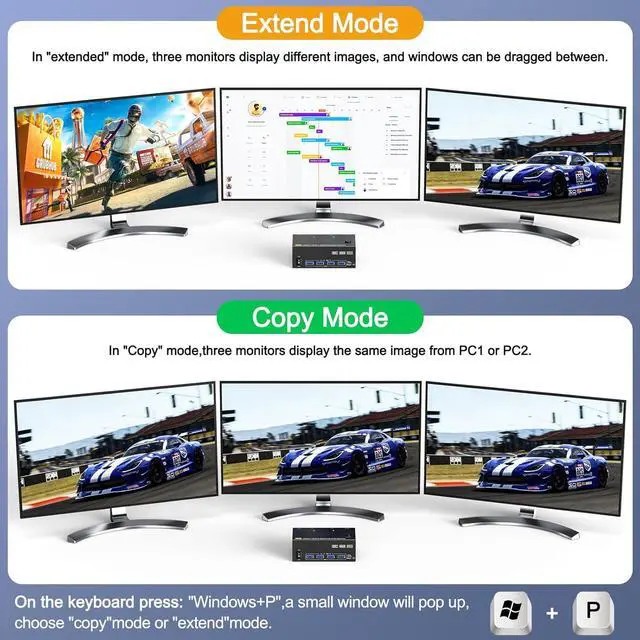

Triple monitor KVM Switch supports mirrorextended and splicing display modes (click on "Windows+P" to select the display mode).
Please note: Make sure your computer supports 3 or more screens and that each computer must be connected to the KVM with 2HDMI+DP.

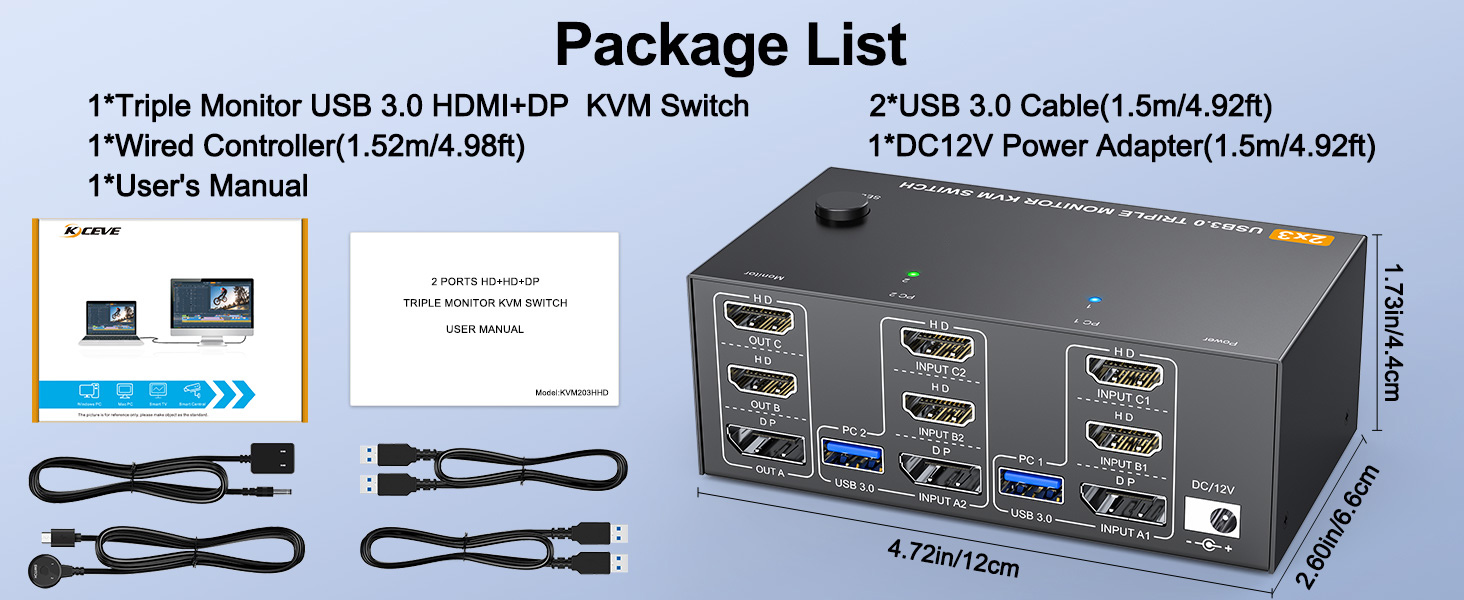

Packing List:
Triple monitor KVM Switch*1+ HD-MI Cable*2+USB 3.0 Cable*3+Wired Controller*1( 1.5 m/ 4.92 ft)+DC12V Power Adapter*1+Manual*1
