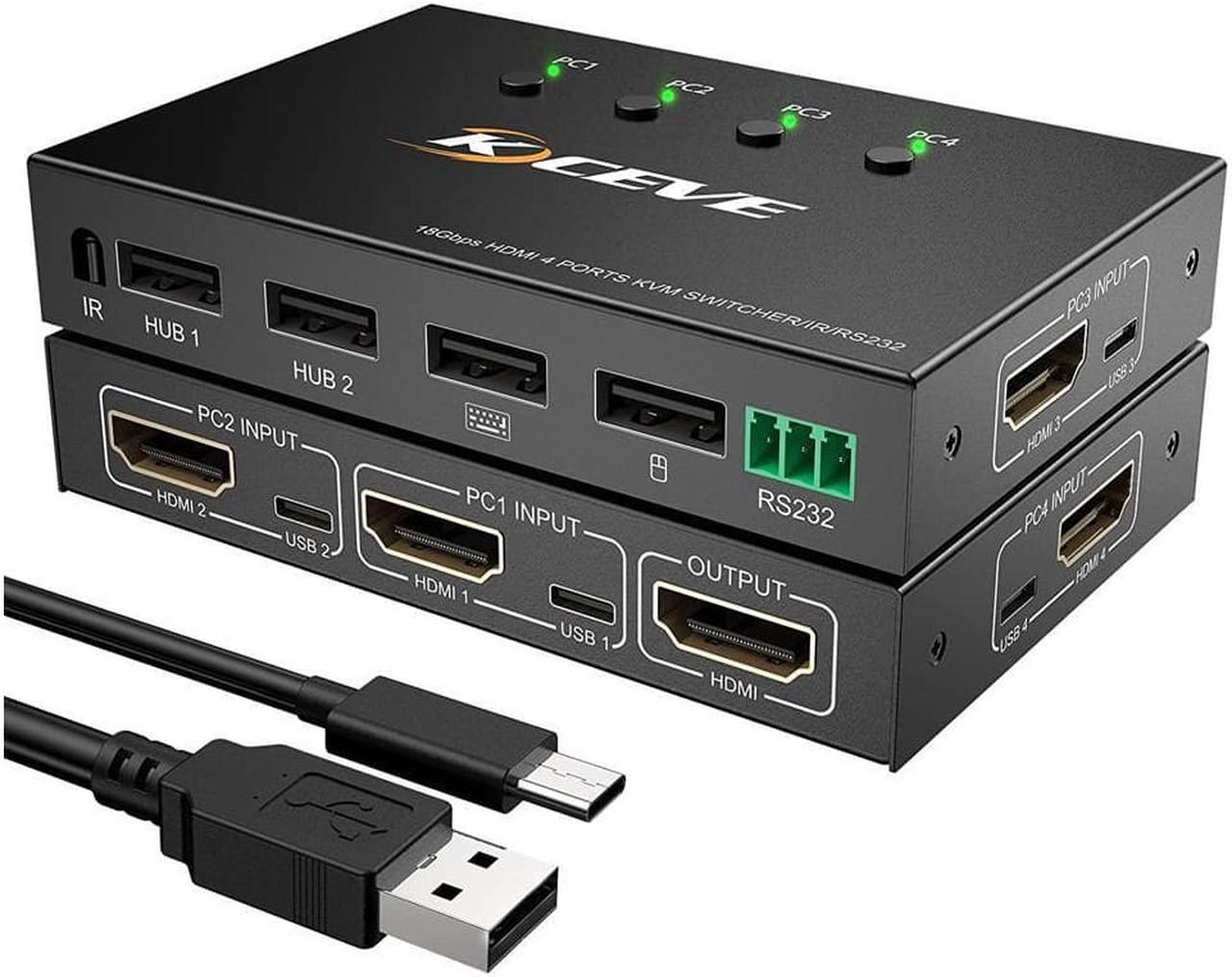

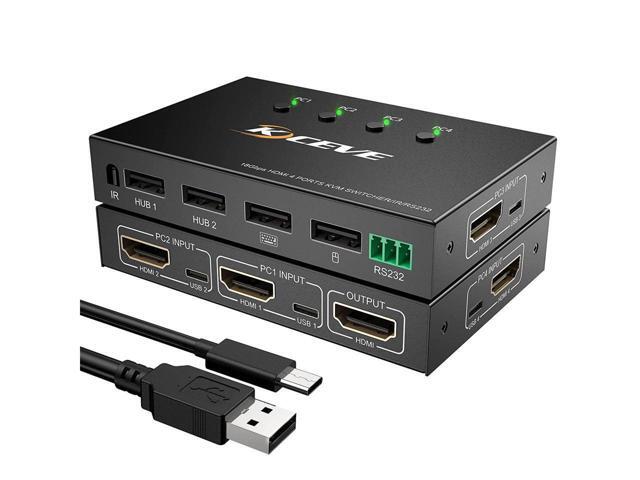

4 Port HDMI KVM Switch with Serial Port Control, 4K @60Hz 4 in 1 Out HDMI KVM Switcher Box for Share Mouse Keyboard and Monitor, Can Work with Pi-kvm, Compatible with Windows/Linux/Mac System

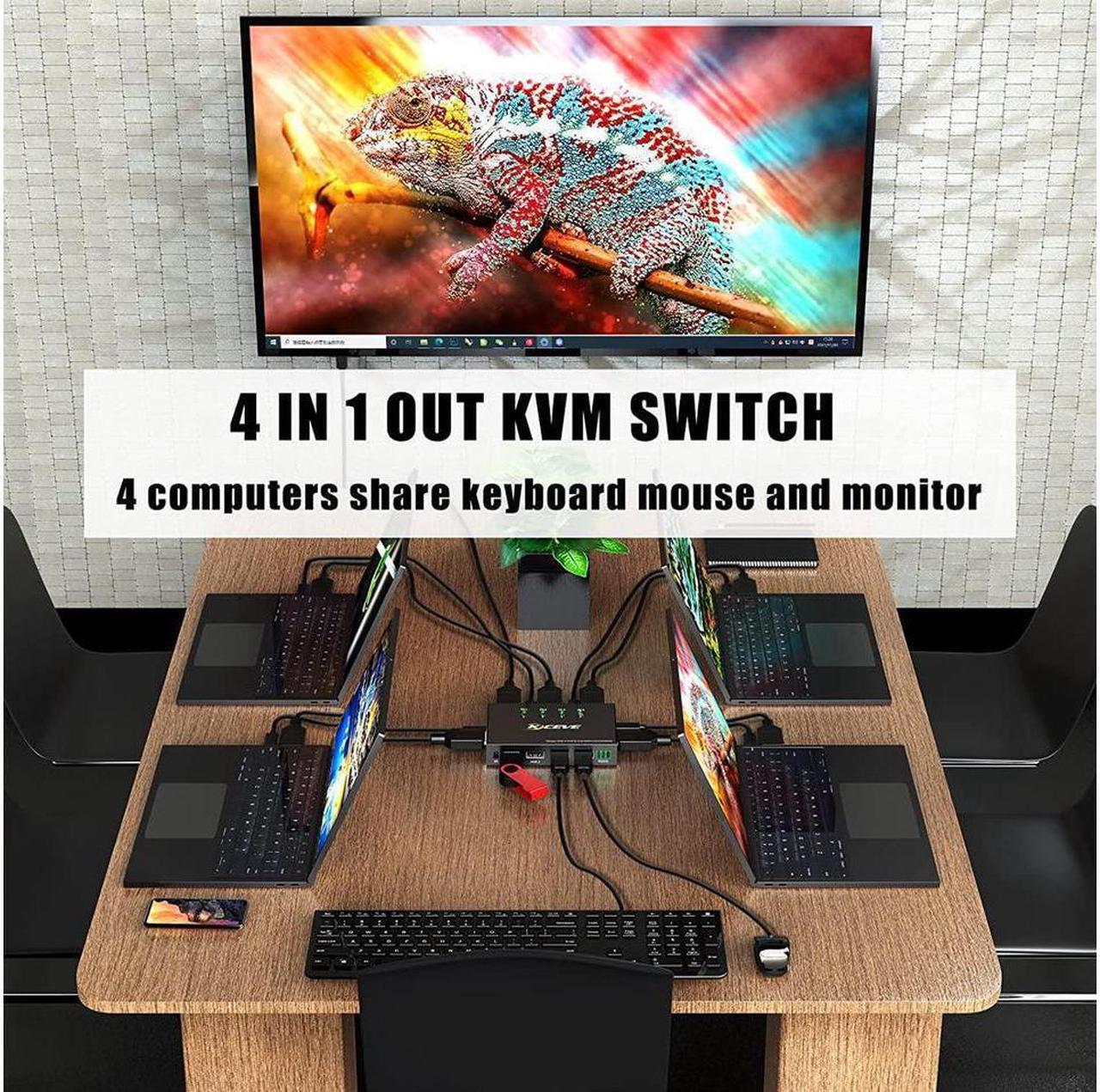

- This KVM switch is for four computers to share one set keyboard and mouse and 1 monitor. It will help you save a lot of money and space, you don't have to buy more monitors, keyboards and mouse.

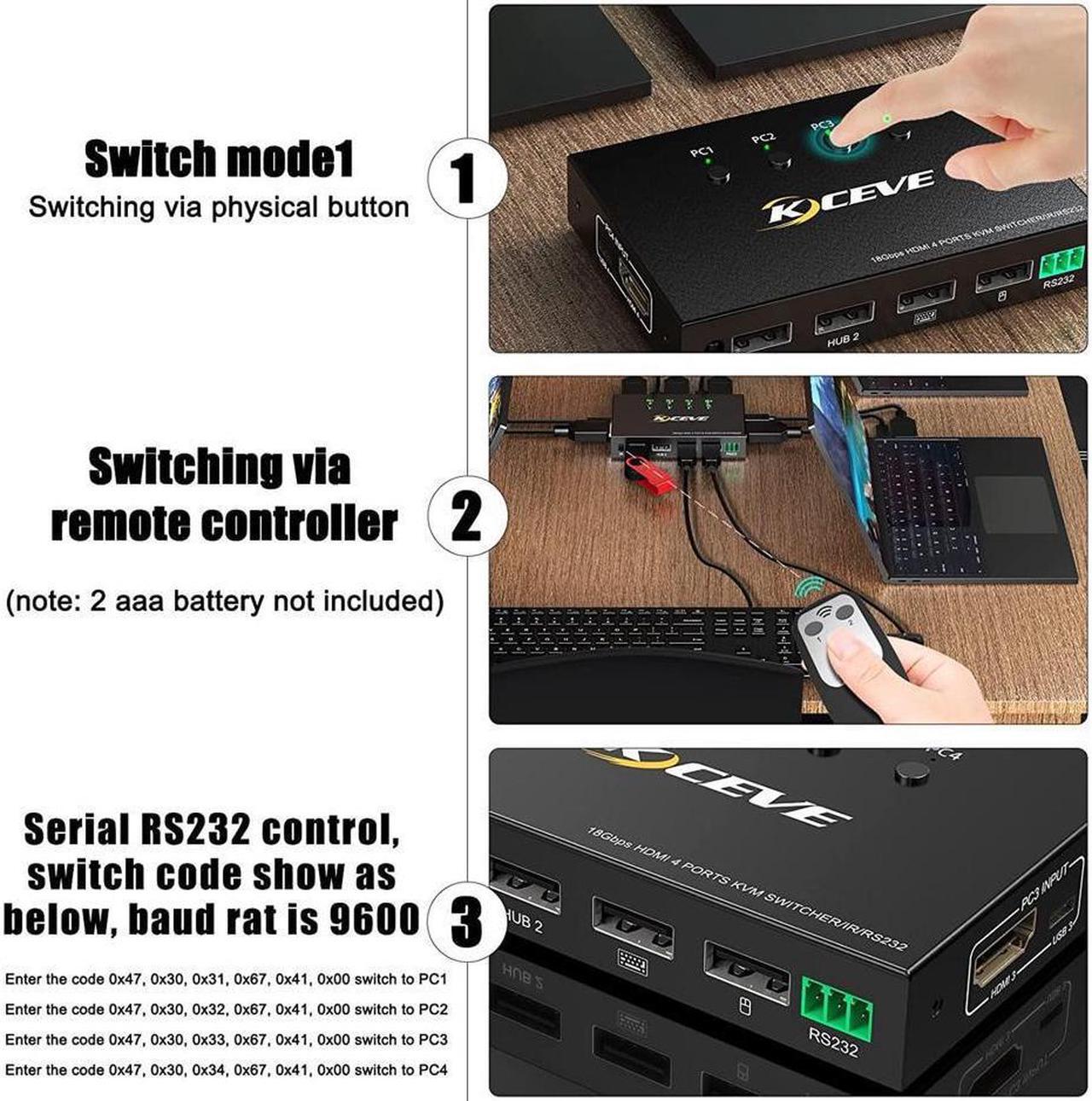

- You can switch input sources via multiple ways: the front panel buttons, IR remote control, RS232 serial commands. You can access to PI-KVM via the serial port which is more convenient for office.
- This HDMI 2.0b KVM Switch compatible with full 18G bandwidth, support up to 3840*2160@60Hz (YUV 4:4:4) chroma sampling. It also supports 3D & 1080P or lower resolution. Please use HDMI 2.0 cable if you want monitor reach a good result with 4K@60Hz resolution.
- Desigh with 4 USB 2.0 ports which can recognize USB device, such as keyboard, mouse, USB Hub, hard driver, printer, scaner, etc. This KVM switcher also compatible with wireless keyboard and mouse.

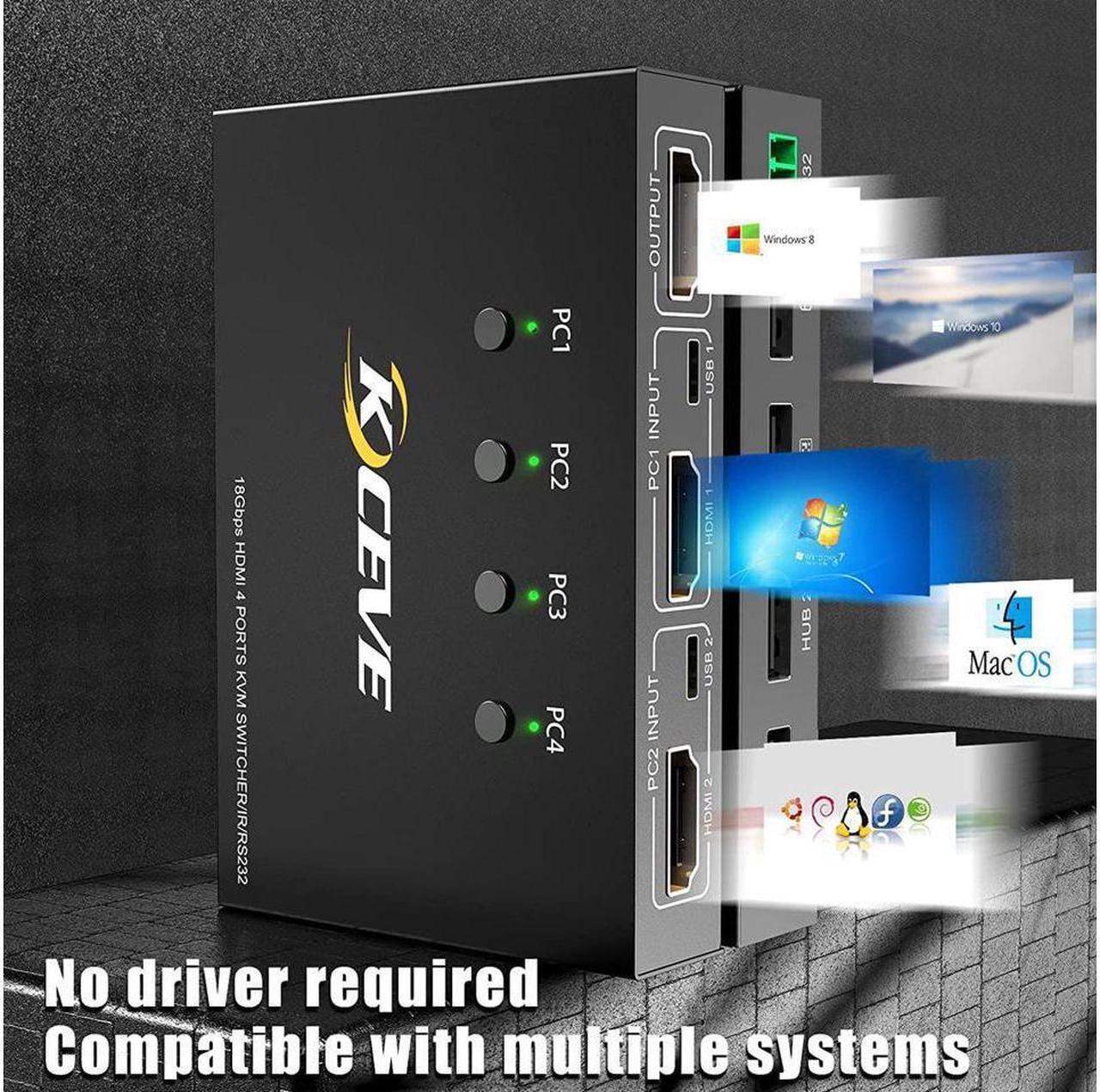

- Supports for all many kinds of computer systems, such as Windows10 / 8.1 / 8 / 7 / XP / Vista, Mac OS, Linux, Chrome OS.
Overview
Specs
Reviews
Parameter
Name: 4 Ports KVM switcher
Material: Metal shell
Resolution: Up to 4K@60Hz (with 18Gbps)
Support wireless mouse and keyboard
Control way: buttons, IR remote control, RS232 serial commands
High standard 4 ports KVM switch, easy to set up
4 inputs for PCs, laptop, Internet TV box, DVD, PS4/3, etc. Please note if PS4 as an input source, the mouse and keyboard con't control PS4, because mouse and keyboard can't control PS4/3.
With additional 4 USB ports which can recognize other USB device, such as mouse, keybaord, U disk, scanner, printer, webcam, etc.
Switch ways: buttons, IR remote control, RS232 serial commands. You need to prepare 2 AAA batteries for the remote controller. Package not including battery. Please note that keyboard hotkey switch way not supported.

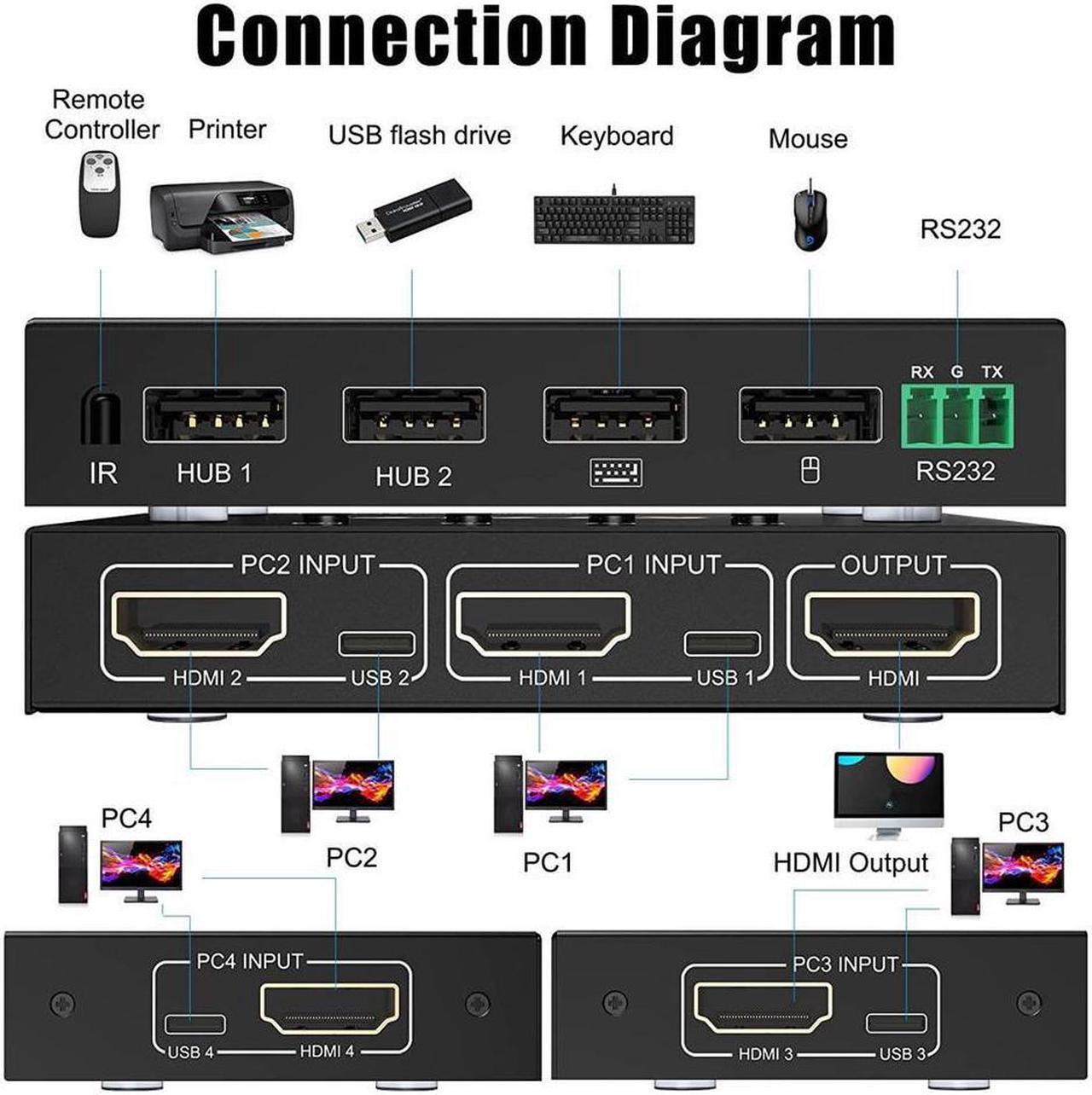

This KVM switch has 4 group ports for 4 PCs, each group port consist of one HDMI port and one USB-C port. In order not to affect the function, please connect HDMI cable and USB cable together.
Powered by USB port, no other power adapter required. If a high power consumption USB peripherals is connecting, we recommend connect 4 computers to provide enough power.
We only equipped with 1 HDMI cable, but if you need to opperate 4 computers you need 5 HDMI cables totally, please prepare the rest 4 HDMI cables by yourself.
In order to achieve 4K@60Hz HD resolution, we advise you use the HDMI 2.0 cable to connect to the monitor, we equipped with 1 HDMI 1.4 cable only. HDMI 1.4 cable may affect the display of 4K@60Hz on monitor.
Enter the code switch to PC 1: 0 x47, 0x30, 0x31, 0x67, 0x41, 0x00
Enter the code switch to PC 2: 0 x47, 0x30, 0x32, 0x67, 0x41, 0x00
Enter the code switch to PC 3: 0 x47, 0x30, 0x33, 0x67, 0x41, 0x00
Enter the code switch to PC 4: 0 x47, 0x30, 0x34, 0x67, 0x41, 0x00
Name: 4 Ports KVM switcher
Material: Metal shell
Resolution: Up to 4K@60Hz (with 18Gbps)
Support wireless mouse and keyboard
Control way: buttons, IR remote control, RS232 serial commands
High standard 4 ports KVM switch, easy to set up
4 inputs for PCs, laptop, Internet TV box, DVD, PS4/3, etc. Please note if PS4 as an input source, the mouse and keyboard con't control PS4, because mouse and keyboard can't control PS4/3.
With additional 4 USB ports which can recognize other USB device, such as mouse, keybaord, U disk, scanner, printer, webcam, etc.
Switch ways: buttons, IR remote control, RS232 serial commands. You need to prepare 2 AAA batteries for the remote controller. Package not including battery. Please note that keyboard hotkey switch way not supported.
This KVM switch has 4 group ports for 4 PCs, each group port consist of one HDMI port and one USB-C port. In order not to affect the function, please connect HDMI cable and USB cable together.
Powered by USB port, no other power adapter required. If a high power consumption USB peripherals is connecting, we recommend connect 4 computers to provide enough power.
We only equipped with 1 HDMI cable, but if you need to opperate 4 computers you need 5 HDMI cables totally, please prepare the rest 4 HDMI cables by yourself.
In order to achieve 4K@60Hz HD resolution, we advise you use the HDMI 2.0 cable to connect to the monitor, we equipped with 1 HDMI 1.4 cable only. HDMI 1.4 cable may affect the display of 4K@60Hz on monitor.
Enter the code switch to PC 1: 0 x47, 0x30, 0x31, 0x67, 0x41, 0x00
Enter the code switch to PC 2: 0 x47, 0x30, 0x32, 0x67, 0x41, 0x00
Enter the code switch to PC 3: 0 x47, 0x30, 0x33, 0x67, 0x41, 0x00
Enter the code switch to PC 4: 0 x47, 0x30, 0x34, 0x67, 0x41, 0x00
