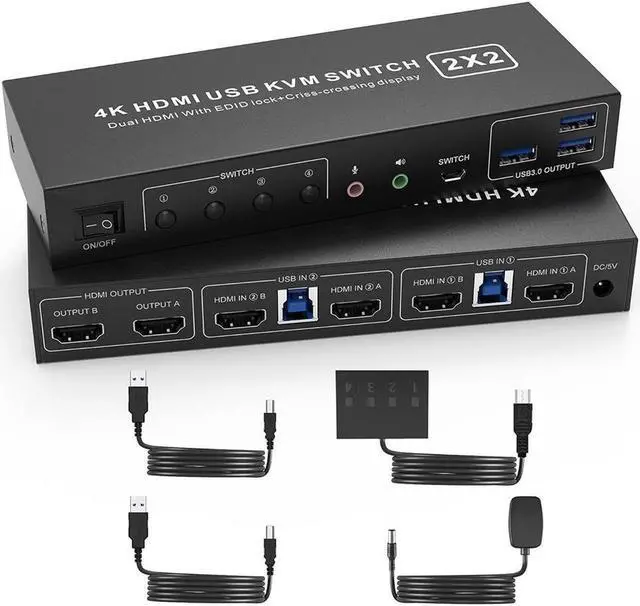

USB 3.0 Dual Monitor HDMI KVM Switch for 2 Computers
- You can easily have a dual monitor setup per system or a single monitor showing both systems (one on each monitor)
- Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card)
- With EDID emulators in the extended display mode, keep PCs always have correct information, prevent displays setting change while switching inputs

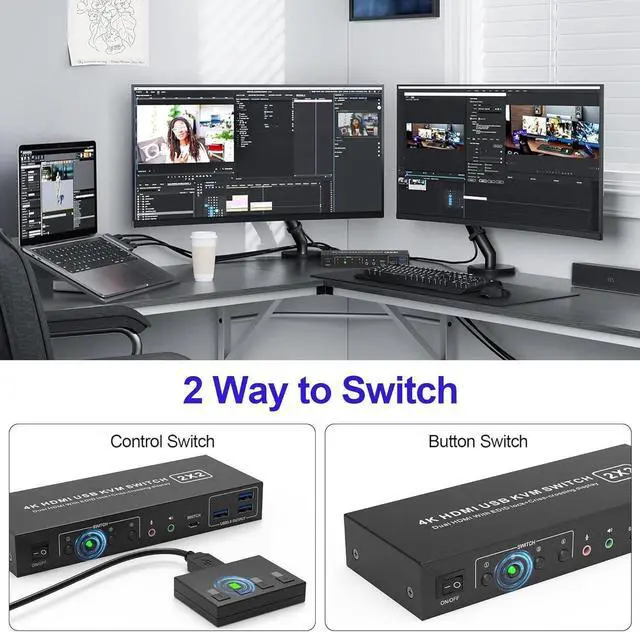

- 2 Switching modes: Button switch and wired remote.
- With extra 3* USB3.0 and Audio Microphone output
Advantages of our dual-channel KVM:

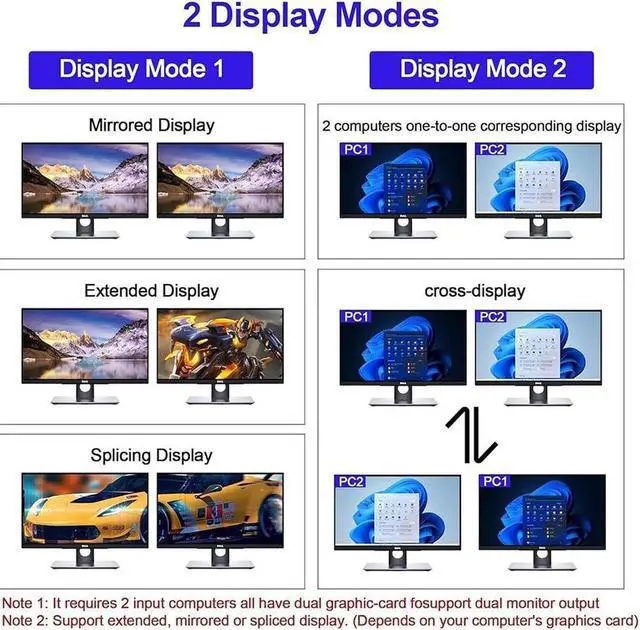

Display Mode 1: Mirror/Copy Display; Extended Display; Surround/Splicing Display
How to switch:
- 1:Press the button to switch from PC1 A to output A, and frorm PC1 B to output B
- 2:Press the button to switch from PC2 A to output A, and frorm PC2 B to output B
Display Mode 2: 2 computers one-to-one corresponding display, Criss-crossing Display
How to switch:
- 3:Press the button to switch from PC1 A to output A, and from PC2 A to output B
- 4:Press the button to switch from PC1 A to output B, and from PC2 A to output A

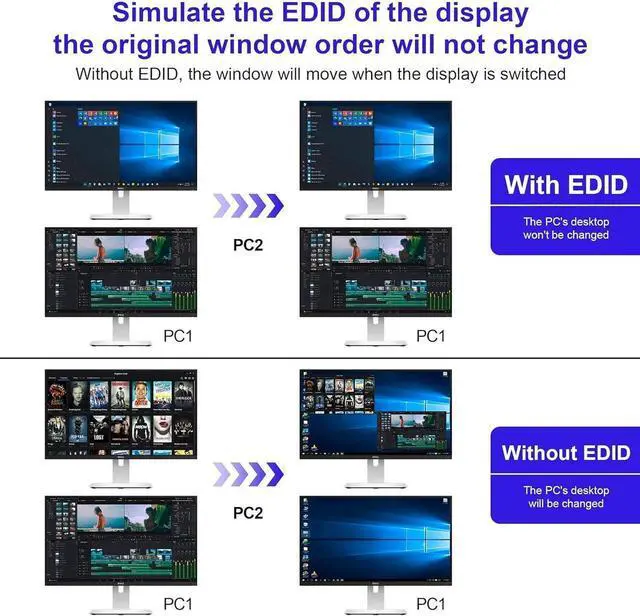

Support EDID Lock Screen
- Dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between two computers, the original window order will not change.

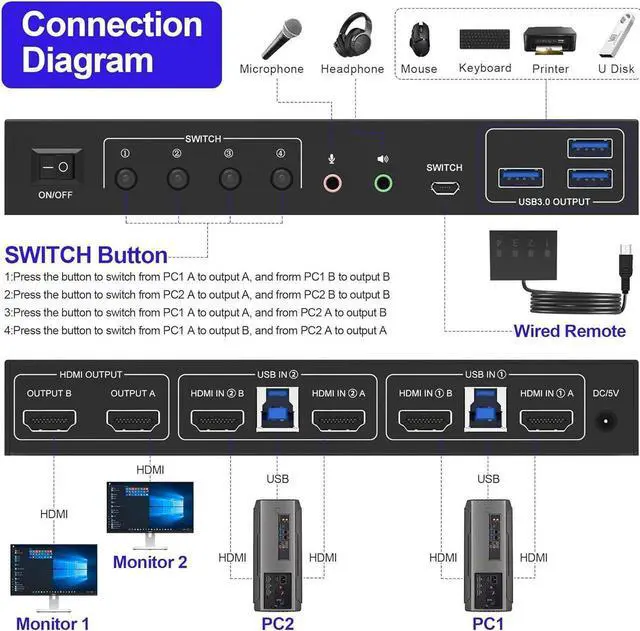

installation steps:
1. Insert the DC/5V adapter into the KVM;
2. Plug the HDMI cable into the KVM and monitor;(HDMI Output)
3. Plug the HDMI cable and USB cable into the KVM and your computer/laptop (HDMI cables are not included)(Input)
HDMI IN1 A + HDMI IN1 B + USB IN1=PC1
HDMI IN2 A + HDMI IN2 B + USB IN2=PC2
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 2 HDMI cables connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
Dual Monitor KVM Support 4K@60HZ
- Supports high resolution up to 3840*2160@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.

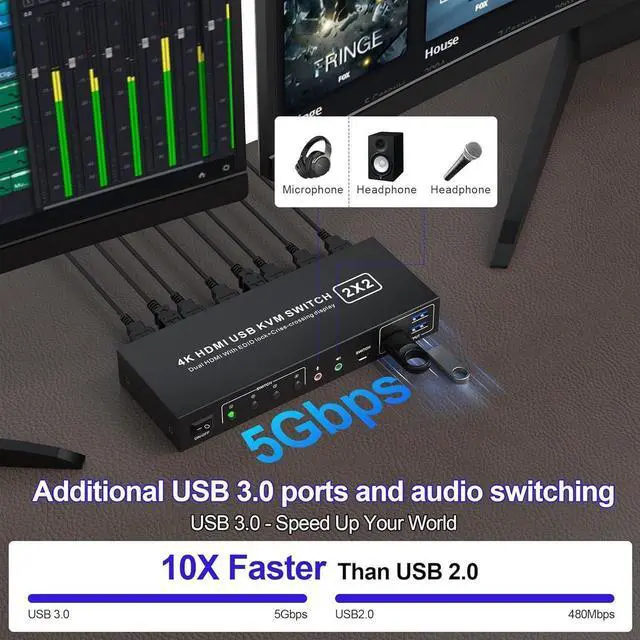

2 PCs Share 3 USB 3.0 Devices
- 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.
Headphone Jack and Microphone Jack
- KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.
