8K@60Hz DisplayPort KVM Switch 3 Monitors 2 Computers Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone
Features:
1. 8K Triple Monitor KVM Switch allows 2 computers/laptops to share one set of keyboard, mouse, and 3 monitors (3 DisplayPort)
2. Support DP 1.4 standards and downward compatibility. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);
3. 2 Switching modes: Button switch and wired remote.

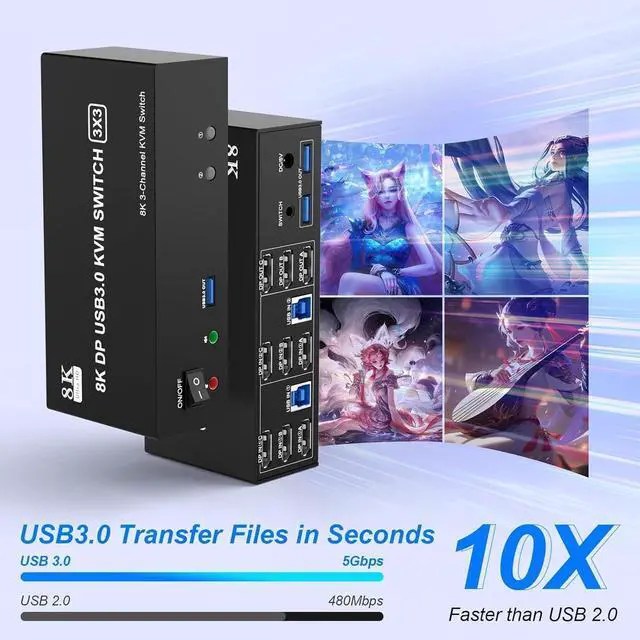

4. KVM switch equipped with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output
5. Equipped with a 5V power supply, ensuring stable operation even when high-power devices are connected.
6. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS
7. The ports that need to plug in DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean workspace.
Ultra HD 8K@60Hz Triple Monitor KVM Switch
- Confirms to DP 1.4 protocol, supports a maximum resolution of 8K@60Hz 4K@144Hz, and is compatible downwards.
- Only when both your computer Graphics card, monitor and cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

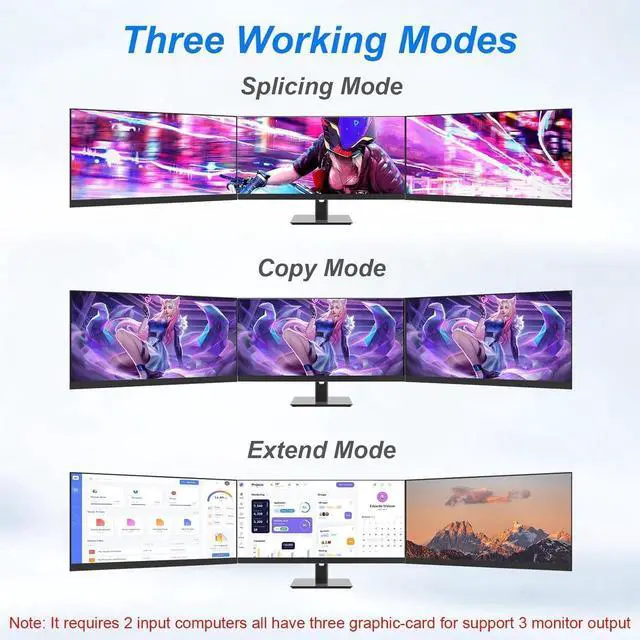

3 Display Modes
Extended Display
Mirrored Display
Spliced Display
1)Extended mode can output three different screens and mirror mode can output three identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.

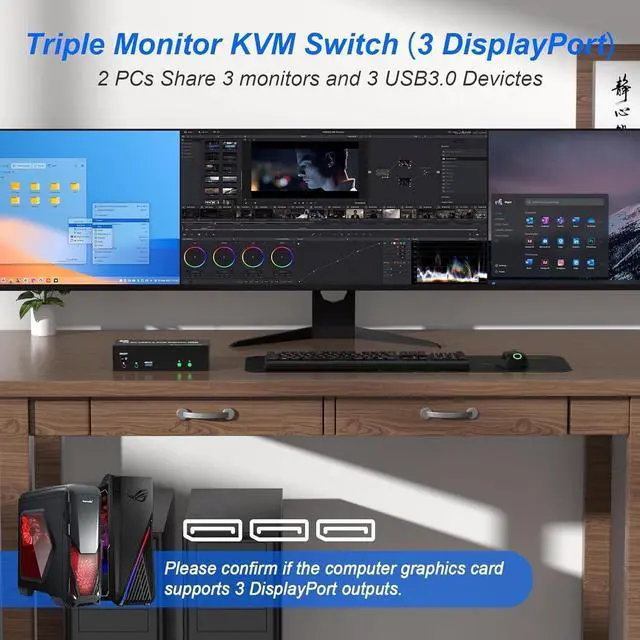

2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM.

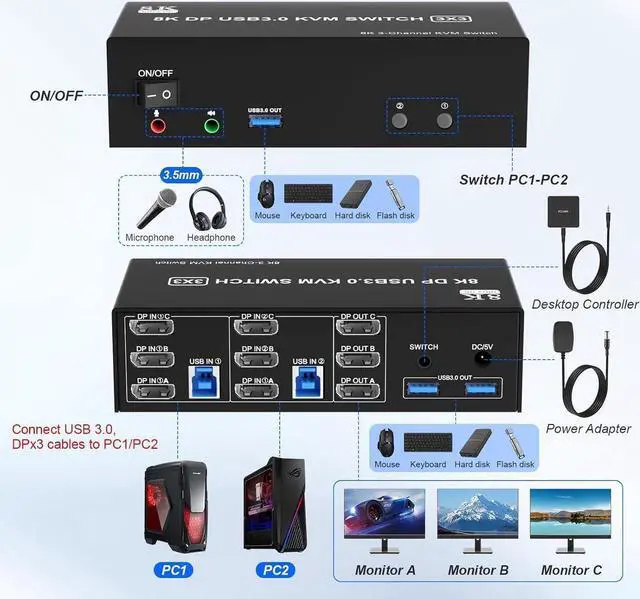

installation steps:
1. Insert the DC/5V adapter into the KVM ;
2. Plug the 3*DisplayPort cable into the KVM switch and monitor;(Output)
3. Plug the DisplayPort cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)
DP IN 1A +DP IN 1B + DP IN 1C + USB IN 1=PC1
DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2
Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP+USB cable) connect to the KVM.
2. If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3. Note: DP cables are not included

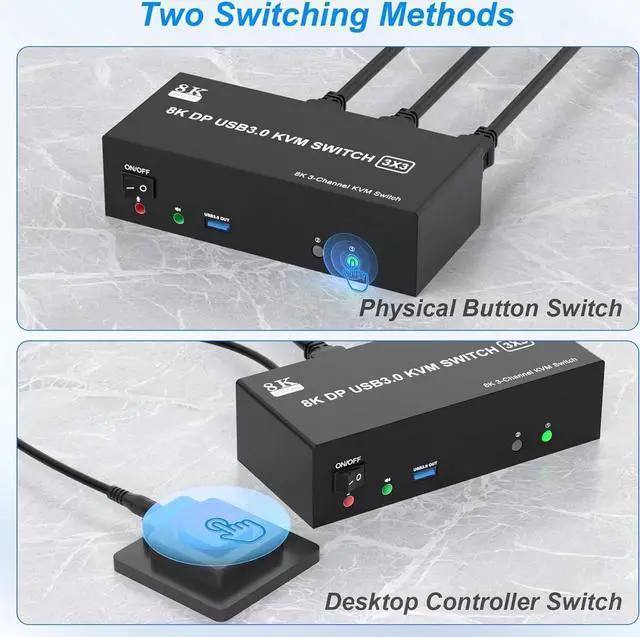

Wired Remote Control
- Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work.
Switch by Panel button
- Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.
LED Indicator
- When switching to which PC, the LED will tell you whether PC1 or PC2 is active.
Audio and microphone output
- 3 monitors 2 computers KVM comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

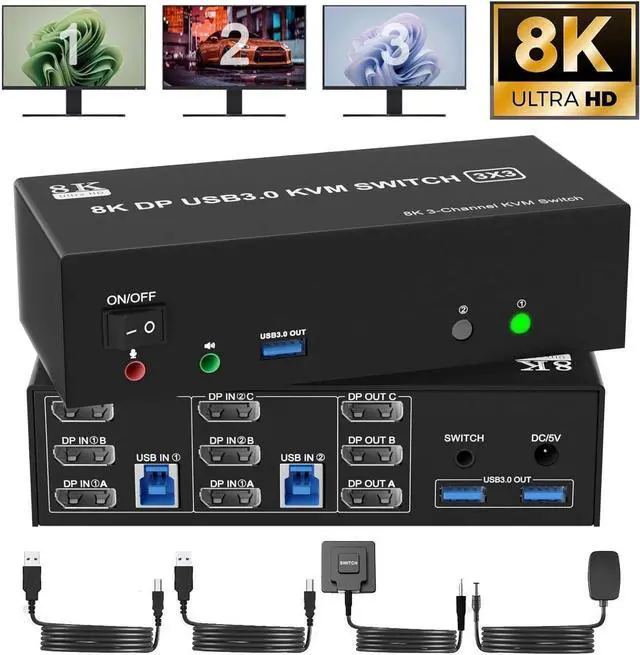

What You Get:
- 1x 8K Triple Monitor KVM Switch,
- 2x USB 3.0 Cables,
- 1x Power Adapter,
- 1x Wired Button Switch,
- 1x User's manual
