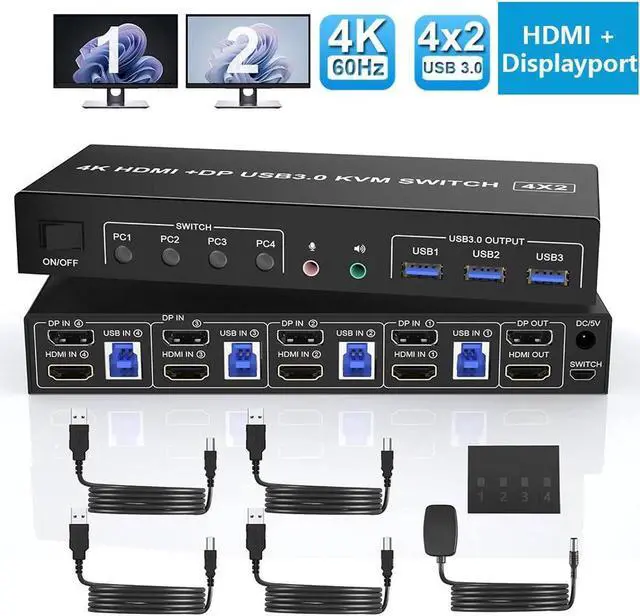

4K@60H 4 Port Displayport & HDMI USB 3.0 Dual Monitor KVM Switch 4 computers share 2 monitors and 3 USB3.0 devices
Product Features
1. 4 computers share one set of keyboard, mouse, 2 monitors, and more USB 3.0 peripherals.
2. This dual monitor DisplayPort HDMI KVM switch Supports maximum resolution up to 4K 60Hz , Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card.);
3. Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
4. 2 Switching modes: Button switch and wired remote.
5. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
6. No complicated installation is required, and non-professionals can easily operate it.
7. Independent Audio Microphone output.
USB 3.0 Dual Monitor KVM Support 4K@60HZ
- Supports high resolution up to 4K@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.

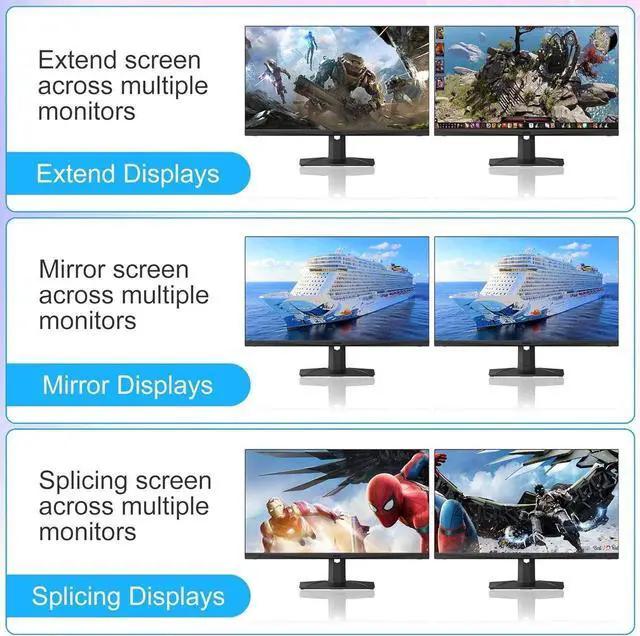

3 Display Modes
Extended Display
Mirrored Display
Spliced Display
1)Extended mode can output two different screens and mirror mode can output two identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.

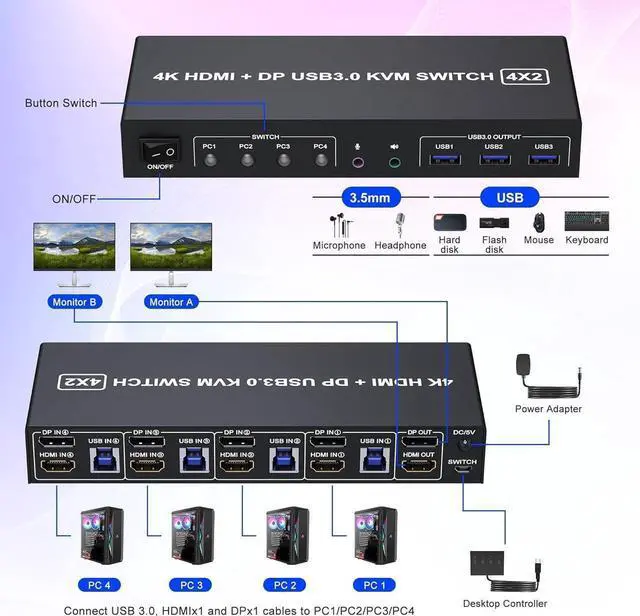

Installation steps:
1. Insert the DC/5V adapter into the KVM ;
2. Plug the DP/HDMI cable into the KVM and monitor;(Output)
3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP/HDMI cables are not included)(Input)
DP IN 1 + HDMI IN 1 + USB IN 1=PC1
DP IN 2 +HDMI IN 2 + USB IN 2=PC2
DP IN 3 + HDMI IN 3 + USB IN 3=PC3
DP IN 4+ HDMI IN 4+ USB IN 4=PC4
Please check whether DP IN 1, HDMI IN 1 and USB IN 1 are corresponding, and whether DP IN 2, HDMI IN 2 and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Please kindly Note:
1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has HDMI + DP cables connected to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3. Before purchasing this DP/HDMI dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.
4. Note: DP/HDMI cables are not included
4 Computers 2 Monitors KVM Switch with 3 USB 3.0 Ports

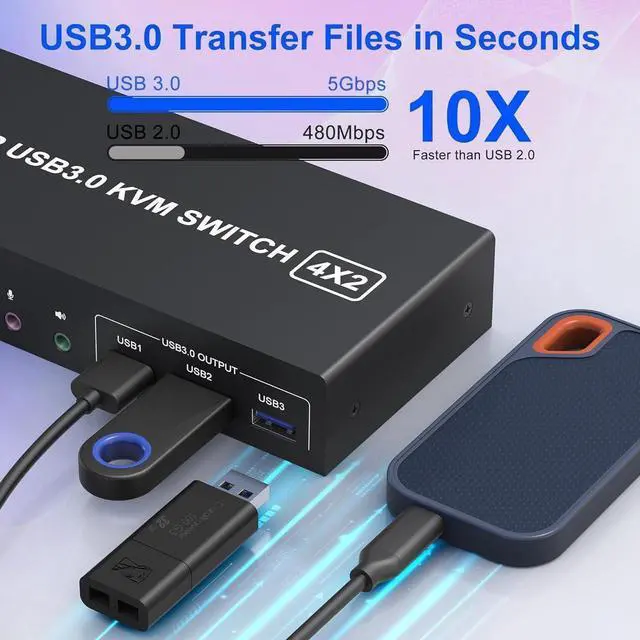

This Dual monitor Displayport HDMI KVM switch with 3 USB 3.0 ports which can recognize wired/wireless keyboard mouse, U-disk, printer, or other USB devices. USB 3.0 has a faster data transfer speed of up to 5Gbps, backward compatible with USB 2.0/1.1 devices while USB 2.0 has a data transfer speed of 480Mbps.

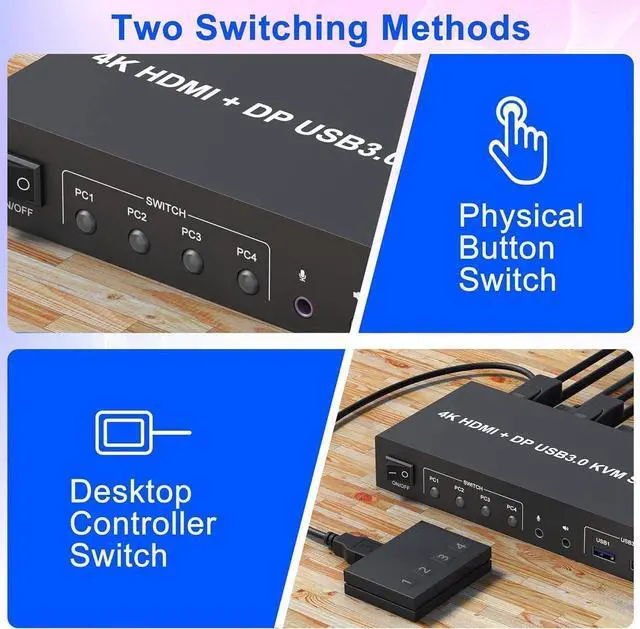

Switch by Panel button
- Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.
Wired Remote Control
- Supports wired remote switching for easy cable management, you can switch dir
LED Indicator
- When switching to which PC, the LED will tell you whether PC1 or PC2 or PC3 or PC4 is active.
