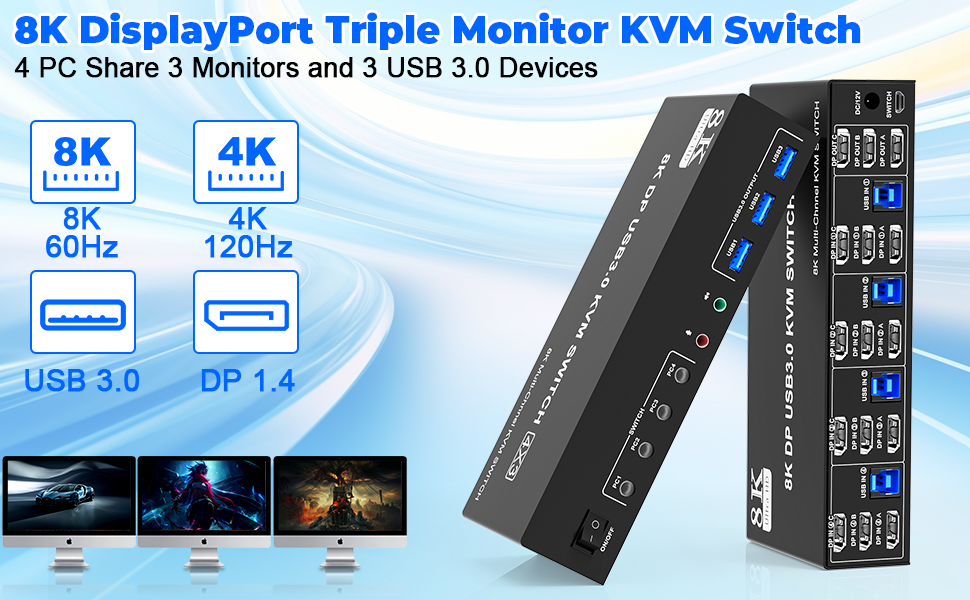

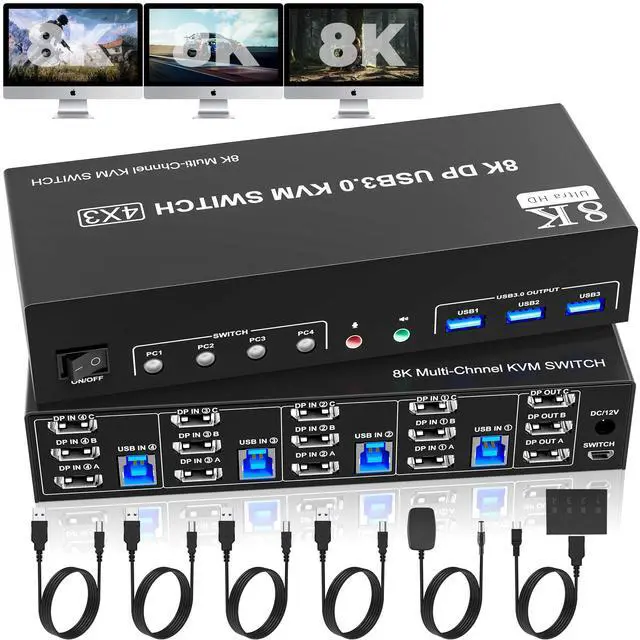

8K@60Hz 4 Port USB 3.0 Triple Monitor 3 DisplayPort KVM Switch for 4 Computers Sharing 3 Monitor, 3 USB 3.0 Ports and Audio Microphone
Features:

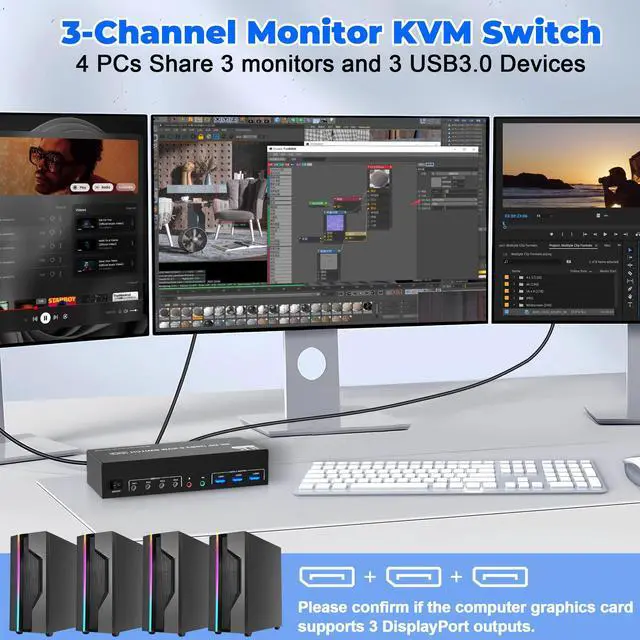

- 8K Triple Monitor KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 3 monitors
- Support DP 1.4 standard, backwards compatible with DP 1.2 standard. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced display(Depends on your computer's graphics card.);
- 2 Switching modes: Button switch and wired remote.
- KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output
- Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS
- The ports that need to plug in ayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.
- This 3 monitor KVM switch 4 ports does not mean that it can only be connected to 4 computers. You may only have 2 computers now, but you may need to use 3 or 4 computers in the future, then you can choose this switch. Please make sure each of your PC has the ability to support triple display before purchasing.
Ultra HD 8K@60Hz Triple Monitor KVM Switch
- Confirms to DP 1.4 protocol, supports a maximum resolution of 8K@60Hz 4K@144Hz, and is compatible downwards.
- Only when both your computer Graphics card, monitor and cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

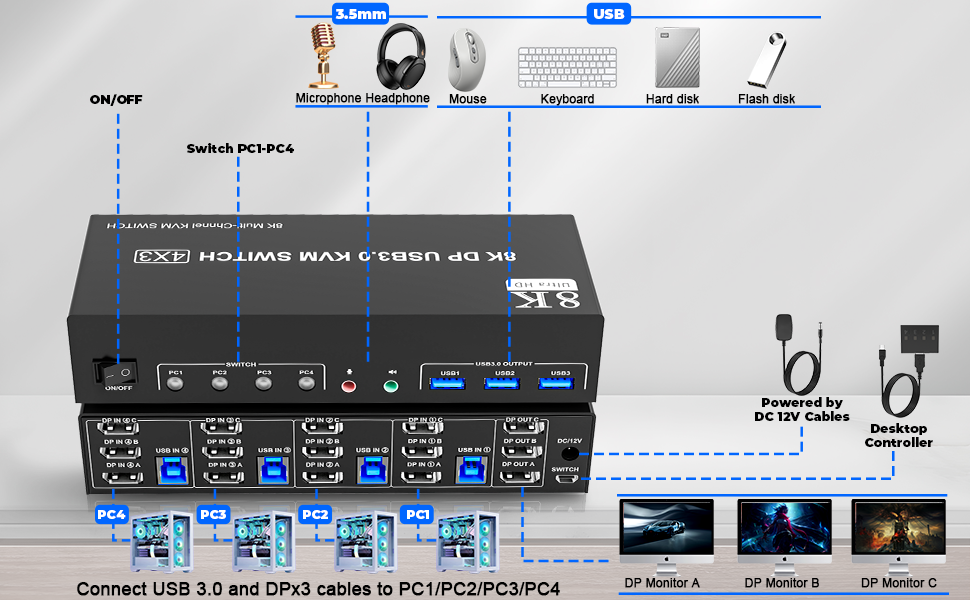

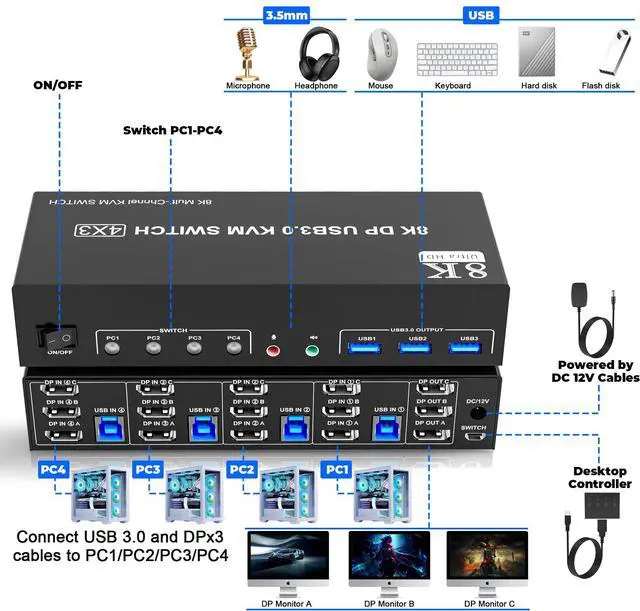

Installation Guide Tips (incorrect connection will cause malfunction):
1. Insert the DC/12V adapter into the KVM ;
2. Plug the 3*DisplayPort cable into the KVM switch and monitor;(Output)
3. Plug the 3*DisplayPort cable and 1*USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)
- DP IN 1A + DP IN 1B + DP IN 1C + USB IN 1=PC1
- DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2
- DP IN 3A + DP IN 3B + DP IN 3C + USB IN 3=PC3
- DP IN 4A + DP IN 4B + DP IN 4C + USB IN 4=PC4
- Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 correspond, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
- Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each PC has(3 DP+ 1 USB cable) connected to the KVM.
- If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
- Note: DP cables are not included

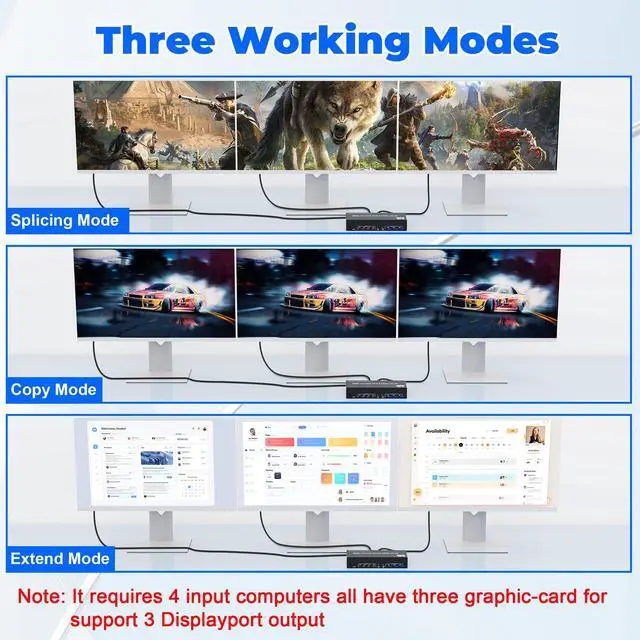

3 Display Modes
- Extended Display
- Mirrored Display
- Spliced Display
1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens. Note:If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM.

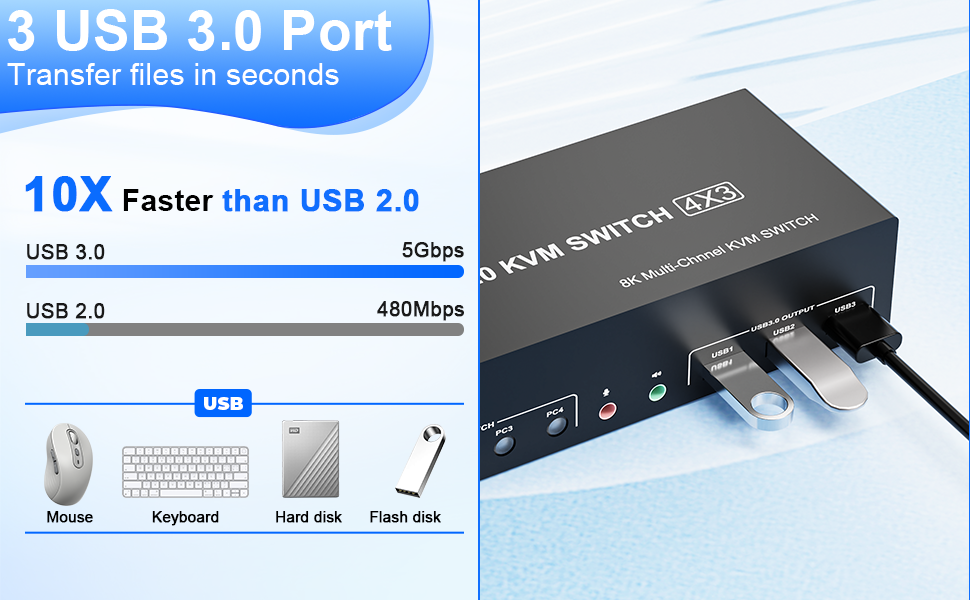

Display Port KVM with 3 USB 3.0 Ports
- KVM switch for 3 monitors with 3 integrated USB 3.0 ports which can recognize keyboard, mouse, printer, scanner and other USB devices.

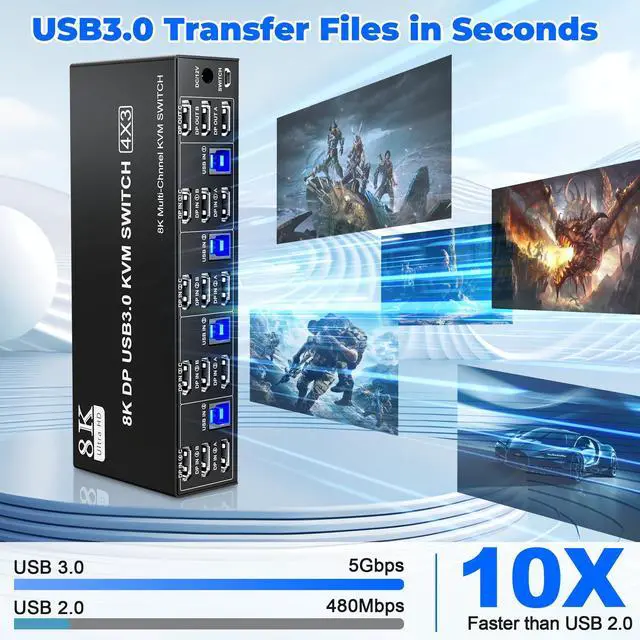

- Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices.
Audio and microphone output
- 3 monitors 4 computers KVM comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone

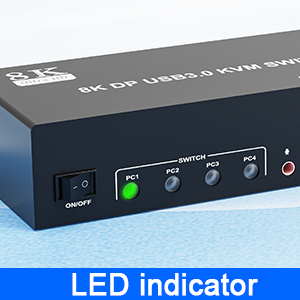

LED Indicator
- When switching to which PC, the LED will tell you whether PC1 or PC2 or PC3 or PC4 is active.

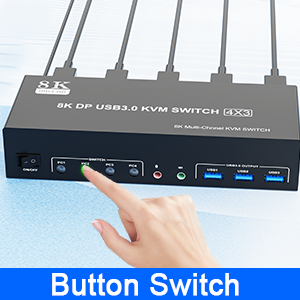

Switch by Panel button
- Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.

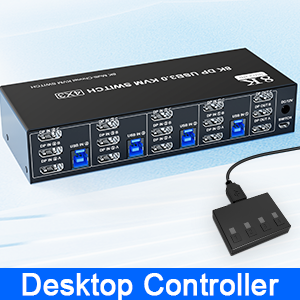

Wired Remote Control
- Supports wired remote switching for easy cable management, with digital 1/2/3/4 indicator light.
