HDMI KVM USB Extender 1080P 60Hz, HDMI KVM USB Extender Over Cat5/6 Ethernet Cable Signal Extension to 196FT/60M Support USB Keyboard Mouse Plug & Play (Transmitter and Receiver)
- HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
- Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
- Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
- HDMI loop out function:The transmitter with one HDMI local loop out;
- KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
- Male to male:one TX to one RX applicataion;
- Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
- Built-in ESD protection system:make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HDMI KVM Extender with POE & Loop Out 1080P HDMI USB Extender 60m No Loss RJ45 to HDMI Extender Transmitter Receiver over Cat5e/Cat6
Description:
HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Specifications:
Video
Standards: HDMI 1.4b; HDCP 1.4 and DVI compliant
Maximum pixel clock: 300MHz
Maximum data rate: 10.2Gbps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
Impedanc: 100ohm
USB
Interface: PC: Type B USB interface; connect to pc;
K/M: connect wired or wireless USB keyboard and mouse
USB signal: HID Signal
CAT
Interface: RJ45/IEEE-568B

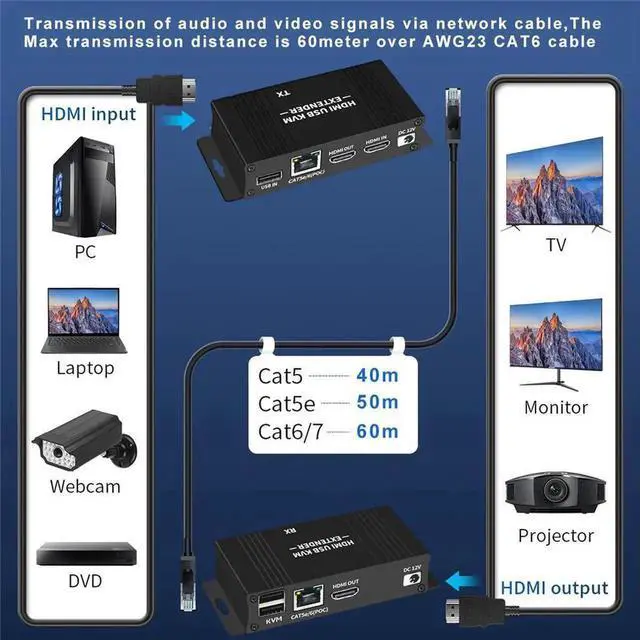

Transmission distance: CAT5:40m/131ft,CAT5e:50m/164ft,CAT6:60m/196ft
Features:
- Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
- Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
- Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

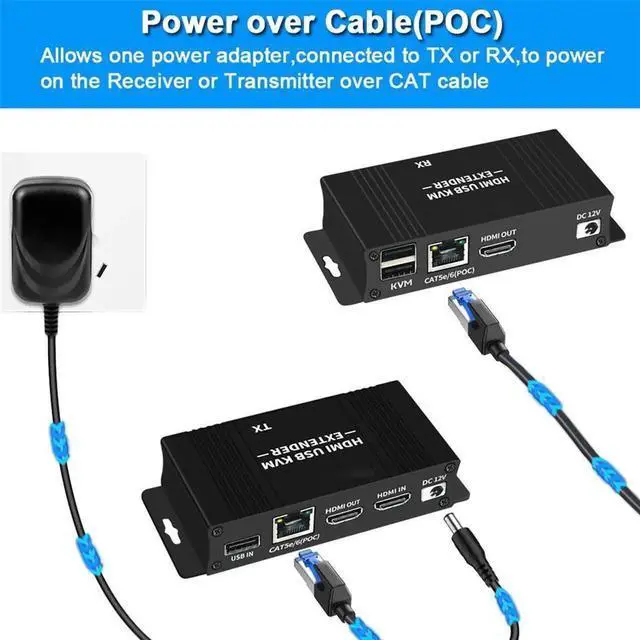

- POC function:Power over CAT cable,only need one power adapter;
- HDMI loop out function:The transmitter with one HDMI local loop out;
- Uncompressed mode:ZERO Delay,No loss;
- KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
- Male to male:one TX to one RX applicataion;
- Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
- Built-in automatic adjustment system:make the image smooth, clear and stable;
Note:
- the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard,USB camera,Scanner,USB flash driver ,printer etc.
- For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
