CKLau 6 Port Rack Mount KVM Switch HDMI 2.0 4K60Hz with Audio, 2 pcs USB 3.0 Peripheral Hub, and Cables for 6 Computers 1 Monitor Supports Hotkey, IR Remote, Wired Remote, Manual Switching

KVM Switches KMV Switches KVM Switch 6 Port KVM Switch 6 Port HDMI KVM Switch Monitor Keyboard Mouse Switch
Installation Step

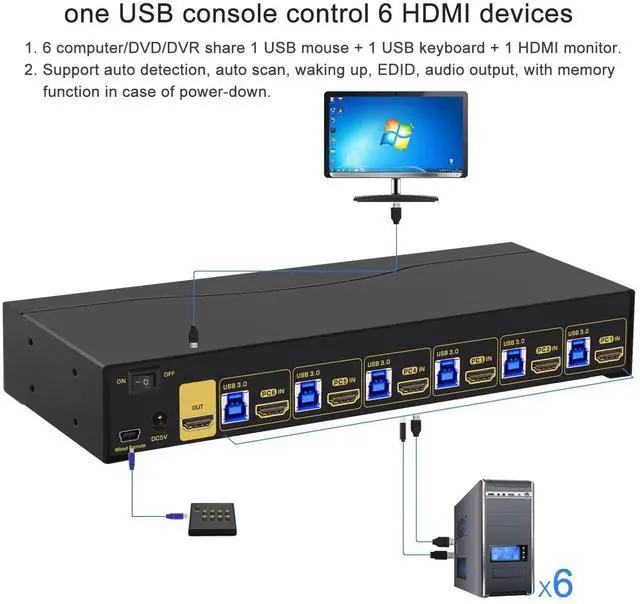

1. Connect the KVM switch and computers by HDMI cables, and USB 3.0 cables that come with the KVM switch;
2. Connect the KVM switch and the monitor by HDMI cable;
3. Plug the keyboard into the keyboard slot, plug the mouse into the mouse slot, and plug the headset/IR remote/other USB devices/wired remote push-button switch into the KVM switch if needed.

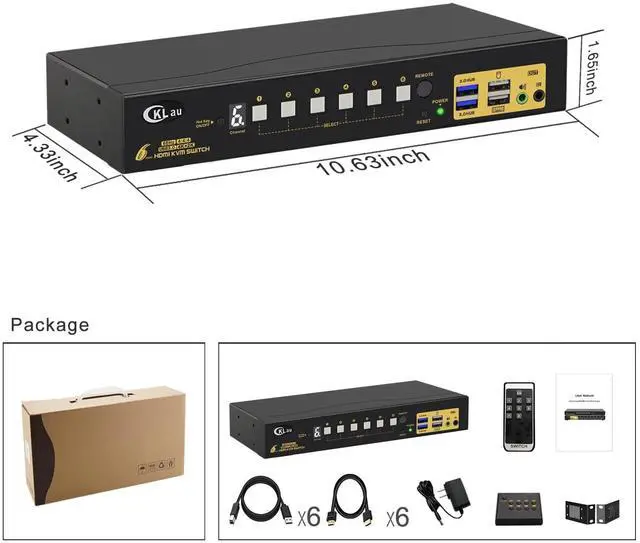

Package includes:
1 x 6 Port KVM switch + 6 x HDMI Cables + 6 x USB 3.0 cable + 1 x DC 5V 2A Power adapter + 1 x IR remote controller + 1 x User manual + 1 x wired remote push button + 2 x rack mount hook
Tips:
1. The IR remote does not include a battery, you need to buy it separately (battery specification is CR2025 3V).
2. The KVM switch comes with a DC5V 2A power adapter, we suggest you plug it into the KVM switch and AC socket, to avoid damaging your devices cause the power supply is not stable.
Questions & Answers:
1. How to reset the KVM switch? (You can reset the KVM switch when you meet USB disconnect or monitor issue)
Step 1. Turn off the KVM switch and all of your computers/laptops, then unplug all the cables;
Step 2. Plug the DC5V 2A power adapter into the KVM switch and AC socket, and turn on the KVM switch (There is an o/f button on the back);
Step 3. Plug the keyboard into the keyboard slot of the KVM switch;
Step 4. Click right [CTRL] on the keyboard 2 times, then click [ESC] 3 times, at last click [ENTER]. (The whole operation time should not be over 2s after you hear a beep sound, that shows operated successfully);
Step 5. Plug USB 3.0 cables, and HDMI cables into the KVM switch and computers, plug HDMI cable into the KVM switch and your monitor; plug the mouse into the mouse slot of the KVM switch; plug other USB devices into the USB 3.0 Hub of the KVM switch if needed;
Step 6. Turn on your computers.
2. How to turn off the Beep sound? (Beep sound default turn on, you can turn it on or turn it off by the step)
You need to keep the HOTKEY ON/OFF key turned on(when it turns on, its LED light), plug the keyboard into the keyboard slot, and make this operate: click right [CTRL] on the keyboard 2 times, then click [B], at last click [ENTER]. (Whole time should not be over 2s, that shows operated successfully when you hear a beep sound.)
3. My gaming keyboard and mouse can't work properly.
The hotkey function default turns on.
For gaming/mechanical/unified keyboard/mouse, that may have a compatible issue, if they can't work properly, we suggest you turn off the HOTKEY ON/OFF key(when it turns off, its LED light turns off). Or you can plug your keyboard/mouse into USB 3.0 Hub port, and then solve the issue.
We have been certified HDMI adopters for over 10 years.
With 2 pcs extra USB 3.0 Hub, data transferring rate up to 5Gbps/s (10 times faster than USB 2.0).
With audio output, can sharing headset during use between computers.
With Hotkey On/off key, you can turn on/turn off hotkey function by this key.

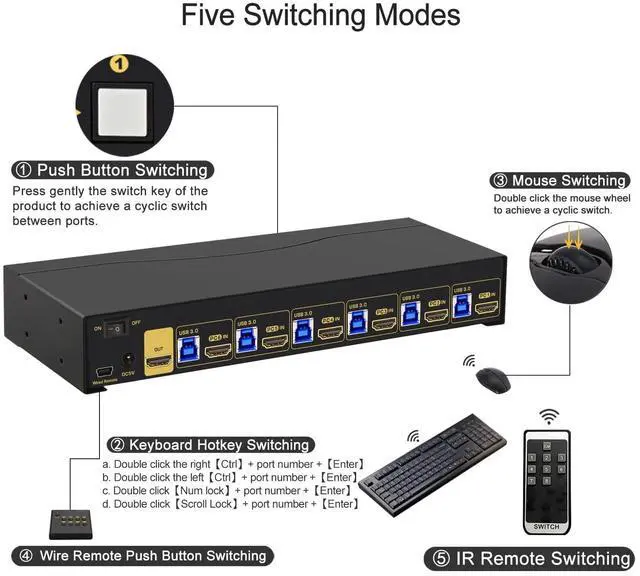

Keyboard SwitchingThe default hotkey key is the right CTRL. Switching operates: Num Lock + Num Lock + 1 / 2 + ... Enter, or Ctrl + Ctrl + 1 / 2 + ... + Enter, or Scroll Lock+ Scroll Lock+1 / 2 + ... + EnterMouse SwitchingClick the mouse wheel 2 times + left button / right button, and then it will switch to another computer.Manual Button SwitchingYou can press the button one time, then it will switch to that computer.Wired Remote SwitchingYou can press the button of the wired remote one time, it will switch to that computer.IR Remote SwitchingYou can press the button of the IR sender, it will switch to that computer. CKLau 6 In 1 Out HDMI KVM Switch Supports Hotkey Function CKLau 16x1 USB 3.0 KVM Switch System Diagram CKLau USB KVM Switch 6 Computers Supports Emulation EDID This KVM USB HDMI Switch More Adv
