CKLau 2 Port 8K60Hz 4K144Hz HDMI KVM Switch with Cables, Audio, Microphone, and 2 pcs USB 3.0 Peripheral Hub for Keyboard Mouse 2 Computers Sharing One Monitor

Monitor Switch for 2 Computers KVM Switches Computer Switch for 2 Computers USB KVM Switch USB KMV Switch Two Computers One Monitor Switch Computer Monitor Switch USB HDMI KVM Switch Monitor Keyboard Mouse Switch

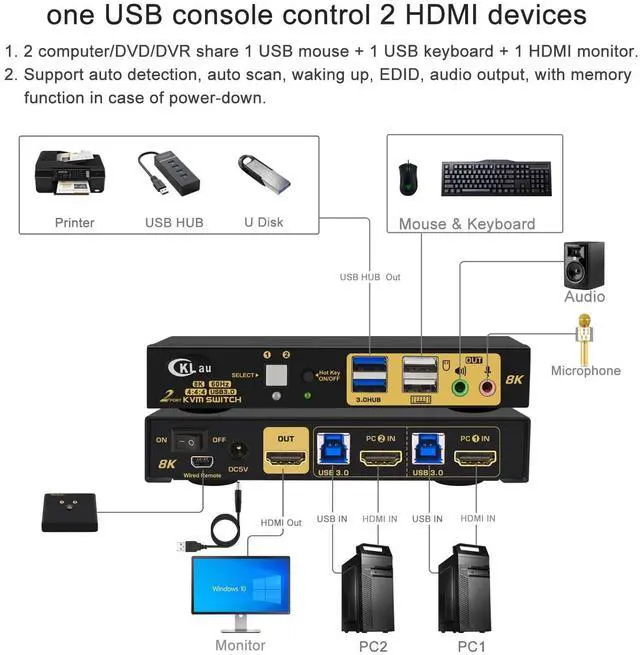

Installation Step:
1. Connect the KVM switch and computers by USB 3.0 cables, and HDMI cables that come with the KVM switch;
2. Connect the KVM switch and monitor by HDMI cables;
3. Plug the keyboard into the keyboard slot, plug the mouseinto the mouse slot of the KVM switch, and plug the wired remote pushbutton switch/headset/speaker/other USB devices into the KVM switch ifneeded.

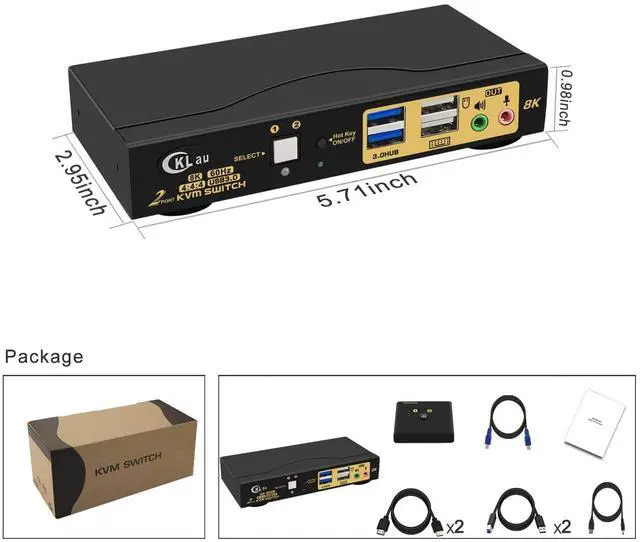

Package includes:
1 x 2 port HDMI KVM switch + 2 x HDMI cables + 2 x USB 3.0cables + 1 x DC 5V 2A Power adapter + 1 x manual + 1 x wire remote pushbutton switch
Warm Tips:
1. If one of your computersoperates on BIOS, start by turning on that computer, entering yourpassword, logging into the system, and waiting for the display. Then,switch to the second computer and turn it on. If both computers areBIOS-based, follow this sequence: start by powering on the KVM, thenswitch on the first BIOS computer, enter your password, log into thesystem, switch the KVM to the second computer, and finally, turn on thesecond BIOS computer. In summary, avoid starting both BIOS computerssimultaneously, as it may cause issues like a black screen or disableyour keyboard and mouse.
2. The KVM switch comes with a DC5V 2A power adapter, wesuggest you plug it into the KVM switch and AC socket, to avoid damagingyour devices cause the power supply is not stable.
3. This KVM switch is without emulation EDID function. Windows size and location may be changed after switching between computers;
4. If you want to get 8K60Hz or4K144Hz resolution, your devices(include computers, docking station,adapter) all should support that resolution. The KVM switch is like abridge for transferring computers' signals to monitors, it can't changeyour devices' resolution. For example, all of your computers and themonitor all support 4K144Hz, but one of your computers needs to use anadapter, and this adapter only supports 4K60Hz, then this computer onlysupports 4K60Hz but not 4K144Hz.
We have been certified HDMI adopters for over 10 years.

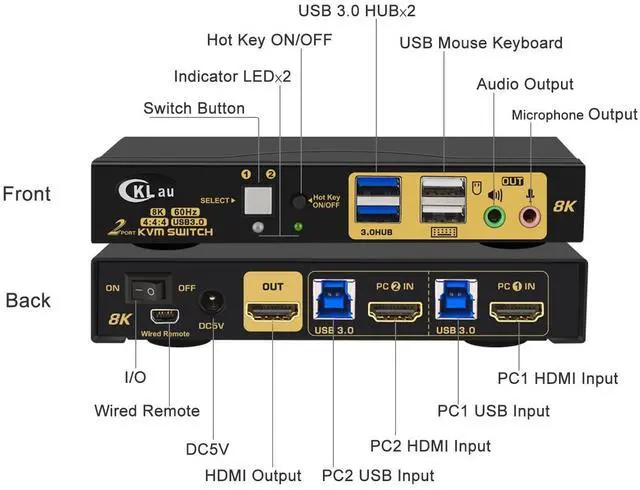

With audio and microphone output, can sharing headset/speaker during use between two computers.
With 2 pcs extra USB 3.0 Hub, data transferring rate up to 5Gbps/s (10 times faster than USB 2.0).
With a HOTKEY ON/OFF key, you can turn on/turn off hotkey function by press this button.
The default hotkey key is the right CTRL. Switching operates:
Num Lock + Num Lock + 1 / 2 + Enter,
or Ctrl + Ctrl + 1 / 2 + Enter,
or Scroll Lock+ Scroll Lock+1 / 2 + Enter
Only need to click the mouse wheel 2 times + left button / right button, and then it will switch to another computer.
You can press the button one time, then it will switch to another computer.
You can press the button of the wired remote one time, it will switch to another computer.
Questions & Answers:
1. How to reset the KVM switch? (You can reset the KVM switch when you meet USB disconnect or monitor issue)
Step 1. Turn off the KVM switch and all of your computers/laptops, then unplug all the cables;
Step 2. Plug the DC5V 2A power adapter into the KVM switchand AC socket, and turn on the KVM switch (There is an o/f button on theback);
Step 3. Plug the keyboard into the keyboard slot of the KVM switch;
Step 4. Click right [CTRL] on the keyboard 2 times, thenclick [ESC] 3 times, at last click [ENTER]. (The whole operation timeshould not be over 2s after you hear a beep sound, that shows operatedsuccessfully);
Step 5. Plug USB 3.0 cables, and HDMI 2.1 cables into theKVM switch and computers, plug HDMI cable into the KVM switch and yourmonitor; plug the mouse into the mouse slot of the KVM switch; plugother USB devices into the USB 3.0 Hub of the KVM switch if ne
