Features
- 6 HDMI inputs switch and split to 2 HDMI displays
- Support HDMI 2.0 HDCP 2.2

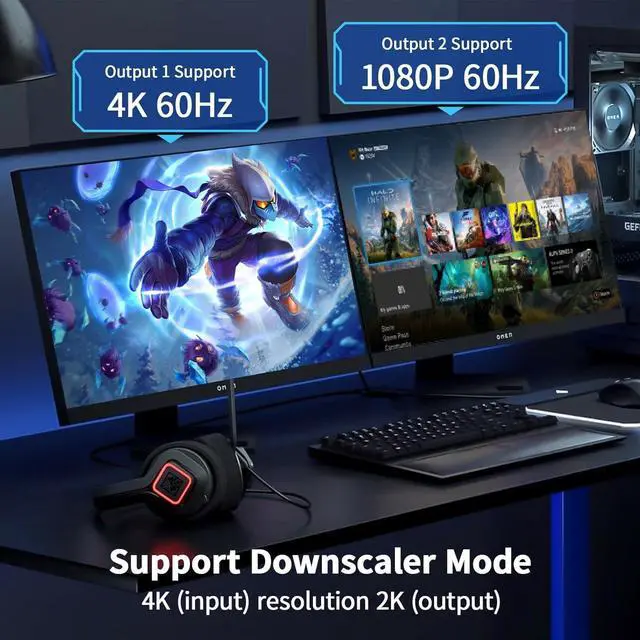

- Support for 4K (input) resolution 2k (output), supports down scaler
- Support up to 18Gbps bandwidth
- Support 3D video format
- Features with 2 HDMI audio outputs, 3.5mm earphone jack and optical output at the same time
- Supports EDID management
Plug and Play - No Drivers Needed

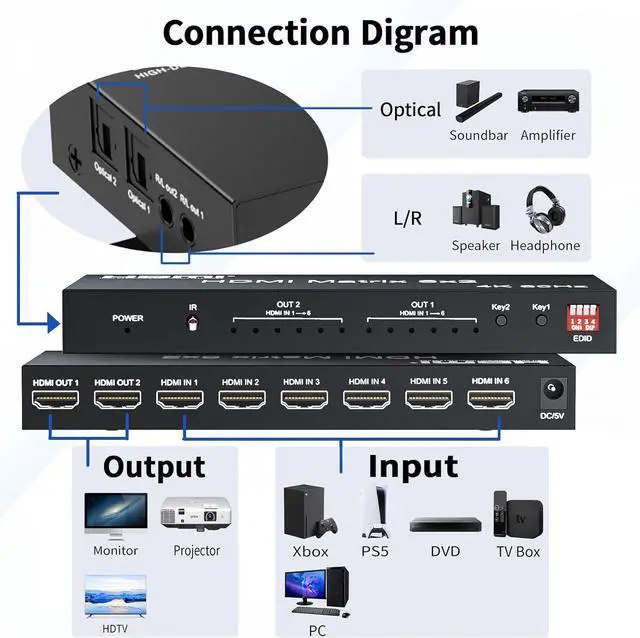

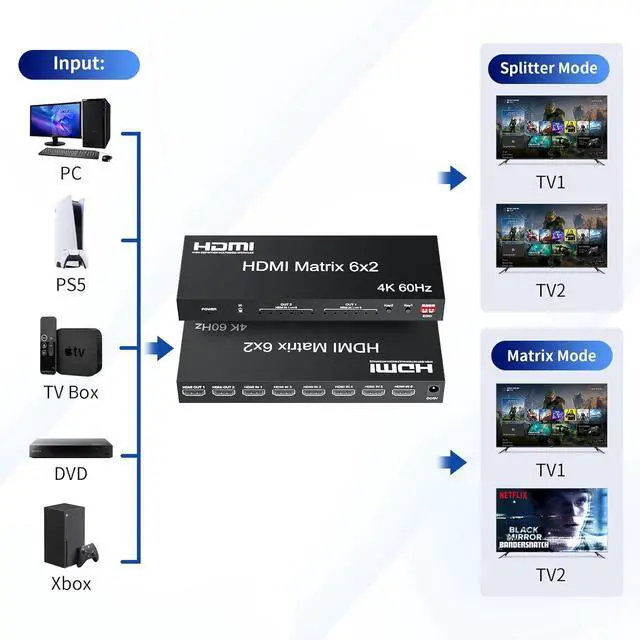

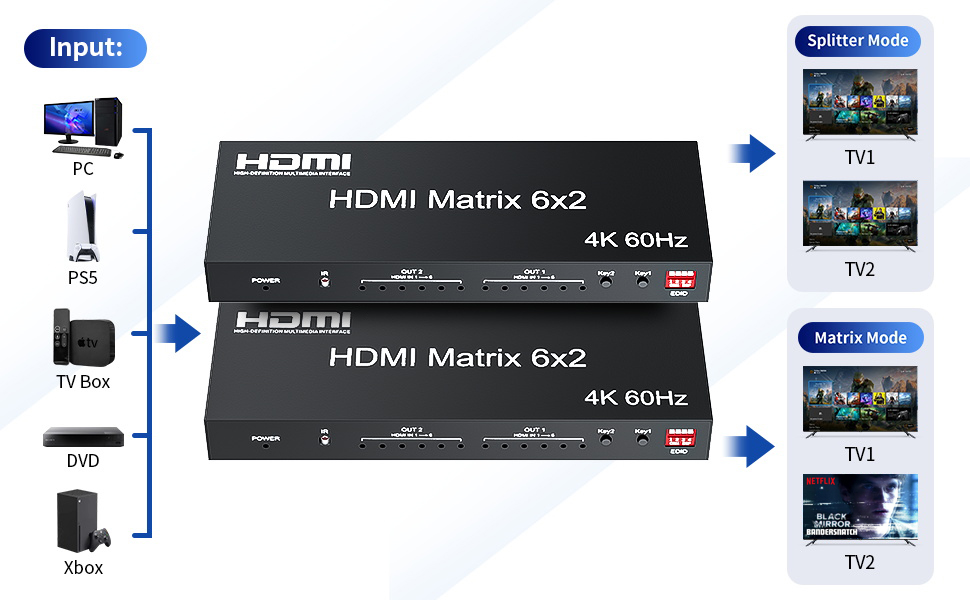

- Work as HDMI Matrix Switcher
Replicate two different HDMI signal source
- Work as HDMI Splitter
Duplicate same HDMI signal source

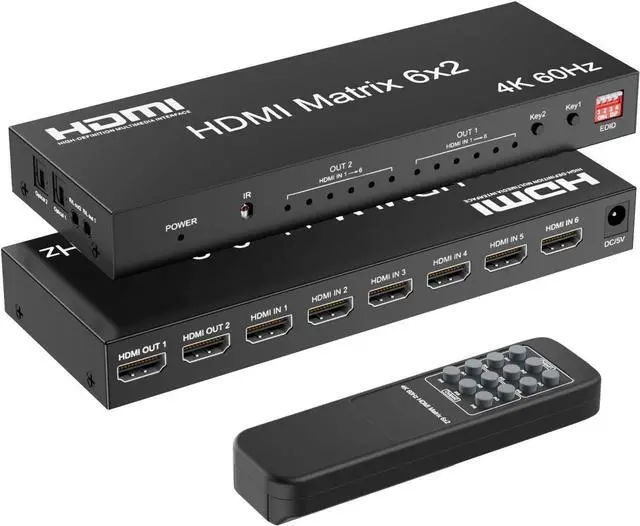

The 6-in 2-out HDMI Matrix Switch supports up to 4K@60Hz resolution, boasting an impressive bandwidth of up to 18 Gbps. Plus, it supports HDR and Dolby Vision, it delivery you a stunning visual clarity and color depth

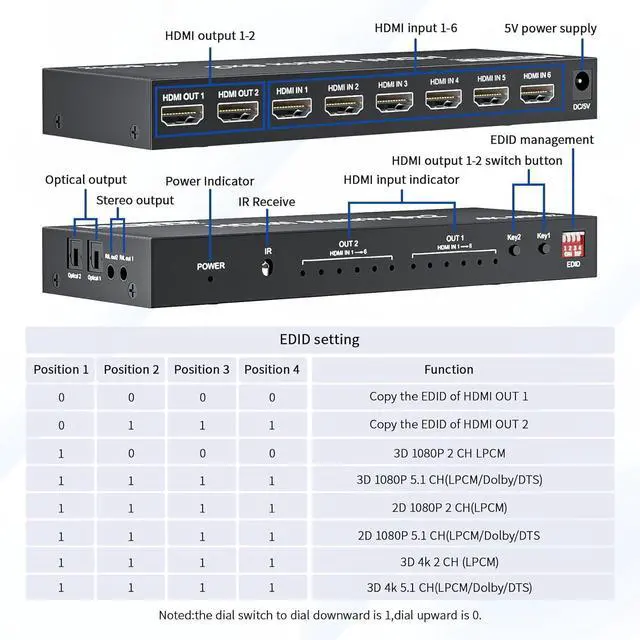

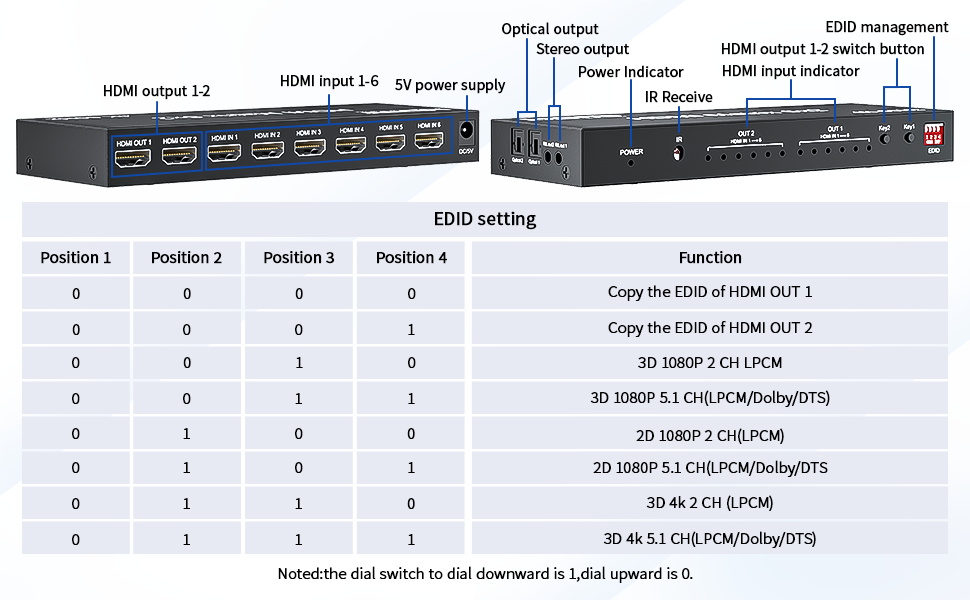

EDID function can set the video and audio format of the HDMI source
Flexible EDID switching provides 8 switching modes that can be met for different resolution needs
NOTE!!!
After you had set the EDID, please restart the HDMI Matrix Switch

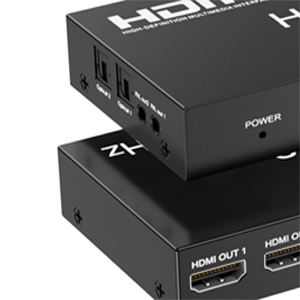

2+2 Audio Extractor
Equipped with 2 optical SPDIF output and 2 analog 3.5mm AUX, support LPCM, Dolby TrueHD, and DTS-HD audio format
2 Switching Methods

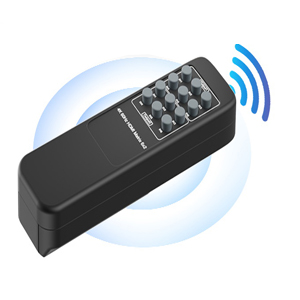

- Remote Conrol to switch between 6 HDMI input without leave seat
- Mnaual switch to select which HDMI input signal you want to watch
Important Note !!
- The HDMI Matrix does not support CEC control
- A qualified HDMI 2.0 cable shall be of pure copper conductor with proper shielding and all 19 pins wired
- HDMI 2.0 Video transmission has very high requirements on cables. Pls use HDMI ATC Certified High speed HDMI 2.0 and above cable only
- When using with HDMI 2.1 source and Display, pls set the resolutions no more than 4K@60Hz manually. Otherwise, there is no signal
