Easily connect with just one USB C cable per computer.USB Type C switch also works with Mac-book Pro, tablets, phones, which capable of outputting video over USB Type-C (alternate mode) to view larger monitor.
Advantage:

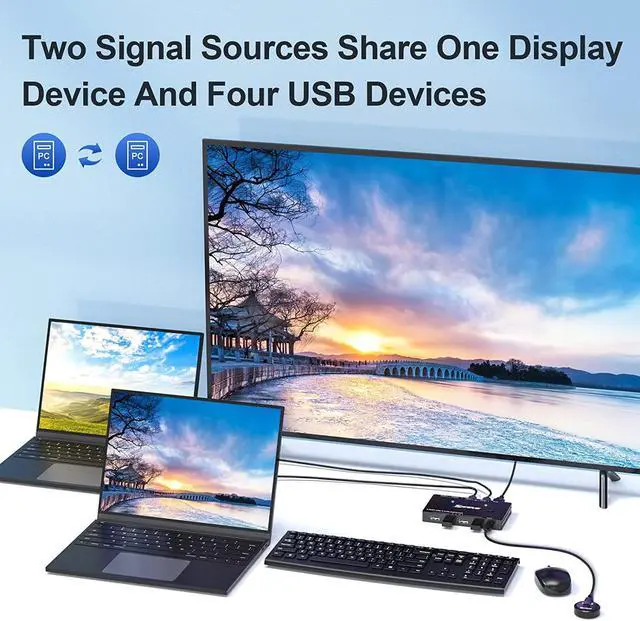

- 2 computers share a wired/wireless keyboard mouse and 1 monitor,Easily output 4K video and digital audio to an HDMI monitor, television or projector without drivers.

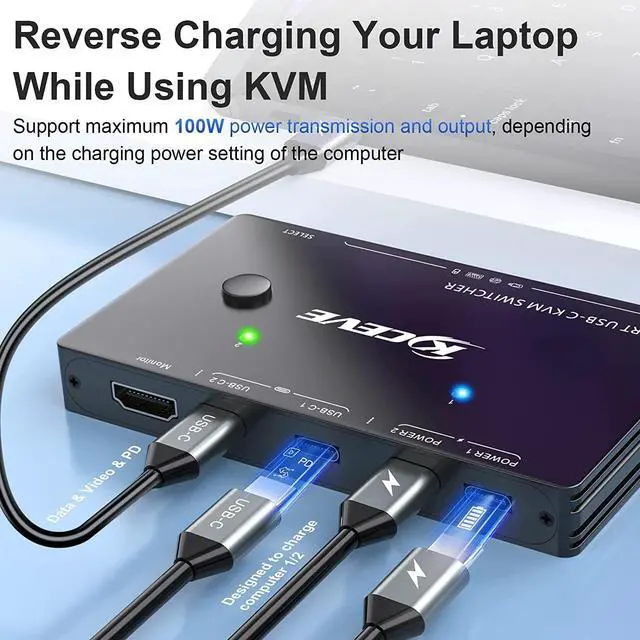

- Supports up to 100W of power to reverse charge the laptop, completely solving the problem of the USB C charging port being occupied when using KVM.
- USB Type-C Alternate Mode to HDMI 2.0 output with resolution up to 4k@60Hz, 2K@120Hz, 1440P@100Hz, backward compatible.
- Fully compatible with Thunderbolt 3,it is aslo a thunderbolt kvm switch.

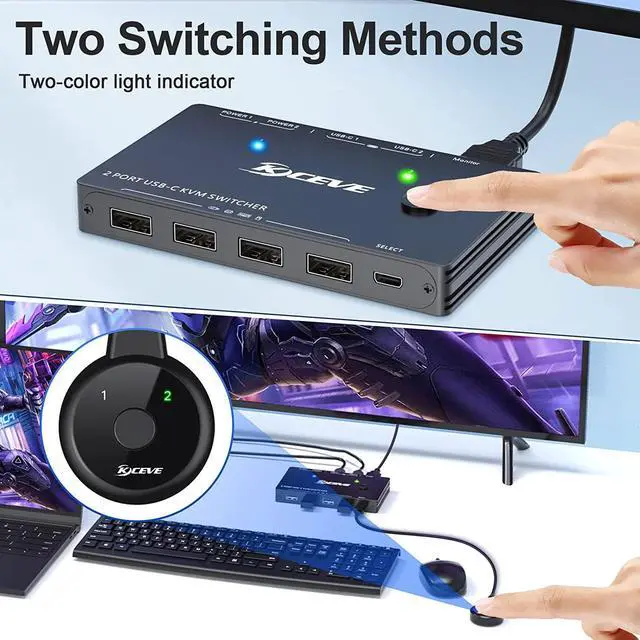

- Switching Modes: Push Button Switch and Wired Remote.

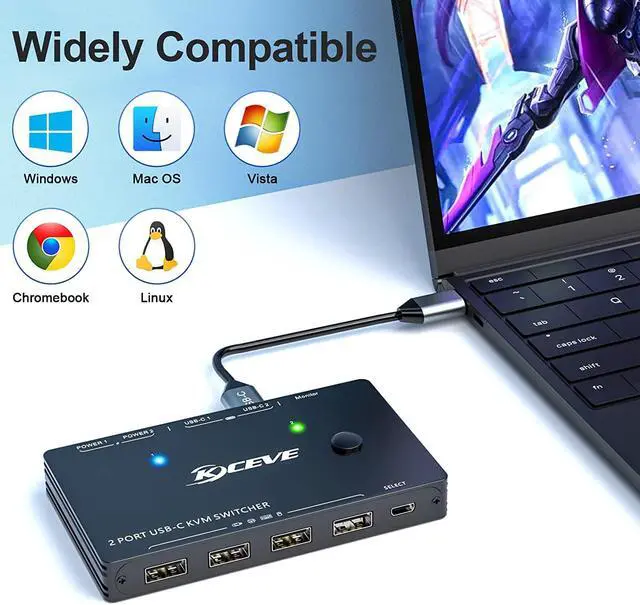

- Cross-support for most major operating systems, including Windows, Linux, Mac, and more.
- USB KVM with 4 USB 2.0 ports, suitable for keyboard, mouse, printer, U disk, etc.
- Support HDMI 2.0 standard, compatible with HDMI 1.4 standard.
- USB hub can expand USB2.0 ports if multiple connections are required
The wired remote control (1.5m) with digital LED indicators is convenient for your cable management and gives you a tidy desktop.

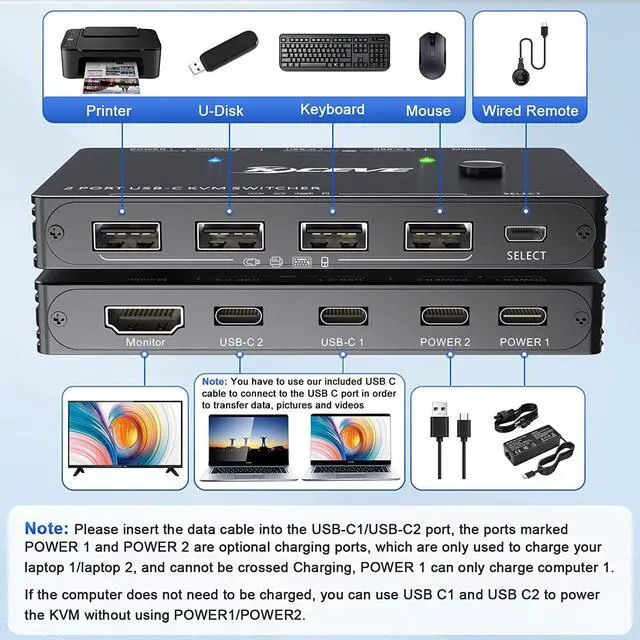

1. Connect PC 1 to the USB-C1 port ;
2. Connect PC 2 to the USB-C2 port ;
3. Connect the monitor to the HDMI port labeled "monitor";
4. Connect the keyboard mouse U disk to the USB-A port;
5. Connect the power adapter to the POWER 1 and POWER 2 of the KVM switch to charge the computer or tablet (optional),power adapter not included;
6. Connect wired remote control to switch between 2 input sources.
Friendly Reminder:
Video adapters for converting HDMI, DisplayPort, VGA, DVI to USB C are not available yet, so please make sure your computer / device has at least one USB Type C port(support Data&Video&PD) before buying this USB C KVM switch selector.
Charge 2 computers separately via Power Delivery (up to 100 watts per computer).
Connect the power adapter of computer 1 to the port marked "POWER 1", and the power adapter of computer 2 to the port marked "POWER 2" to charge computer 1 and computer 2 respectively, and also power the USB KVM switch (No need to connect a PD charger when you don't need charge your computers).
This USB Type C KVM switch contains 4 USB-C connections associated with 2 ports,each port has a power input and a "PC"/device port,each power port can only provide power to the associated "PC" port.
With no power connected to the KVM it will draw about 5V 0.2A from whichever is the selected "PC" port. If power is provided to input 2 and connection 1 is used for the device then power is taken from the device on port 1 to power the USB-C switch - it won't utilise power from the unselected port.
If 2 power connections are made to the KVM and 2 devices connected then they are both charged with each power port only ever providing power through to the associated "PC" port. e.g. with one PSU limited to 15V and the other 20V, 15V is provided through to the "PC" port associated with the 15V input and 20V is provided through to the "PC" port associated with the 20V input.
Since the KVM switcher requires power, the power output to the device will not be as high as the power provided to the input.
Support 4K@60Hz, 2K@120Hz,3440x
1440@100Hz and backward compatible with lower resolutions.
Each power port can only provide power to the associated "PC" port.
Up to 100w, the actual power will be limited by the connected computer or tablet.

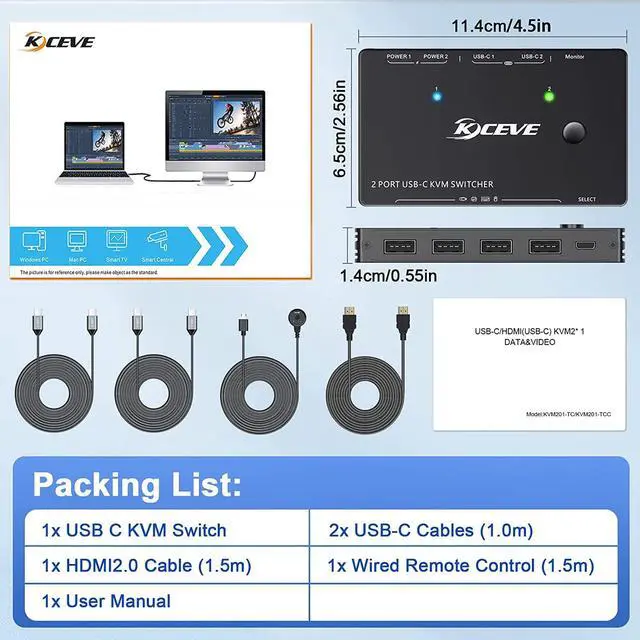

Package included:1*USB Type-C KVM Swtich, 1* HD-MI2.0 cable(1.5m), 2*USB C cables(1.0m), 1* wired remote(1.5m),1*User manual.
Attention: power adapter not included
USB C KVM can mirror Nintendo Switch and Steam Deck to HDMI monitor, one-click switching between work and entertainment.
Requires the game console capable of outputting video over USB Type-C (Alternate Mode).
Are you still troubled by using KVM to occupy your charging port and unable to charge, or are you still troubled by the lack of sufficient USB ports on your laptop, this USB C KVM can completely solve the above problems for you.
This KVM can reverse charge laptops, with 4 USB ports for USB devices like keyboard, mouse, printer, etc.
Requires the laptops capable of outputting video over USB Type-C (Alternate Mode).
Phone: such as Sa-m-su-ng Gal-axy Nexus, Gal-axy Note, Gala-xy S II, L-G Optimus L-T-E, H-T-C One X, EVO 3D, Sensation, S-O-N-Y Xperia Z, Z-T-E Grand Memo, Hua-wei Ascend P1, Ascend D Quad, L-G Verizon Spectrum, Le-n-ovo S2, Pantech Vega L-T-E, G-al-axy S III, Epic 4G Touch, Z-T-E PF200.
Requires your mobile phone capable of outputting video over USB Type-C (Alternate Mode).
Video adapters for converting HD-MI, DisplayPort, VGA, DVI to USB C are not available yet, so please make sure one of your computers / devices has at least one USB Type-C data port before buying this model.
Requires the desktops capable of outputting video over USB Type-C (Alternate Mode).
