USB 3.0 HDMI KVM 2x2 Matrix Switch, 4K 60Hz Dual Monitor HDMI KVM Switch, HDMI Extended Display USB KVM Switcher 2 in 2 Out for 2 Computers 2 Monitors, Support Audio, Hotkey, Button Switching
- [HDMI KVM USB Matrix dual monitor] The KVM Matrix allows control 2 computer with one set of controls (keyboard and mouse) and two display screen. Realizes 2 in and 2 out free selection synchronous switching.
- [UHD 4K Visual Enjoyment] Supports HDMI 2.0b and standard HDCP 2.3. Support max resolution up to 4K@60Hz,1080@144Hz, also support 1080P@120Hz or lower resolution.

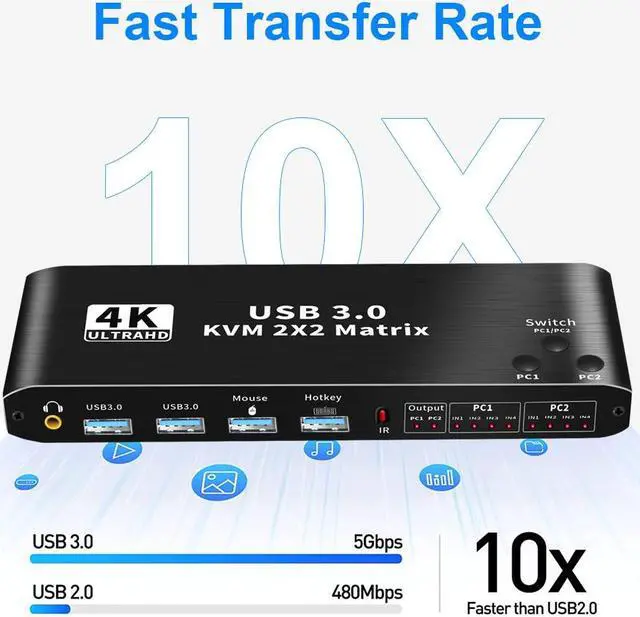

- [with USB 3.0 Port]- Supports Connecting your USB 3.0 port device such as Scanner/USB driver/3D Printer/Monitor Camera.
- [2.0CH Audio Extractor]Comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device.

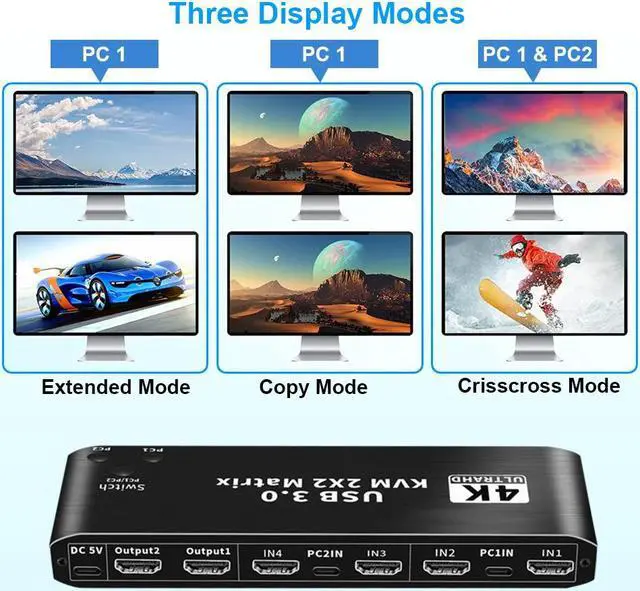

- [Wide Compatibility] Support mirror mode,extended mode and crisscross mode ,it also can compatible with all laptops with HDMI port and other devices. It has adaptive EDID, adapt to Windows, macOS, Linux, UNIX and other operating systems.
- [A Higher Level of Keyboard and Mouse Compatibility] Support keyboard and mouse pass-through mode (Semi-DDM USB).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
- Support HDMI 2.0 b HDCP 2.3
--compliant with DVI to HDMI, DP to HDMI
- Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution

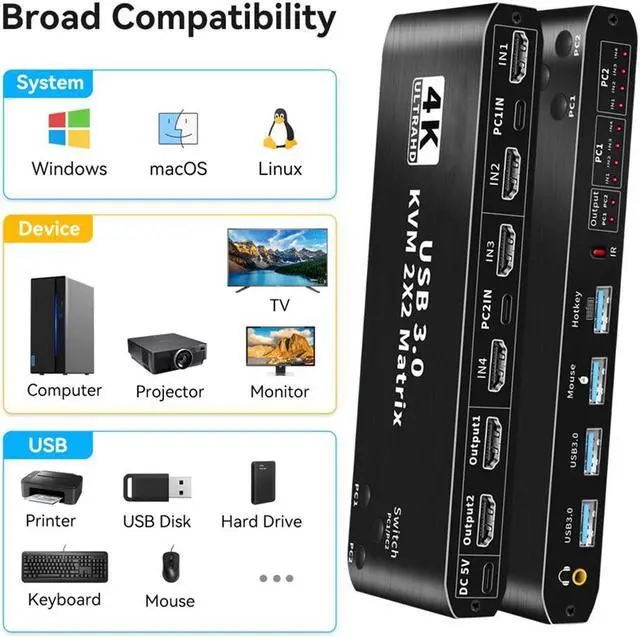

- Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems
- Supports high current hard disk devices

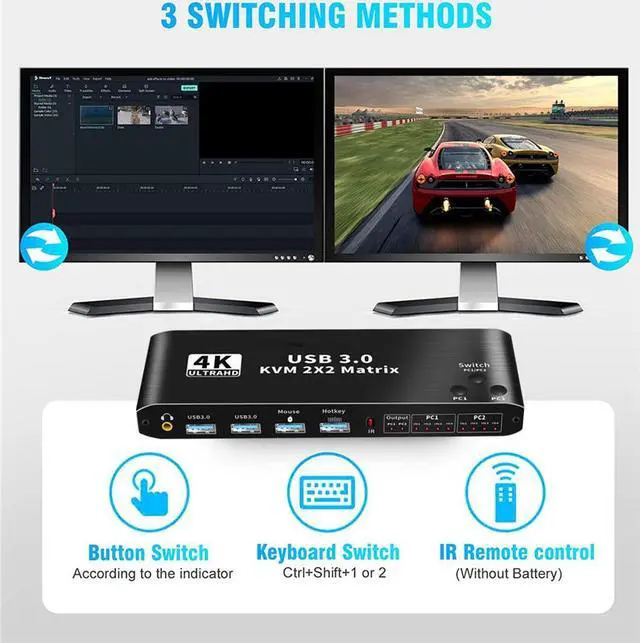

- Extended / Mirror mode Switching Method:
1. Press the "Switch(PC 1 / PC 2)" button on the KVM switch panel to switch between the two source devices;
2. use hotkey switch(Ctrl+Shift+ 1 / 2 to PC1 / PC2 or Ctrl + Ctrl), Ctrl+Shift+ K to turn ON/OFF hotkey;
- Crisscross/Matrix Mode Switching Method:
1. Press the "PC 1" Button, OUTPUT 1 is selected by " PC 1", Each time press "PC 1" button, it will switch to HDMI IN 1 / 2 / 3 / 4;
Press the "PC 2" Button, OUTPUT 2 is selected by " PC 2", Each time press "PC 2" button, it will switch to HDMI IN 1 / 2 / 3 / 4.
2. Press the "PC 1" Button, OUTPUT 1 is selected by " PC 1", Use IR remote control to press " 1" "2" "3"4"button, it will switch to HDMI IN 1 / 2 / 3 / 4;
Press the "PC 2" Button, OUTPUT 2 is selected by " PC 2", Use IR remote control to press " 1" "2" "3"4"button, it will switch to HDMI IN 1 / 2 / 3 / 4.
Specification:

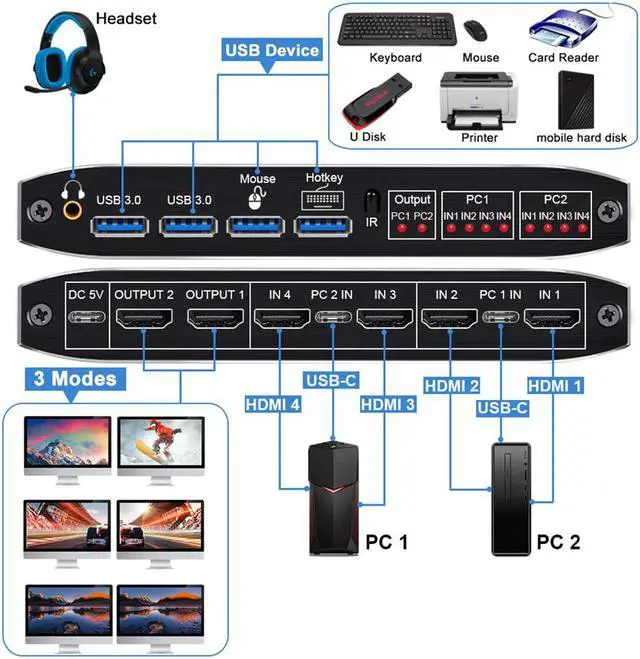

- Product Type: HDMI USB 3.0 KVM Matrix (2 in 2 out)
- Input Port: HDMI 2.0 x 4, USB-C x2, USB 3.0 x 4
- Output Port: 2 x HDMI 2.0, 1 x L/R audio
- Dimensions: 176x51x21mm
- Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation

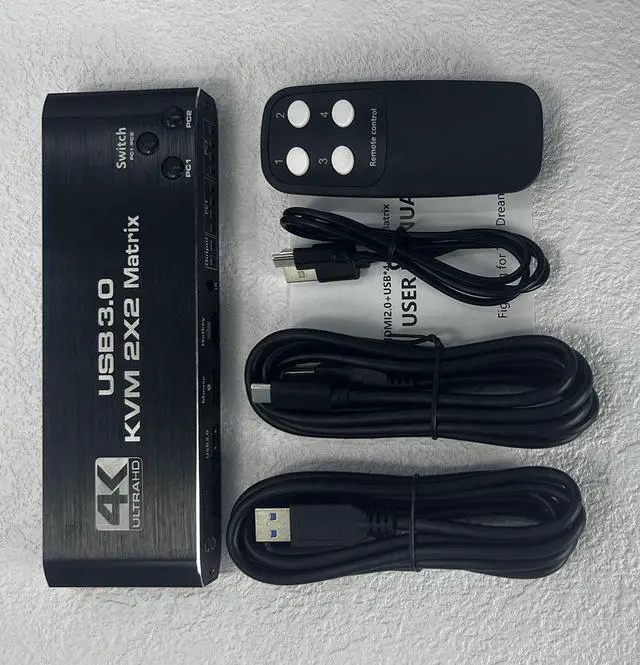

Package contents
1 x HDMI KVM USB Matrix
2 x USB data cable
1 x USB power cable
1 x IR Remote Control (Without AAA battery)
1 x User Manual
- Support HDMI 2.0 b HDCP 2.3
--compliant with DVI to HDMI, DP to HDMI
- Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution
- Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems
- Supports high current hard disk devices
- Extended / Mirror mode Switching Method:
1. Press the "Switch(PC 1 / PC 2)" button on the KVM switch panel to switch between the two source devices;
2. use hotkey switch(Ctrl+Shift+ 1 / 2 to PC1 / PC2 or Ctrl + Ctrl), Ctrl+Shift+ K to turn ON/OFF hotkey;
- Crisscross/Matrix Mode Switching Method:
1. Press the "PC 1" Button, OUTPUT 1 is selected by " PC 1", Each time press "PC 1" button, it will switch to HDMI IN 1 / 2 / 3 / 4;
Press the "PC 2" Button, OUTPUT 2 is selected by " PC 2", Each time press "PC 2" button, it will switch to HDMI IN 1 / 2 / 3 / 4.
2. Press the "PC 1" Button, OUTPUT 1 is selected by " PC 1", Use IR remote control to press " 1" "2" "3"4"button, it will switch to HDMI IN 1 / 2 / 3 / 4;
Press the "PC 2" Button, OUTPUT 2 is selected by " PC 2", Use IR remote control to press " 1" "2" "3"4"button, it will switch to HDMI IN 1 / 2 / 3 / 4.
Specification:
- Product Type: HDMI USB 3.0 KVM Matrix (2 in 2 out)
- Input Port: HDMI 2.0 x 4, USB-C x2, USB 3.0 x 4
- Output Port: 2 x HDMI 2.0, 1 x L/R audio
- Dimensions: 176x51x21mm
- Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation
Package contents
1 x HDMI KVM USB Matrix
2 x USB data cable
1 x USB power cable
1 x IR Remote Control (Without AAA battery)
1 x User Manual
