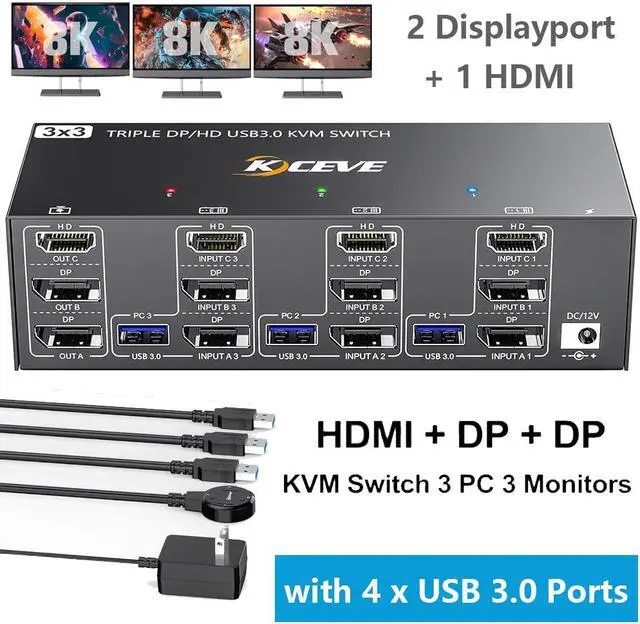

With this Triple-monitor KVM switch HDMI + DP + DP, three computers can share a set of wired or wireless mouse, keyboard and three monitors (does not support Bluetooth mouse).
KVM Switch 3 monitors support advanced mode and mirror mode
Press "Windows + P" to select Extended Screen Mode (output from 3 different screens) or Mirror Screen Mode (3 identical screens).
- Supports USB 3.0 data transfer speeds of up to 5 Gbps
- 2 switching methods: button switch and 1.5m wired remote control
- Plug and play. No additional driver software required
- KVM HDMI port supports 8K@60Hz, 4K@60Hz, 2K@144Hz and below
- KVM DP port supports 8K@30Hz, 4K@144Hz, 3440x1440@144Hz, 4K@60Hz, 2K@144Hz
- Supports DisplayPort 1.4, HDMI 2.1, HDCP 2.3
- Driver-free for Windows 10/8/7/XP/Vista/Chrome/Mac OS/Linux systems, etc. (Not recommended for less compatible docking stations)
- Supports most HDMI and DP interface inputs: PC, laptop, TV box, PS5, Sony Blu-ray player, projectors
Supports DP to HDMI, USB-C/Type-C to HDMI, USB-C/Type-C to DP adapter
- Please note: If the image is flickering or not displayed, using 8K cables can solve the problem of flickering and black screen

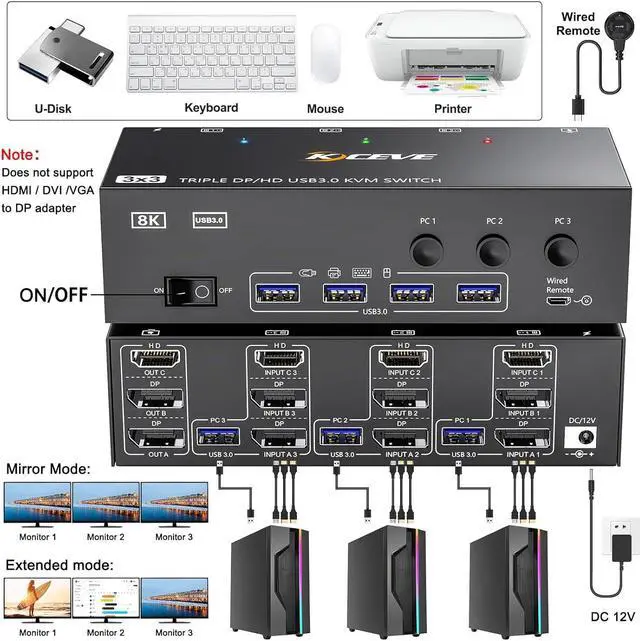

Connection diagram of 3 monitors KVM switch
Each PC requires 1*HDMI+2*DP+1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.Support DP to HDMI, USB-C to HDMI, USB-C to DP converter and USB-C docking station.
Please confirm whether your computers support 1*HDMI+2*Displayport before placing an order.
- Switching mode: button switch and wired remote.
- Two output modes: Mirror and Extended mode.
- 12V power adapter, the recognition is more stable.
2 Switching Methods
- Switch to the computer you want to operate with one click using the KVM switch or button on this 1.5m wired remote.
- Using buttons or a wired remote control, you can switch between 3 computers at will.
- LED lights indicate which computer is active
