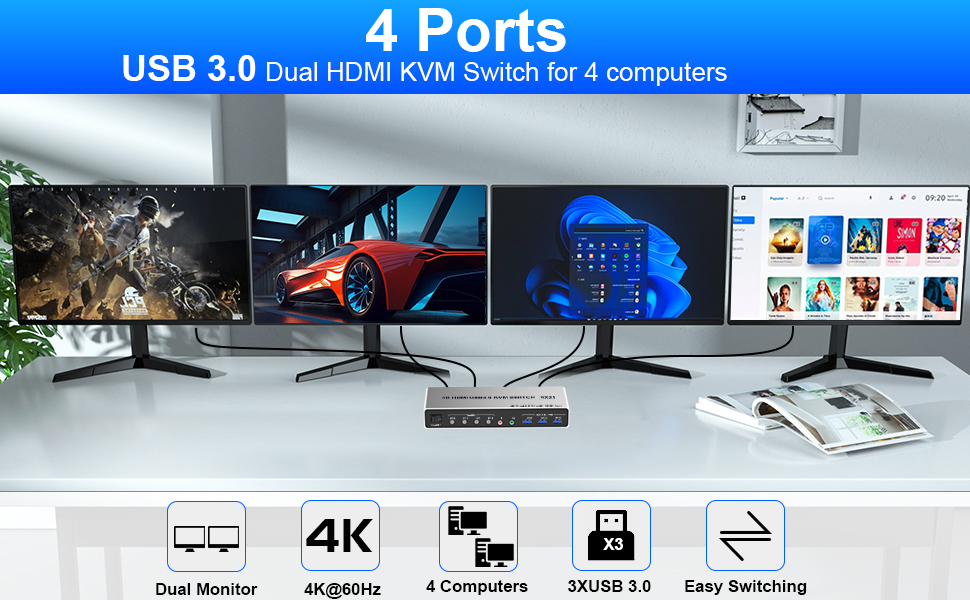

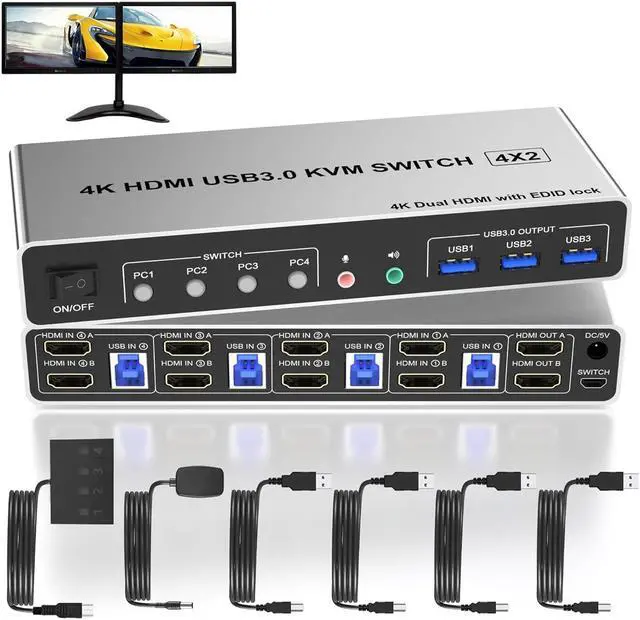

USB 3.0 4 Ports 2 Monitor KVM Switch 4K@60Hz for 4 Computer
Does Everything You Need!
- 4 port USB 3.0 dual-monitor HDMI KVM Switch (HDMI + HDMI). Each input source device must be connected to two dual-monitor.
- This kvm switch dual monitor 4 port help you control 4 PCs share 2 monitors by only one set of USB keyboard & mouse.
Product Features
- 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals;
- With extra 3 USB 3.0 and Audio Microphone output;

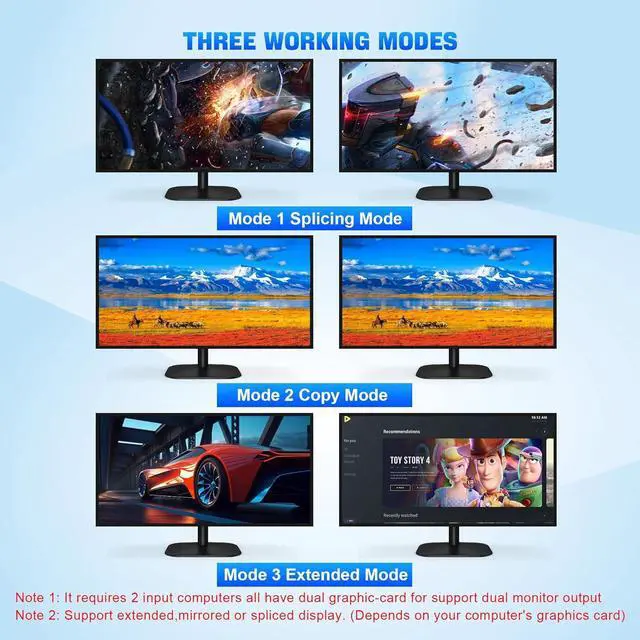

- Support maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2, with EDID Emulator;Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);
- Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
- Advanced switching modes: push button and wired remote;
- The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
- No complicated installation is required, and non-professionals can easily operate it.

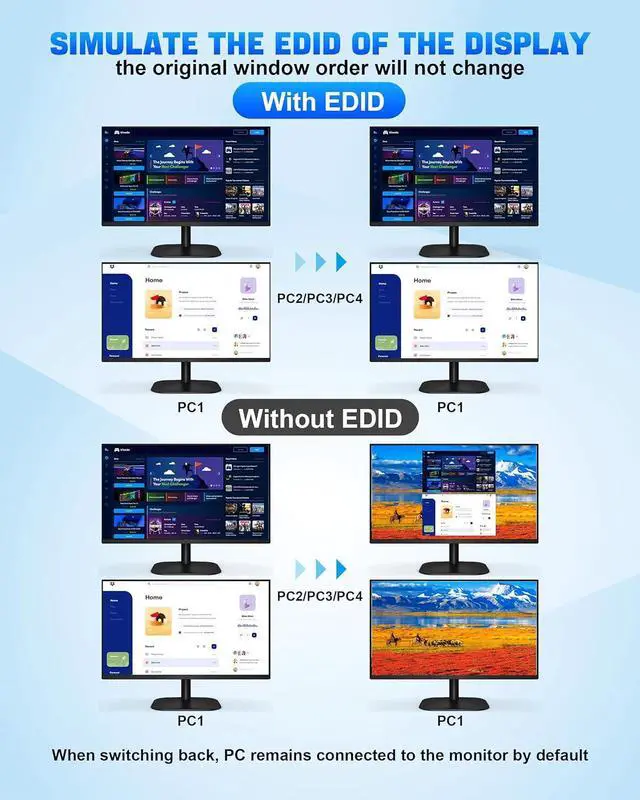

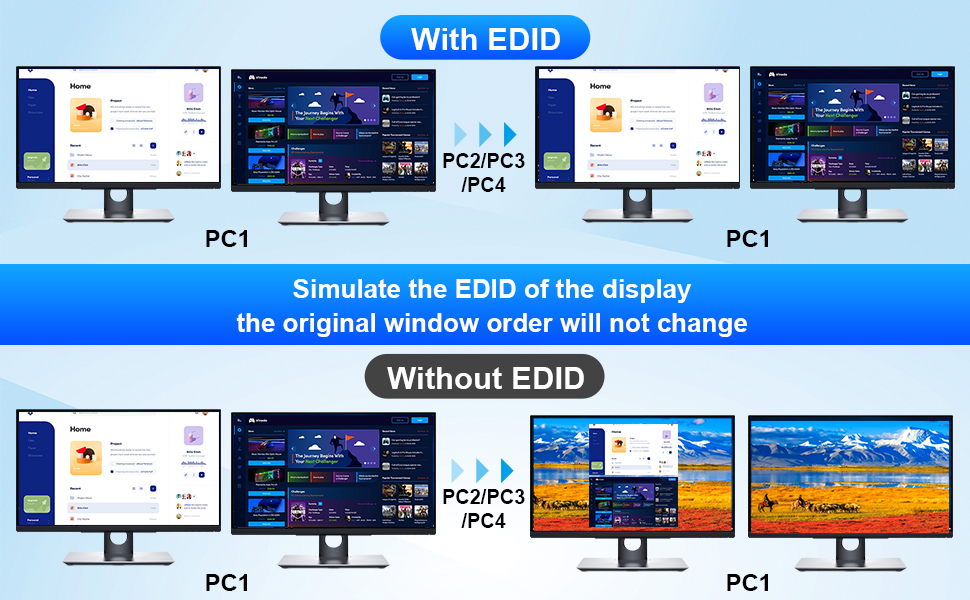

4 Port Dual Monitor KVM Support EDID Lock Screen
- USB3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between 4 computers, the original window order will not change.

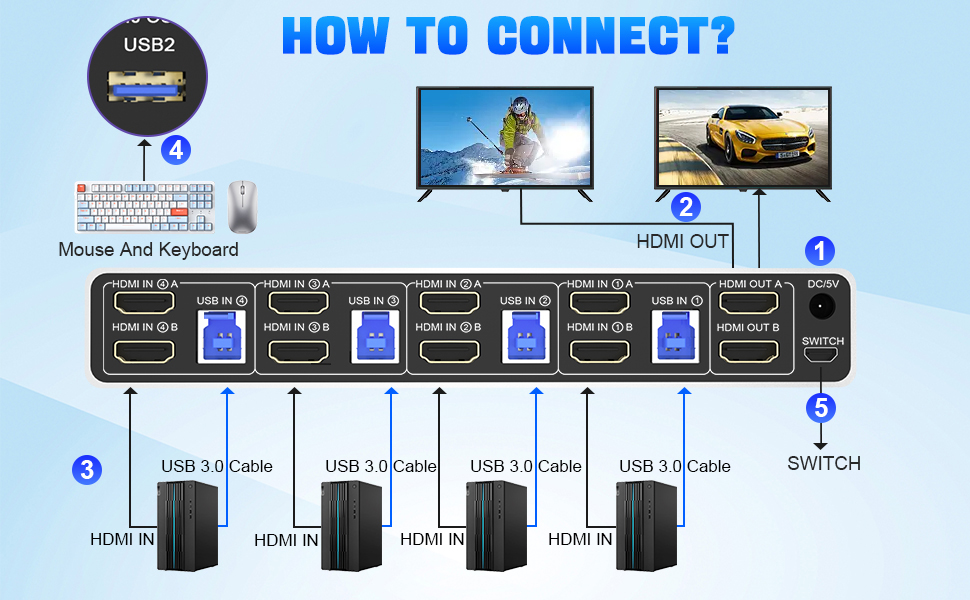

installation steps:
- 1. Insert the DC/5V adapter into the KVM ;
- 2. Plug the HD-MI cable into the KVM and monitor;(Output)
- 3. Plug the HD-MI cable and USB cable into the KVM and your computer/laptop (HDMI cables are not included)(Input)
- HDM1 IN1 A + HDM1IN1 B + USB IN1=PC1
- HDM1 IN2 A + HDM1IN2 B + USB IN2=PC2
- HDM1 IN3 A + HDM1IN3 B + USB IN2=PC3
- HDM1 IN4 A + HDM1IN4 B + USB IN2=PC4
- 4. Insert the mouse and keyboard into the KVM switch
- 5. If needed, you can connect a microphone and audio port
Note:
- 1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 2 HDMI cables connect to the KVM.
- 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
- 3.Please check the HDMI IN A1 & A2 & A3 & A4, HDMI IN B1 & B2 & B3 & B4 and USB IN1 & IN2 & IN3 & IN4 is corresponding, HDMI OUT A, HDMI OUT B is corresponding, NOT support mixed insertion.
- 4.Note: HDMI cables are not included
USB 3.0 Dual Monitor KVM Support 4K@60HZ
- Supports high resolution up to 3840*2160@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.
Supports separate audio and microphone output
KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

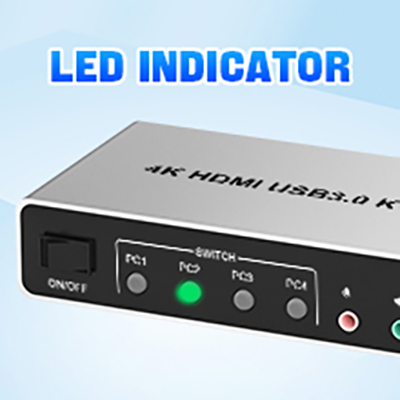

LED Indicator
When switching to which PC, the LED will tell you whether PC1 or PC2/PC3/PC4 is active.

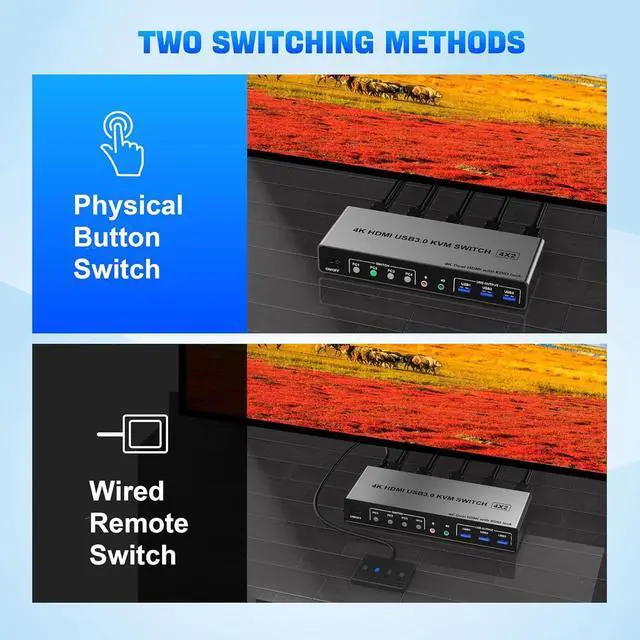

2 monitors 4 computers KVM Support 2 Switching Modes

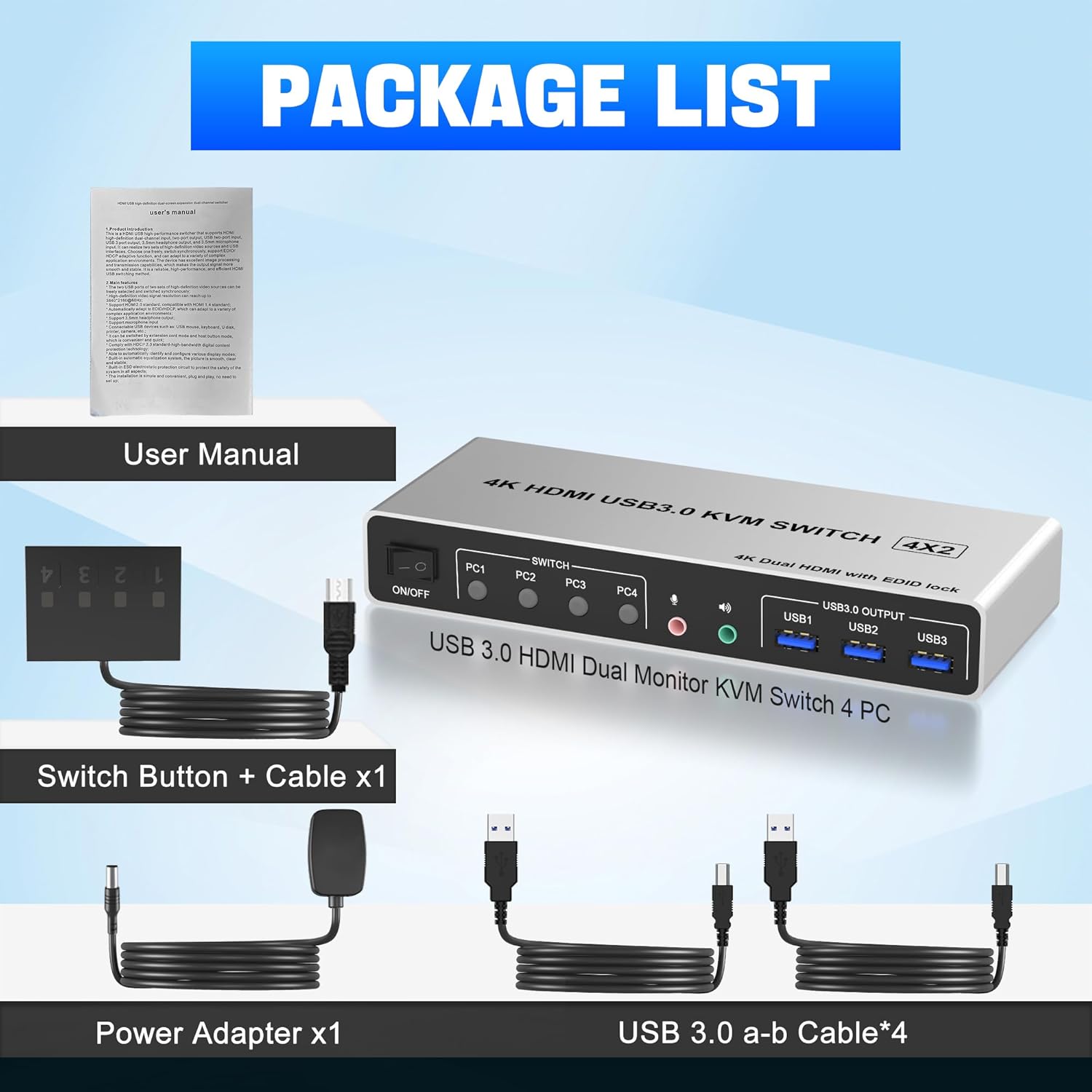

- Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
- Please note: This KVM does not support hotkey switching.
2PC/3PC/4PC are all suitable

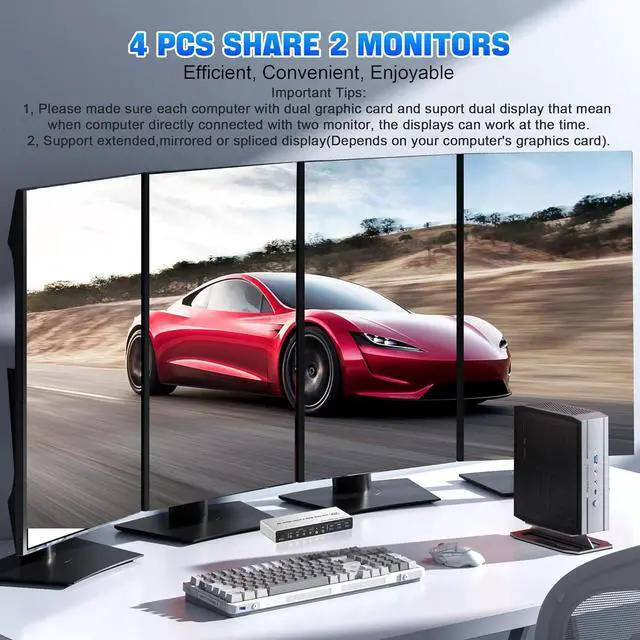

- 4 ports does not mean that it can only be connected to 4 computers. You may have 4 computers currently, or you may only have 2 computers now, but you may need to use 3 or 4 computers in the future, then you can choose this switch. As long as your computer confirms that it supports dual-screen display, you can use 2 screens.
