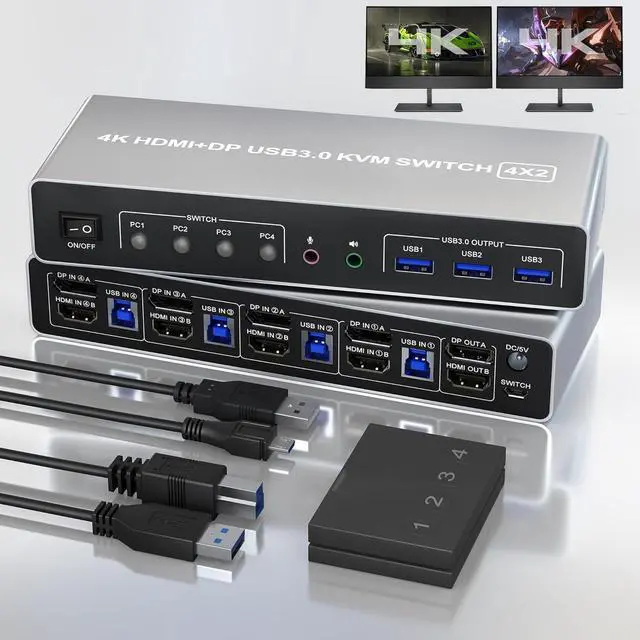

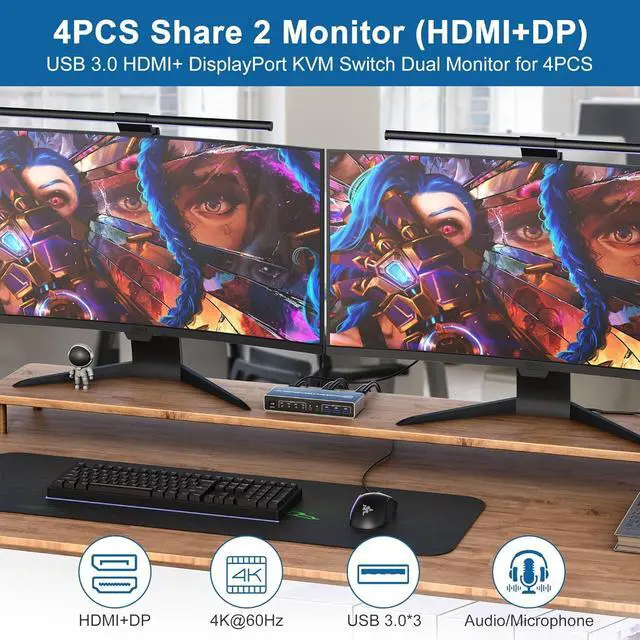

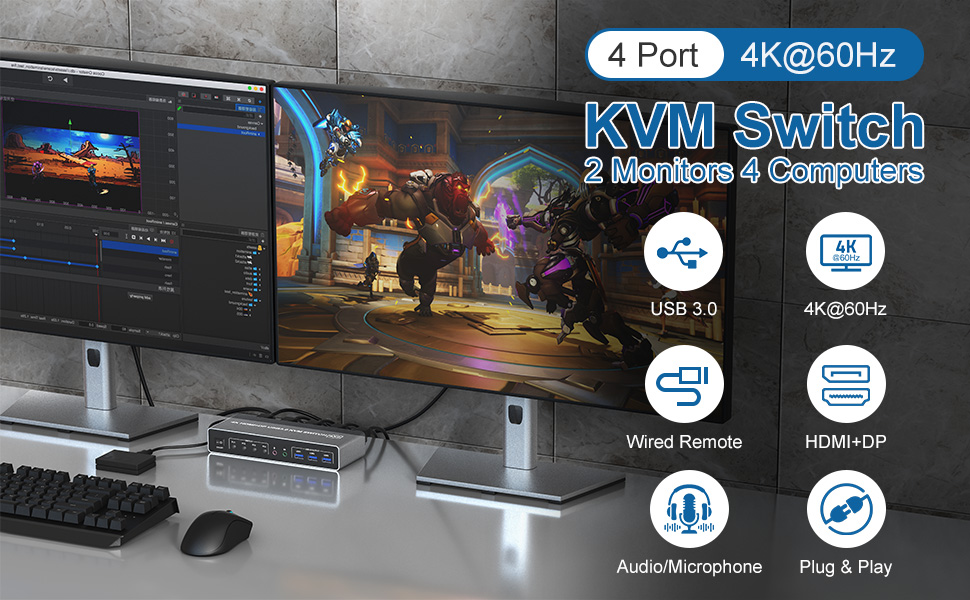

HDMI + DP Dual Monitor KVM Switch 4 computers share 2 monitor and 3 USB 3.0 devices, and Audio Microphone Ports
Does Everything You Need!
- Support maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended and mirrored display(Depends on your computer's graphics card);
- With 3 USB 3.0 Ports, USB 3.0 transmission rate up to 5Gbps;
- Supports Separate Audio and Microphone Output;
- 2 switching methods, easy to switch. Support button switching and desktop wired remote controller;
- Compatible with multiple operating systems, such as Windows/Mac/Linux/Unix, etc;
- Easy installation, plug and play, no driver required.

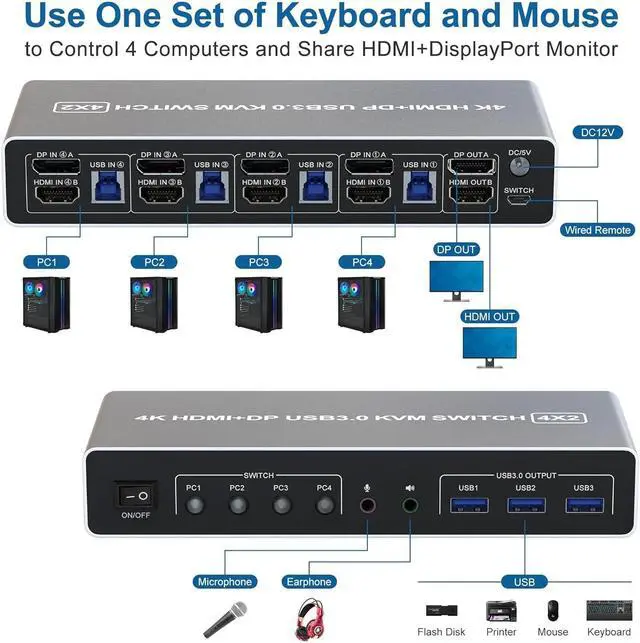

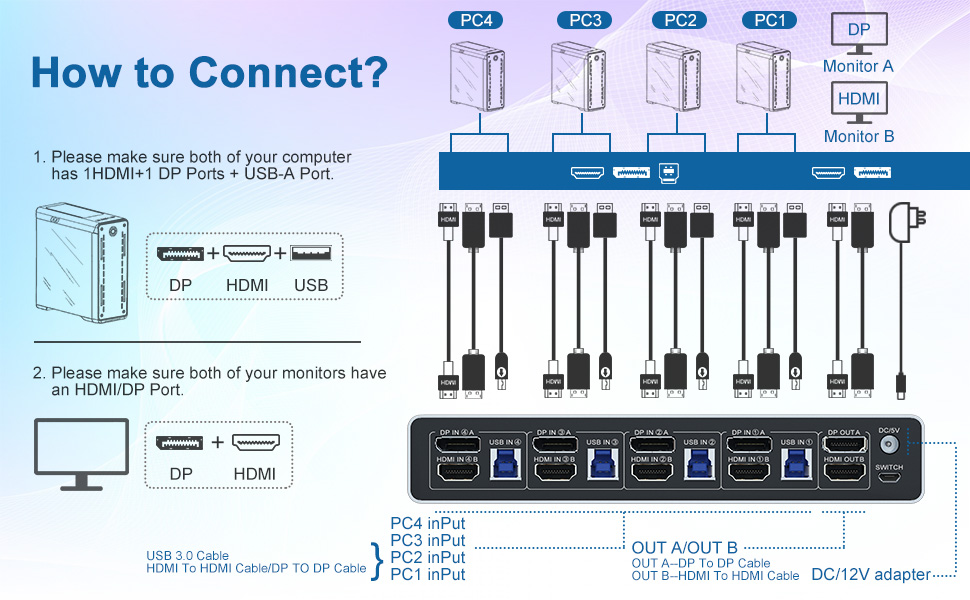

Connection Steps & Notes
- 1. Insert the adapter into the KVM ;
- 2. Plug the HDMI and DP cable into the KVM and monitor;(Output)
- 3. 1). Connect PC1 Firstly(Input)
- Use 1 DP cable to connect the "DPIN 1 A" input interface and PC1 DP A output interface,
- Use 1 HDMI cable to connect the "HDMI IN1 B" input interface and PC1 HDMI B output interface.
- Use 1 "USB-a to USB-b" USB3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface.
- 2)Then, Connect PC2,PC3,and PC4 according to the connection steps of PC1.
- 4. Insert the mouse and keyboard into the KVM switch
- 5. If needed, you can connect a microphone and audio port
Note:
- 1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 1 HDMI and 1 DP cables connect to the KVM.
- 2.Please check the DP IN A1 & A2 & A3 & A4, HDMI IN B1 & B2 & B3 & B4 and USB IN1 & IN2 & IN3 & IN4 is corresponding, DP OUT A, HDMI OUT B is corresponding, NOT support mixed insertion.

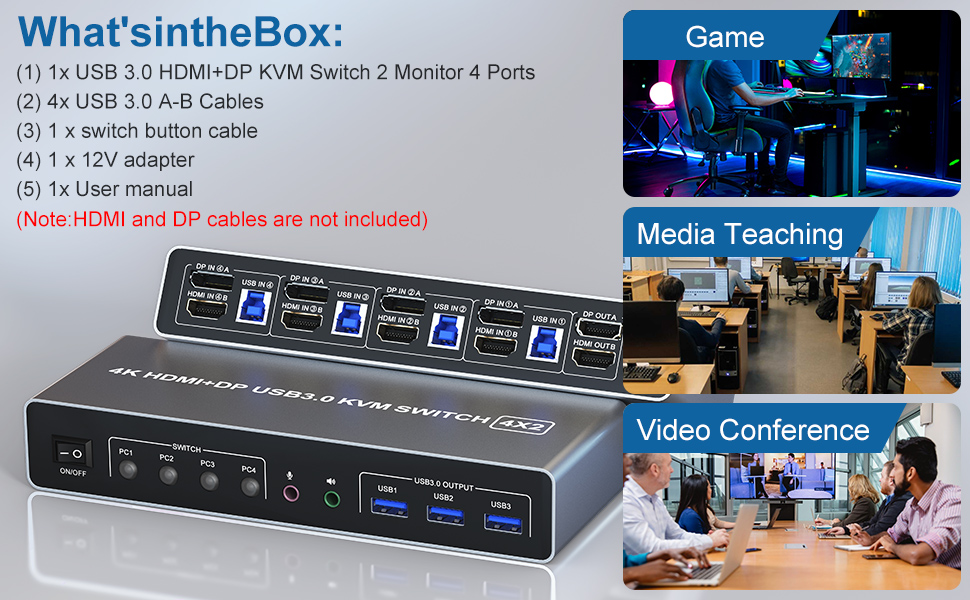

- 3.Note: DP/HDMI cables are not included

USB 3.0 Dual Monitor KVM Support 4K@60HZ
- Supports high resolution up to 3840*2160@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.

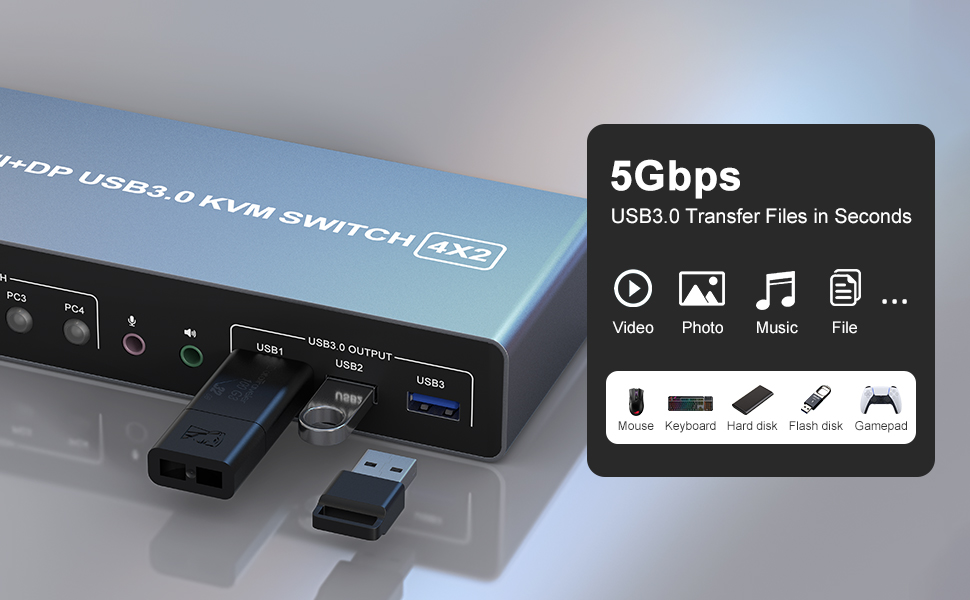

3 Port USB 3.0 with 5Gbps
- Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.
- 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

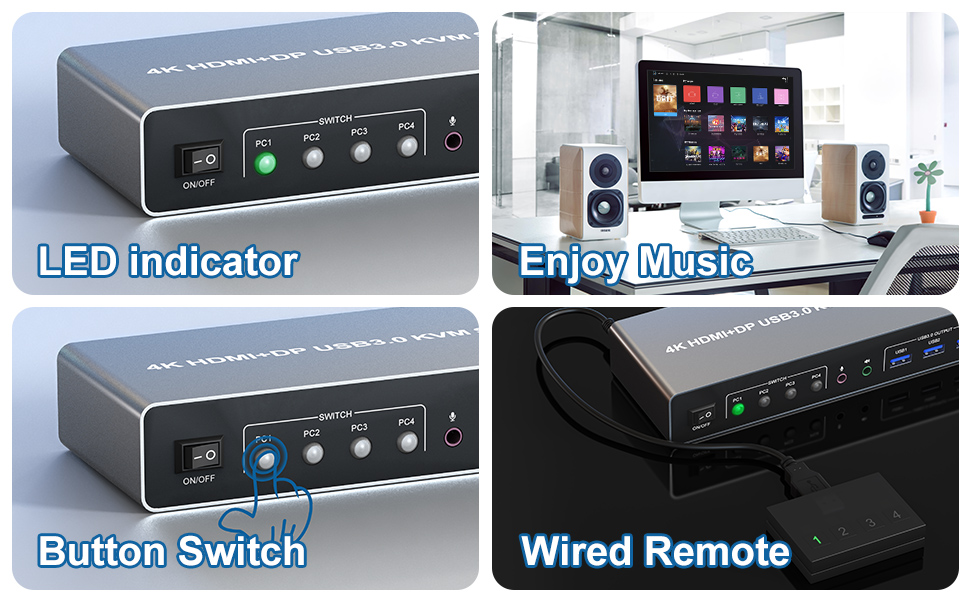

LED Indicator
- When switching to which PC, the LED will tell you whether PC1 or PC2/PC3/PC4 is active.

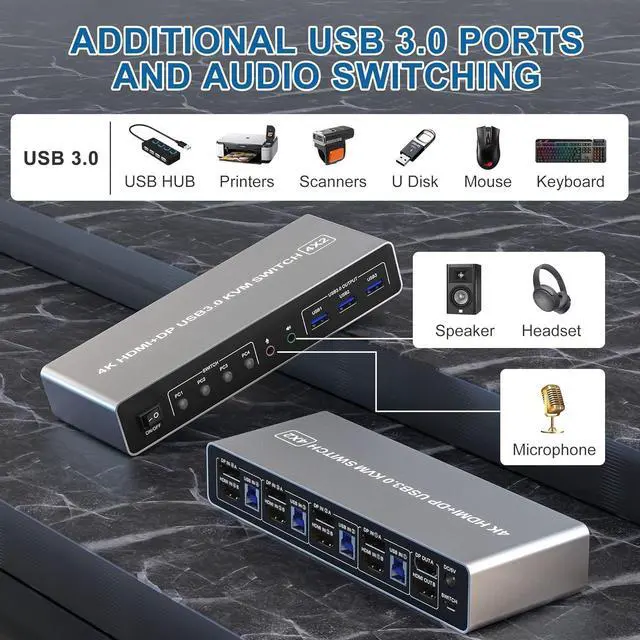

Supports separate audio and microphone output
- KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

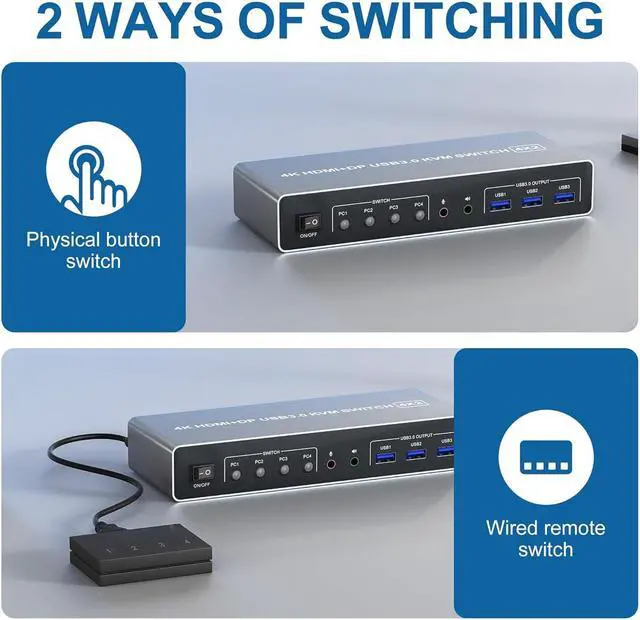

Supports key switching
- You can easily and quickly switch between computers with the push of a button on the control panel.
Support wired remote control
- A push-button controlled switch extension cable is included for easy switching without having to get up when using it.

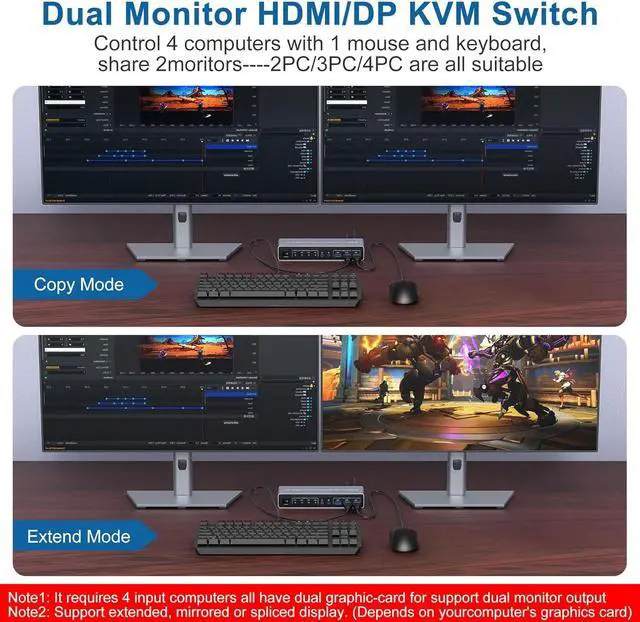

2 Display Modes
- Extended Display
- Mirrored Display
- 1)Extended mode can output 2 different screens and mirror mode can output 2 identical screens.Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
- 2) The requirement for this KVM to achieve a 2-screen display is that each PC you connect to has the capability to support a 2 screen display. This has nothing to do with KVM.
