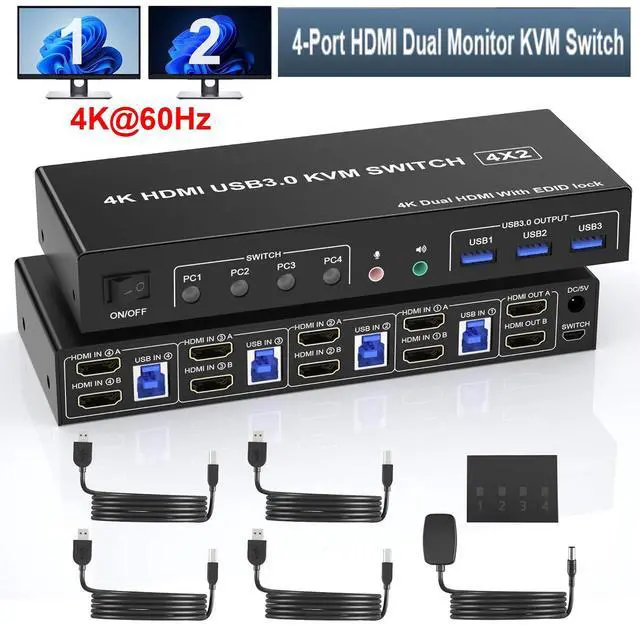

4 Port USB 3.0 Dual Monitor (HDMI+HDMI ) KVM Switch 4K@60Hz
- With this 4 port USB 3.0 dual-monitor HDMI KVM Switch (HDMI+HDMI), you can easily control 4 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.
- Note: Each input source device must be connected to two dual monitors.
- 4 computers share one set of keyboard, mouse, 2 monitors, and more USB 3.0 peripherals.

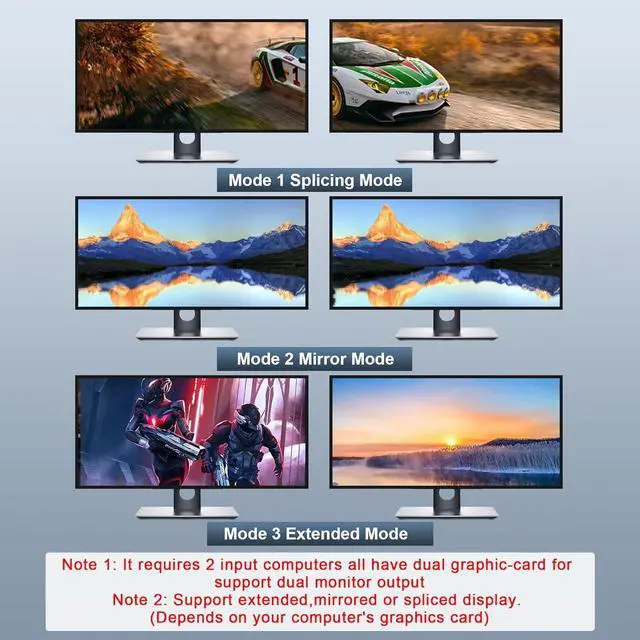

- This dual monitor HDMI KVM switch Supports maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2, with EDID Emulator; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card.);
- Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
- 2 Switching modes: Button switch and wired remote.
- The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
- No complicated installation is required, and non-professionals can easily operate it.
- Independent Audio Microphone output.

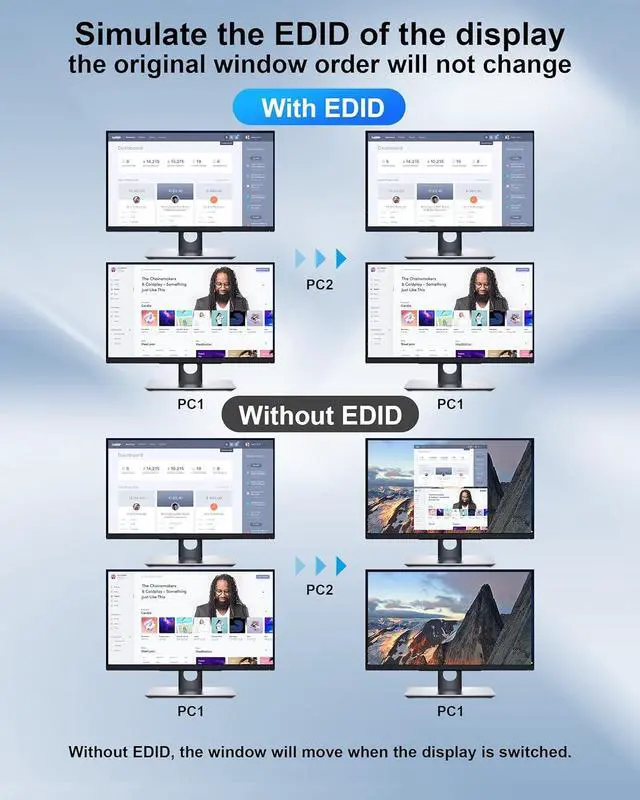

Support EDID Lock Screen
- USB 3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between 4 computers, the original window order will not change.

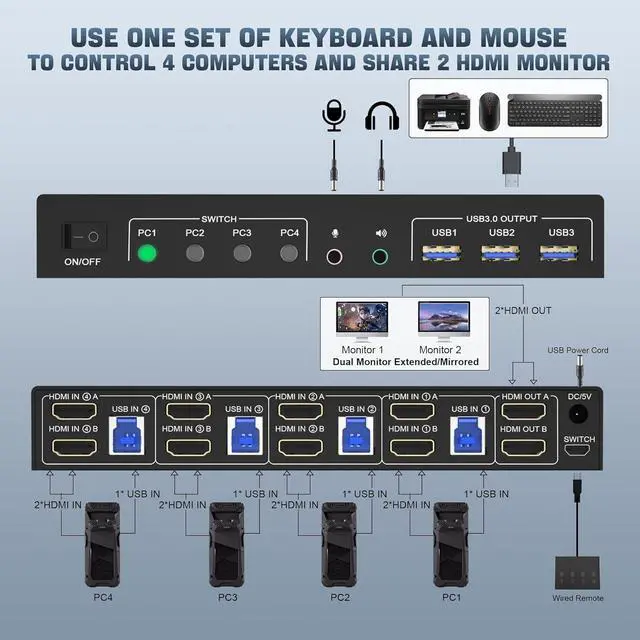

Installation steps:
1. Insert the DC/5V adapter into the KVM ;
2. Plug the HDMI cable into the KVM and monitor;(Output)
3. Plug the HDMI cable and USB cable into the KVM and your computer/laptop (HDMI cables are not included)(Input)
HDM1 IN1 A + HDM1IN1 B + USB IN1=PC1
HDM1 IN2 A + HDM1IN2 B + USB IN2=PC2
HDM1 IN3 A + HDM1IN3 B + USB IN2=PC3
HDM1 IN4 A + HDM1IN4 B + USB IN2=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 2 HDMI cables connected to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3. Please check the HDMI IN A1 & A2 & A3 & A4, HDMI IN B1 & B2 & B3 & B4 and USB IN1 & IN2 & IN3 & IN4 is corresponding, HDMI OUT A, HDMI OUT B is corresponding, NOT support mixed insertion.
4. Note: HD-MI cables are not included
USB 3.0 Dual Monitor KVM Support 4K@60HZ
- Supports high resolution up to 3840*2160@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.
4 PCS Share 3 USB 3.0 Devices
- This KVM switch 2 monitors 4 computers with 3 USB 3.0 Ports for keyboard, mouse, printers, USB headsets, or webcams.
Supports Separate Audio and Microphone Output
- This HDMI dual monitor KVM switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

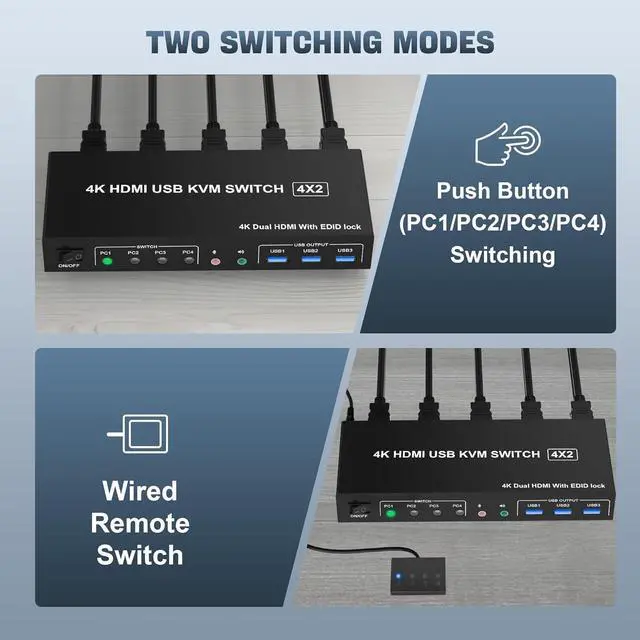

Dual Monitor KVM Support 2 Switching Modes
- Quickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
- Please note: This dual monitor KVM switch HDMI does not support hotkey switching.
