8K@60Hz USB3.0 KVM Switch 3 Monitors 2 Computers 4K@144Hz
- DP1.4 Displayport KVM Switch Triple Monitor for 2 PCs Share 3 Monitors, RJ45 Ethernet Splitter 1 to 2, Audio Mic Port and 3 USB3.0 Devices

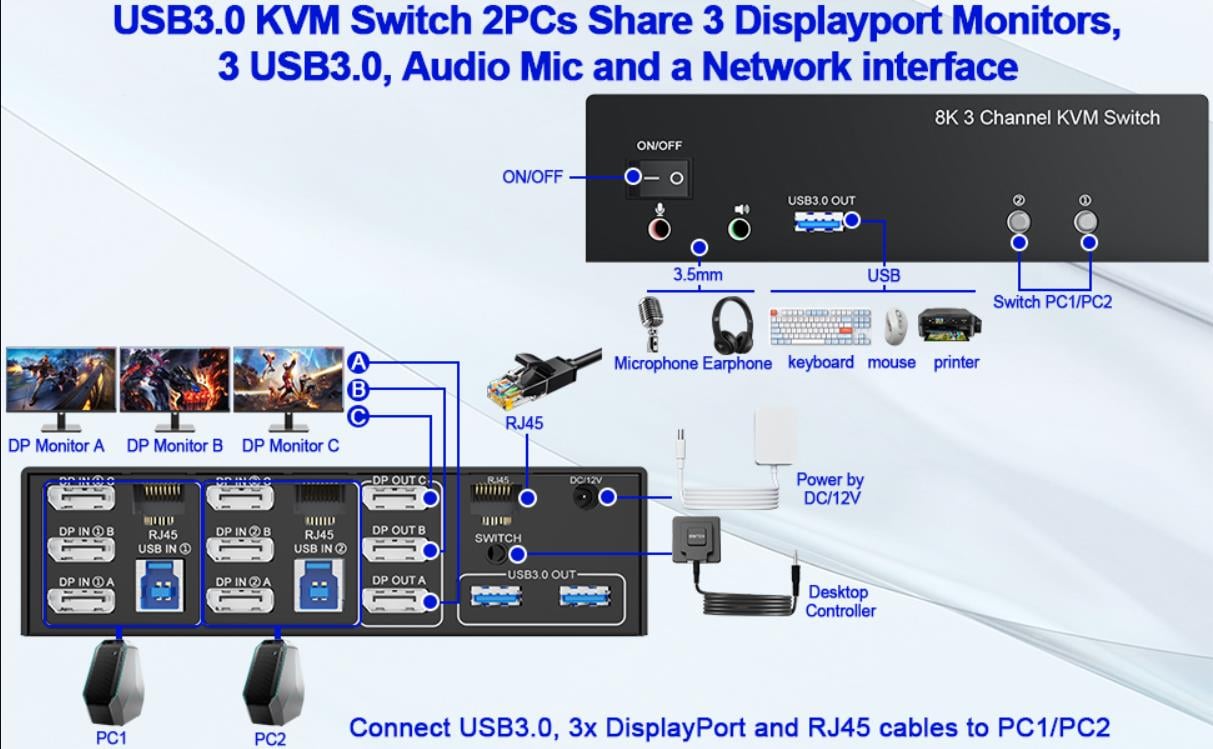

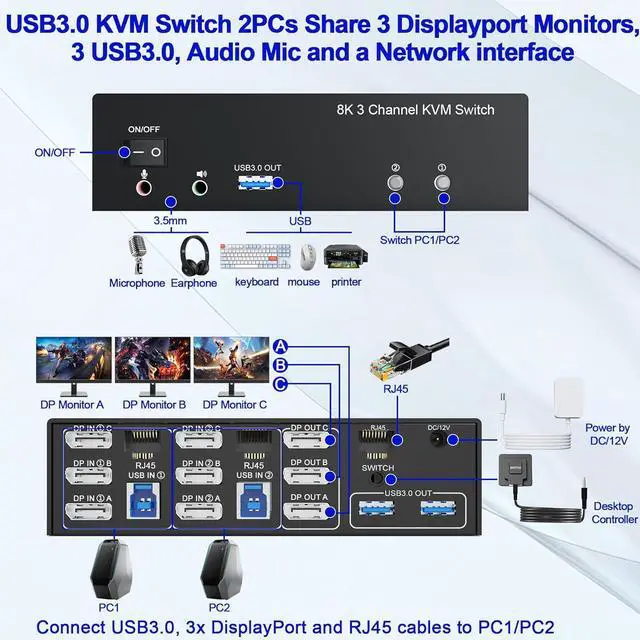

installation steps:
- 1. Insert the DC/5V adapter into the KVM ;
- 2. Plug the Ethernet RJ45 cable into the KVM switch;
- 3. Plug the 3*DisplayPort cable into the KVM switch and monitor;(Output)
- 4. Plug the DisplayPort cable, Splitter Adapter Cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)
- DP IN 1A +DP IN 1B + DP IN 1C + USB IN 1 + RJ45=PC1
- DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2 + RJ45=PC2
- Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding.
- Mixed insertion is not supported.
- 5. Insert the mouse and keyboard into the KVM switch
- 6. If needed, you can connect a microphone and audio port
Note:
- 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP+USB cable) connect to the KVM.
- 2. If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
- 3. Note: DP cables and Ethernet RJ45 cables are not included

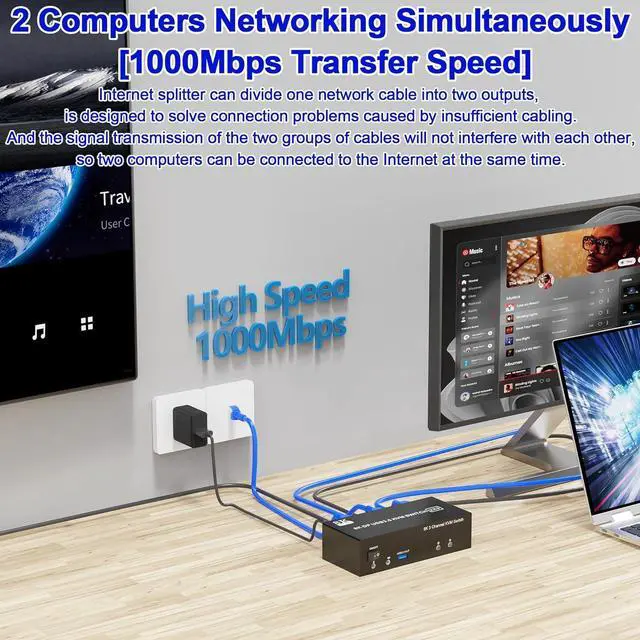

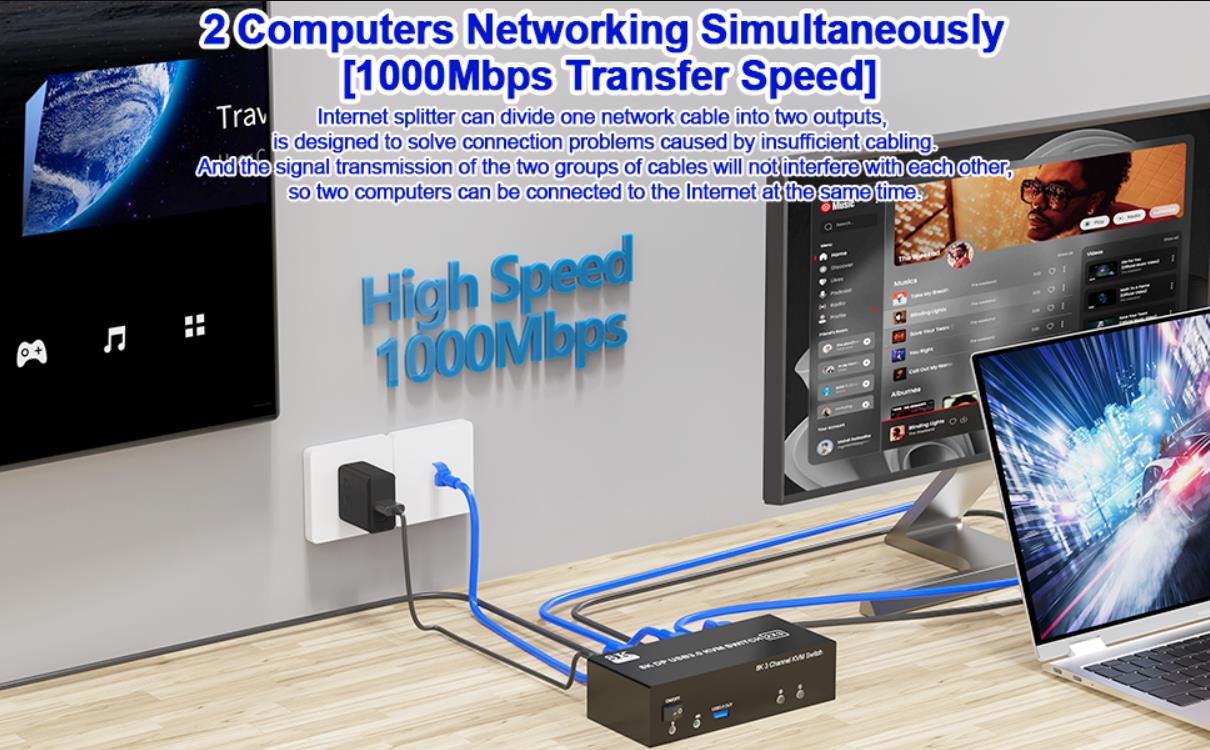

KVM Switch Triple Monitor RJ45 Ethernet Splitter 1 to 2:
- This RJ45 Ethernet Splitter KVM Switch can split one network cable into two outputs.
- Two computers can be connected to the Internet at the same time.
- Supports 1000 Mbps Gigabit Ethernet performance. RJ45 Ethernet Splitter connector extender is compatible with Cat67 Cat6 Cat5 Cat5e network ethernet cable.
KVM Switch Triple Monitor Ultra HD 8K@60Hz:
- 3 Monitors KVM Switch DisplayPort: support resolution up to 8K@60Hz/4K@144Hz, and backward compatible with lower resolution.
- Note: that you can only get 8K if both your computer's graphics card and monitor support 8K.

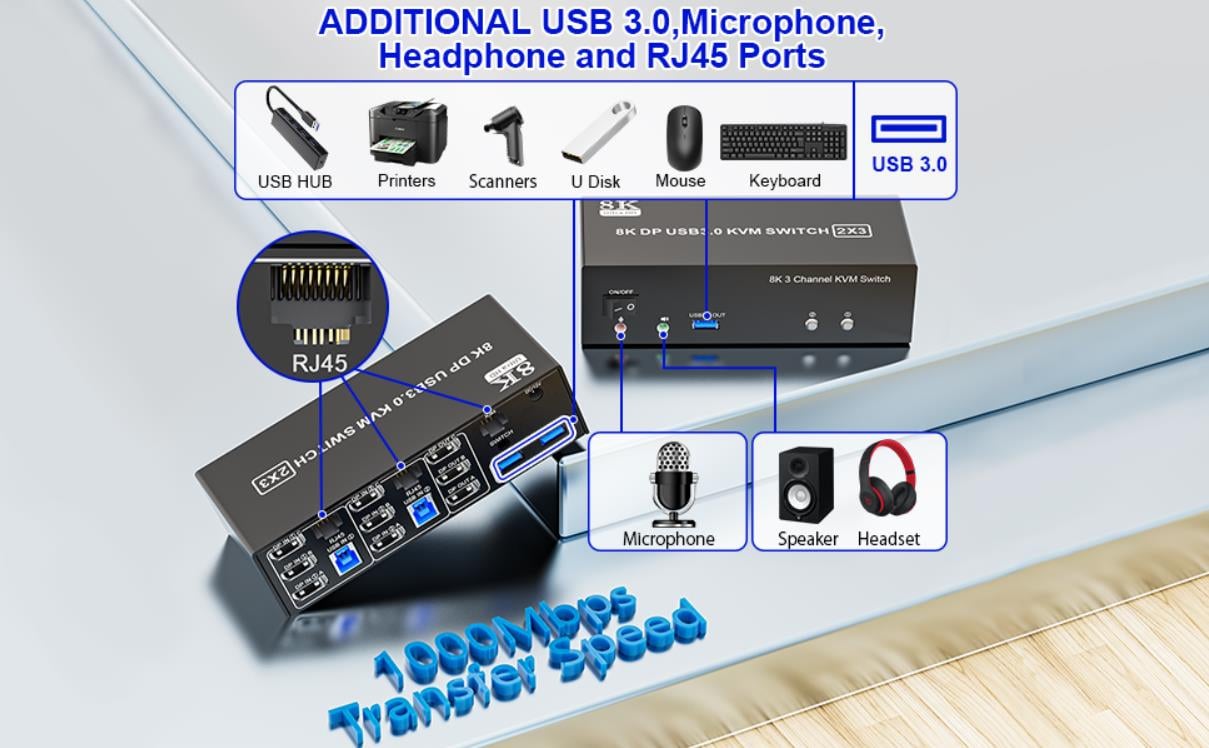

3 USB 3.0 Ports
Audio & Microphone Output:
Triple monitor KVM switches with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices.

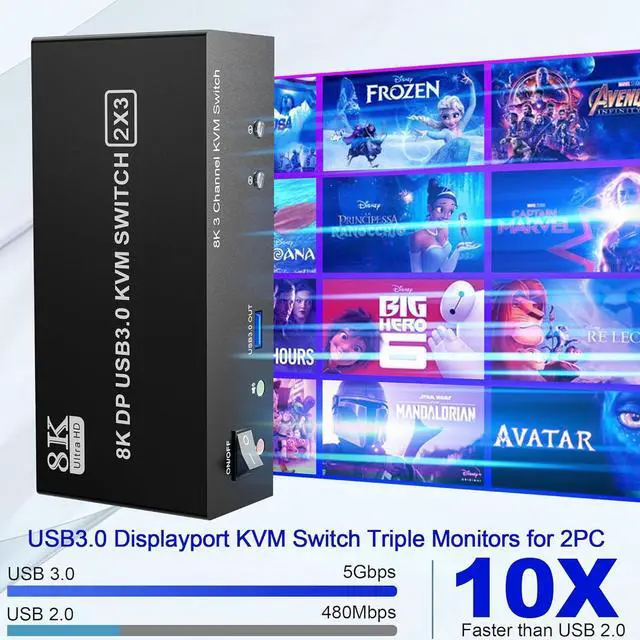

Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices.
3 Monitor KVM also supports separate audio and microphone output.
Plug and play without any software needed.
3 USB 3.0 Ports
- Triple monitor KVM switches with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices.
- Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices.
Audio & Microphone Output:
- 3 Monitor KVM also supports separate audio and microphone output.
- Plug and play without any software needed.

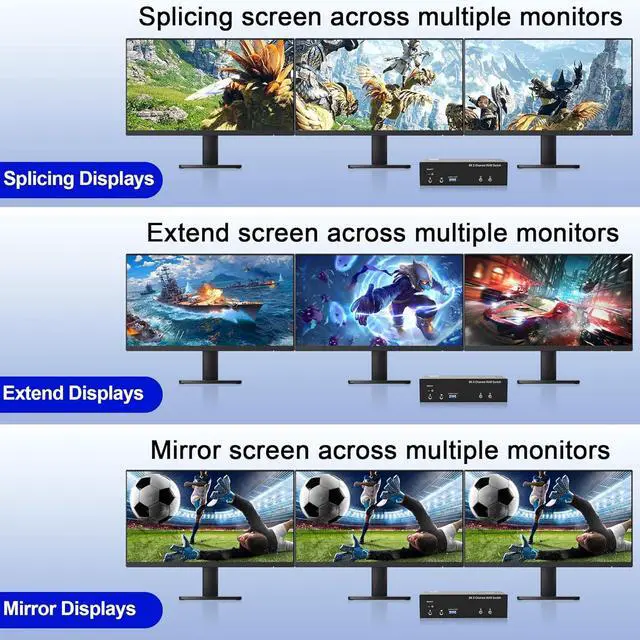

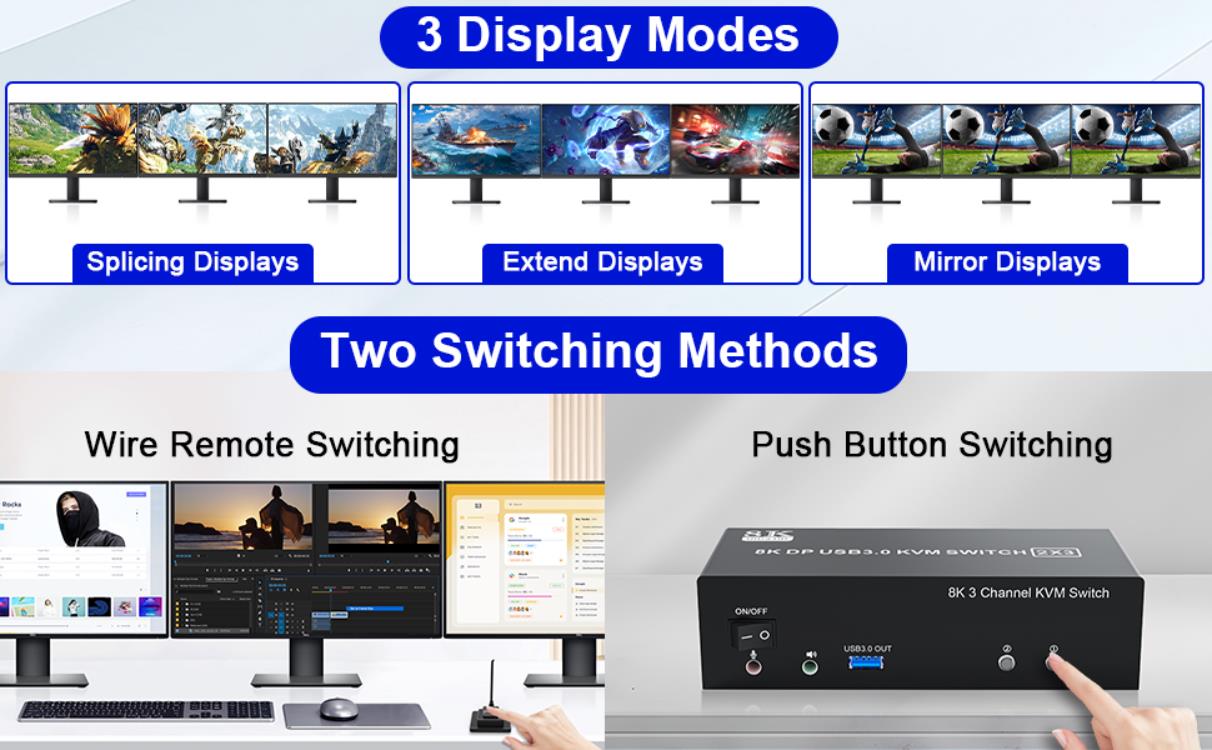

You only need one set of keyboard and mouse to control all the monitors, and it supports splicing, extend and mirror displays mode.
- Splicing Mode: Computer host outputs splice screens on 3 monitors.
- Extended Mode: PC host in output 3 different images on 3 monitors.
- Copy Mode: Computer host outputs 3 identical images on 3 monitors.
- (Note: Please make sure your computer supports multi-display and each connected computer requires 3 DP ports)

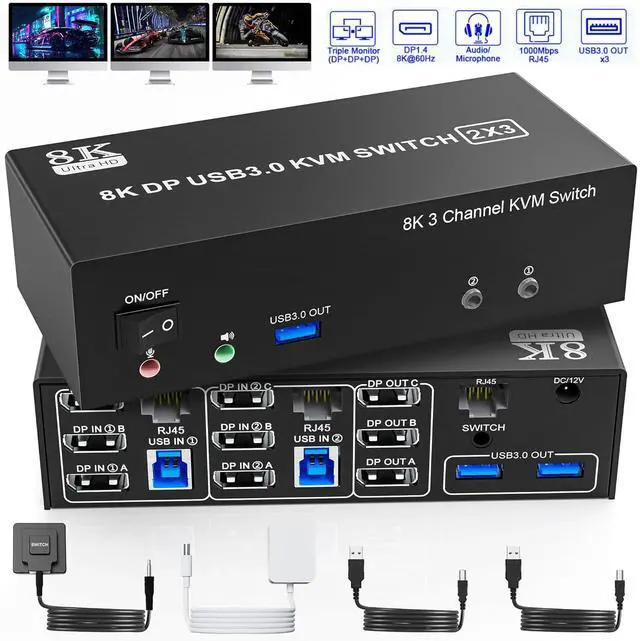

You will get:
- 1x 8K@60Hz Triple Monitor KVM Switch,
- 2x USB 3.0 Cables,
- 1x Power Adapter,
- 1x Wired Button Switch,
- 1x User's manual.
- DP cables and Ethernet RJ45 cables are not included
