AUTYUE 8K HDMI + 2 Displayport KVM Switch 3 Monitors 2 Computers, DP 1.4 8K@60Hz 4K@120Hz Display Port for Two PC Share Triple Monitor and 4 USB 3.0 Peripherals Support Extended and Duplicate Mode

Features:

• It is possible to control two computers and three monitors directly with one set of keyboard and mouse.
• Three monitors can support two modes:duplicate and extend.
• Supports resolutions up to 8K 60Hz and backward compatible.
• Equipped with four USB 3.0 ports, allowing you to connect scanners, hard drives, and other USB devices.
• Equipped with a 12V/1A power supply, ensuring stable work even when high-power devices are connected.
• Compatible with Windows/Vista/XP, Mac OS, Linux, and Unix, plug-and-play.

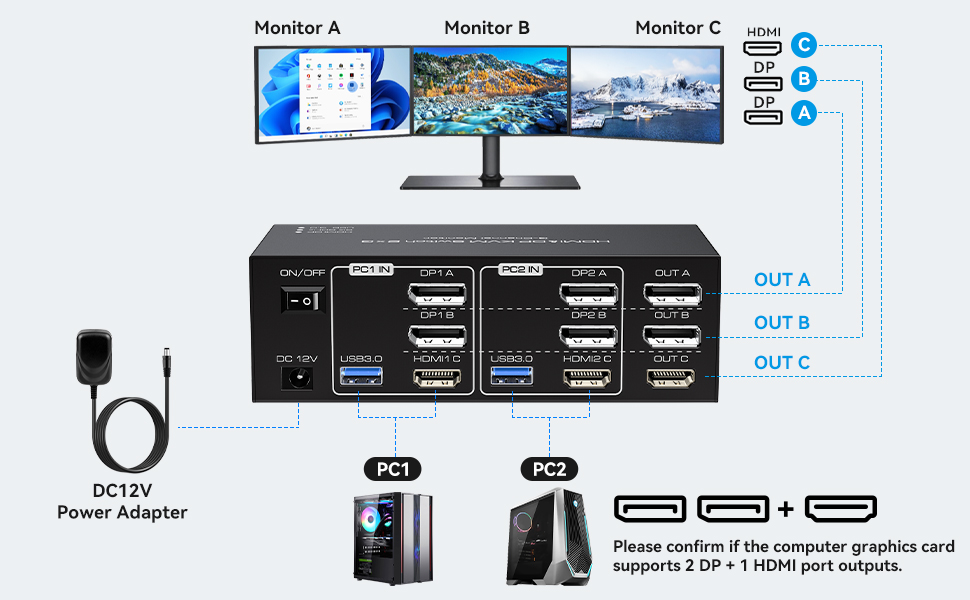

Usage

• Connect the power source.
• Connect PC1 to the KVM device using one USB 3.0 cable, one HDMI cable and two DP cables .
• Connect PC2 to the KVM device using one USB 3.0 cable, one HDMI cable and two DP cables.
• Connect each of the three monitors to OUT A, OUT B, and OUT C using two DP cables and one HDMI cable.
• Connect the keyboard and mouse to the KVM device.

(Please note that if you want to properly use three monitors, make sure that your graphics card supports 2 DP+1 HDMI outputs.)

Duplicate and Extend

• Duplicate mode: Three screens display the same content.
• Extend mode: Drag and drop windows from the main screen to the other two output screens.

(Please note: Copy & Expand mode requires your computer's graphics card to support this mode in order to work.)

Supports Resolutions Up to 8K@60Hz, 4K@120Hz

The USB KVM Switch Display Port and HDMI has 4 USB 3.0 ports, USB 3.0 offers data transfer speeds of up to 5Gbps, can recognize usb device, such as KVM Switch keyboard mouse, printer, u disk, printer, scaner, etc. If you want to improve office efficiency, it will be your best choice.(Note: The device cannot switch Bluetooth mice and keyboards that do not have a USB receiver.Docking station and additional adapter cables are not recommended.)
