Bi-Directional USB C Switch 8K@60Hz Video
This bi-directional USB C switch is mainly designed for users who have USB C port devices. We pay attention to product update and testing, we have done a lot of market research and testing, and compare with similar products in the market. Compared with other similar products our product performance has been optimized a lot, if are looking for a USB C switch, this would be a good choice.
We have made updates and optimizations in the following areas.:
1, Bi-directional switching, can be used as a switcher and also as a spliiter .
2, Resolution and refresh rate improvement, can support 8K@60Hz 4K@120Hz, and backward compatibility, support ultra-wide screen output (3440 * 1440, etc.).
3, The update of the switching method, we not only support a key switch, but also equipped with a wired controller.
4, The optimization of the indicator, our instructions have two colors, more convenient to identify which computer is currently switched to.
5, Accessories update, we are equipped with 2 USB-C Cables and 1 power cable.
6, Switcher power supply update, our switcher design "DC5V" power supply port, equipped with a power cord. Power supply to the switcher, make the operation more stable.
Please note:
A small number of USB devices cannot be connected to the docking station and need to be directly plugged into the USB C switch, otherwise they will not be recognized. Example: external USB 3.1 SSD enclosure,MacBook Pro.
Please use a USB-C/Thunderbolt Docking Station/Hub with better compatibility, otherwise flickering or black screen will occur.
Do not use too long cable(1.5 meters) for connection between the switcher and your devices, otherwise it will flicker or the screen will turn black.
This is not a USB-C hub, so it is only link activated at a time.
1 in 2 out/2 in 1 out work as Switcher or Spliiter

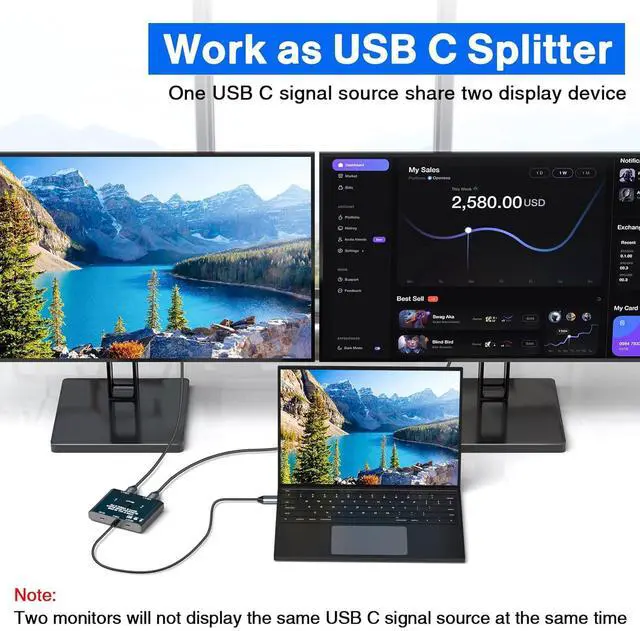

Works as a USB C Spliiter: 1 video source can be switched between two display devices. (Two display devices cannot display the same video source at the same time)

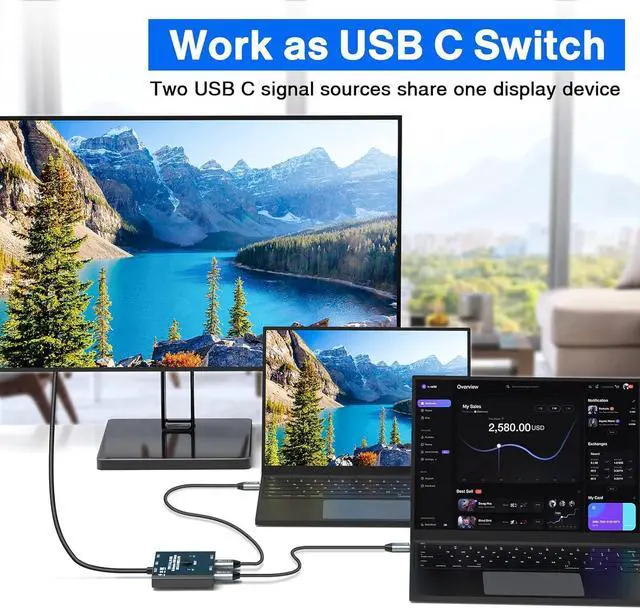

Works as a USB C Switcher: Two video sources can be switched between 1 display device, equivalent to two computers sharing 1 display device
Indication of the connection between the device and the switcher:
1, Use the two included USB 3.1 Gen 2 cables to connect the "USB-C 1" port and the "USB-C 2" port to the USB-C source device (or display device).
2, Connect the USB-C cable that fixed in the USB-C switcher to the USB-C port of the monitor (or source device), make sure the USB-C port of the monitor supports video transmission and the video function is turned on.
3, The included Micro USB to USB-A cable must be connected to the power supply to power the switcher (must power the USB-C switch, otherwise the monitor will not show anything)
4, Press the "Select" button or the wired controller to switch between two video sources (or display devices).

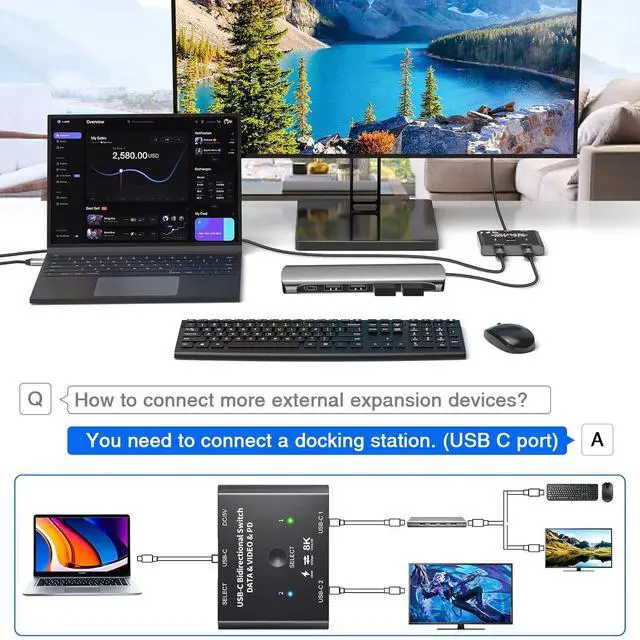

Note: If the monitor only has HDMI or Displayport port, pls use a USB C docking station. Can also connect devices such as keyboards and mice to the docking station. (Can be used as a KVM switch)
USB-C Switch/Spliiter with 8K Video Transfer,100W Power Delivery and 10Gbps Data
The connected devices, such as C-type cell phones and laptops, can be charged while working and are compatible with fast charging up to 100w (Note: the connected cables and devices need to support fast charging).
Video and pictures up to 8K@60Hz 4K@120Hz can be output on the monitor via our USB C switch. Note: This requires 8K source devices, 8K USB-C Gen-2 cables (video transfer) and 8K USB-C displays.
Transfer data to computers, cell phones, hard drives, USB flash drives and other related devices with this USB C switch. Note: The connection cable must support data transfer with a maximum transfer rate of 10Gbps.

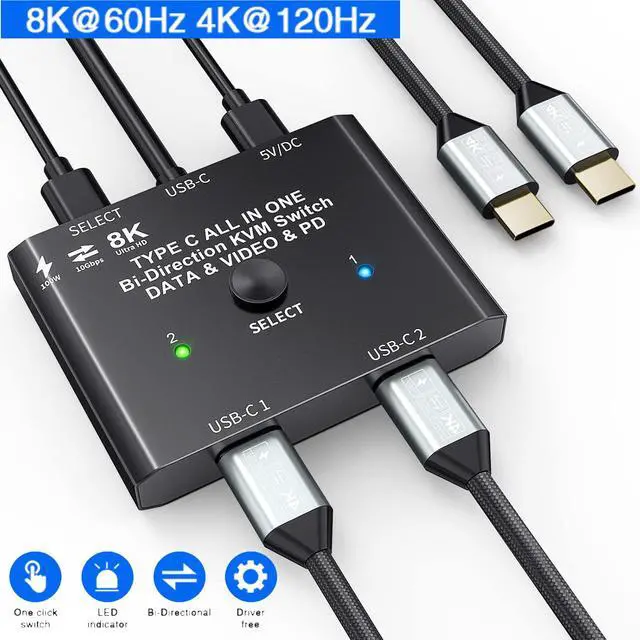

8K Bi-Directional USB C Switcher

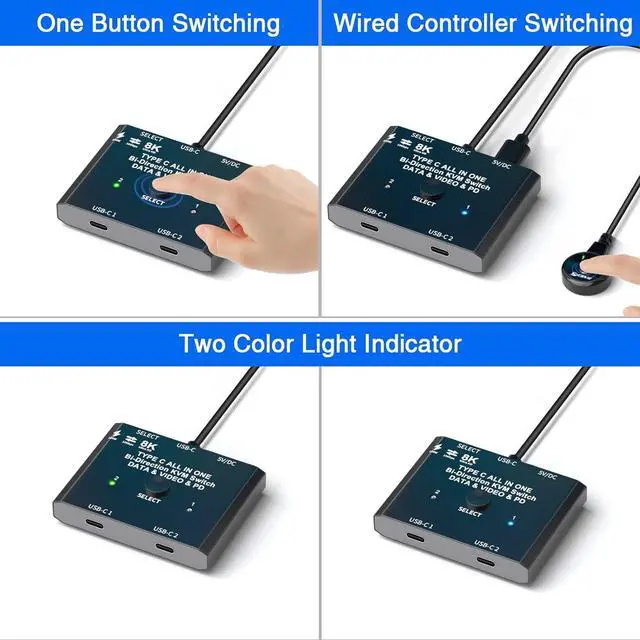

The USB-C switch can be switched not only with 1 click, but also with a wired controller.Wired controller helps keep the desk looking nice.
Two color indicators make it easier to identify which computer are currently switching to.
The DV 5V power supply port can power the switch, and we are equipped with a power cord.
Note: The power cord must be used to connect the switch to the power supply, otherwise the display will not show.
**Important Tips**
Please note before purchasing:
1, Not available for macbook pro and Dell monitors.
2, Two monitors cannot be displayed at the same time
3, The USB C switch must have a power supply to work properly (power cable included).
4, Doesn't power both sources at the same time.
Q & A:
Q: My desktop computer doesn't have a USB C port, can I use an HDMI to USB C cable to connect my desktop computer with this USB C switcher?
A: Video adapters for converting HDMI, DisplayPort, VGA, DVI to USB C are not available yet, so please make sure your computer / device has at least 1 USB Type C port (support Data&Video&PD) before buying this USB C switch selector.
Q: My monitor only has an HDMI port, but this switch is a USB-C port, can I use it?
A: A simple USB-C / HDMI adapter or a USB-C / HDMI hub is enough.
Also works with USB-C /DP adapter or a USB-C /DP hub.
Q: My monitor has DP and HDMI ports but no USB-C port, will this charge my laptop?
A: HDMI/DP cables do not have charging capabilities, and a USB-C cable with charging capabilities is required to charge your computer.
Q: Since my monitor only has an HDMI port, can I still get 8K when I connect a USB C dock with an HDMI port?
A: Both your dock and HDMI cable need to support 8K, otherwise you won't be able to get 8K resolution.
