The "PC1 IN" and "PC2 IN" ports each have two HDMI input interfaces and one USB interface. Both computers must be connected to the two HDMI input interfaces and one USB interface to output to two monitors.
- Extended Mode: Three monitors display different screens
- Copy Mode: Three monitors display the same screen
- Switching button: The switching button allows you to switch between different signal sources at the touch of a button.
- Wired Controller: With the wired controller, you can switch sources without having to get close.

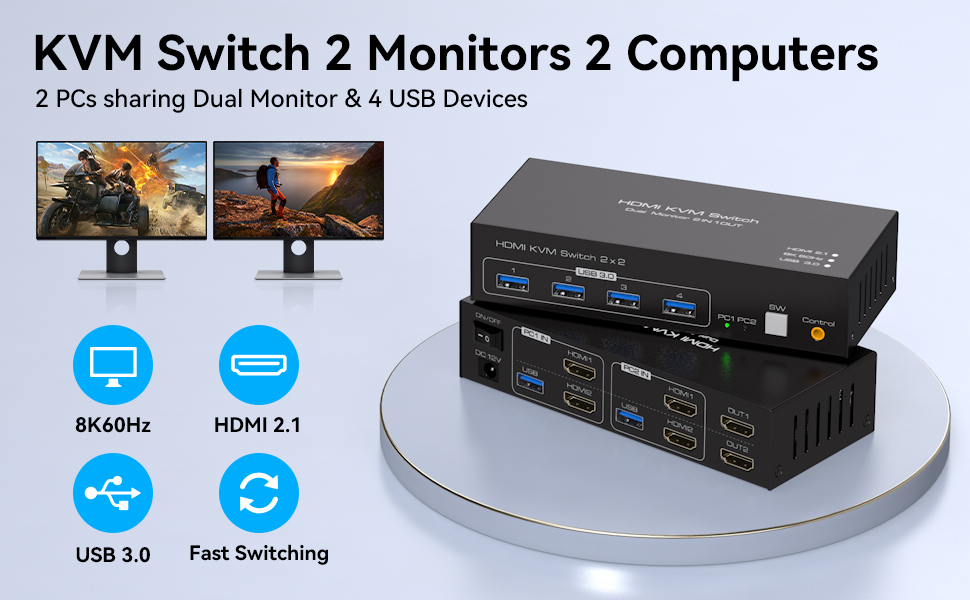

This hdmi kvm switches allows you to control 2 computers with one set of keyboard and mouse, sharing 2 monitors and 4 USB 3.0 devices, supports duplicate and extended modes.
Note: Your computer must support dual video card displays and each monitor must have an HDMI port. If you encounter any problems during use, please feel free to contact us and we will provide a solution for you

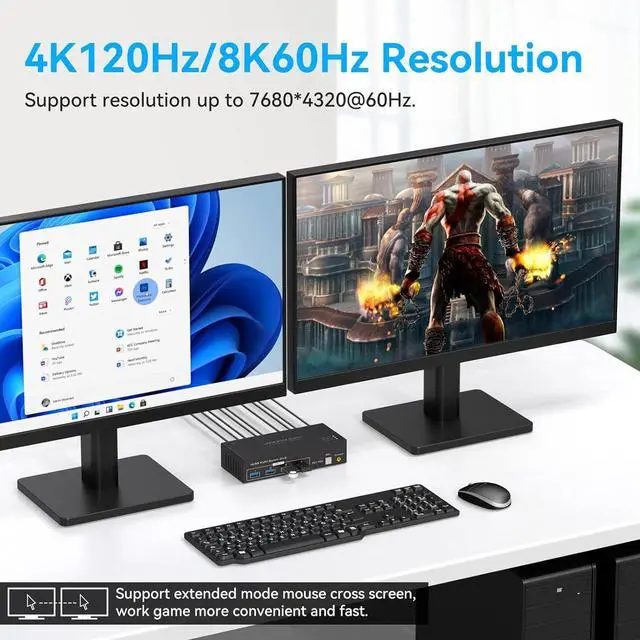

This dual monitor kvm switch supports resolutions up to 8K@60Hz and 4K@120hz, and is backward compatible with 4K60Hz, 1080P60Hz and other resolutions, ensuring that your monitors present sharp, clear and detailed visual effects.
Note: To output 8K60H, please make sure your input device, output device and HDMI cable all support 8K60Hz

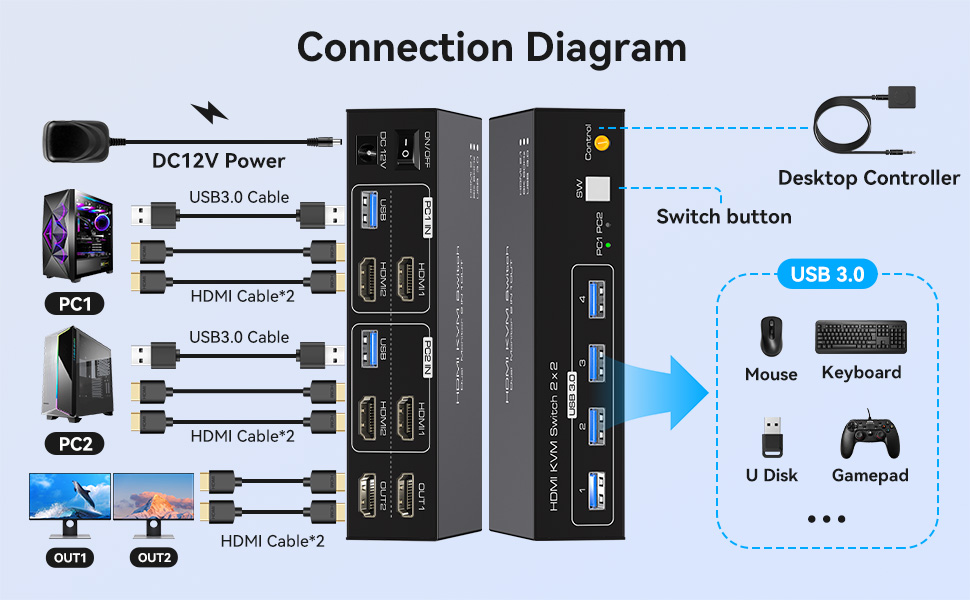

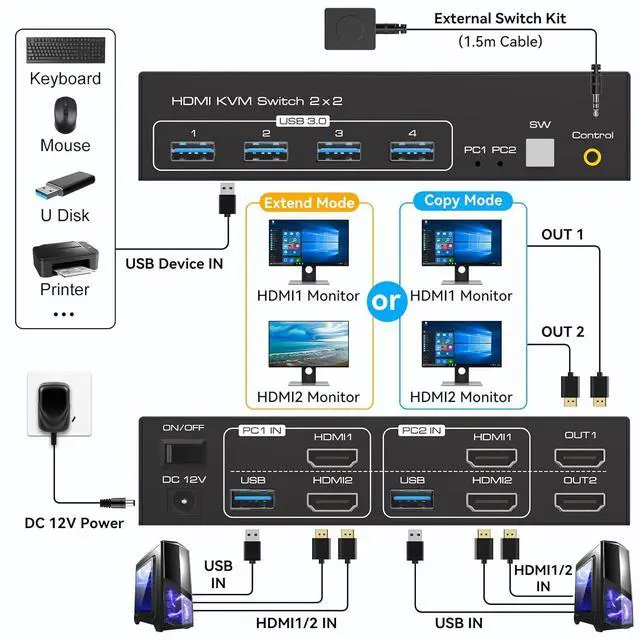

Connection diagram
The PC1 IN and PC2 IN ports each have two HDMI input interfaces and one USB interface. Both computers must be connected to the two HDMI input interfaces and one USB interface to output to two monitors.

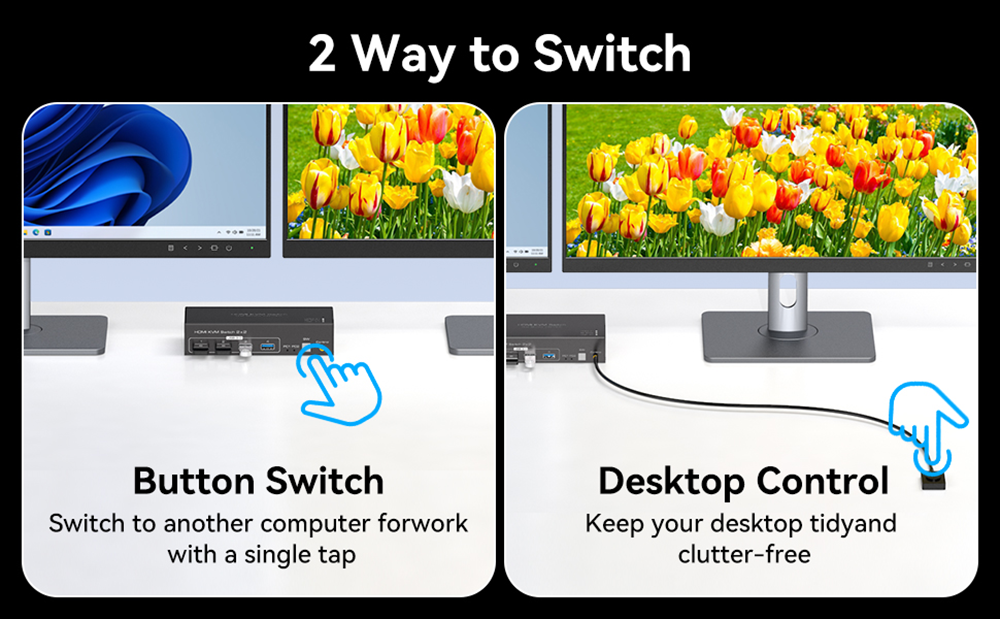

Two switching modes
Switching button: The switching button allows you to switch between different signal sources at the touch of a button.
Wired Controller: With the wired controller, you can switch sources without having to get close.
