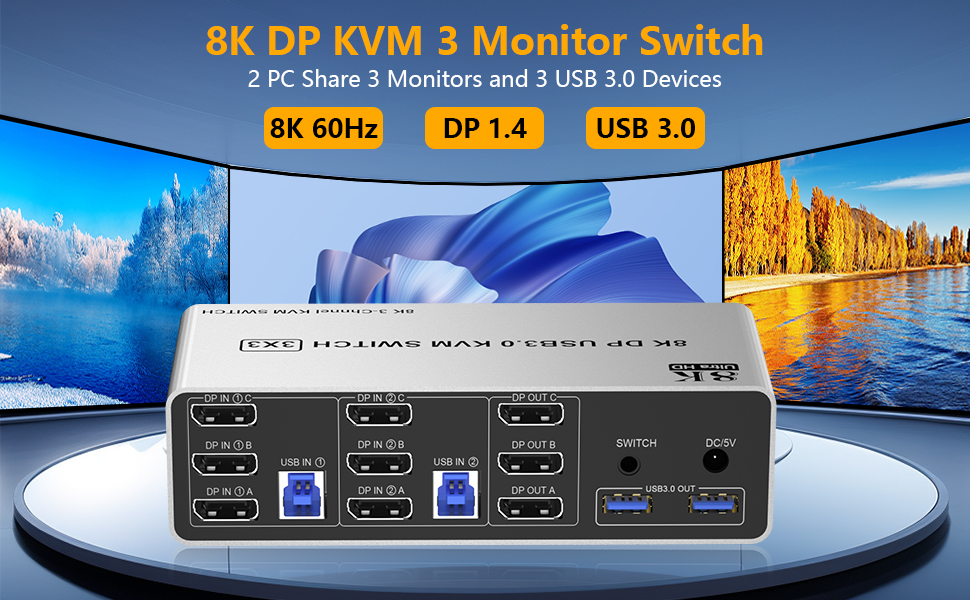

Features:

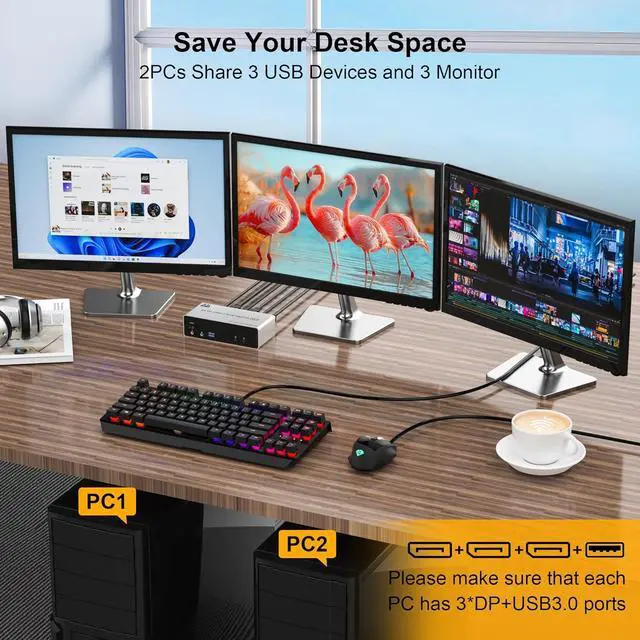

1. 8K Triple Monitor KVM Switch allows 2 computers/laptops share one set of keyboard, mouse, and 3 monitors
2. Support DP 1.4 standard, backwards compatible with DP 1.2 standard. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced display(Depends on your computer's graphics card.);
3. 2 Switching modes: Button switch and wired remote.

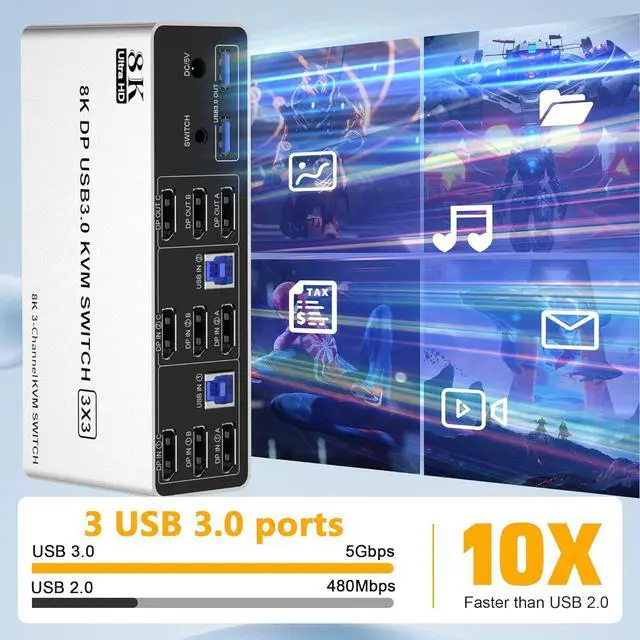

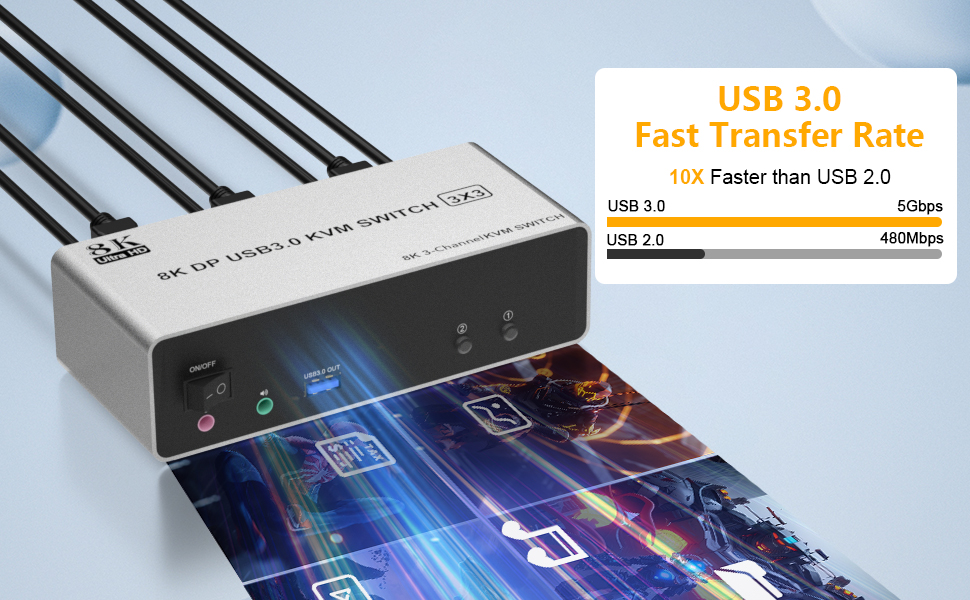

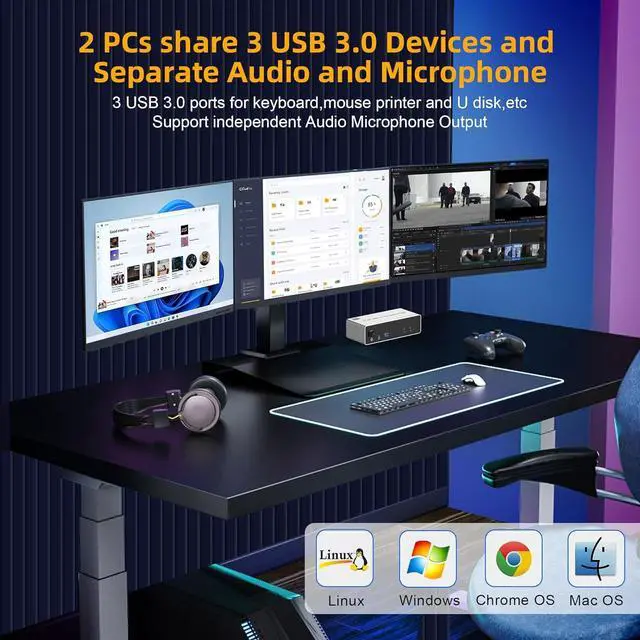

4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output
5. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS
6. The ports that need to plug in DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.

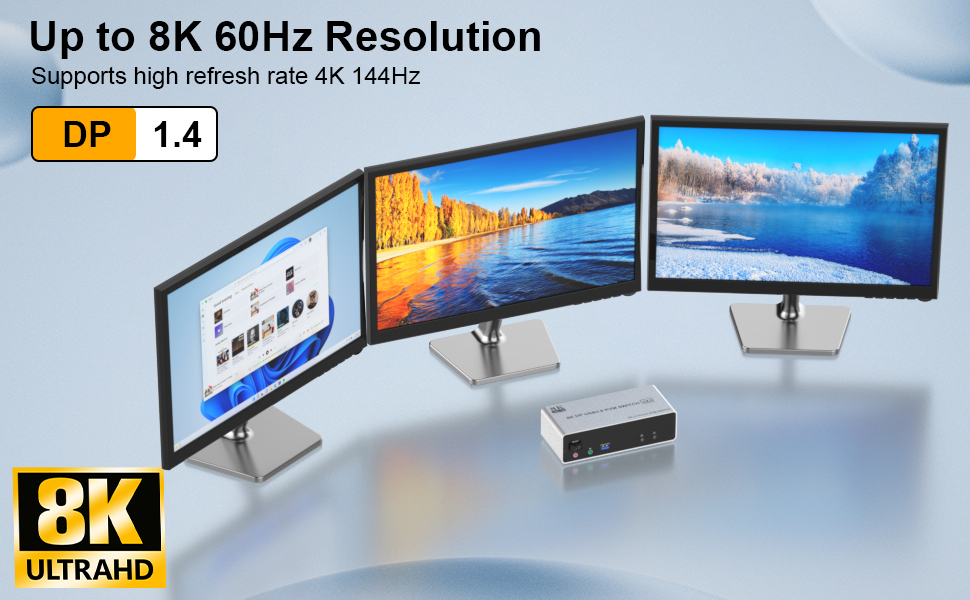

- Confirms to DP 1.4 protocol, supports a maximum resolution of 8K@60Hz 4K@144Hz, and is compatible downwards.
- Only when both your computer Graphics card, monitor and cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

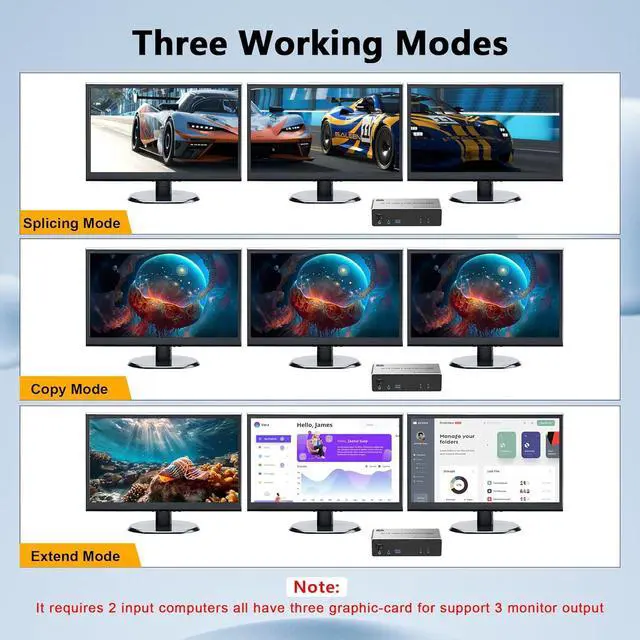

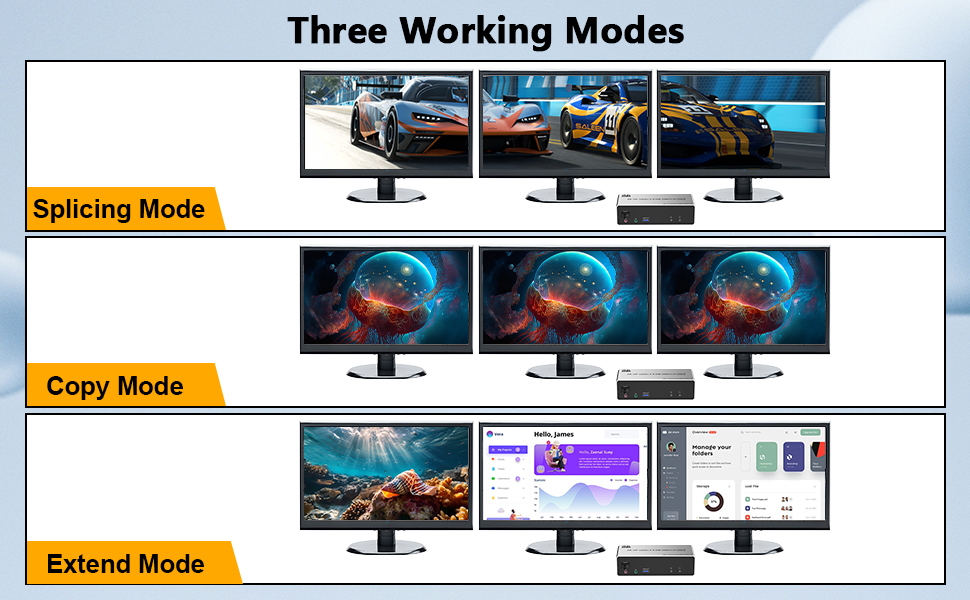

Extended Display
Mirrored Display
Spliced Display
1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM.

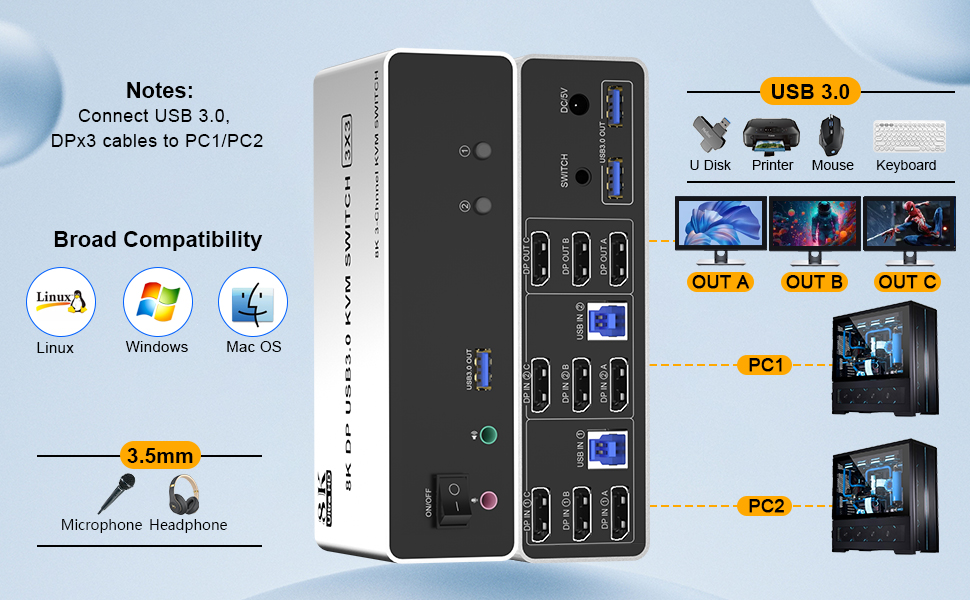

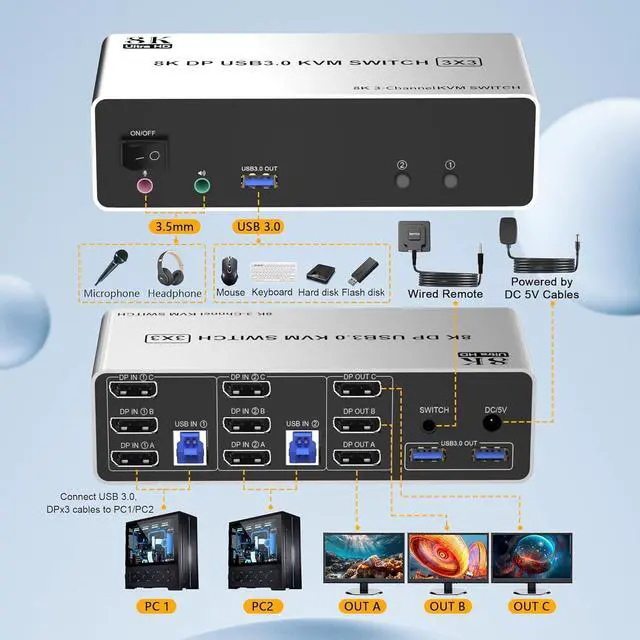

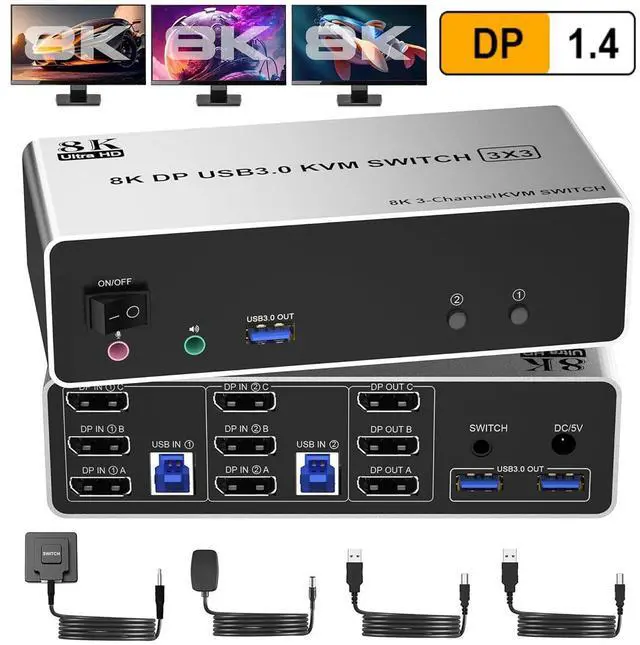

1. Insert the power adapter into the KVM ;
2. Plug the 3*DisplayPort cable into the KVM switch and monitor;(Output)
3. Plug the 3*DisplayPort cable and 1*USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)
DP IN 1A +DP IN 1B + DP IN 1C + USB IN 1=PC1
DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2
Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 correspond, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:

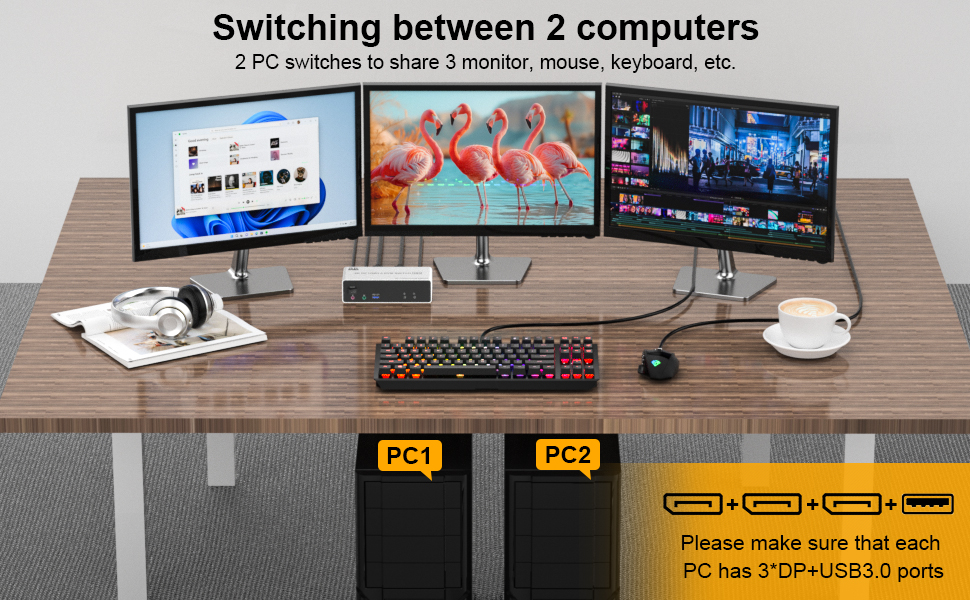

1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each PC has(3 DP+ 1 USB cable) connected to the KVM.
2. If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3. Note: DP cables are not included

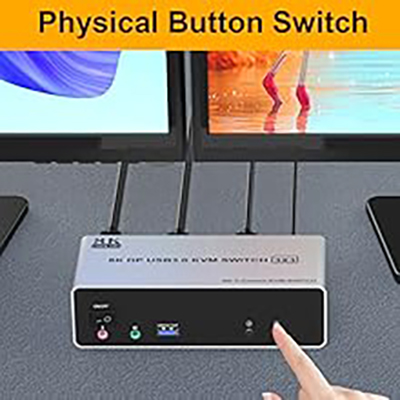

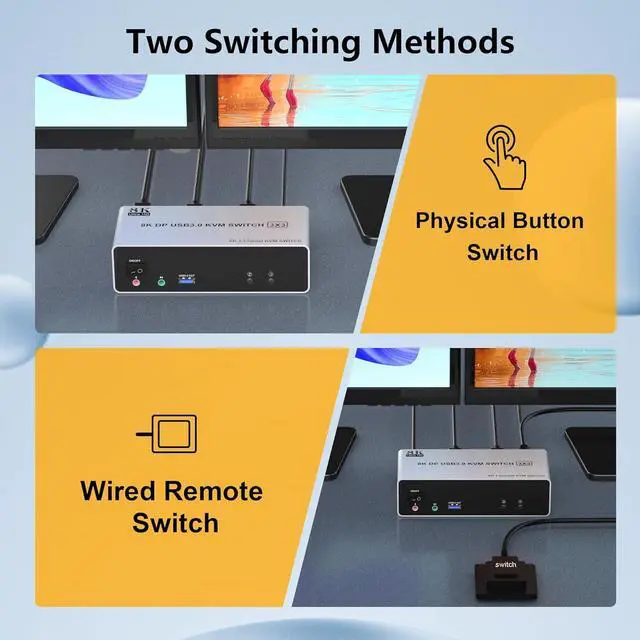

Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time.

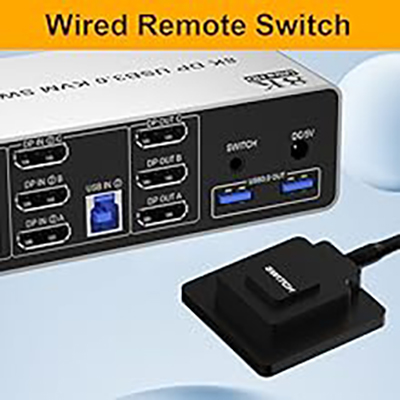

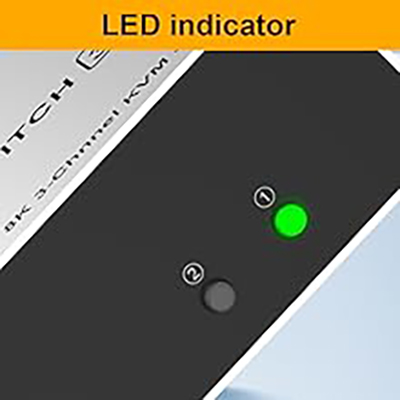

Supports wired remote switching for easy cable management, with digital 1/2 indicator light.
When switching to which PC, the LED will tell you whether PC1 or PC2 is active.

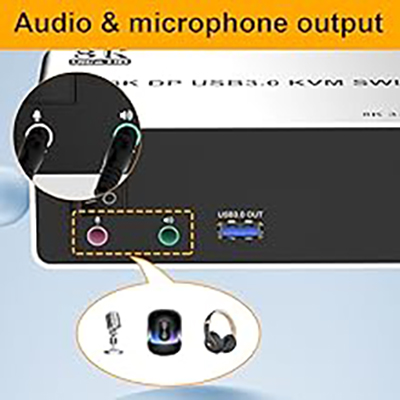

3 monitors 2 computers KVM comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.
