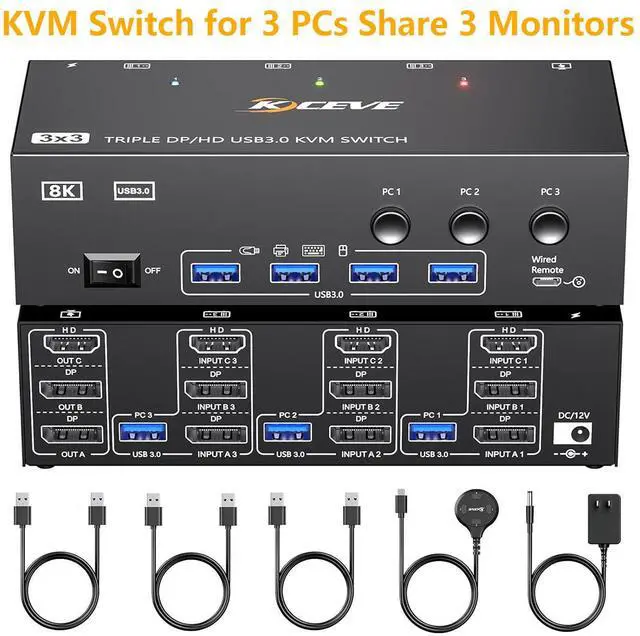

HDMI + 2 Displayport Triple Monitor KVM Switch--For users sharing 3 Monitors between 3 Computers
- 3 computers share 3 monitors and 4 USB device.
- Supports wired or wireless keyboard and mouse.
- USB 3.0 with ultra-fast data transfer up to 5Gb/s.
- Support resolutions up to 8K@60Hz, 4K@144Hz.
Windows: Press the shortcut key "WIN+P" and then select "Extension" or "mirror"
Mac OS: Set [Mirror Mode]: Select [A-p-p-l-e Icon] [System Preferences], click [Display] [Arrange], and then check [Mirror Display];
Set [Extended Mode]: When [Mirror Display] is unchecked, "Extended Mode" can be achieved.

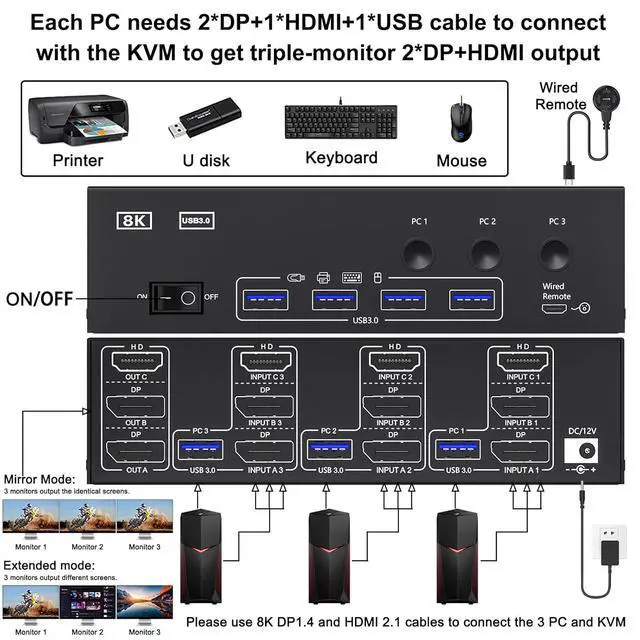

Each PC requires 1*HDMI+2*DP+1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.Support DP to HDMI, USB-C to HDMI, USB-C to DP converter and USB-C docking station.
Please confirm whether your computers support 1*HDMI+2*Displayport before placing an order.
- Switching mode: button switch and wired remote.
- Two output modes: Mirror and Extended mode.
- 12V power adapter, the recognition is more stable.
KVM switch 3 monitors driver-free for Windows, Mac, Linux, Unix, Ubuntu.Support input devices such as PC, Laptop, PS4, Raspberry Pi, DVR, NVR.Applied for Office,Game,Meeting,etc..
3 Monitors KVM Switch Displayport: support resolution up to 8K@30Hz /4K@144Hz, HDMI: support resolution up to 8K@60Hz/4K@120Hz and backward compatible with lower resolution.
Note: Final resolution is also subject to graphic cards, monitors, cables and adapters.

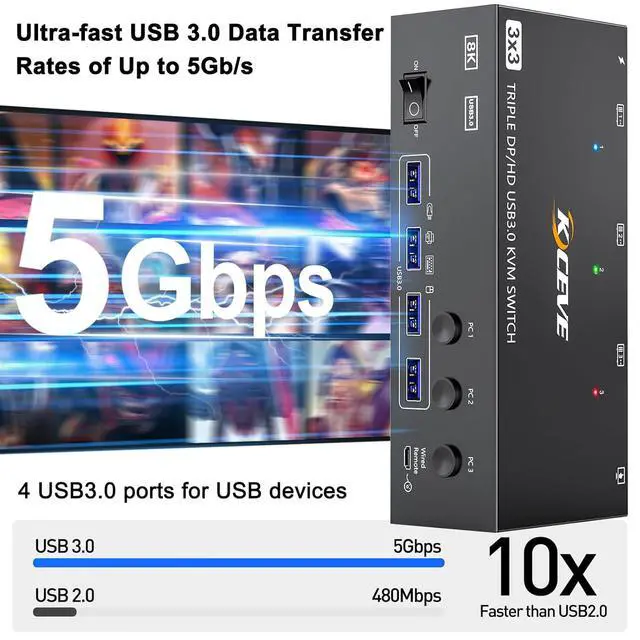

Triple monitor KVM switches with 4 integrated USB 3.0 ports,supports ultra-fast 5Gbps data transmission,which can recognize keyboard, mouse, printer, scaner, USB flash drive and other USB devices.

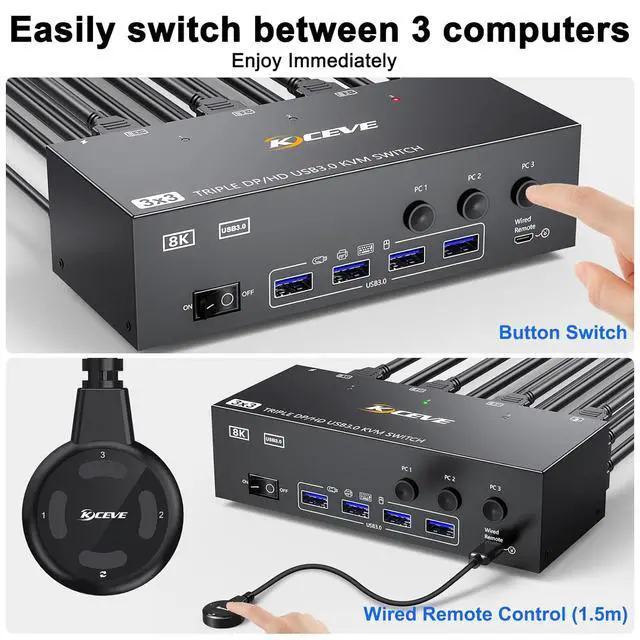

You can press the button on the panel or use the wired remote (included) to switch the computers.Three color LED indicate the active computer.
This triple monitor KVM switch is equipped with a 12V DC power supply to support high power USB devices such as hard drives, webcams etc. It avoids situations where the power supply is insufficient to make it unusable and ensures stable transmission between devices without disconnection.
NOTE:
Each PC requires 1*HDMI+2*DP+1*USB cable be connected to get triple screens display properly. Adapters will be needed if your PC does not have 2*DP+1*HDMI ports. This 3 computers 3 monitors KVM switch supports a variety of converters and docking stations,such as DP to HDMI, MINI DP to DP, USB C to DP/HDMI adapter and USB C docking station.
