The dual Port USB DisplayPort KVM Switch is ideal for connecting 2 computers or laptop to a single display and sharing the connected keyboard and mouses.With the latest digital processing chip, these KVM Switches supports in and out resolutions up to 8K 60Hz and 4K@240Hz.
Featuring DisplayPort resolutions of 8K @60Hz, An integrated USB 3.0 hub allows you to share 2 additional peripherals among attached computers.
Note!!
1)DisplayPort 1.4 and 2.1 video transmission has very high requirement on DisplayPort Cables.Pls use Vesa Certified DisplayPort 1.4 and above cables. And the total length shall not be more than 3M for 8K@60Hz and 4K@240Hz.
2)Many cheap DP 1.4 8K cabes are of junk quality.They might work with a direct connection from PC to monitor.Sync issues happens when
it comes to long transmission.Pls use versa Certified DP Cables only.
3)The DisplayPort KVM Switch supports up to 4K@240Hz,however, we do not recommend any beyond 144Hz for a pleasant video expenrience.
4)The KVM Switch has very limited compatibility with wireless mouse and keyboard, pls use standard 104-key wired USB keyboard&3-button mouse only.

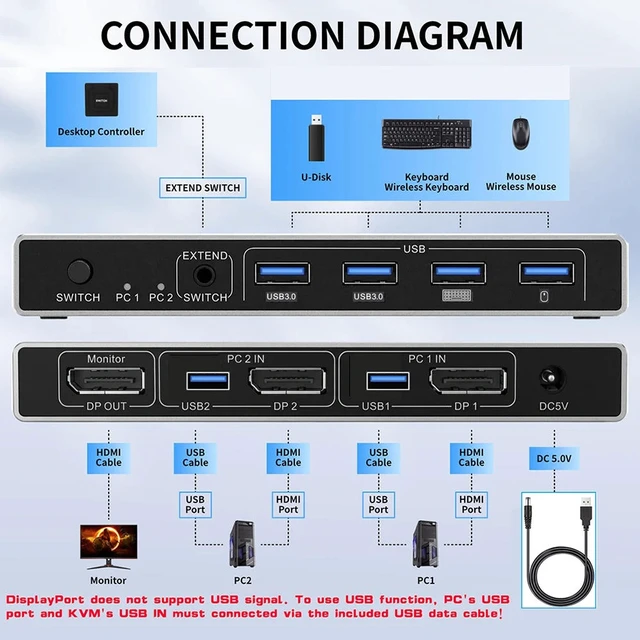

5)Pls do not forget to connect PC's native USB 3.0 port to the KVM's USB in via the data cables included,however,USB function can not be working.
6)The KVM's DP input shell be connected directly to the native DP port on PC while the output to Monitor with Displays.Pls do not add any
video adapter such as DisplayPort to HDMI or HDMI to Displayport to the KVM's Video Port.
Features:
Comply with DisplayPort 1.4
Support in&out resolutions up to 8K@60Hz
Control 2PCS via a single set of display,mouse&keyboard.
Plug-and-Play no software required
Compatible with windows&Mac OS.
5V External power port for reliability(USB power cord included)

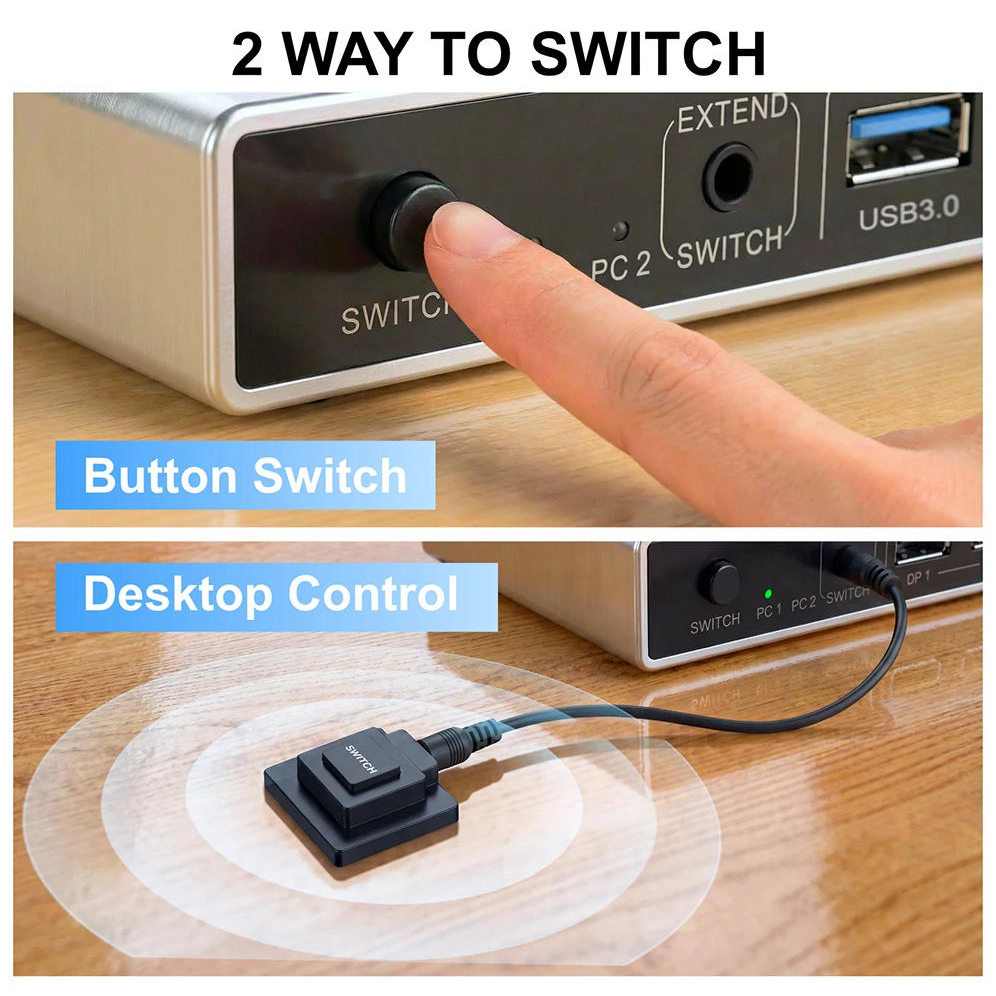

Supports button switch&extension wire control

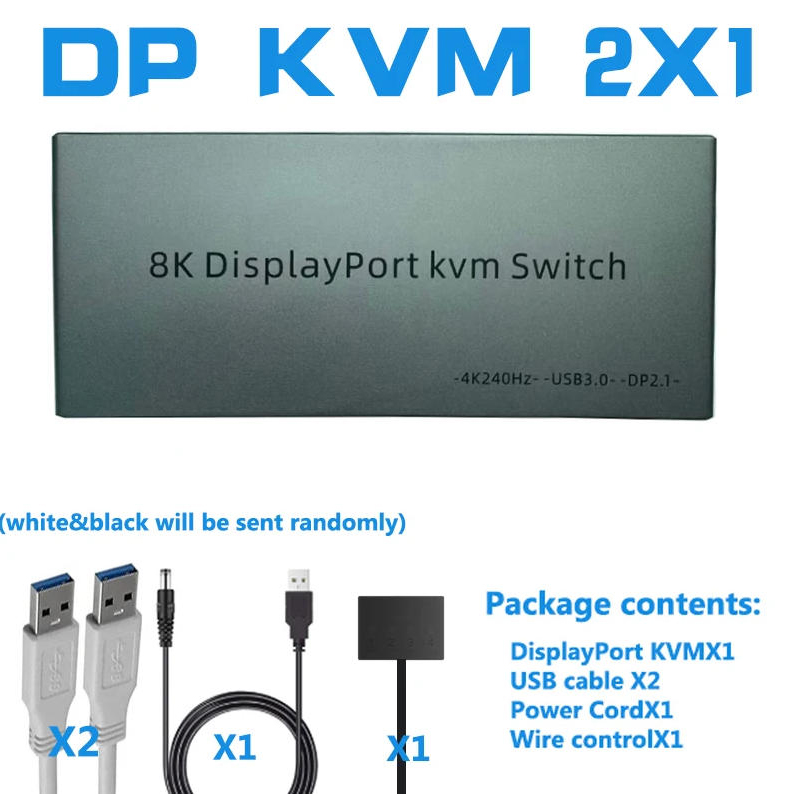

What's in the package:
DisplayPort 2 X1 KVM Switch X1
USB Data cableX2
Extension wire control X1
USB Power Cord X1(adapter is not included)
