4K HDMI True Matrix Switcher 4x2 2x4 2x2 Matrix HDMI Switch Splitter 2 In 4 Out with Optical & R/L Audio Extractor Dolby HDCP2.2(With UK Plug) (Matrix 2x4)

Described as: HDMI matrix 4x2
Features:
* Support 3D video format;
* Via HDMI out1, support 3.5 mm earphone jack and optical output at same time;
* 4 HDMI inputs switch and split to 2 HDMI displays;
* Support LPCM/Dolby/DTS 5.1 channel;

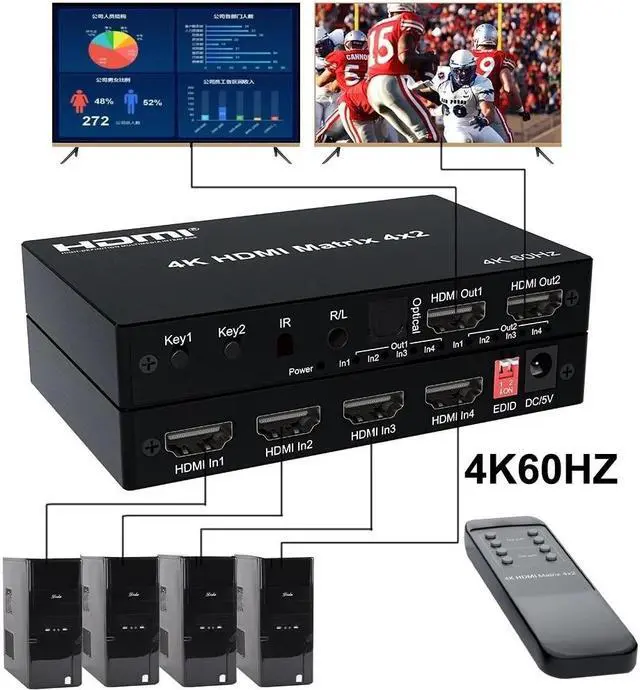

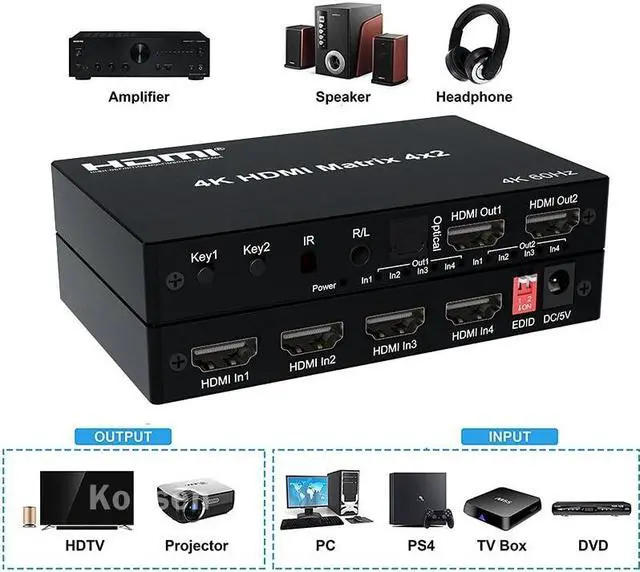

The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber and stereo headphone output at the same time via HDMI out 1 port.

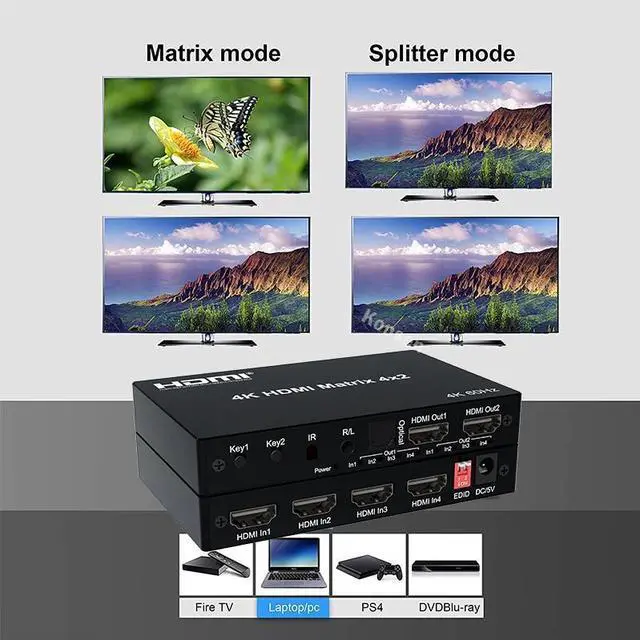

The matrix allows four HDMI devices to be switched or split easily to two HDMI-compatible monitors or projectors.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution,
conference room presentation, school and corporate training environments.
SPECIFICATIONS:
HDMI resolution........................................................................ up to 3840*2160/60Hz
Support video format...................................................................... 8/10/12 bit deep color
Support audio format.................................................................... LPCM/DTS/Dolby-AC3
Max bandwidth......................................................................................... 600MHz
Max baud rate......................................................................................... 3x6Gbps
Input cable distance................................... 4K/30Hz 15M AWG26 HDMI standard cable
4K/60Hz 5M HDMI 2.0 standard cable
Output cable distance................................. 4K/30Hz 15M AWG26 HDMI standard cable
4K/60Hz 5M HDMI 2.0 standard cable
Max working current................................................................................... 900mA
Power adapter format.................
Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/ 1.5A
Operating Temperature range............................................................... (-15 to +45)
Operating Humidity range............................................ 5 to 90%RH (No Condensation)
Dimension (L x W x H).................................................................... 122x80x19 (mm)
Weight........................................................................................................... 180g
Kind tips:
There are 3 optional items "HDMI matrix 4x2" "HDMI matrix 2x4"and "HDMI matrix 2x2", please choose according to your needs, we will send your purchased options.
HDMI matrix 2x4
