(EU Plug)8K 60Hz HDMI Matrix Switcher 4x2 with ARC Audio Extractor 4K 120Hz HDR10 3D Matrix HDMI Switch Splitter 4 in 2 out Video Display

SPECIFICATIONS:
Model name 8K HDR HDMI True Matrix 4x2

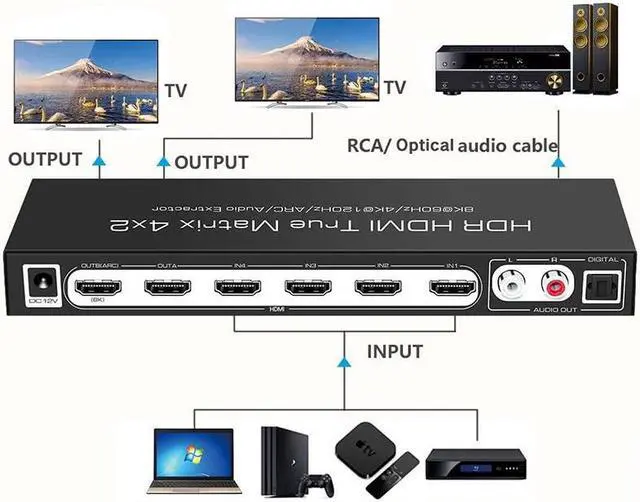

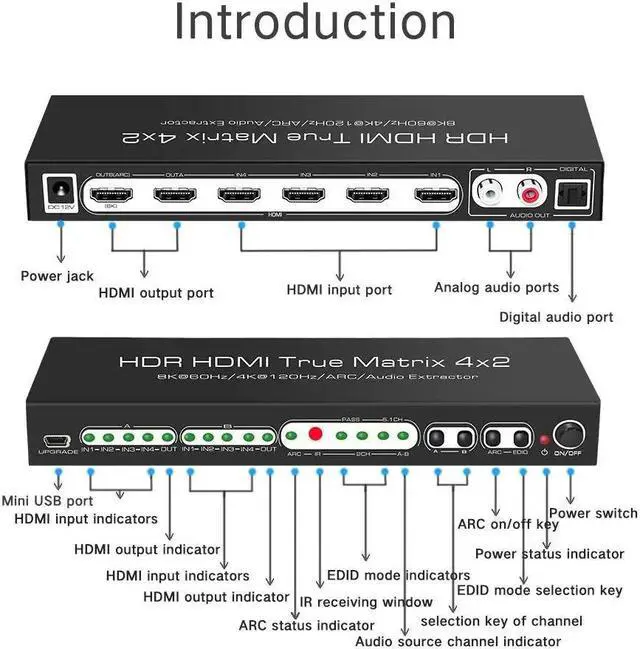

Input ports HDMI x 4
Output ports HDM x 2, RCAX2, Optical X1
Video format 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz (YCC420), Support HDR/Dolby Vision
Deep color 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1GHz Max.
Transmission rate: 40Gbps Max.
IR distance 5m
Input cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
Output cable length 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 12m
Power adapter specification AC 100~240V/ DC 12V/ 1.5A
Max working current 300mA
Working temperature range -5 ~ +40
Working humidity range 5 to 85%RH (No Condensation)
Storage temperature -15 to 55
Storage humidity 5 ~95%RH (No Condensation)
Size approx. 250x75x30 (mm)
Weight approx. 430g
Package Content:

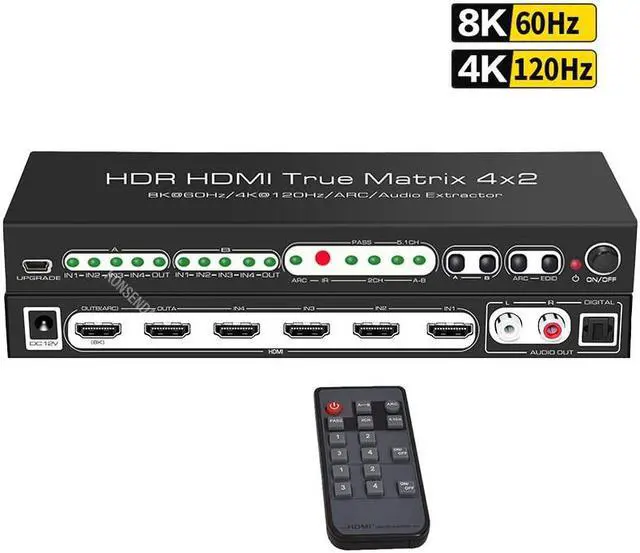

1PCS 8K 4x2 HDMI Matrix
1PCS Manual
1PCS Remote Controller without battery
1PCS Power Adaptor
No retail box and other accessories, if any need, pls contact us first.
Matters needing attention:
1. Please use standard HDMI cable and connect the cable before powering the equipment.

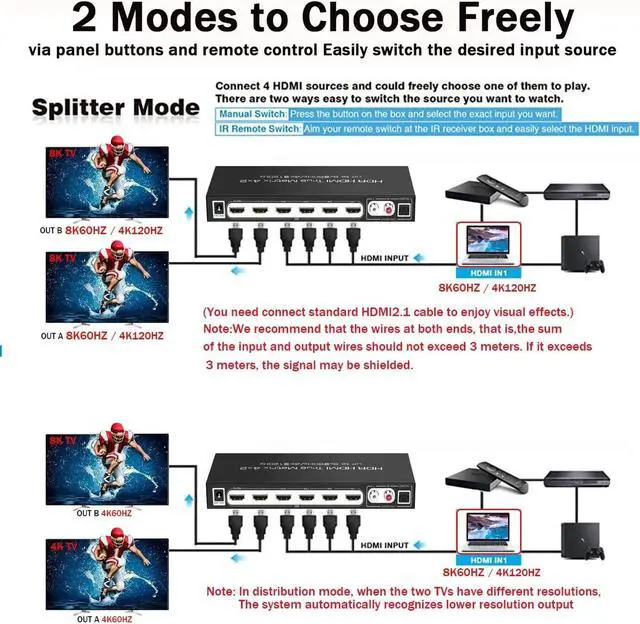

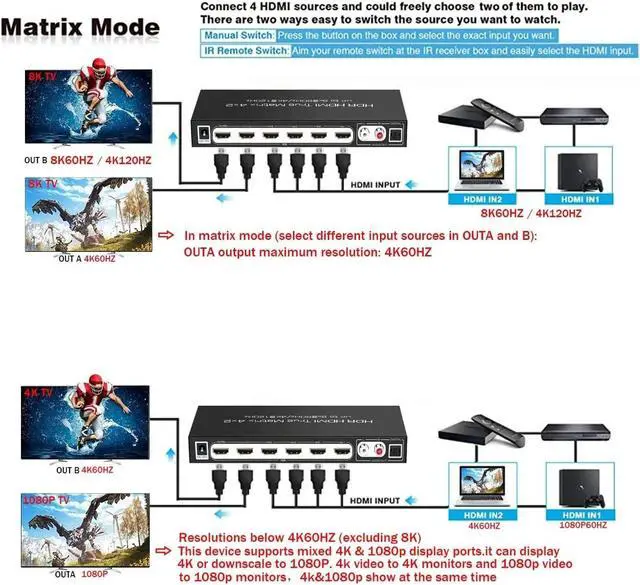

2. Please preferentially connect 8K TV to OUTB. OUTA outputs 8K@60 or 4K@120 resolution only in split mode
(In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30 or
4K@60 in other modes.
3. The product has power off memory function. The setting state of the output channel is recorded and saved.
After the power is off, the saved data will be automatically retrieved for configuration.
4. The AUDIO OUT is a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the "A-B" key.
5. The Audio EDID mode selection is also available for multiplexed. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is
valid for channel B.
6. Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the
EDID mode in 2CH mode when using analog audio output.
7. If you want to use ARC or CEC, you must connect the TV to the OUTA port. Before using ARC,
make sure your TV HDMI port supports ARC and the ARC have been turned on.
