4K HDMI Switcher Audio Extractor 2 in 1 Out Selector with R/L+Toslink SPDIF+COAXIAL Audio out HDMI ARC Audio Switch 2x1 Adapter(USB power cable)

Description:
HDMI 2.0 b Switch is a 2 port HDMI 2.0 4K 60Hz HDMI switcher for your latest gaming and home theatre setup. It supports 2 HDMI inputs and 1 HDMI output, allowing for HDMI 2.0 and HDCP 2.2, along with 4K Ultra HD and compatibility on all HDMI.
Features:

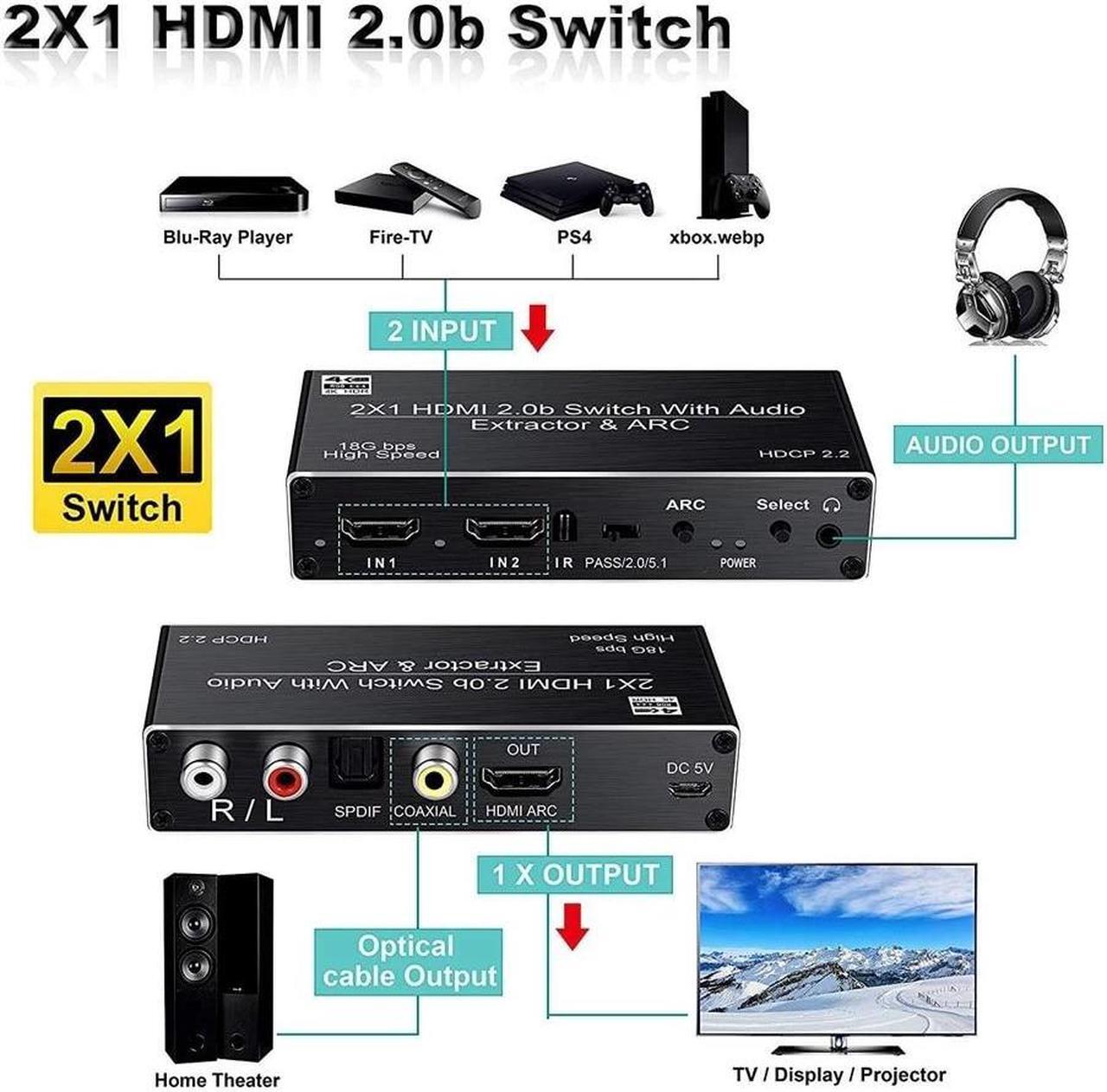

1:4 K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
2: ULTRA HD 4K
VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI 2.0 b, 4K@60HZ, RGB
4:4: 4, Full HD, UHD, HDTV, Deep Color to 36bit, also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2G bps. (Kindly
Note: It is not compatible with DVI)
3: HDMI
ADUIO EXTRACTOR: With Optical Tolink SPDIF+L/R+ 3.5 mm Jack+Coaxial audio out allows you extract the audio from the HDMI input source ( Like PS4, Cable box, Xbox or any HDMI device)connection to a spearker, Amplifier etc.
Note: If you choose optical or coaxial audio out, you can enjoy 5.1CH or 2CH or audio copy. If you choose 3.5 mm or L/R audio out, you can enjoy 2CH or audio copy.
4: HDMI

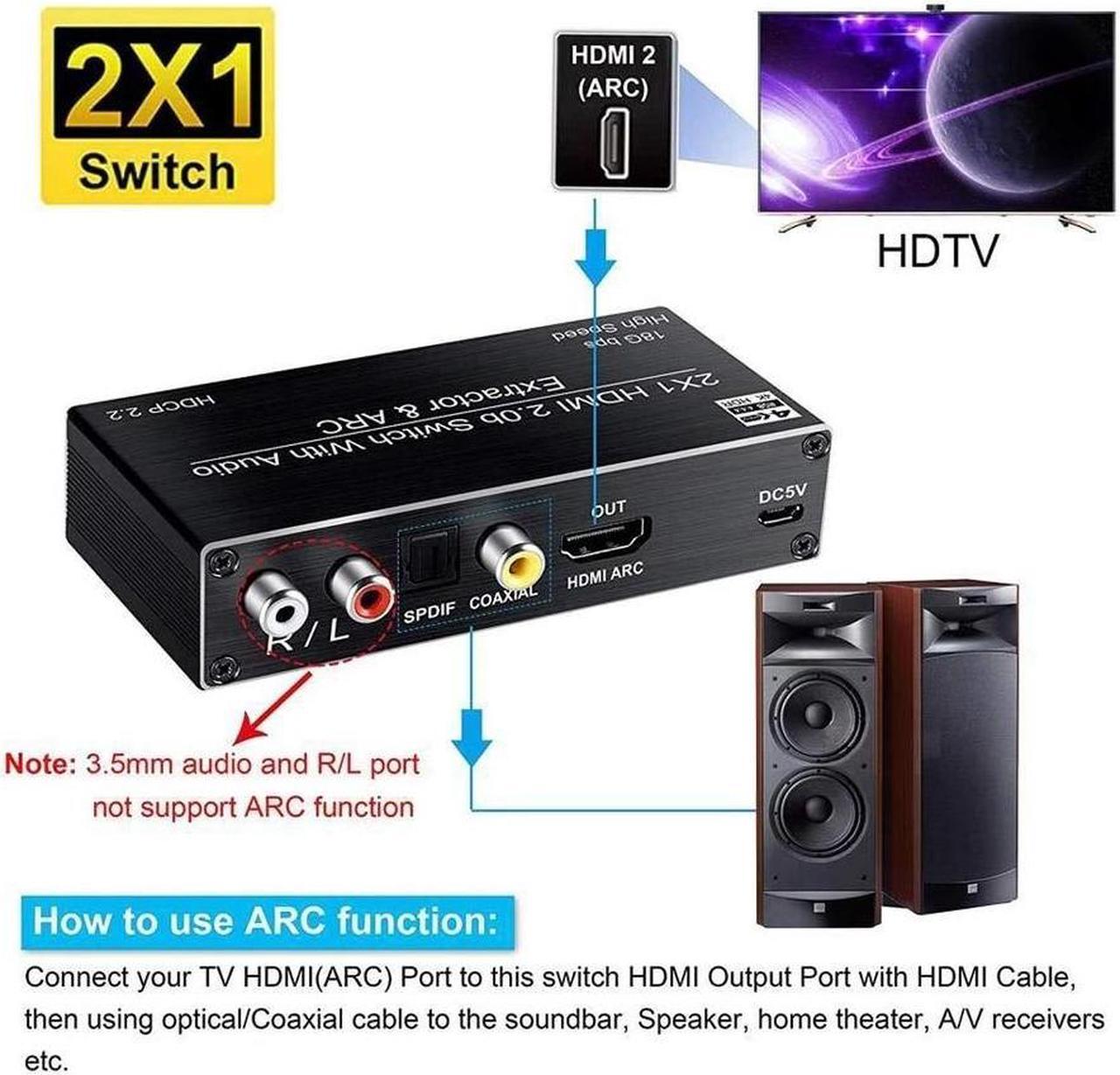

ARC ADAPTER: Supports ARC (Audio Return Channel), Extractor the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI (ARC) Port to this switch HDMI Output Port with HDMI Cable, then using optical or Coaxial cable to the soundbar, Speaker, home theater, A/V receivers etc. No distortion of audio or video(Note: 3.5 mm jack and L/R audio port not support ARC audio)
5: Smart Auto-Switch with
Remote Control: It will automatically skip to the most recently inserted HDMI signal source, it will automatic change from HDMI source A to HDMI source B when you turned on source B and back to source A when you turned source B off.
6:4 K@60hz 2x1 HDMI Switch Audio Extractor + Optical TOSLINK SPDIF +Coaxial+ Analog RCA L/R Stereo Audio Video Audio Video Splitter Converter with 18.2G bps, HDCP 2.2, HDR10, Support CEC, ARC.
7: HDMI Switcher allows you to switch easily among three HD sources to one HD display. Also, it can extract digital audio embedded in HDMI and output it via optical SPDIF and RCA L/R stereo and Coaxial audio out, It also support ARC (Audio Return Channel)

Specifications

:

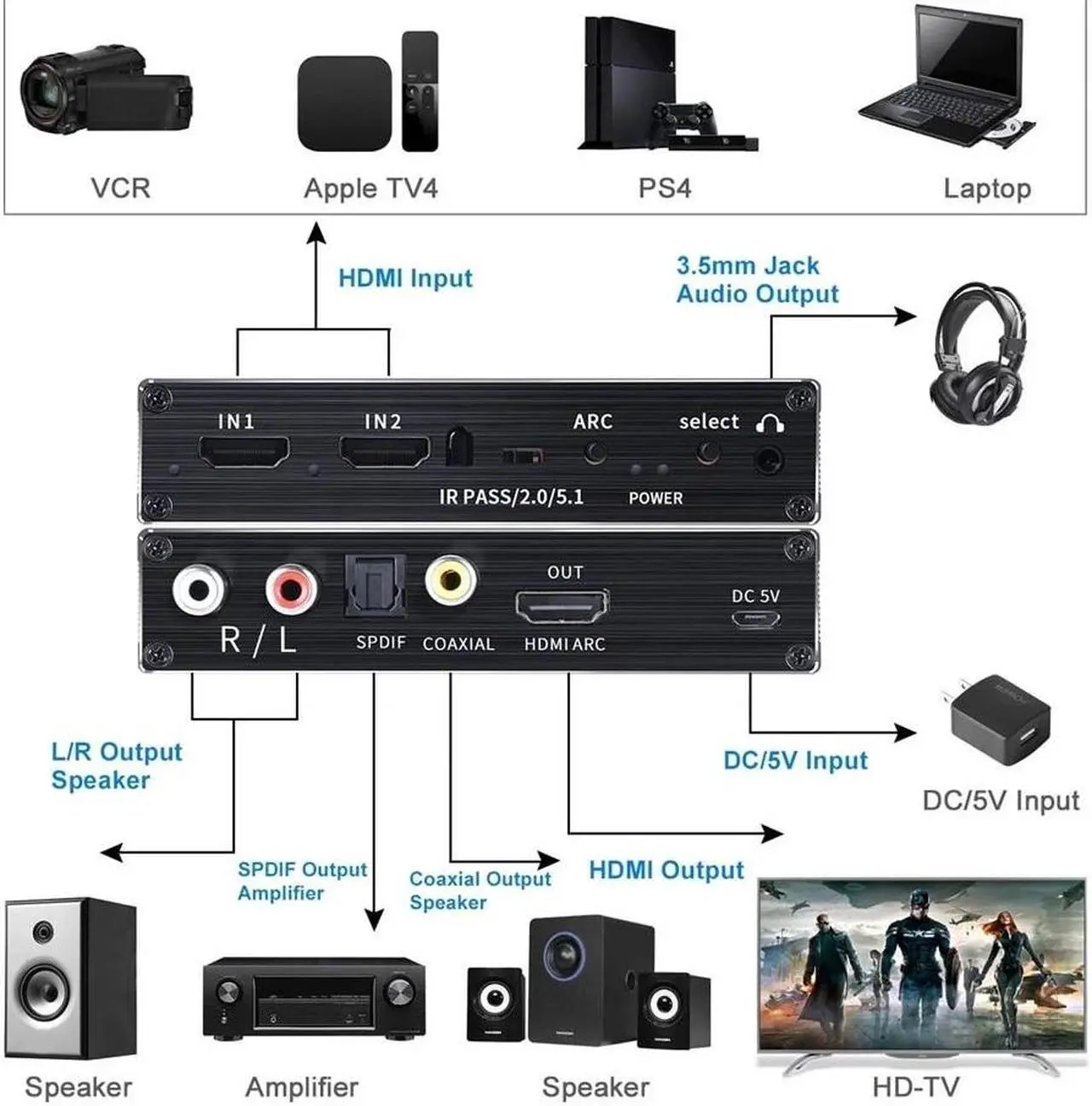

There are 2 ports HDMI input, 1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5 mm Jack output.
Coaxial and Toslink port output support audio return function (ARC).
3.5 mm Jack port output and R/L support audio extract function, it does not support ARC.
Support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4: 4/YcbCR
4:2: 2.
Max. bandwidth per channel: 600MHz. Max. baud rate per display: 18.5G bps.
Compliant with HDMI 2.0, HDCP 1.4 / 1.3 / 1.2 / 1.1 HDCP 2.2
Audio Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
Support HDR 2K HDR10 Wide Applicability: Compatible with any HDMI devices such as Nintendo Switch, PS4 Pro, Xbox 360, Xbox One X, PS3, Beamer, DVB Receivers, Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.
Notes:
1)HDMI ATC-certified hdmi 2.0 and above cable is needed to work with this HDMI 2.0 Switch.
2)to Use ARC function, pls make sure your TV supports ARC function.
3)When using ARC function, the volume can not be adjusted by your TV remote.
4)CR2025 battery is not included.

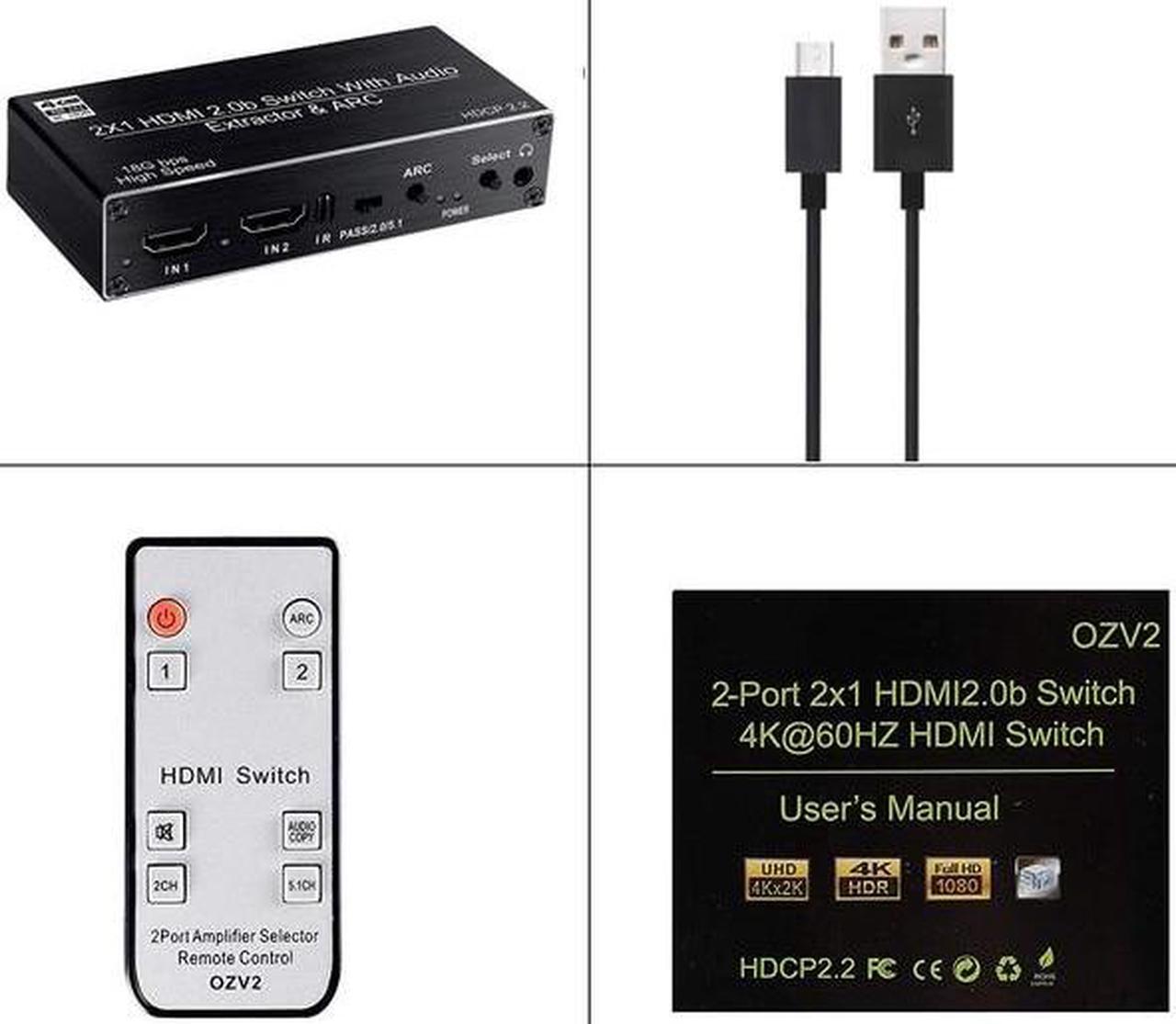

PACKAGE INCLUDED:
HDMI 2.0 Switch mainbody X1
IR remote control X1
USB power cable X1
