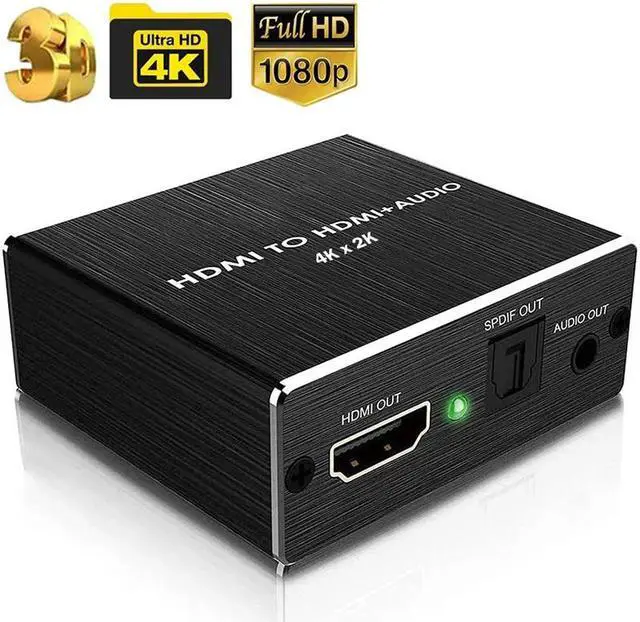

HDMI Audio Extractor HDMI to HDMI and Optical+ 3.5mm Stereo Audio Extractor Converter HDMI Audio Splitter Adapter

Description:

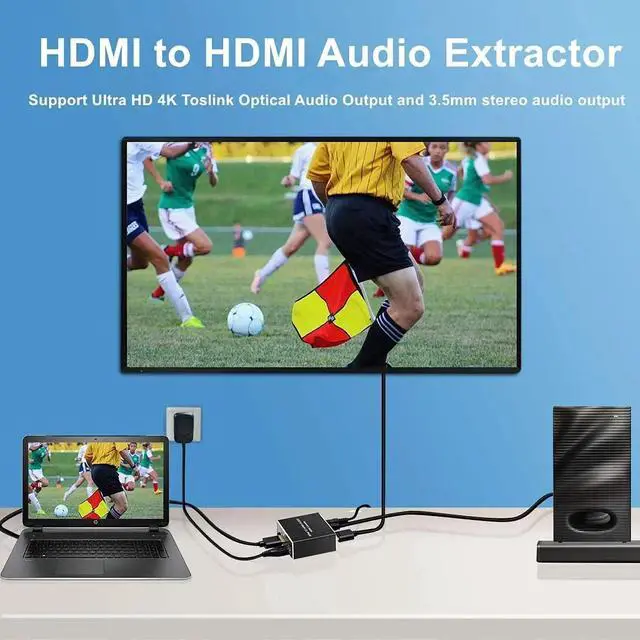

This is a high-performance, multi-functional HD audio extractor, this extractor can extract the audio signal among the HDMI signal to the power amplifier system to obtain high-quality audio effects which is hard for TV speaker to achieve.
Description:
This HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source.
It can extract the digital audio signal embedded in HDMI source and convert it through 3.5 mm L/R analog output and SPDIF output at the same time.
The RCA L/R and SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH (NOT support Dolby Digital Plus)

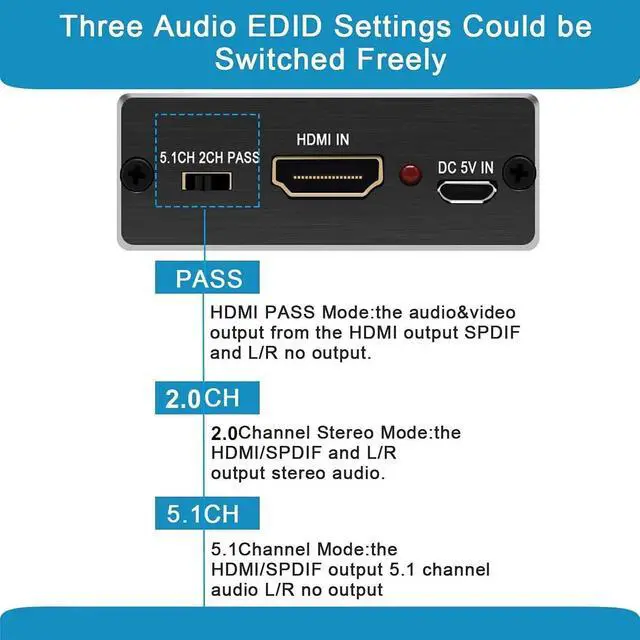

Three switching audio EDID settings:
Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output and SPDIF output at the same time.
5.1CH Mode: Extract Dolby Digital / DTS and output via SPDIF or RCA L/R. It does NOT support 5.1 Dolby Digital Plus.

Specifications

:
Features:

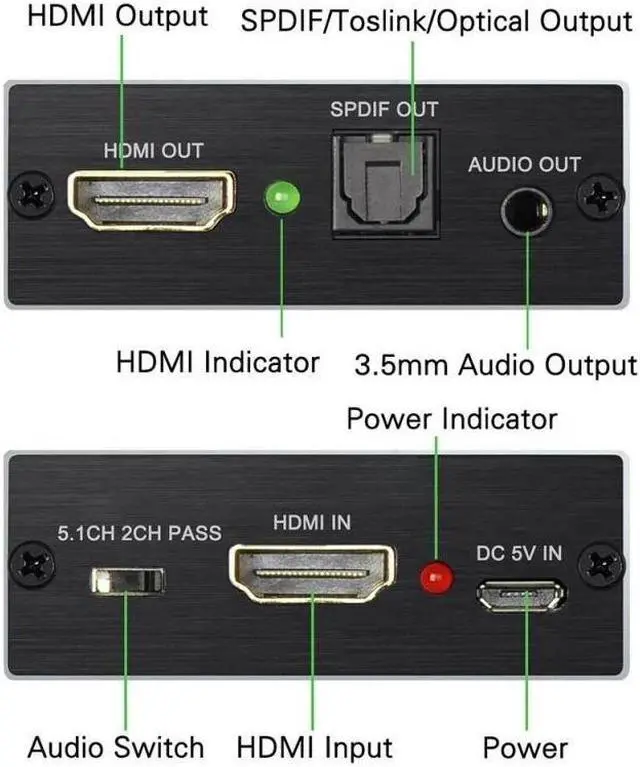

* Convert 1 HDMI Input to 1 HDMI + 1 Audio (SPDIF) Output+ 3.5 mm Analog Audio Output

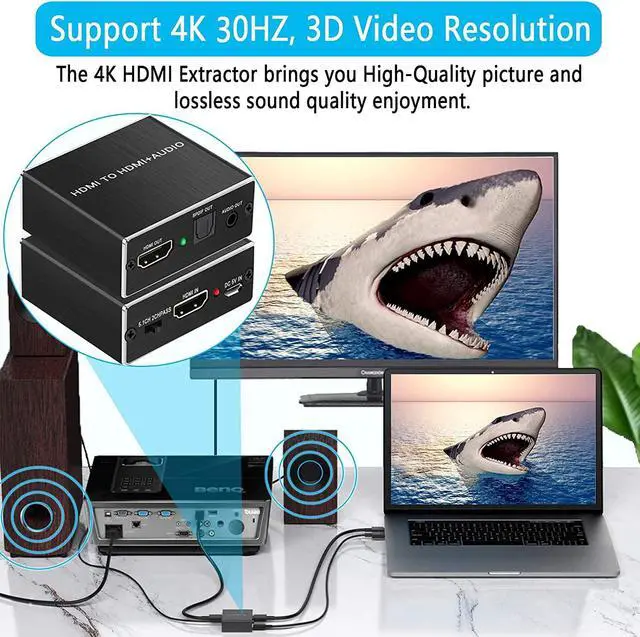

*Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz.
*HDMI to achieve the synchronization of audio signal separation. *There are PASS/ 2.0CH / 5.1CH three kinds of audio mode options.
*LED clearly indicate the working state of the Extractor.

Specifications

:
HDCP Version........................................... HDCP 1.4
HDMI Version........................................... HDMI 1.4 b
HDMI resolution................................ 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support Video Color Format......... 24bits/deep color 30bit, 36bit
Audio Output........................... SPDIF+ 3.5 mm Audio
Max Bandwidth........................................... 340MHz
Max Baud Rate......................................... 10.2G bps
Input/ Output TMDS signal..... 0.5 - 1.5V olts p-p (TTL)
Input/ Output DDC signal................. 5Volts p-p (TTL)
Input Cable Distance........................... <=7m AWG26 standard cable HDMI
Output cable distance........................ <=8m AWG26 standard cable HDMI
Max Working Current.................................... 500mA
Working Voltage...................................... DC +5V
Operating temperature range............ (-15 to +55C)
Operating humidity range........................... 5 to 90% RH (NO Condensation)
Dimension (LxWxH).................. 58 x 53 x 21.9 (mm)
Weight................................................................ 90g

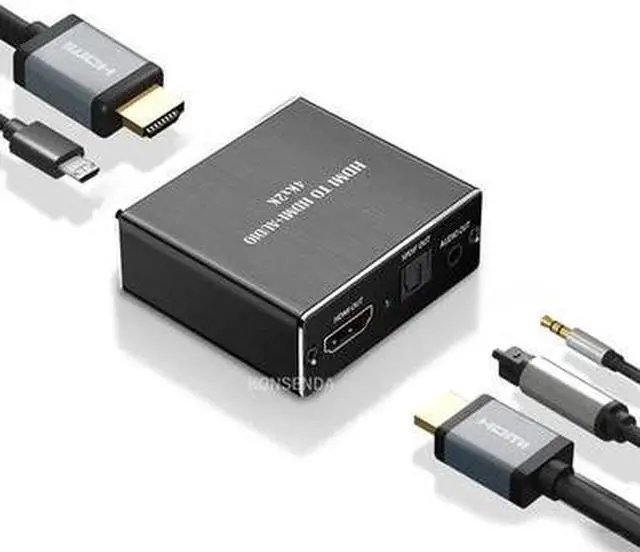

Package Included:
1 X HDMI audio extractor
1 x micro USB cable
1 X User Manual
Notes:
Warnings:
does not support Dolby Digital Plus audio. It supports DTS audio and Dolby Digital audio.
For devices with low power HDMI ports, a 5V / 1A telephone adapter can be used to connect the.
does not support copyright protected content.
