4K HDMI KVM Extender 120M HDMI USB KVM Extender over Ethernet Rj45 Cat6/7 Cable Support Keyboard Mouse for PC DVR Touch Screen(AU Plug) (TX and RX)

HD 4K 120M KVM HDMI-compatible Extender TX RX 4K 1080P 120M By Ethernet RJ45 CAT5e/6 Cable Local Loop-out With IR Remote
Introduction:
The Extender uses single cat5e or cat6 (recommended) cables instead of HDM cable totransmit high definition signal up to 120 meters,
cutting down the cost. The Extender isdesigned to supply for long distance transmission of high definition signal.
Features:
* Support HDMI 1.4 /HDCP 1.4;
* Support local loop-out;

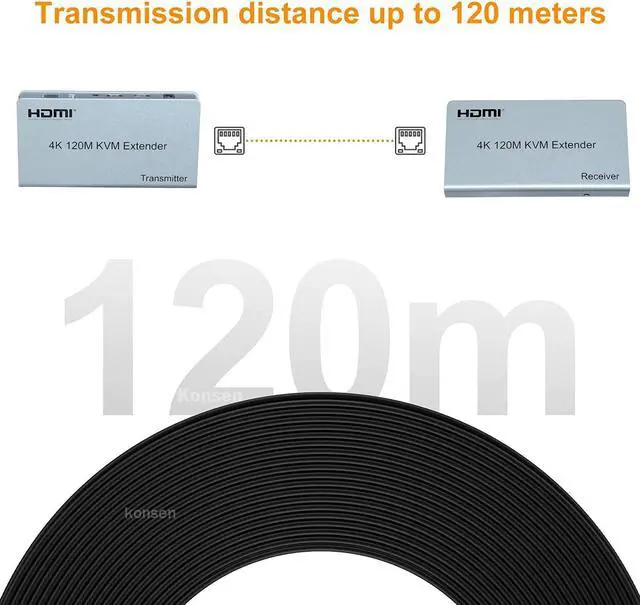

* Support 120m long distance transmission.
* Low power consumption, low temperature and high safety;
* Both the TX and RX support 3.5MM left and right audio output;
* Support IR control;
* Support USB mouse and keyboard extension;

Specifications

:
Length of CAT5e/CAT6 cable between Rx and TX......................................... 120 meters
HDMI Input.......................................................... 4k/1080p/720p/576p/576i/480p/480i
HDMI Output.......................................................... 4k 30Hz/1080p/720p/576p/576i/480p/480i
Max bandwidth...................................................................................... 340MHz
Max baud rate..................................................................................... 3x 3.4G bps
Input video signal.......................................................................... 0.5 ~ 1.5V olts p-p
Output DDC signal.......................................................................... 5Volts p-p (TTL)
Input HDMI cable distance..................................... 10m AWG26 HDMI standard cable
Output HDMI cable distance....................................... 10m AWG26 HDMI standard cable
TX Max working current............................................................................. 350mA
RX Max working current............................................................................. 200mA
Power adapter format..................
Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A
Operating Temperature range............................................................. (-15 to +55)
Operating Humidity range......................................... 5 to 90%RH (No Condensation)
Dimension (L x W x H).............................................................. 107x105x 27.3 (mm)
TX Weight................................................................................................... 499g
RX Weight.................................................................................................................... 494g

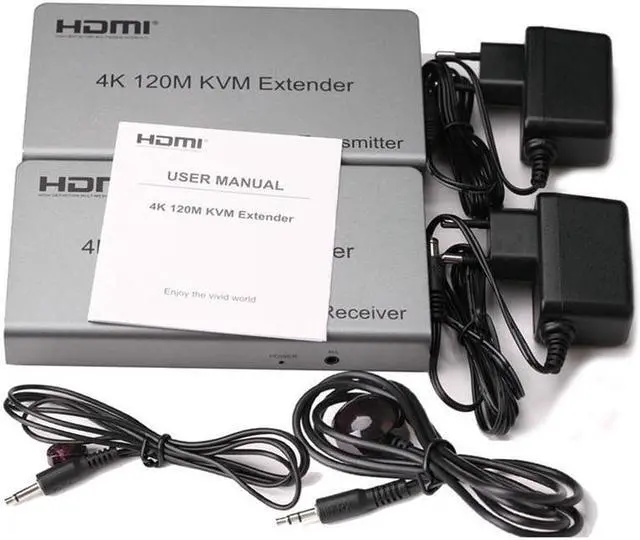

The Package includes:
1. TX Extender 1pcs
2. RX Extender 1pcs
3. IR cable 1pair
4. 5V/1A DC Power adapter 2pcs

5. User Manual 1pcs
