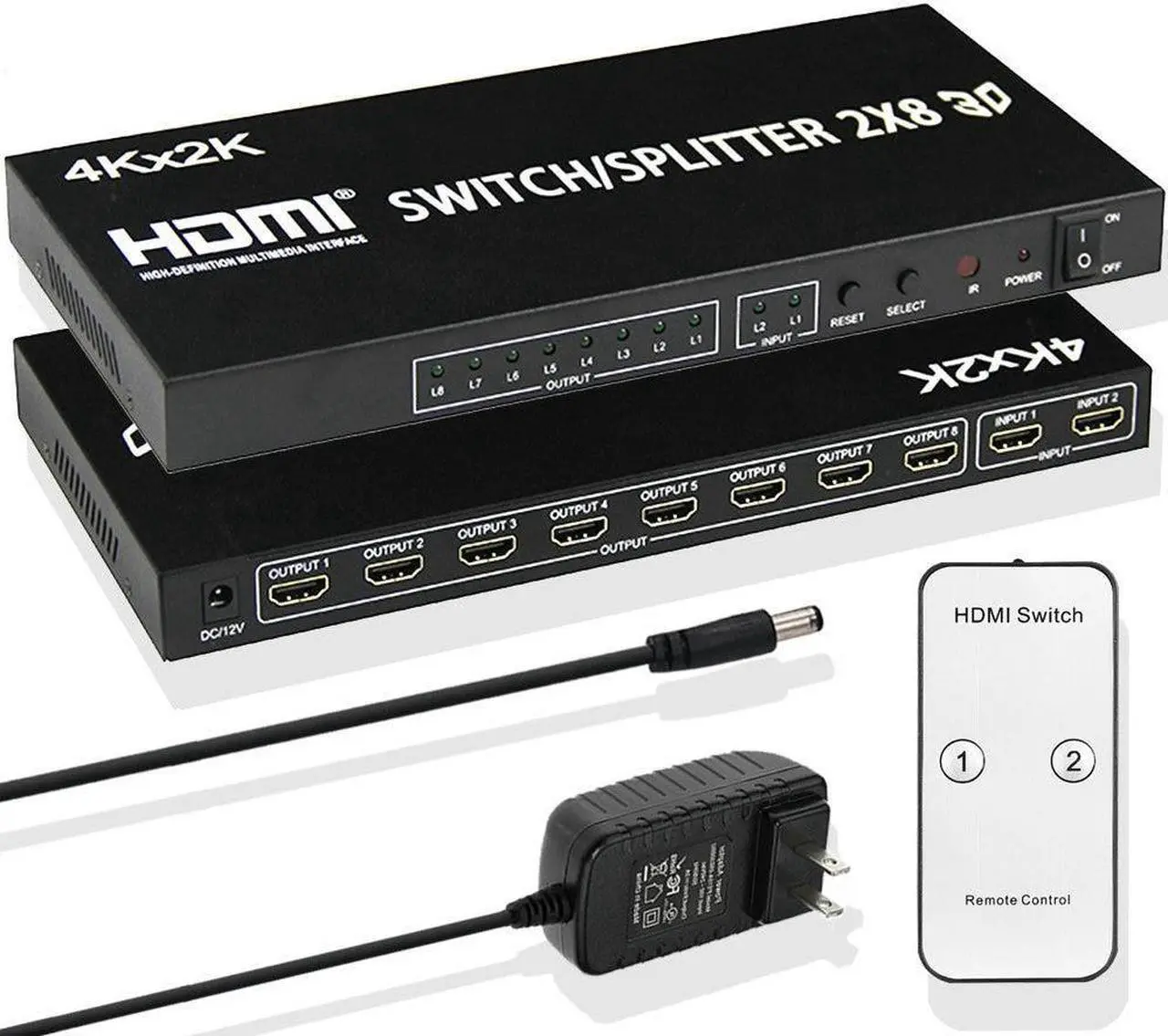

4K HDMI Swithch Splitter 2X8 HDMI Switch 2 in 8 out video convert HDMI Splitter 1 to 8 Screen Display for LED TV PC PS4 Monitor(US Plug)

Full HD 4K HDMI Splitter Video HDMI Switcher 2x8 Split 2 in 8 Out Dual Display for DVD PS3 Xbox With Power
2x8 HDMI Switcher Splitter can connect two HD signal sources with two HD display terminals, it allows two HDMI signals to be split or switched to two HDMI compatible monitors or projectors.
HDMI cable connects with HDMI output, the 2x8 splitter can amplify the HDMI singal; supporting highest video resolution 1080p/60 Hz, HDMI 1.4 a, 3D, 4KX2K
Compatible with fully HDMI 1.3 / 1.4 Specification compliant. buffer HDMI signals at the same time, HDMI or DVI to HDMI cables used for inputs and outputs.
Included IR remote adapter for operational flexibility and easy control, no manual clicking the select button needed

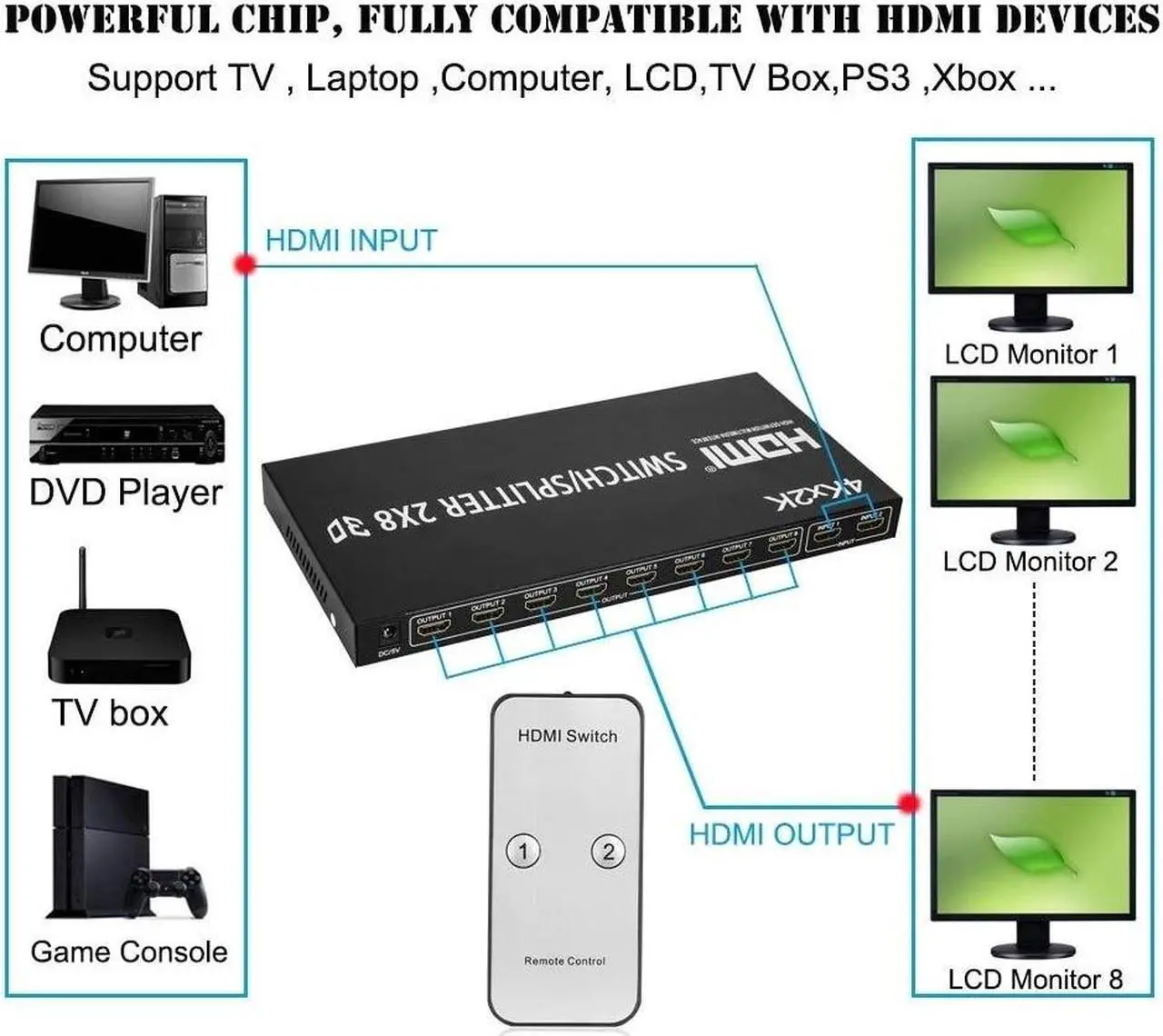

Support single high definition display and multiple output HD signal sources, such as DVD Players, A/V receiversand Set Top Boxes, 360 Sky Box Freesat Virgin Bluray Player DVD HDTV Projector Camcorder HTPC Laptop Product description
Features:
Automated split to highest resolution, supports EDID/CEC.
Support highest video resolution 1920x1080P / 60 Hz; 3840x2160 / 30 Hz.
Support Blu-ray, full HD/ HD 3D performance.
Support 3.4G bps data rate and tmds clock up to 340 MHz.
Support AWG26 HDMI standard cable, input up to 15 metres, output up to 25 metres (resolution 1080p).
Support AWG26 HDMI standard cable, input up to 12 metres, output
up to 15 metres(resolution: 4k).
Support audio format: DTS-HD/ Dolby-trueHD/ DTS/ Dolby-AC3/ DSD.

Specifications

:
HDMI Input Port: 2
HDMI Ouput Port: 8
Max working current: 500mA
Power adapter Input format: AC (50HZ, 60HZ) 100V-240V
Power adapter Input format: DC5V/1A
Operating Temperature range: (-15 to +55)
Dimension (L x W x H): 276 x 135 x 24 (mm) / 8.3 x 4.1 x 0.7 (inch)
Package Weight: 970g

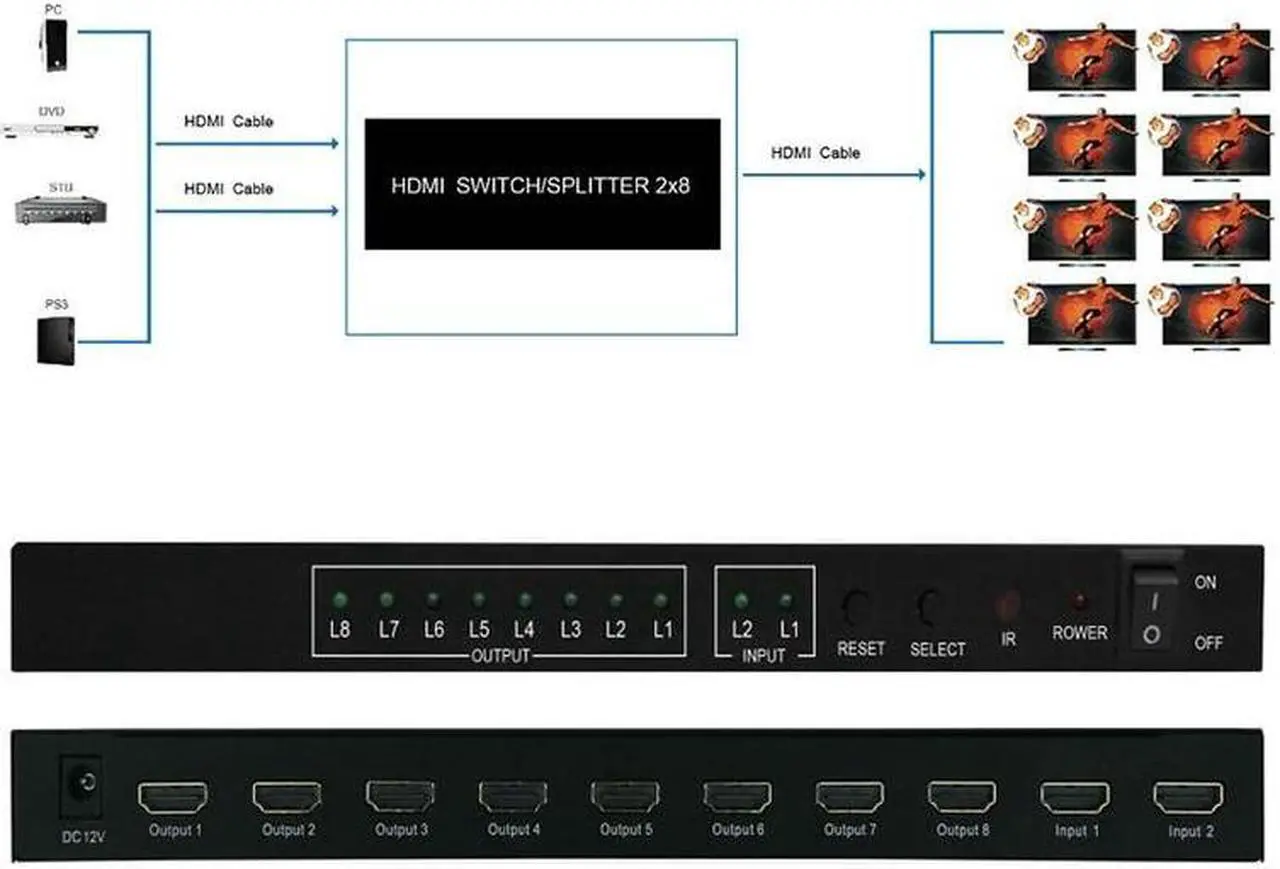

Operating and Connecting:
1: Connect HDMI source device and HDMI Switcher/Splitter input with two HDMI cables.
2: Connect display and HDMI Switcher/Splitter output with two HDMI cables.
3: Connect 5V/1Apower adapter to the HDMI Switcher/Splitter.

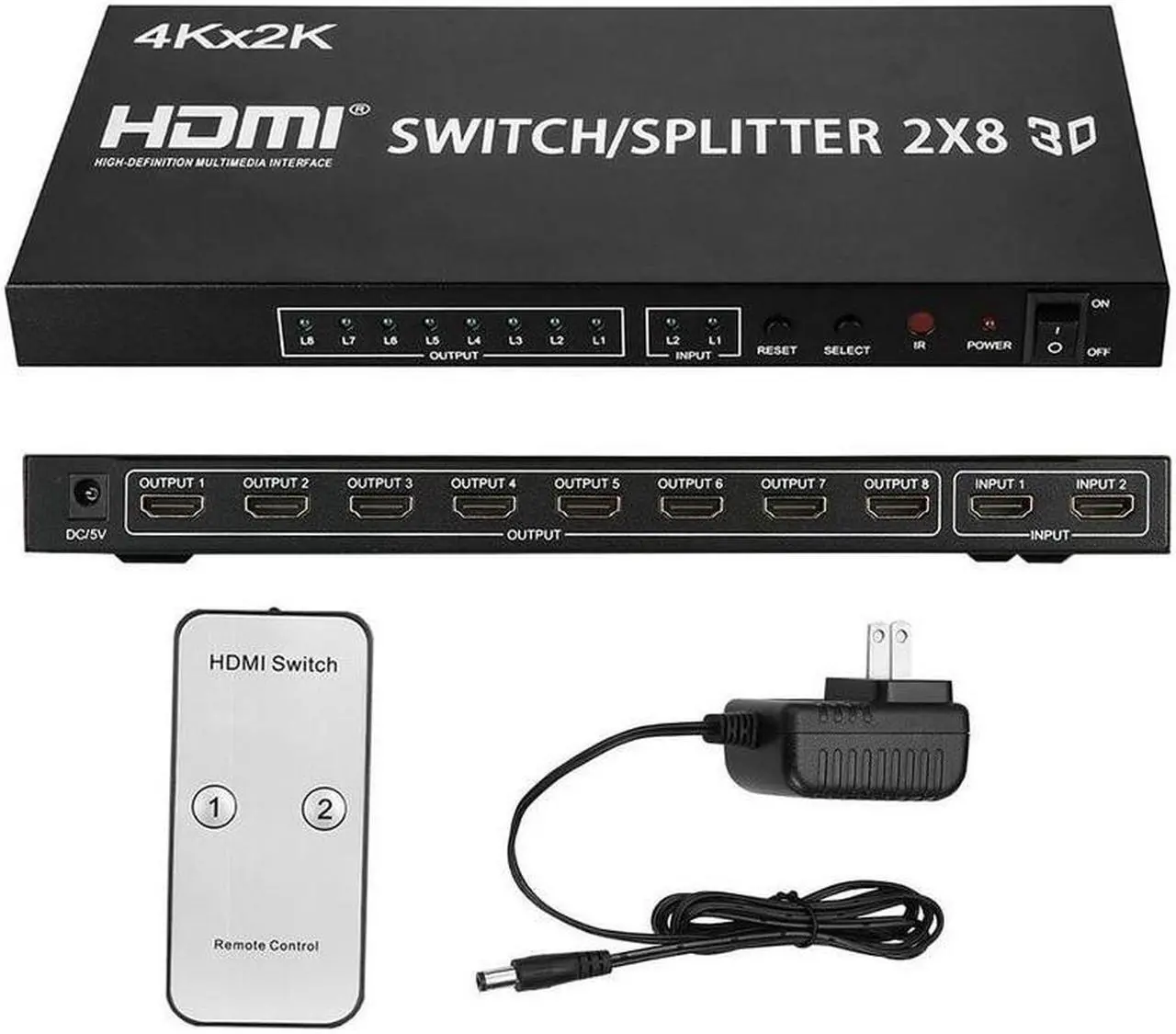

The Package includes:
1. 2X8 HDMI Switcher/Splitter
2. IR Remote Control (with battery)
3. 5V DC Power adapter

4. User Manual
