8K HDR HDMI Matrix Switch 4 In 2 Out Matrix HDMI 2.1 Switch Splitter 4x2 with L/R 3.5mm Audio Out Support 4K 120Hz HDCP2.3 EDID(US Plug)

Introduction
The HDMI 8K/60Hz matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals, with stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. HD2 output port can realize independent audio output by stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control information distribution, conference room presentation, school and corporate training environments.
Features:
* Support HDCP 2.3;
* Support HDR;
* Support 3D video format;
* Support 8K@60Hz;
* Support audio outputs, 3.5 mm earphone jack output;
* 4 HDMI inputs switch and split to 2 HDMI displays;
* HDMI output1 support 8K 60Hz
* HDMI output2 support 4K 60Hz
Note: HDMI OUT1 supports up to 8K @60hz; HDMI OUT2 supports up to 4K @60hz
The R/L port stereo audio extracts the HDMI OUT2 port signal.

Specifications

:
HDMI resolution----------------------------------------------------up to 8K/60Hz
Support video format------------------------------------------8/10/12 bit deep color
Support audio format---------------------------------------- LPCM/DTS/Dolby-AC3
Max baud rate------------------------------------------------------------40Gbps
Input cable distance---------------4K/60Hz 5M; 8K/60Hz 3M HDMI 2.1 standard cable
Output cable distance-------------4K/60Hz 5M; 8K/60Hz 3M HDMI 2.1 standard cable
HDMI Input--------------------------------------------------------------------4
HDMI Output------------------------------------------------------------------2
Max working current-------------------------------------------------------600mA
Power adapter format. -----------
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
Operating Temperature range-----------------------------------------(-15 to +45)
Operating Humidity range------------------------------5 to 90%RH (No Condensation)
Dimension (Lx W x H) ---------------------------------------------172x172x19 (mm)
Weight--------------------------------------------------------------------456g

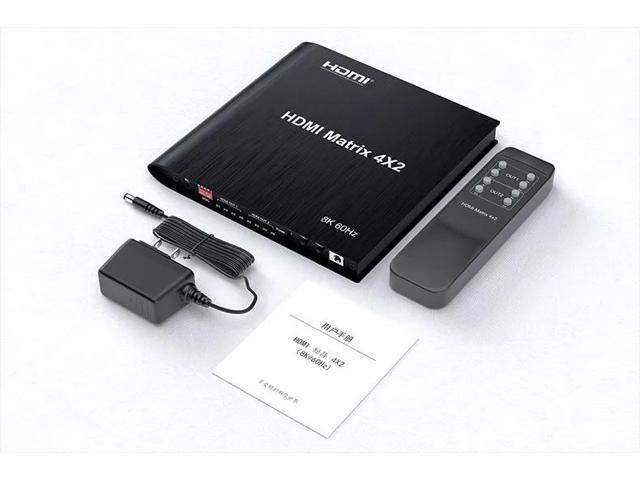

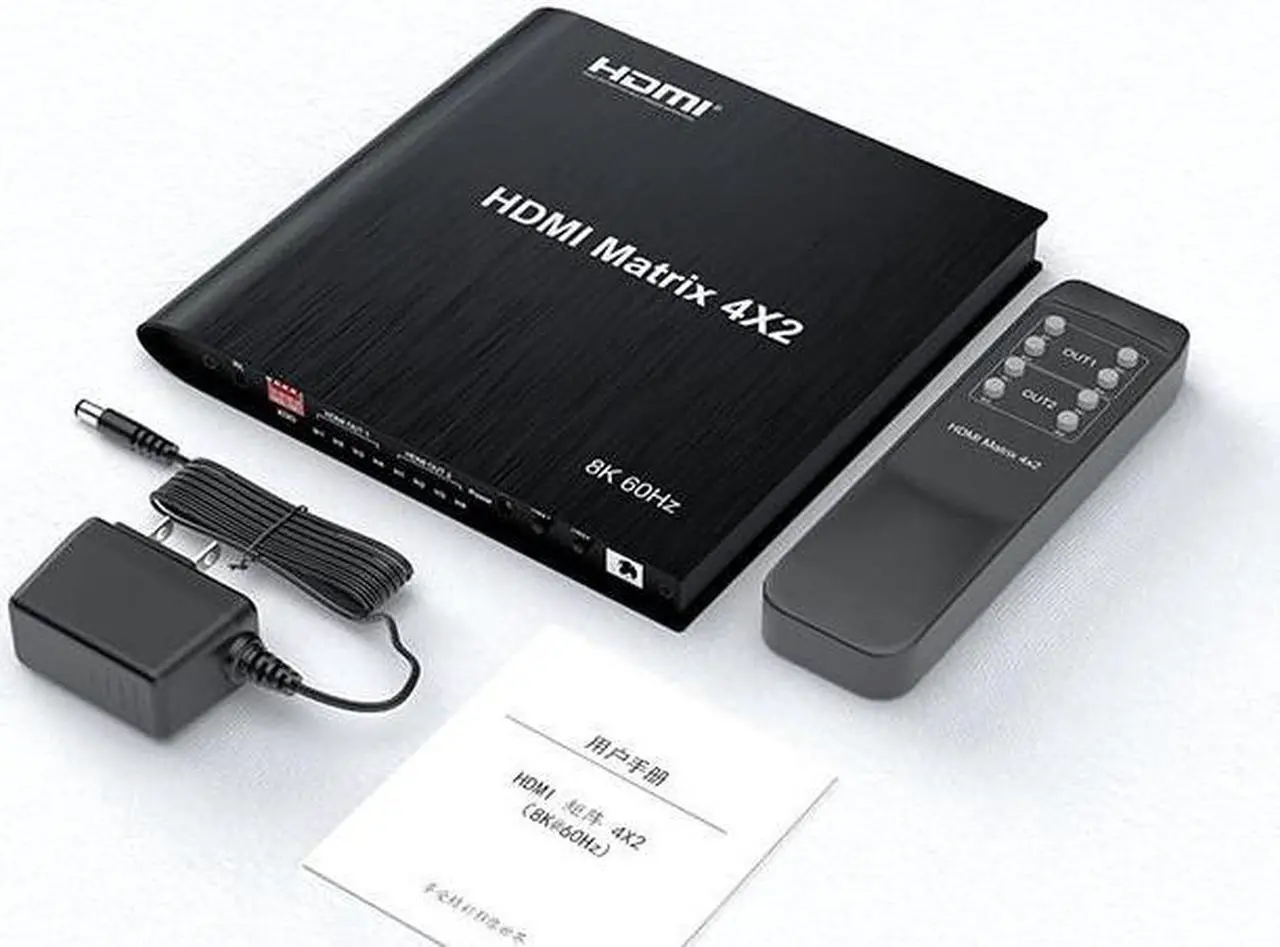

Accessories:
1 x 8K 60Hz HDMI Matrix 4X2
1 x IR Remote Control Without Battery
1 x User manual
Retail packaging is not included, please communicate with us if you need it.
