4K 2x2 HDMI Video Wall Controller HDMI TV Wall Processor 1080P 60Hz 1X2 1X4 1X3 2X1 3x1 4X1 Video Stitching Processor Splicer(With EU Plug) (1080P)

Warm Tips:

1. This product is usedfor horizontal screens, If you use for vertical screen, pls contact us to buy other ones.
2. The link have two model "1080P""4K 30Hz", please kindly select the right version according to your request.
Introduction:

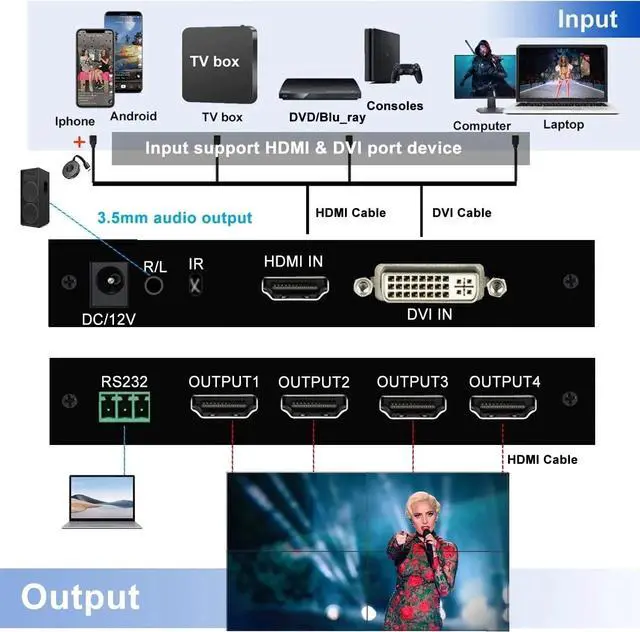

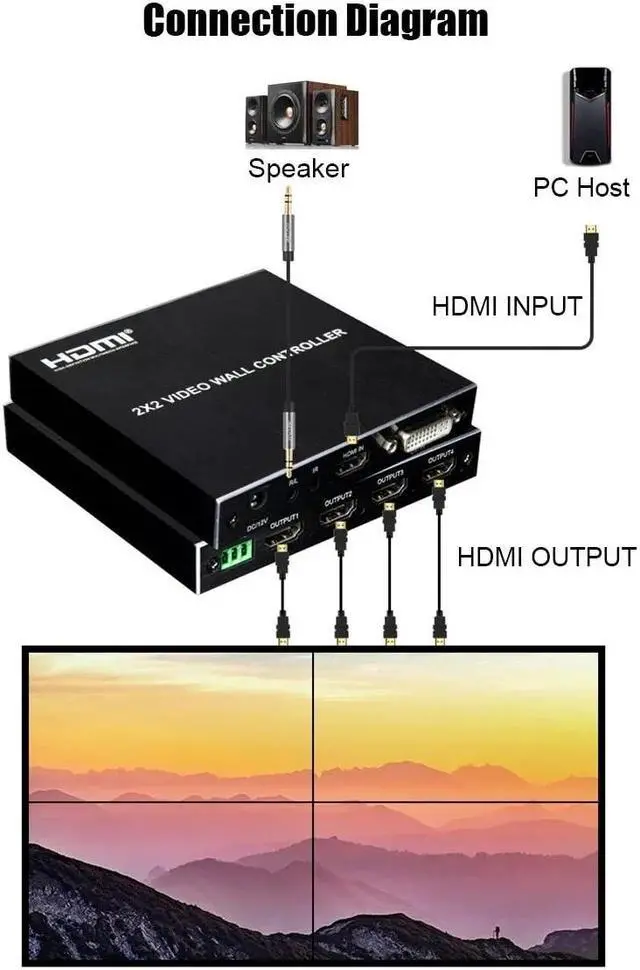

This 2x2 video wall controller, support HDMI or DVI input and 4 HDMI output, the main function is to divide a
complete HDMI, DVI HD image signal into 4 blocks and assign to 4 video display units (such as rear projection
unit, LCD TV, etc. ). Complete with 4 HDMI HD video display units to form a large dynamic image wall.
Features:
* Support HDMI and DVI input;
* Support 4 HDMI output;
* Output support RGB 4:4: 4;
* 1080P version: Support input up to 1080P 60Hz, output up to 1080P 60Hz;
* 4K 30Hz version: support input/output up to 4K 30Hz
* Support RS232 control;

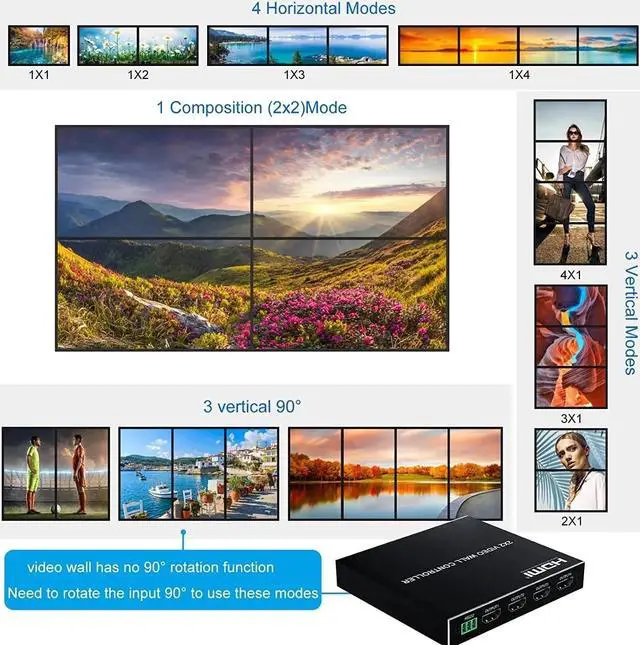

* Support 2X2/1X2/2X1 splicing, easy operation, plug and play;
* Support 2X2 automatic splicing function;

Specifications

:
Support audio format............................................................................................. stereo
1080p60 to 1080p 60 version: Input/Output cable length................. 5m AWG26 HDMI standard cable
4k30 to 4k30 version: Input/Output cable length........................... 10 M, AWG26 HDMI standard cable
Max working current...................................................................................... 300mA
Power adapter specifications........ input AC (50HZ, 60HZ) 100V-240V Output 12V DC/1A
Operating Temperature range........................................................... (-10 +45)
Dimension (L x W x H)................................................................... approx. 121x119x19 (mm)
Weight....................................................................................................... approx. 228g
Package Content:
2x2 Video Wall Controller x1
Power supply adapter x1
User manual x1
Remote Controller without battery x1
