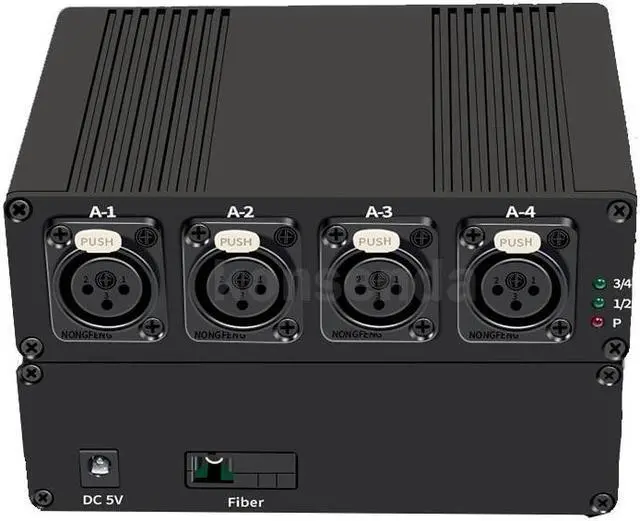

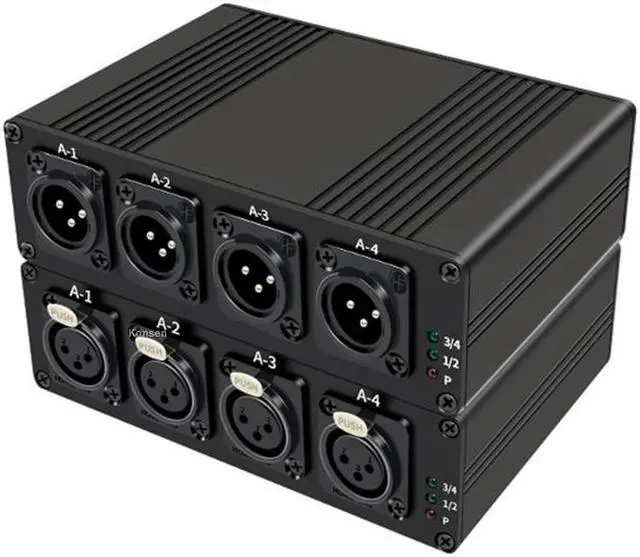

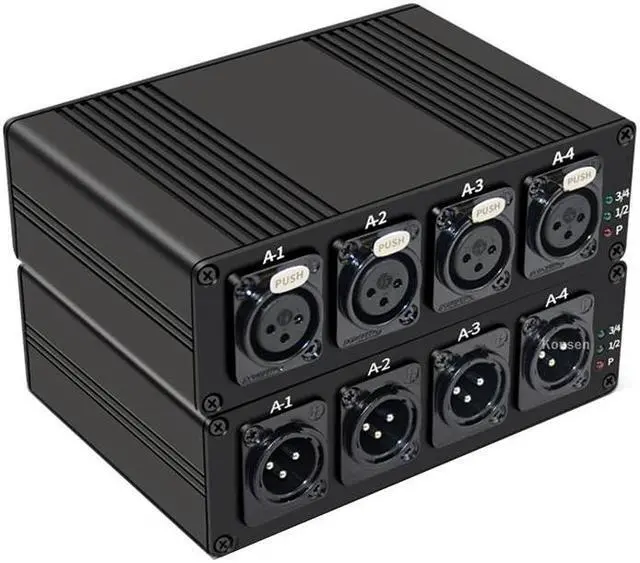

20Km 4 CH Audio Fiber Extender over SC Fiber Optical Cable Balanced Fiber Extender Transceiver Audio Extension Transmit(With EU Plug)

Introduce:
This digital four channel audio optical transceiver can use one SC optical fiber to transmit four channel forward audio signals. The audio signal adopts 24bit/96KHZ digital sampling to ensure high fidelity transmission; digital optical transmission channel ensures high-quality signal transmission. It can be applied to game console high fidelity audio equipment, set-top box, HI-FI home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, classroom medical care, military field, flat video media advertisement transmission demonstration, etc.
Features:
1. Four channels one-way audio optical fiber transmission, with a default distance of 20KM (0-120KM optional)
2. High speed synchronous digital transmission technology
3. The optical dynamic technology is adopted, and no adjustment is required during use

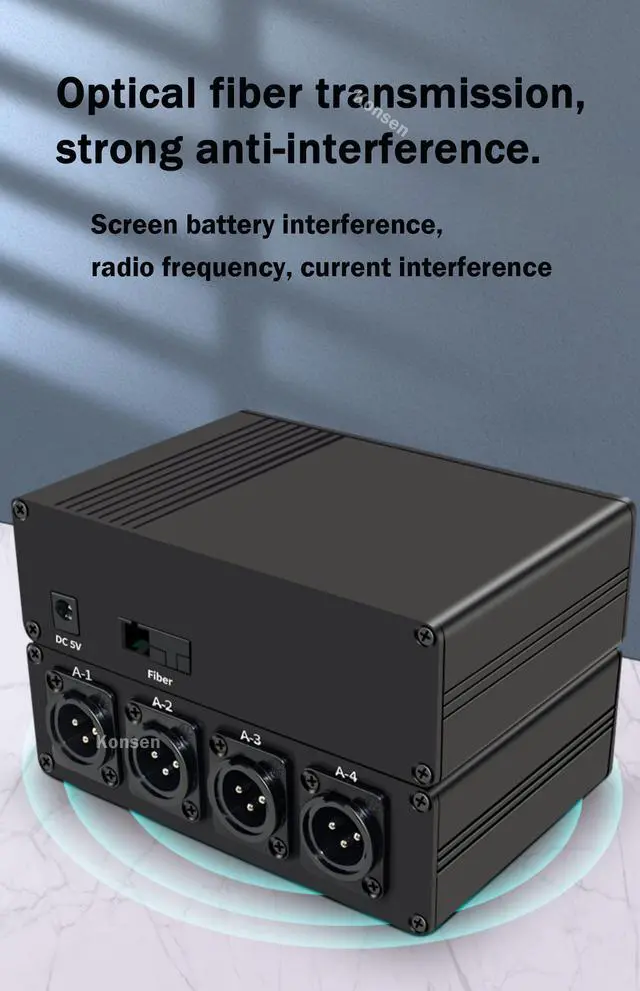

4. No electromagnetic interference, no radio frequency interference, no ground current

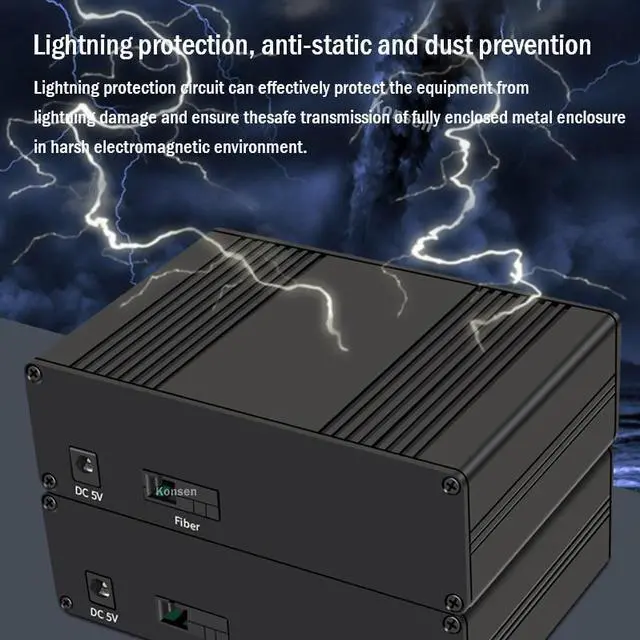

5. Ensure safe transmission in harsh electromagnetic environment
Description:
Audio character
Audio input impedance: 10K
Audio output impedance: 600
Interface mode: Balanced XLR
Input/output amplitude ratio: 1/1
frequency response: 20HZ-20KHZ
Audio sampling rate: 24bit/96KHZ
Signal-to-noise ratio: 75dB
Audio interface: XLR
optical character
Transmission wave length: TX: 1310nm, RX: 1550nm
Optical interface: FC/SC (Default SC standard)
Transmitting optical power: Max 10dB/20KM
Receiving sensitivity: -35@155MB/S
Optical dynamic range: -39dB~-42dB
Optical allowable maximum chain loss: 25dB
Transmission distance: 20KM (Single mode)

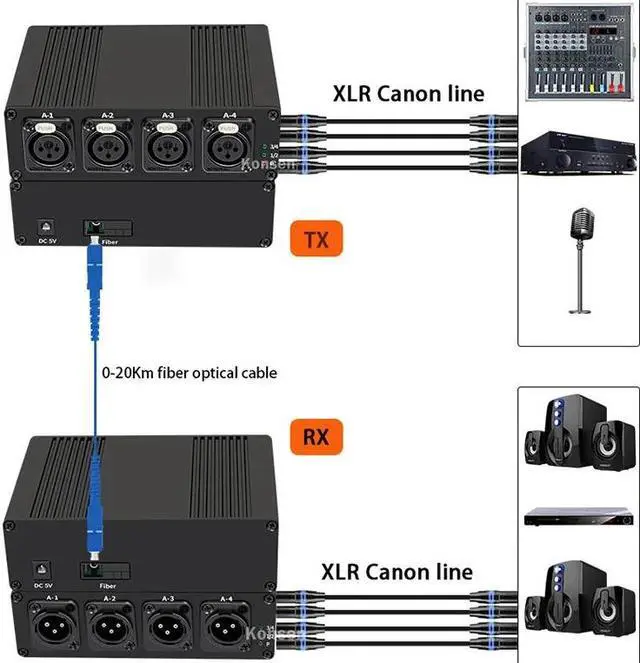

Installation Process:
1, Connect the audio signal source to the transmission end of audio fiber extender;
2, Connect the receiving end of audio fiber extender to the audio and power amplifier;
3, Connect the optical fiber interface between the sender and the receiver with one optical fiber cable;
4, Connect the sender and the receiver to the power supply. When the indicator lights up normally, the system operates normally
Package:
1 x transmitter
1 x receiver
1 x Power adapter
1 x User manual
Note: This product sends SC fiber optic interface by default, if you need FC interface, please communicate with us in advance.
