4K 2x2 HDMI Video Wall Controller 1080P TV Wall Processor 1x2 1x3 1x4 4 Screens Stitching Bezel Compensation 180 Degree Rotate(AU Plug) (1080P 2X2)

Warm Tips:
Here are 2 options "4K 2x2 " "1080P 2x2" Please buy according to your needs, we will send you the option you purchased.
If you choose "1080P 2X2", its Input resolution MAX. is 1920x1080P/60HZ, do not support 4K30 input
Product Features:
(1) The finished product is a pure hardware structure with three basic splicing modes. It can also be used with a splitter
to connect multiple screen images in series to meet your application needs and suit more scenes.
(2) The new splicer supports 1x2, 2x2, 1x4 composition into a large screen, independent audio output, can be connected
to the audio, headphones; no computer control, convenient and stable stitching.
(3) A high-definition image signal is divided into 4 blocks and then assigned to 4 display screens; 4 display screens
are combined into a large screen in 2x2 mode.
(4) A high-definition image signal is divided into 4 blocks and assigned to 4 display screens; 4 display screens
are combined into a large screen in 1x4 mode.
(5) Support 180 rotate function, it only fit for 2x2 mode, the first row of 2 display unit can rotate 180 degree.
Product parameters:
(1) Support 1 channel DVI or HDMI input
(2) Input support HDMI 1.4, HDCP 1.4
(3) Support 4 channels of HDMI output, 3.5 mm audio output
(4) Input resolution: 1920x1080P/60HZ, 3840x2160P 30HZ [ "1080P 2X2", do not support 4K30 input ]
(5) Output resolution: 1920x1080P 60HZ
(6) Input format: RGB / YUV 24bit;
Output format: RGB444 24bit
(7) Easy to operate, plug and play
(8) DC 12V / 2A power adapter

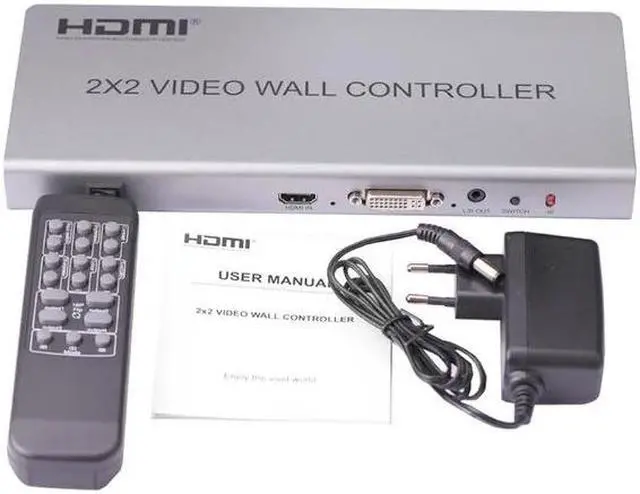

Package contents:
1 x 2x2 HDMI Video Wall Controller
1 x 12V power supply
1 x IR remote control (battery is not included)
1 x User Guide
The three basic stitching modes can be combined with the splitter, and the multi-screen stitching image
can be used in series to meet your application needs and suit more scenes.
Plug and play
Zero configuration for quick use, no need to install any drivers, link settings can be used;
High-performance technology chip
No computer control required; convenient and fast stitching;
