8K USB C Bi-Direction Switch 1x2/2x1 Data Video Switcher USB 3.1 PD 100W Splitter For Computer Monitor Multiple Source KVM

8K USB CBi-Direction Switch 1x2/2x1 Data Video Switcher USB 3.1 PD 100W Splitter For Computer Monitor Multiple Source KVM
INTRODUCTION:

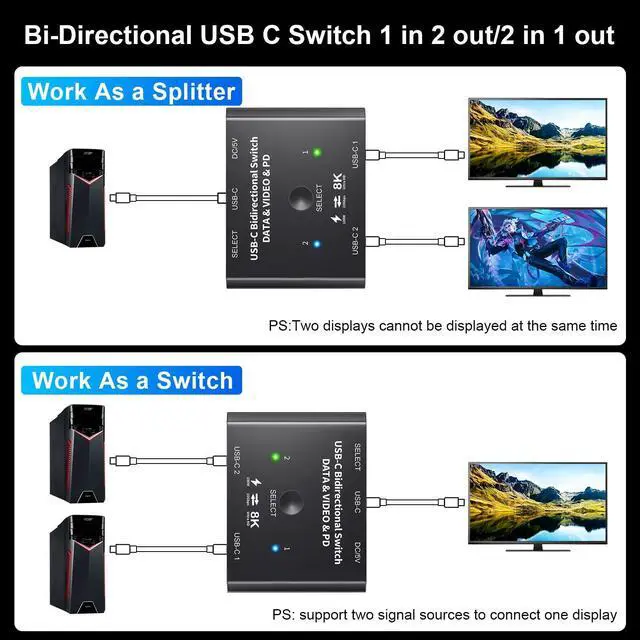

This USB C switch has two working modes. It can be used as a 2x1 switch, which allows you to connect two sources
devices to one display;
It can also be used as a 1x2 splitter that enables you to connect one source to two displays (Note that two displays can not work at the same time).
FEATURES:
Compliant to link with all USB-C input and output
Complies with USB 3.1. USB PD 3.0 and DisplayPort 1.4 specification
Supports: 8K@30Hz
5K@60Hz
4K@120Hz. 60Hz
1440P@165Hz. 144Hz. 120Hz. 60Hz
1080P@165Hz. 144Hz. 120Hz. 60Hz
(Depending on the system and the connected hardware)
Supports transmission speed 10Gbps(USB 3.1 Gen2)
Supports max 100W power delivery
Supports OS: MAC OS X, Windows
External power is required. Please be sure to power the switchwith the supplied USB to DC cable when you use it.
SPECIFICATIONS:
Connectors:
Function 1 when used as a 2x1 switch
Input:
2 x USB Type C female
1 x 5 V DC jack 1.35 x 3.5 mm
Output:
1 x USB Type C female
Function 2 when used as a 1x2 splitter
Input:
1 x USB Type C female
1 x 5V DC jack 1.35 x 3.5 mm
Output:
2 x USB Type C female
Robust metal housing
Colour: black

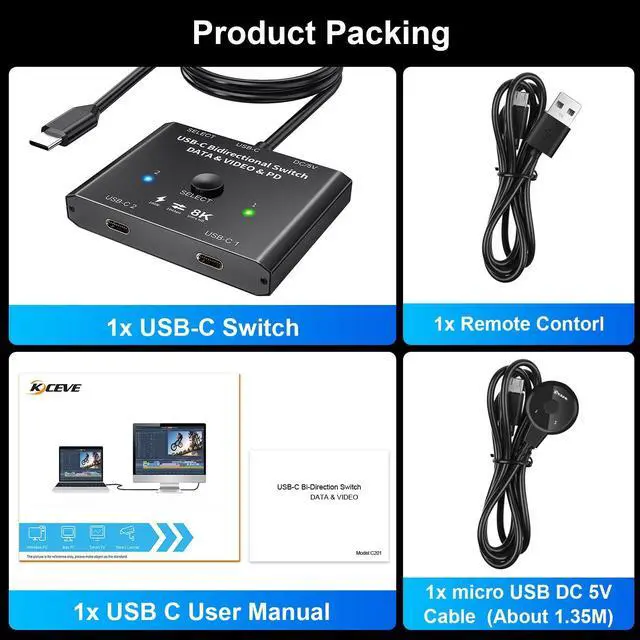

PACKAGE CONTENTS:
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1 x Bi-direction Switch
USB A to Micro B cable
1 x User Manual
