(Without retail box)(UK Plug)4x2 HDMI Matrix Switch 4 in 2 out 4K 60Hz HDMI2.0 Matrix Video Switcher Splitter With Optical & L/R Audio Extractor HDCP2.2 EDID

Introduction:

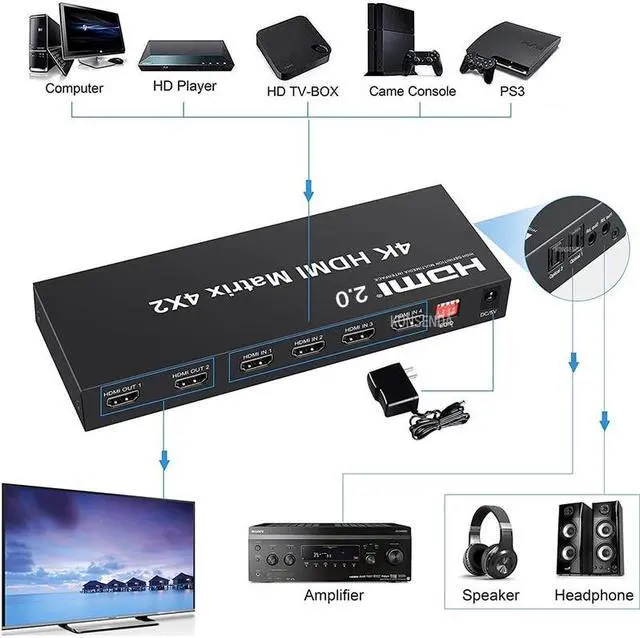

The HDMI 2.0 matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output.

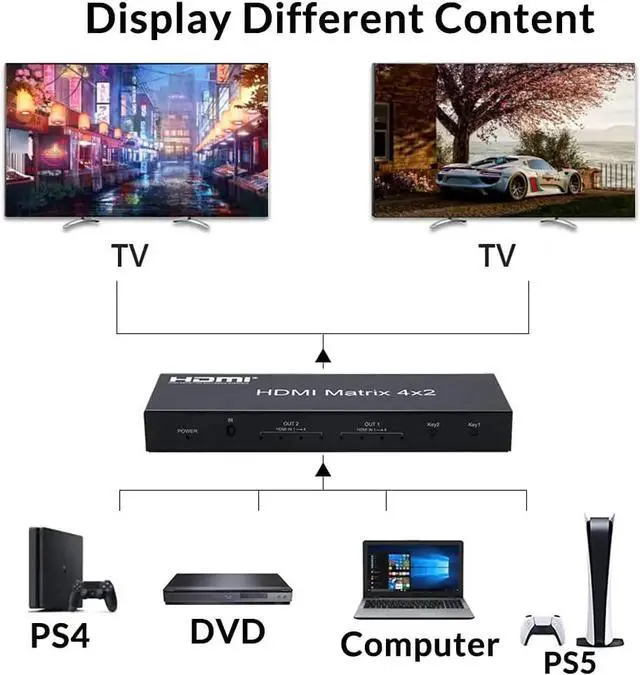

The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors.
And any output ports can realize independent audio output by optical fiber or stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
* Support 3D video format
* Support for 4K (input) resolution 2K (output) (Down scaler)

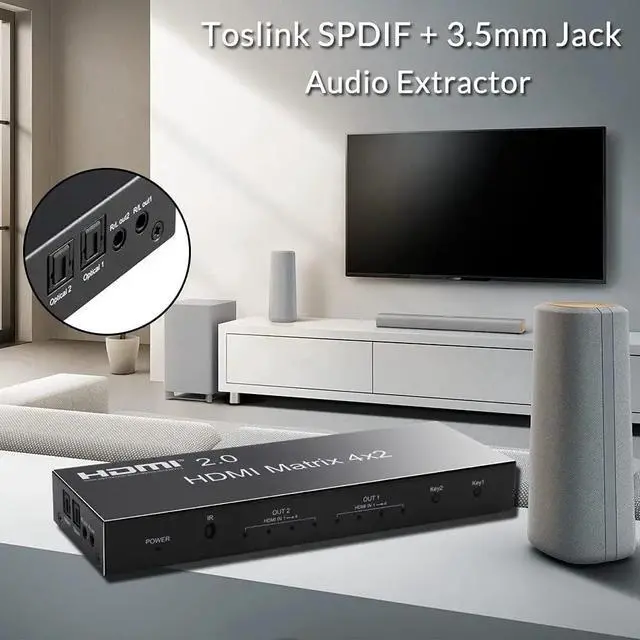

* Support 2 HDMI audio outputs, 3.5 mm earphone jack and optical output at same time
* 4 HDMI inputs switch and split to 2 HDMI displays.
* Support LPCM/Dolby/DTS 5.1 channel.
SPECIFICATIONS:
HDMI version.......................................................................................... HDMI 2.0
HDMI resolution........................................................................ up to 3840*2160/60Hz
Support video format...................................................................... 8/10/12 bit deep color
Support audio format.................................................................... LPCM/DTS/Dolby-AC3
Max bandwidth......................................................................................... 600MHz
Max baud rate......................................................................................... 3x6Gbps
Input cable distance................................... 4K/30Hz 15M AWG26 HDMI standard cable
4K/60Hz 5M HDMI 2.0 standard cable
Output cable distance................................. 4K/30Hz 15M AWG26 HDMI standard cable
4K/60Hz 5M HDMI 2.0 standard cable
HDMI Input......................................................................................................... 4
HDMI Output....................................................................................................... 2
Max working current................................................................................... 600mA
Power adapter format....................
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range............................................................... (-15 to +45)
Operating Humidity range............................................ 5 to 90%RH (No Condensation)
Dimension (L x W x H).................................................................. 199x70x27 (mm)
Weight.......................................................................................................... 300g
Accessories:
1. HDMI Matrix 4X2 1PCS
2. IR Remote Control 1PCS
3. 5V power adapter 1PCS

4. User Manual 1PCS
Note: This product has two kinds of printed letters, either HDMI 2.0 or 4K60hz, they are equal, random delivery.
