(with AU Plug)(HF20-TX and RX)3Km HDMI Fiber Extender over SC Fiber Optical Cable 1080P 20Km HDMI Extender over Fiber Optic Transceiver Video Audio Extension

There are 2
Modes:
HF03--Max distance support 3Km
HF20--Max distance support 20Km
The appearance of the two is the same, but the supported distance is different.
1. INTRODUCTION

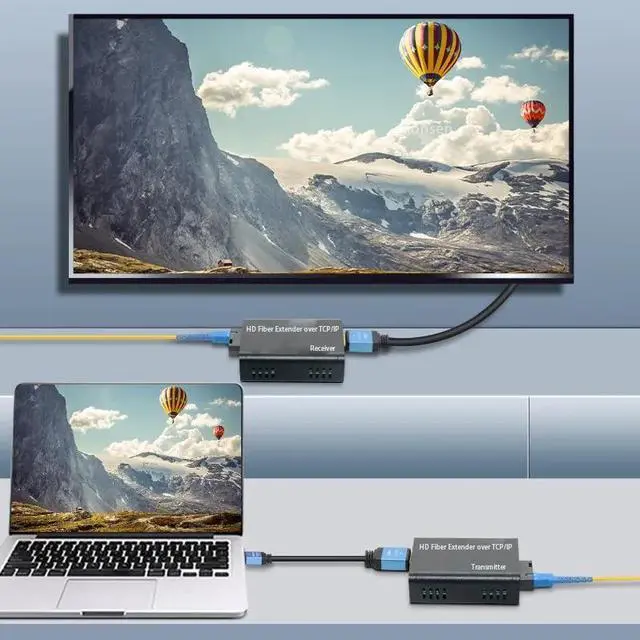

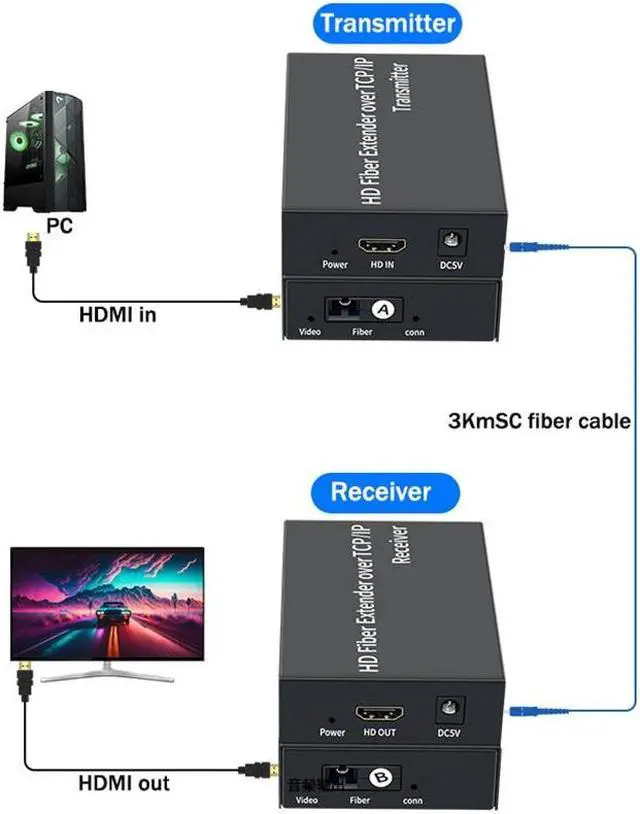

The Extender over fiber uses one piece of fiber cable to extend the HDTV display up to 3KM or 20KM for 1920*1080P@60Hz, It not only breaks the limitation of the HDMI cable transmission length, but also fiber has more flexibility and convenience in cable construction.

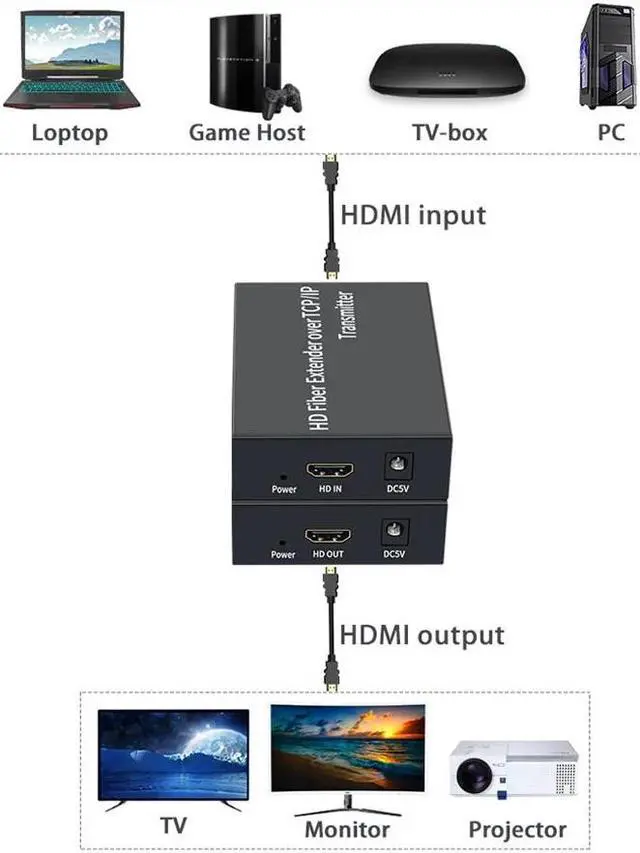

It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI adapter, providing greater flexibility and options when integrating several home theater components.
It offers solutions for residential consumers: HDTV retail and show site, HDTV, STB, DVD and projector factories, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2. BENEFITS
1) The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however fiber cables are available everywhere and can be processed easily by the user or installer.
2)Because the head of the long HDMI cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However, fiber cables do not have such problems.
3) With this extender, the transmission distance can be up to 3KM or 20KM while using fiber cables, for the general HDMI cables, they must be customized when the length is over 10 meters.
3. FEATURES
This Extender has many features that enable it to perform in superior manner, among those features and you will find:
One pair as a full functional module, no need of setting.
Fiber cable can substitute HDMI cable to achieve long distance transmission.
HF03 or HF20 video resolution can be up to 1920*1080P@60Hz.
Compact size
Signaling rates up to 1.65 bps in support of 1920*1080P@60Hz display.

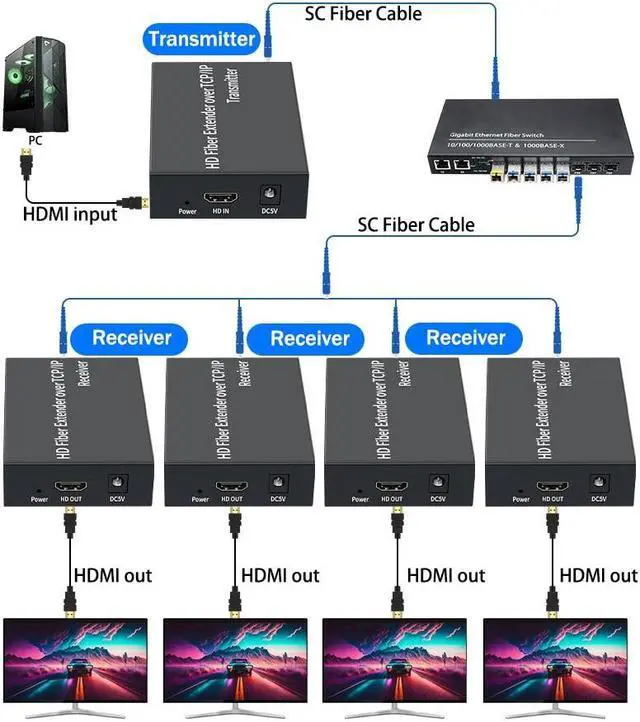

Support 1 Sender to multi receiver via fiber Ethernet switch.
HDCP compliant
Support uncompressed audio such as LPCM
Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolbytrue HD)
4. PARAMETERS LIST
Input video signal ---------------- 0.5 - 1.0 volts p-p
Input DDC signal----------------5volts p-p (ttl)
Maximum single link range----------------1920*1080, 1080p
Output video----------------HDMI
DTV/HDTV----------------1080p/1080i/720p/576p/480p/576i/480i
HF03----------------3KM
HF20----------------20KM
Interlaced(50&60hz)----------------480i 576i 1080i
Progressive(50&60hz)----------------480p, 576p, 720p, 1080p
Power consumption----------------5wattd (max)
Operating temperature----------------0 to+70
Operating humidity----------------10%to85%RH (no condensation)
Storage temperature-----------------10to+80
Storage humidity----------------5%to95%RH (no condensation)
External power supply----------------DC5V @1A

5.
Package: (for TX and RX)
1 x Transmitter
1 x Receiver
1 x USB Cable(only option 'KVM')
2 x 5V Power adapter
1 x Manual

6.
Package: (for 1 RX only )
1 x Receiver
1 x 5V Power adapter

7.
Please note:
*Since this product has the function of 1 TX to many RX, RX sold separately.
*A separate RX is purchased separately by customers with additional needs.
*Here are 2 options, please buy according to your needs.
*At least 1TX+1RX product is required to work.
*We'll send you the options for your purchase.
